Raspberry Pi 5 Case
Print Profile(0)
Description

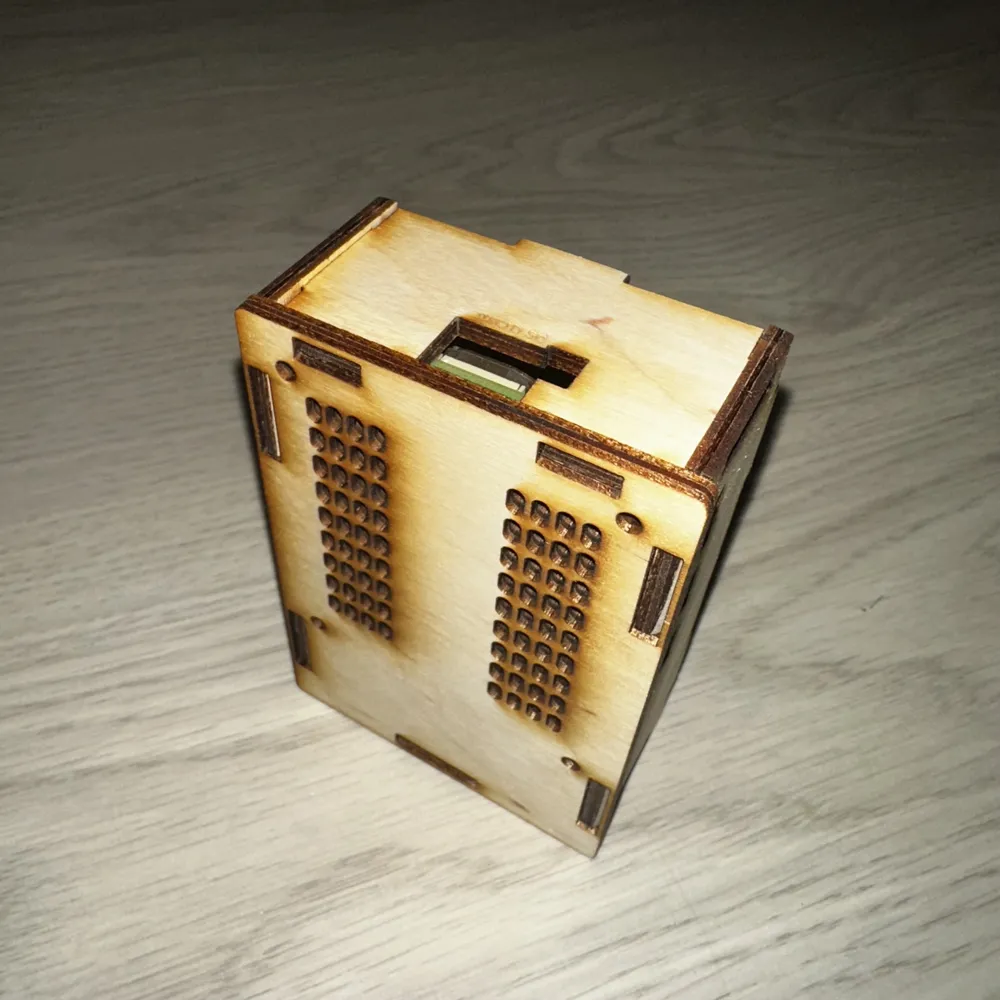

Minimalist Raspberry Pi 5 case made of 3mm wood.
Additionally, 4x 5mm spacers and 4x 22mm spacers are required, including 8x corresponding screws.

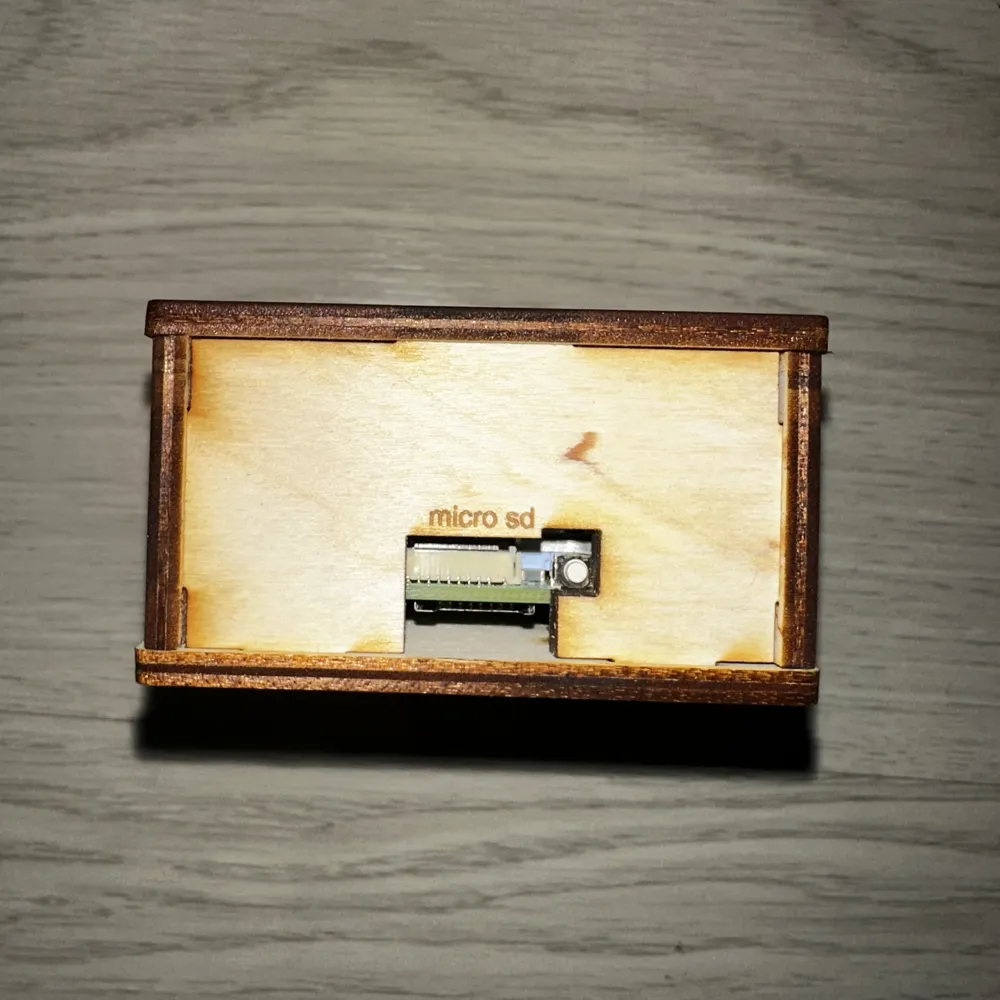

1x side panel Micro-SD card slot

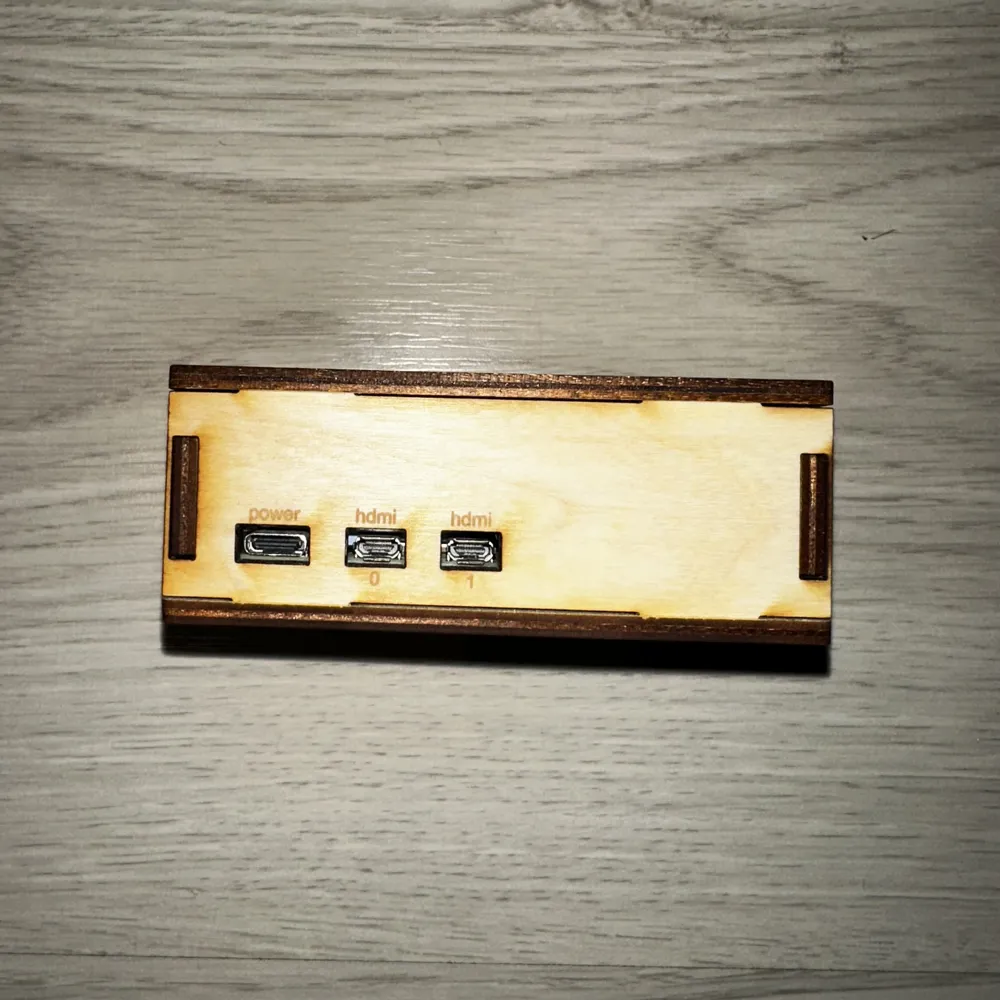

1x side panel side ports

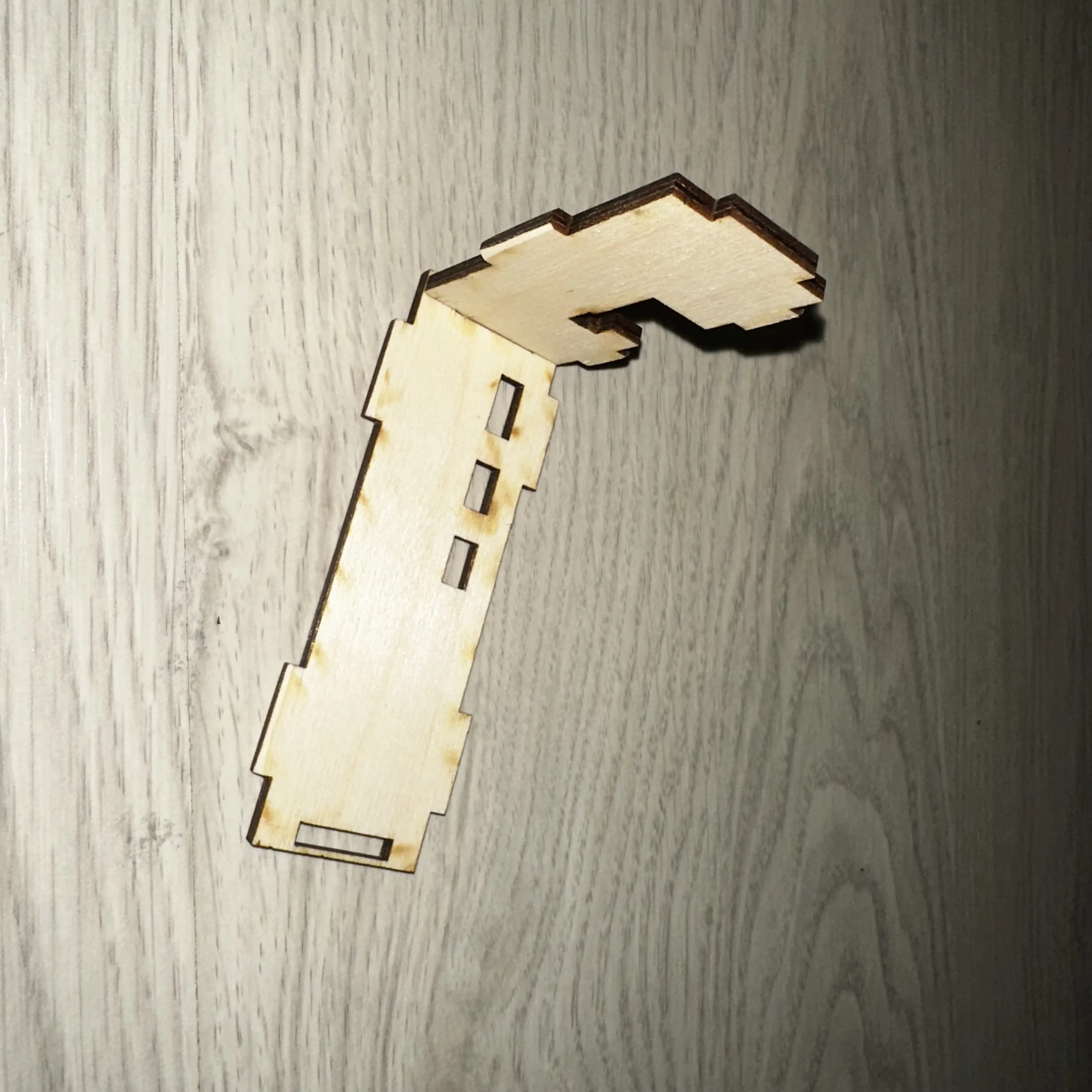

Assemble both parts as shown. To simplify assembly, the edges of the connections can be lightly sanded.
1x Raspberry Pi 5

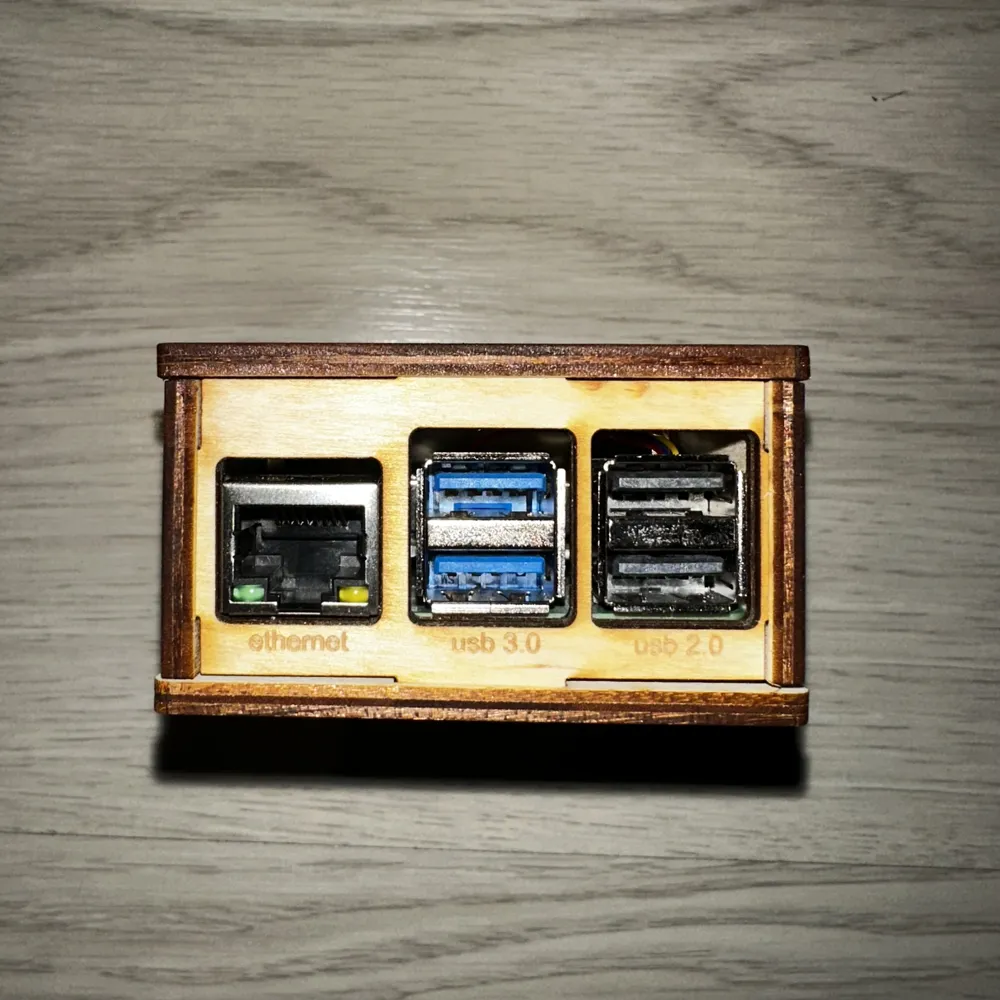

1x side panel USB front

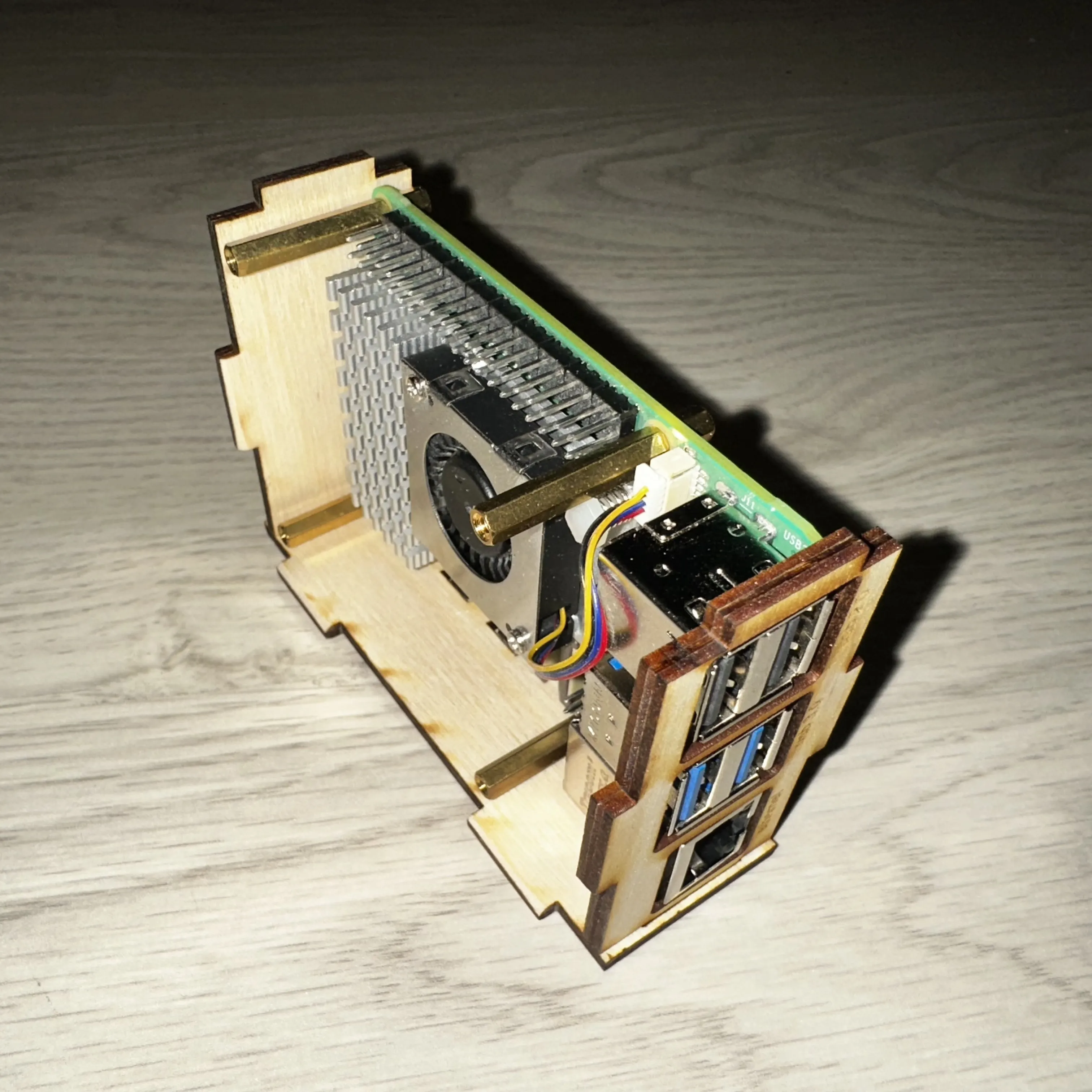

Assemble the USB front side panel together with the Raspberry Pi.
1x side panel GPIOs

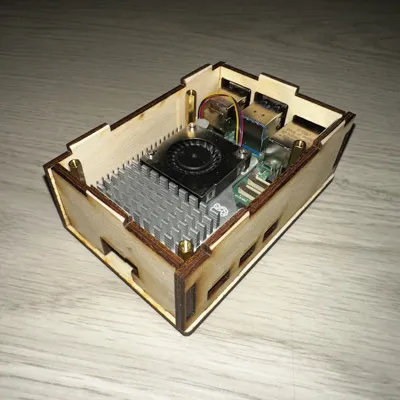

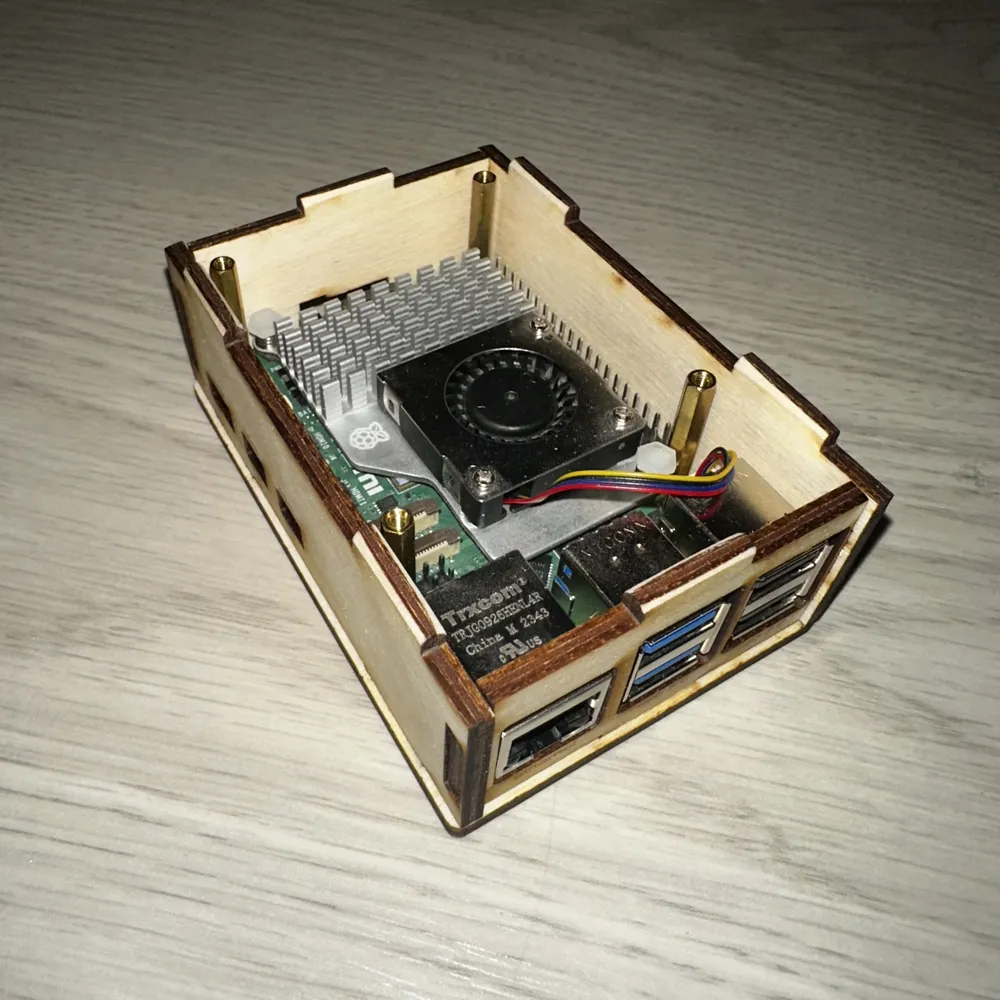

Mount the last side panel as shown
1x bottom

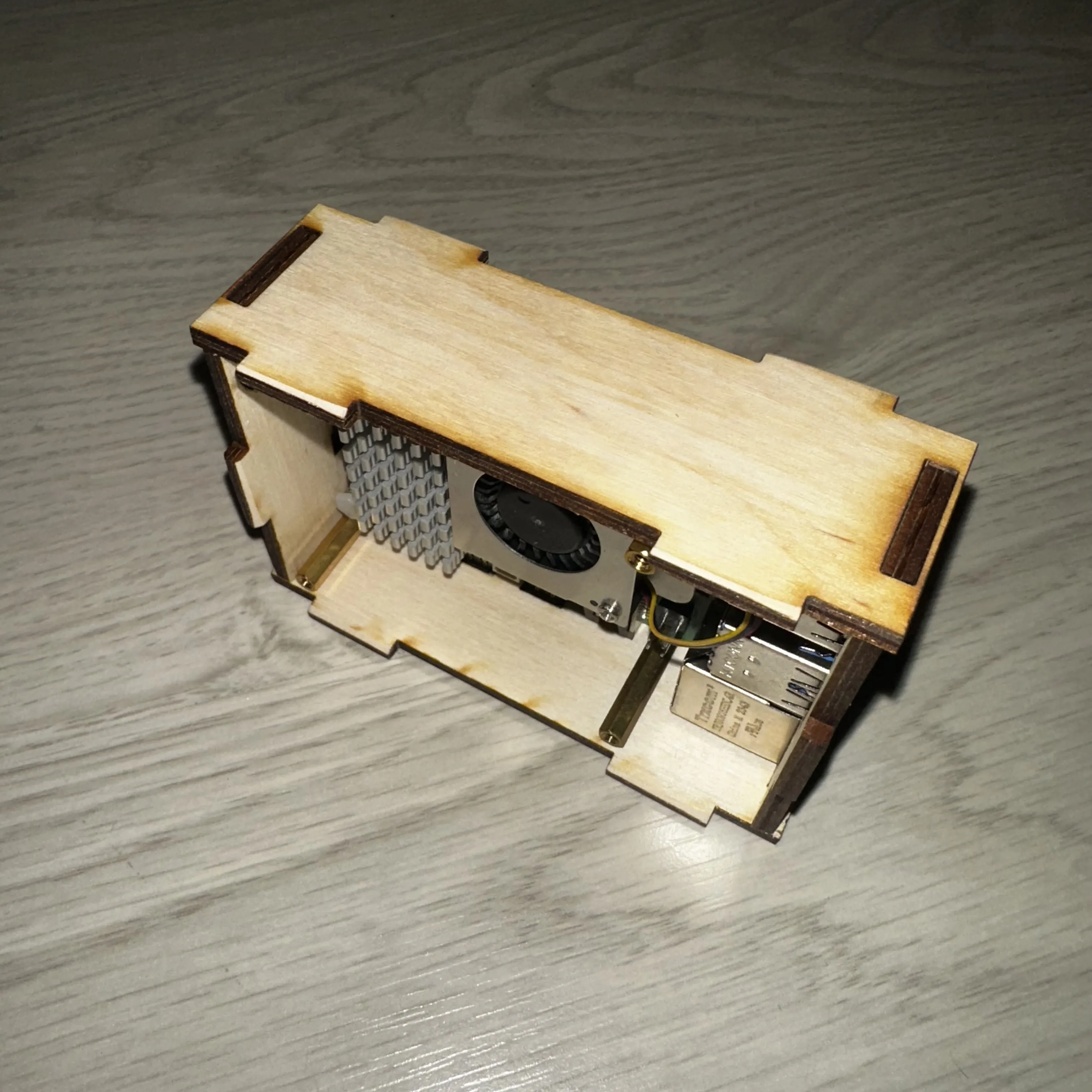

Now the bottom can be attached and screwed if necessary.
1x case top

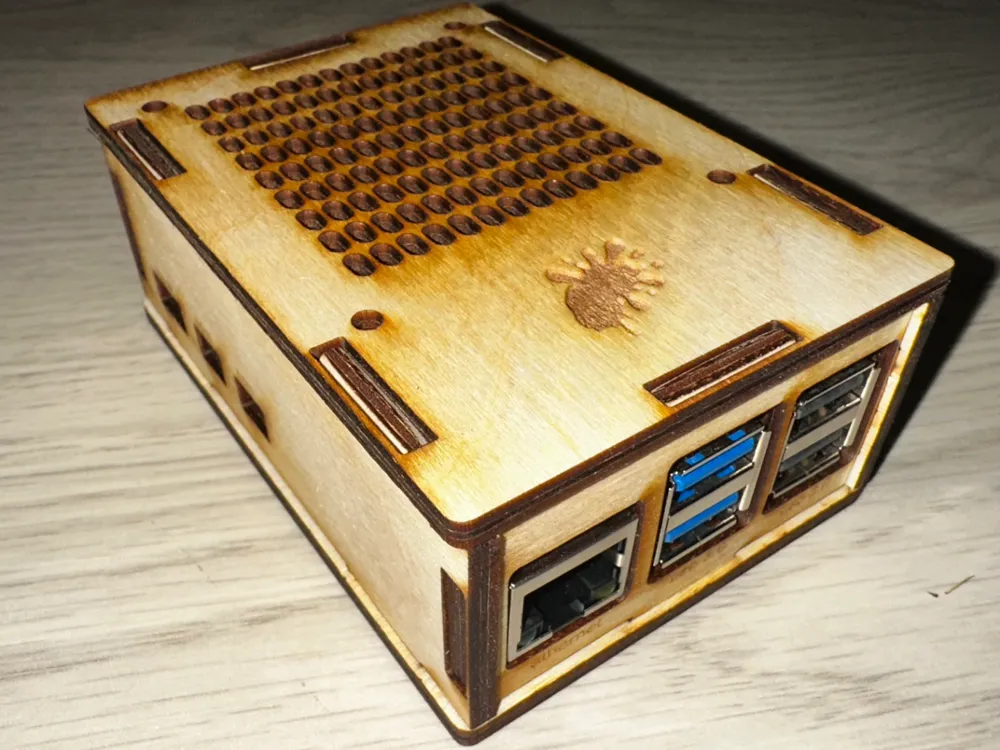

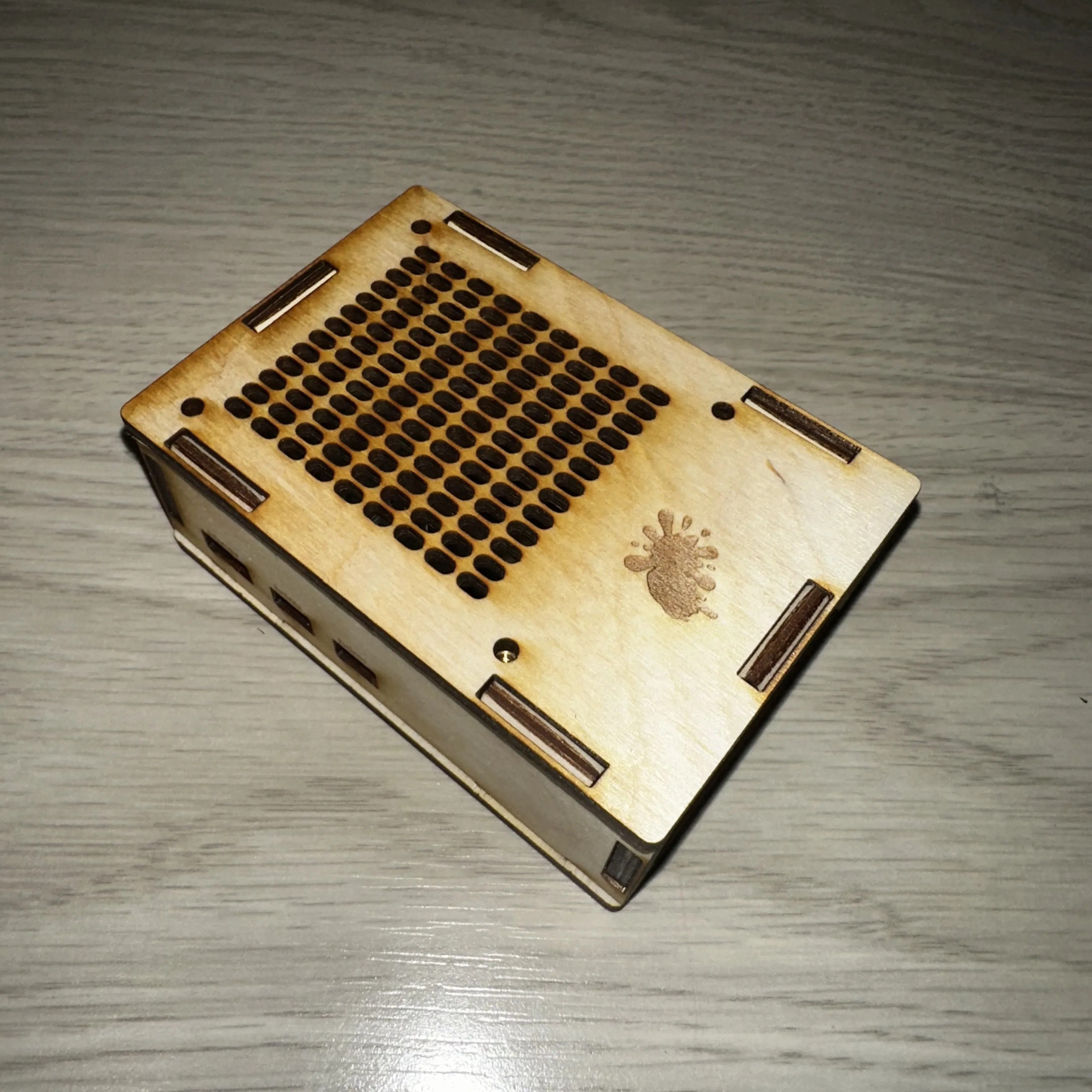

Finally, the case can be closed.
