Gridfinity – Parametric Grid & Boxes
Boost Me (for free)
🔧 This model is fully parametric.
A boost helps to implement new modules & improvements

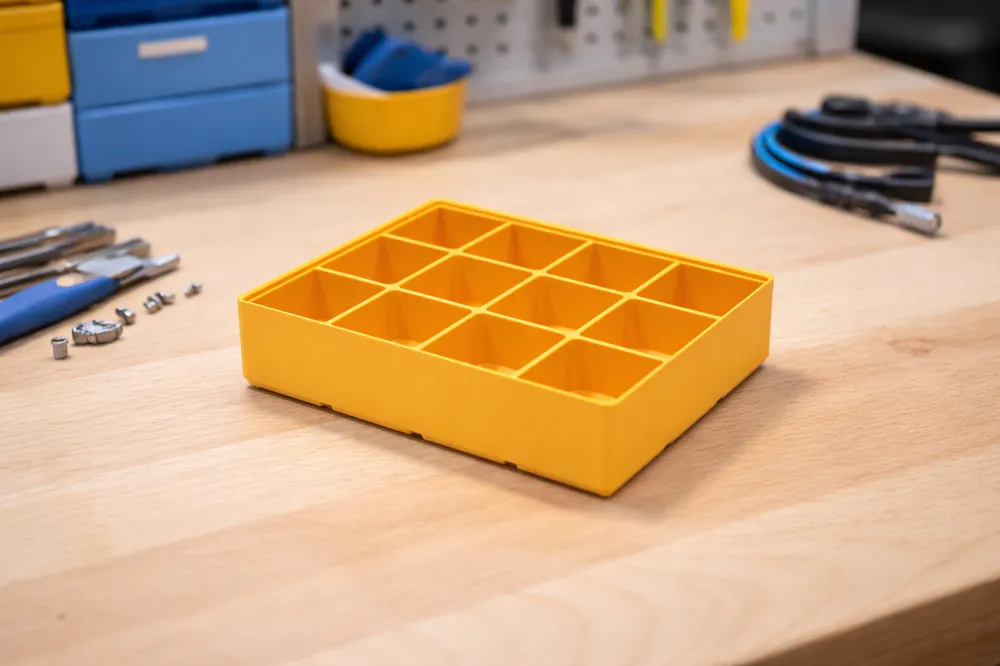

The models are designed to be easy to print, stable, and scalable. The repeating grid design creates the impression of an infinite system that can be expanded or adapted at any time

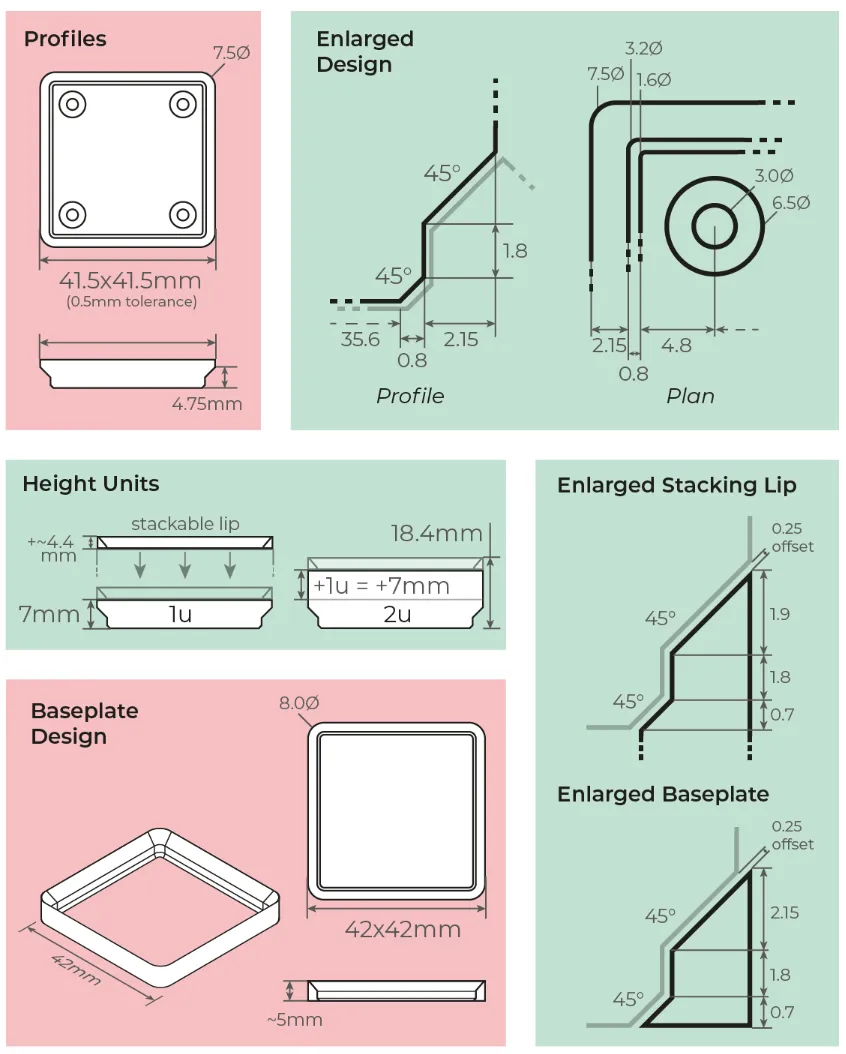

Gridfinity Dimensions
Maximum Grid size for the A1 mini (180mm x 180mm) is 4x4
Maximum Grid size for the X1C (256mm x 256mm) is 6x6
Maximum Grid size for the H2D (Single-Mode 350mm x 320mm) is 8x7
Maximum Grid size for the H2D (Dual-Mode 300mm x 320mm) is 7x7
When printing the maximum size on the X1C (256mm x 256mm),
you may need to clear the “Excluded print area” (at your own risk)
About the parameters:
- Grid_X = 1 - ?
- Grid_Y = 1 - ?
Grid_Frame_mm (1.1 Baseplate; 1.3 Single Inlay; 2.1 Baseplate with Magnets)
Chamfer_mm (1.1 Baseplate)
Box_height_U (1.4 Box; 1.5 MeshBox; 2.2 Box with Magnets; 2.3 MeshBox with Magnets)
Magnet_diameter_mm (2.1 Baseplate with Magnets; 2.2 Box with Magnets; 2.3 MeshBox with Magnets)
Magnet_depth_mm (2.1 Baseplate with Magnets; 2.2 Box with Magnets; 2.3 MeshBox with Magnets)
Features
- Fully parametric Grid
- Parametric boxes matching the Grid
- Infinitely expandable & scalable
- Ideal for organization & storage
- Clean, modular design
- Optimized for FDM printing
- no supports required (not even for the magnets)
Suitable for
- Workshop organization
- Screws & small parts
- Desk & Drawer Organizer
- Modular storage
- Individual organizational systems
