Variations Slider
Print Profile(1)
Description

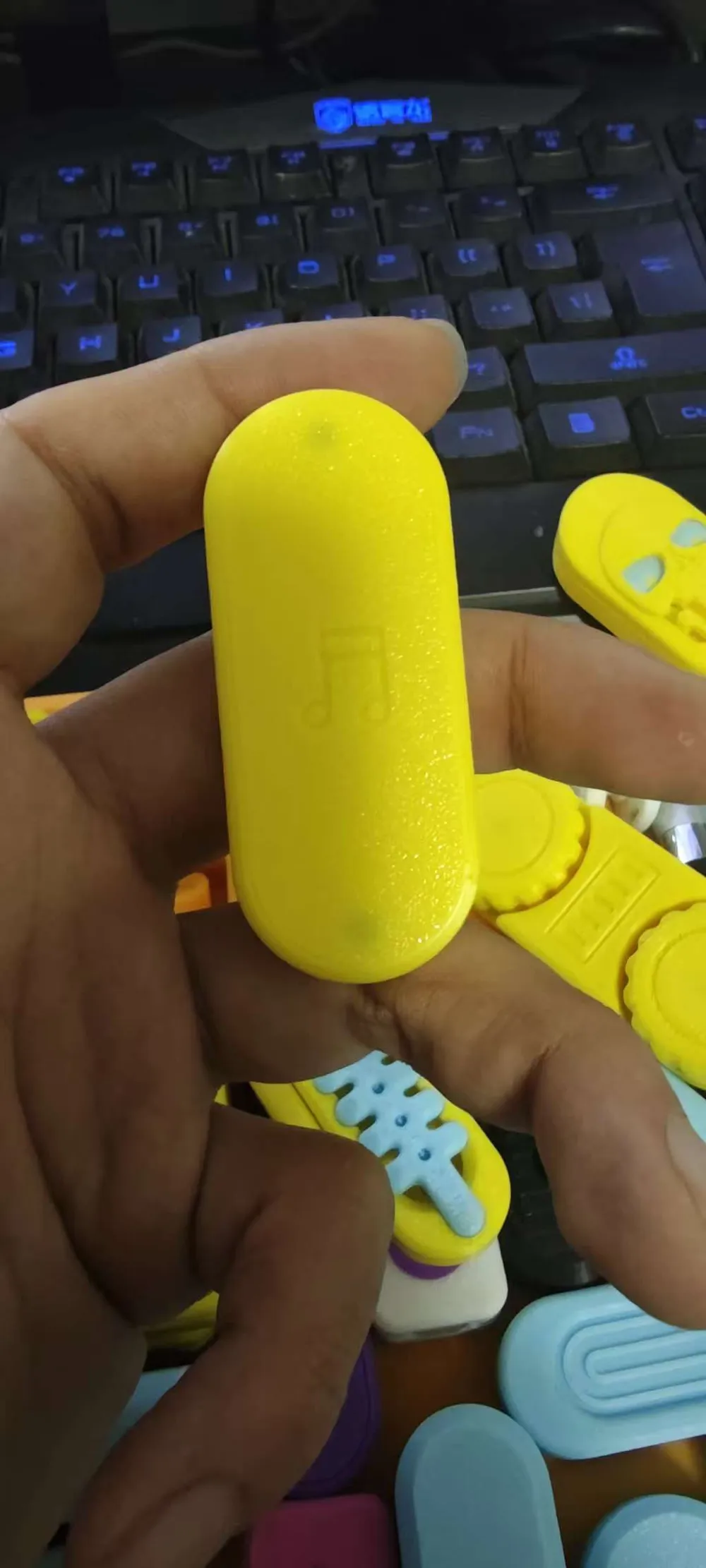

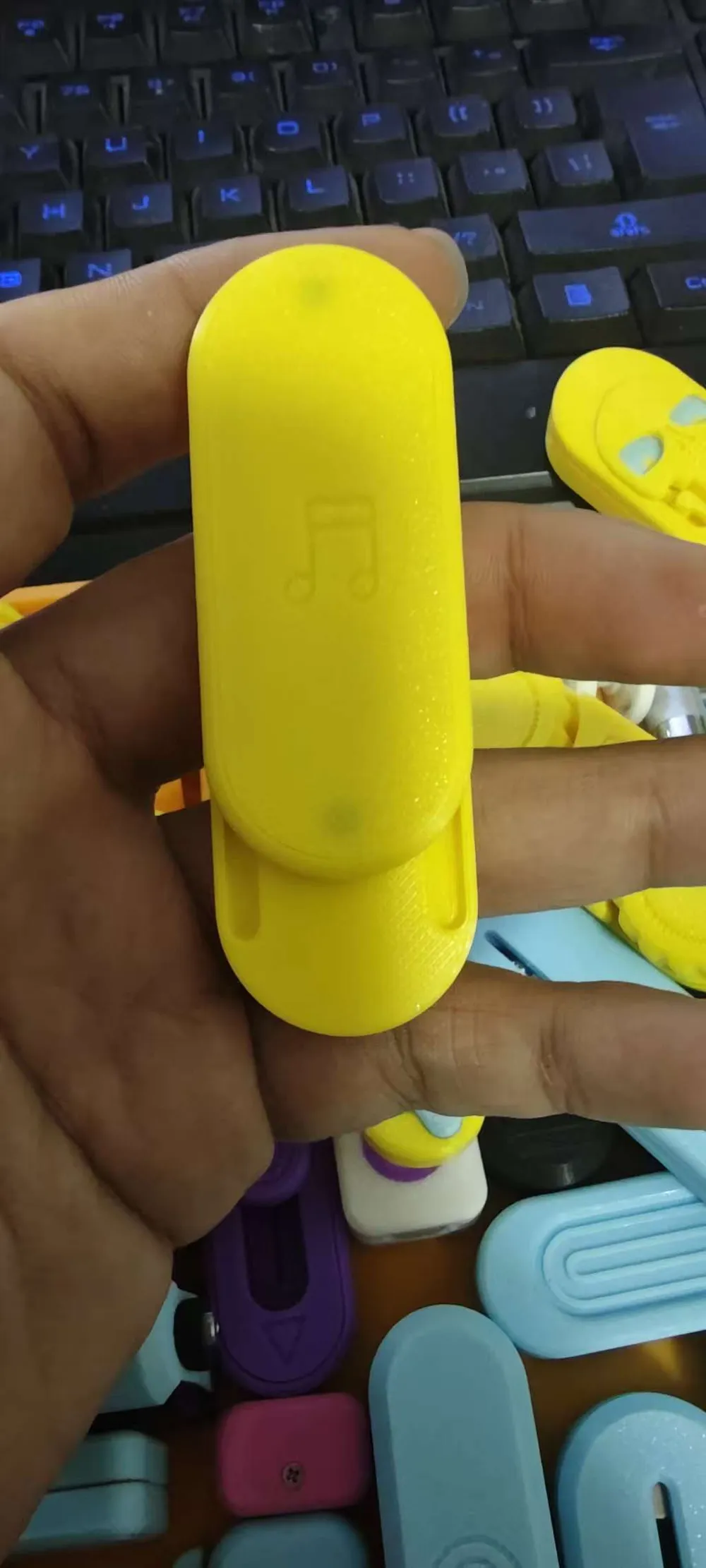

Pushing back and forth gives different sounds and tactile feedback
M2 (inner diameter) * 2.5 (height) * 3 (outer diameter) heat set insert nuts
Middle 0.3*3*5, both sides 0.25*3*5 springs (recommended configuration)
3mm beads
2*4 small countersunk head screws (head diameter 3.5 to 3.8)
Tolerance test is quite suitable, use a scraper to fix any minor issues
The main function of the beads in the limit rail is to prevent the slider from shifting when pushed
