Description

Update 1.1:

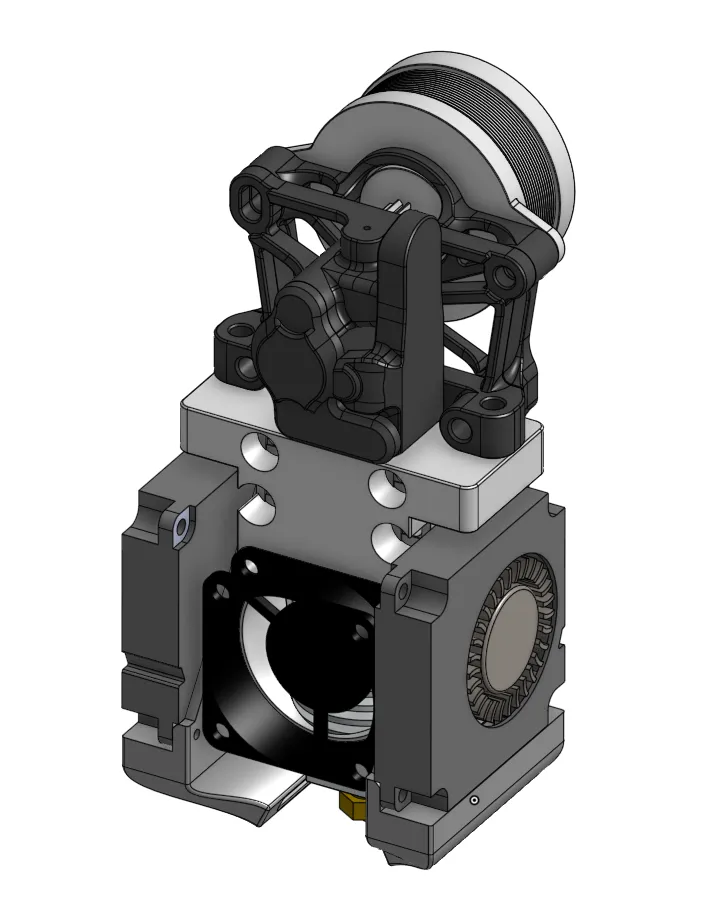

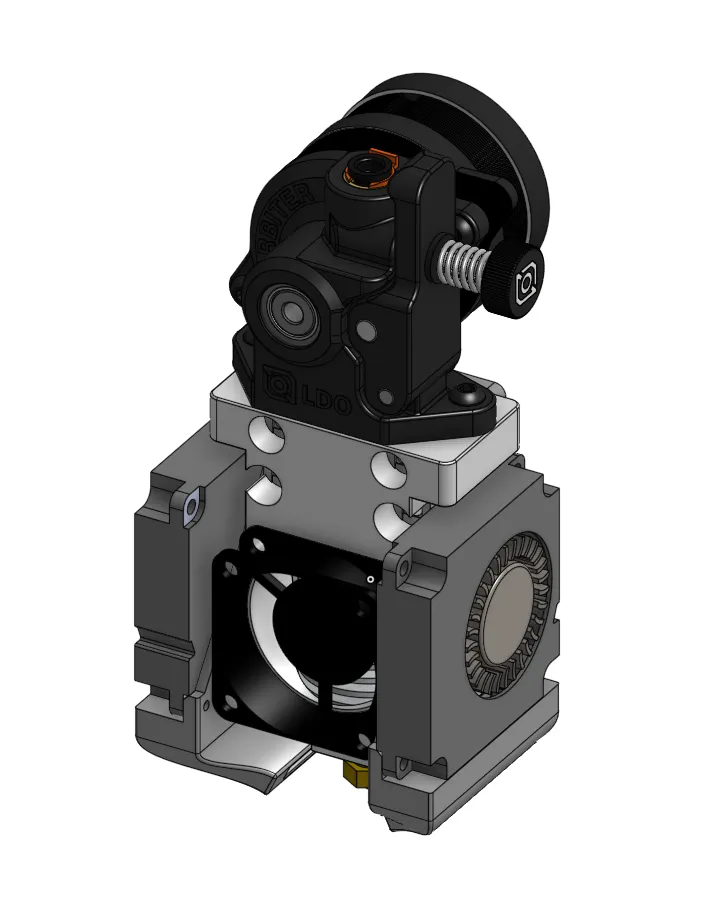

  • Added Orbiter 2.0 and Sherpa Micro mounting shroud
  • X carriage plate updated to prevent belt slip when mounting

BOM:

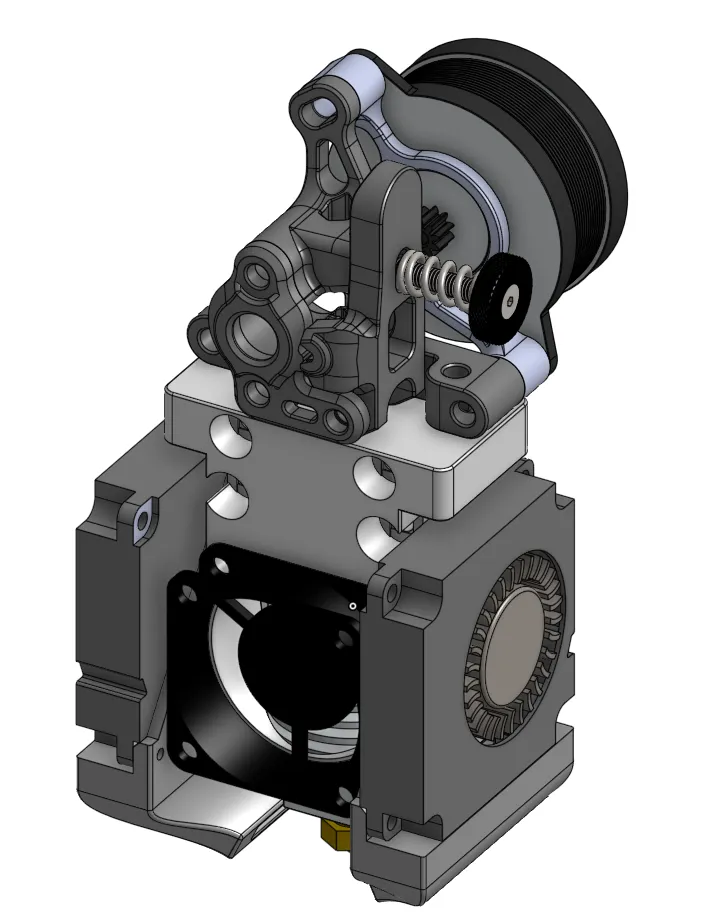

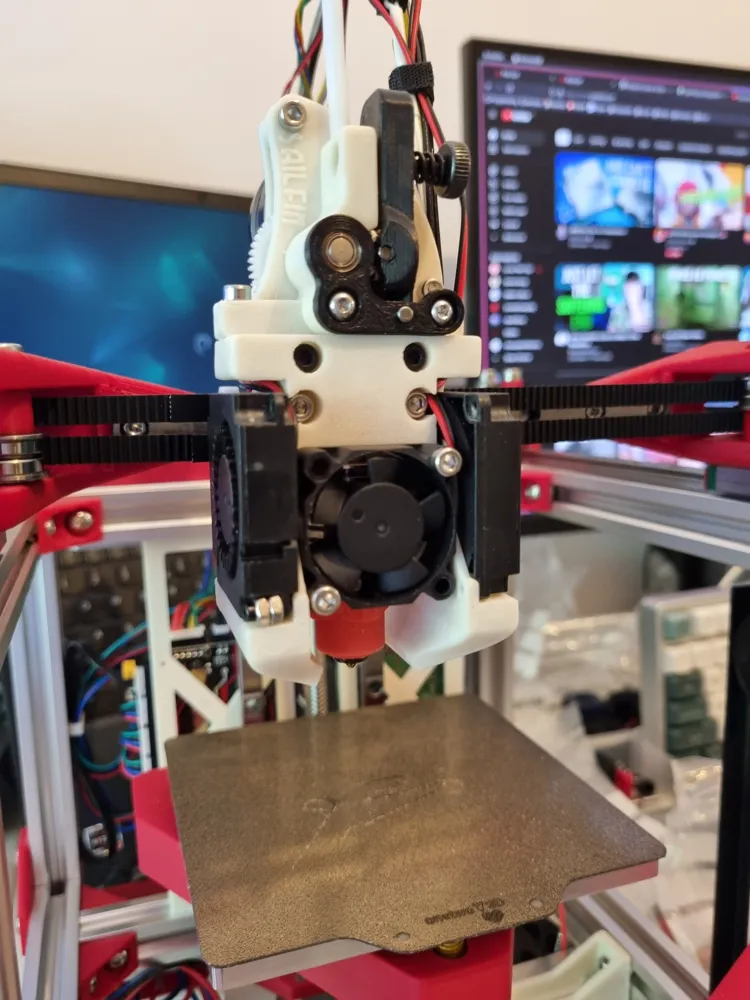

Sherpa Mini or Sailfin (Direct Drive)

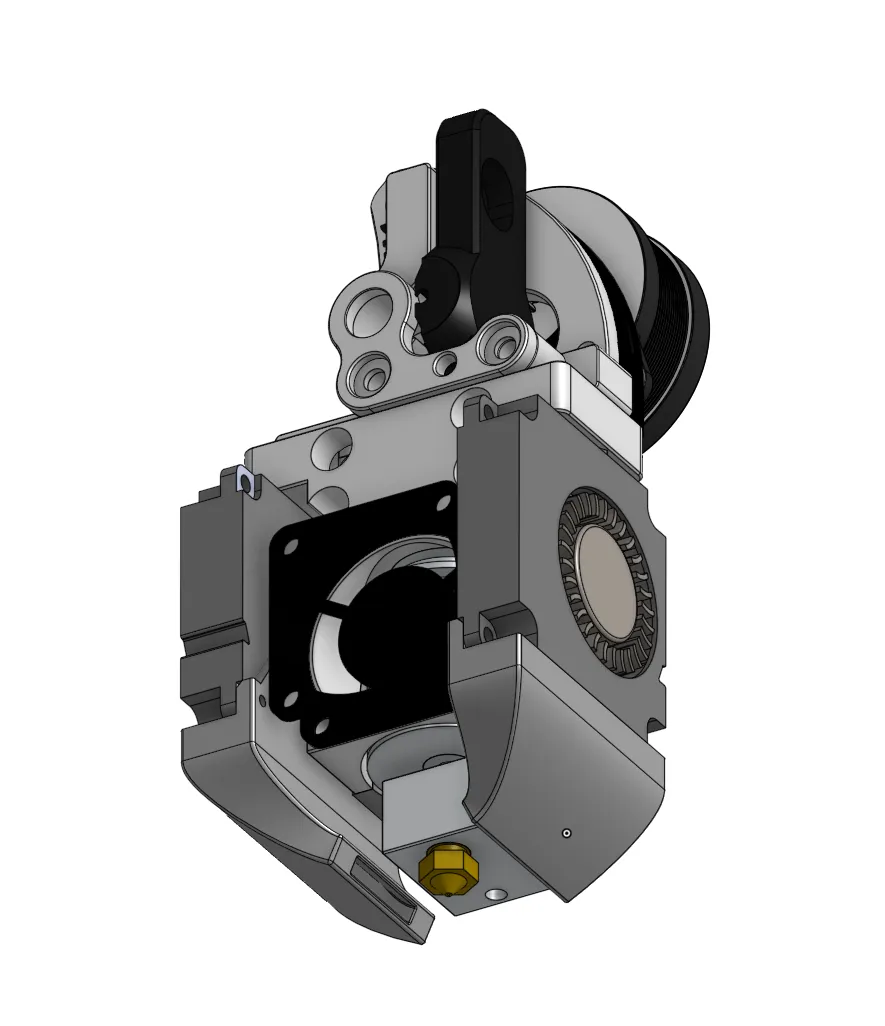

BMG clone (Bowden)
2x 4010 blower
1x 3010 axial fan
KUSBA usb adxl module
50W CHC V6 style hotend
Bimetal heatbreak with copper on the hot side

Screws:

4x M3x14mm BHCS
4x M3x8mm BHCS
2x M3x20mm BHCS
6x M2.5x4mm self tapping screws

6x M3 nuts

Hole spacing of the duct is 22x28mm. Default X carriage bolts to and MGN9C block

3dprinter
duct
toolhead
4010
