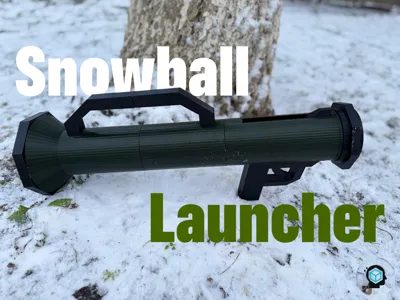

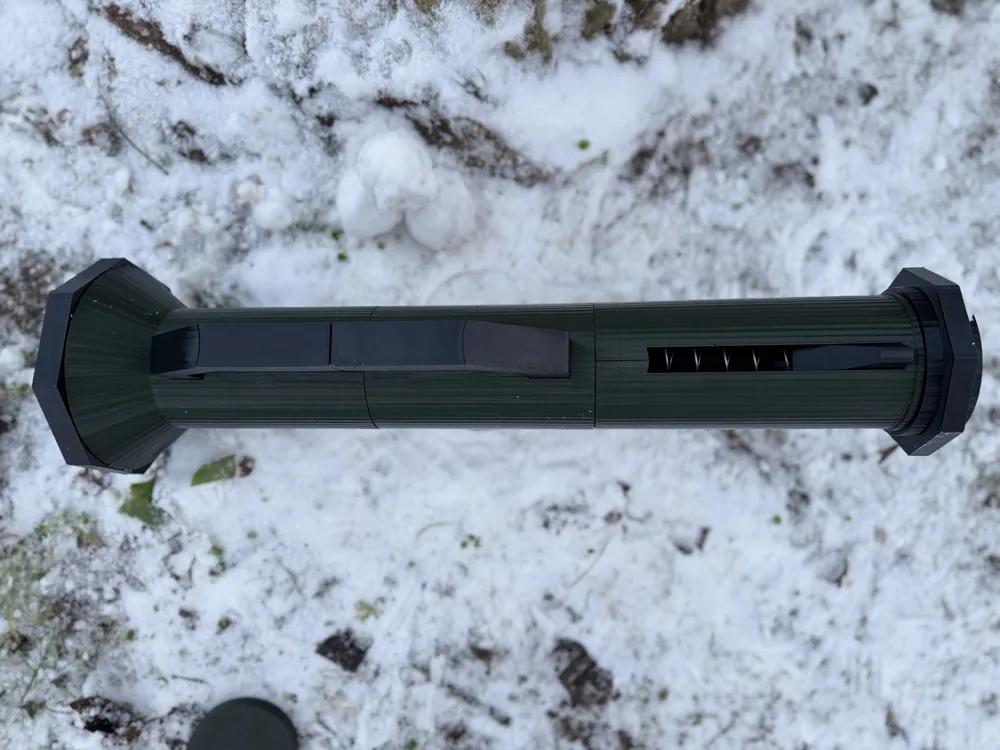

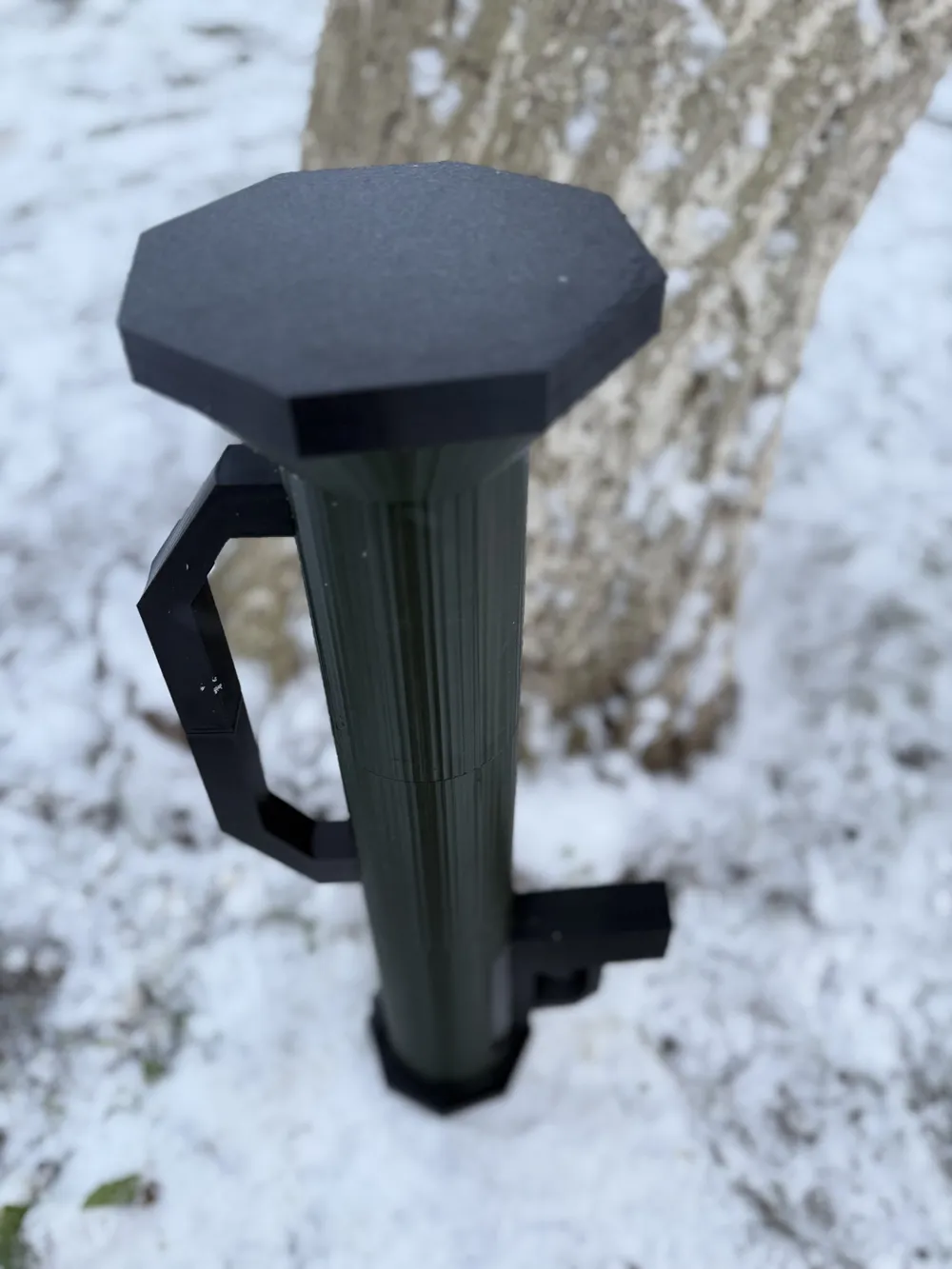

🔥 This is a Snowball Launcher AT-4 for snowbattle, there is 2 versions of the launcher:

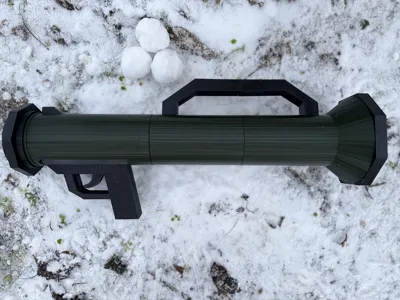

Basic Version (~1109g)

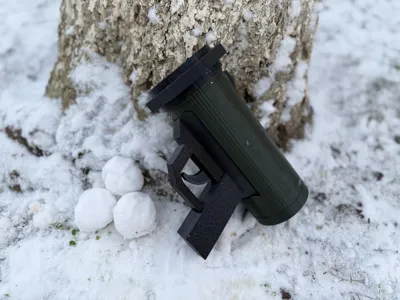

Short Version (~603g)

📝 What you need:

~1109g of filament (short version ~603g)
Spring (Size information is bellow)
Rubber Band
Glue/Tape (Recommended)

📐 Spring Size Information:

Outer Diameter (D): 35mm
Free Length (L): ~150-170mm
Wire Diameter (d): ~1,5-3mm
Number of Total Turns (N): 8

🛠️ Instruction:

1. Main Part:

All Parts:

1. Insert Clips into the first half:
Tips (if some clips doesn't insert, try to swap places of clips)

2. Insert mechanism:

3. Lock it all with the second half (Glue recomended):

4. Take new parts and insert clips:

5. Insert mechanism:

6. Lock it all with the second half:

7. Insert the first part into the second (Glue recomended) and then insert the black front-end ring:

2. Back Part (Basic Version):

All Parts:

1. Connect the parts between themselves:

2. Connect all parts into one:

Tips (if hand grip doesn't connect, try to rotate it and try again)

3. Connect Back Part into Main Part (Glue/Tape recomended):

3. Back Part (Short Version):

Insert Back Part into Main Part:

🎉The Snowball Launcher is finished with assembling🎉

Boost Me (for free)

I worked on this model for about a month and wasted a lot of time and money. My last hope was winning the contest, but I didn’t. Please support my work with a boost, every boost helps me feel better. Thanks for reading!🚀🚀🚀

Check my new model:

Warning!!!

Don't shot the snowball on people and animals if there is rock or other objects in it, check the snowball and after it you can shoot

I have verified the print at 166% speed (ludicrous) so you can print at ludicrous if you need time

Have a happy snowball battle day ;)
