bluetooth speaker
Print Profile(1)
Description

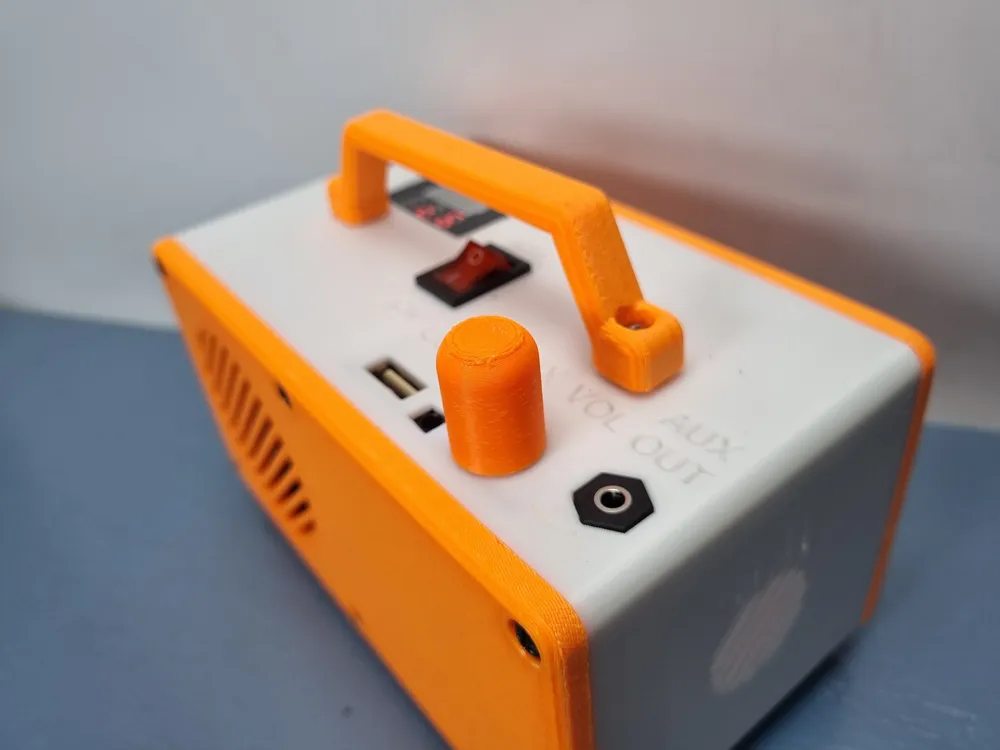

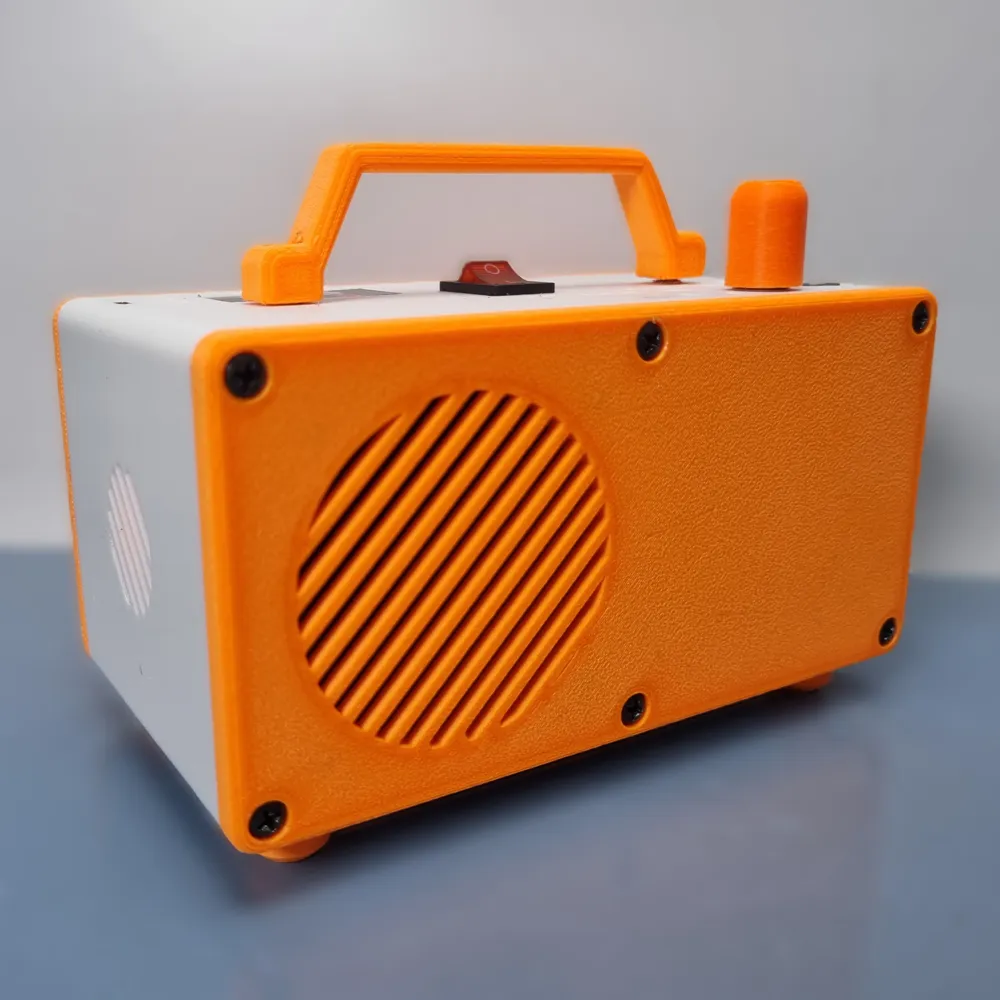

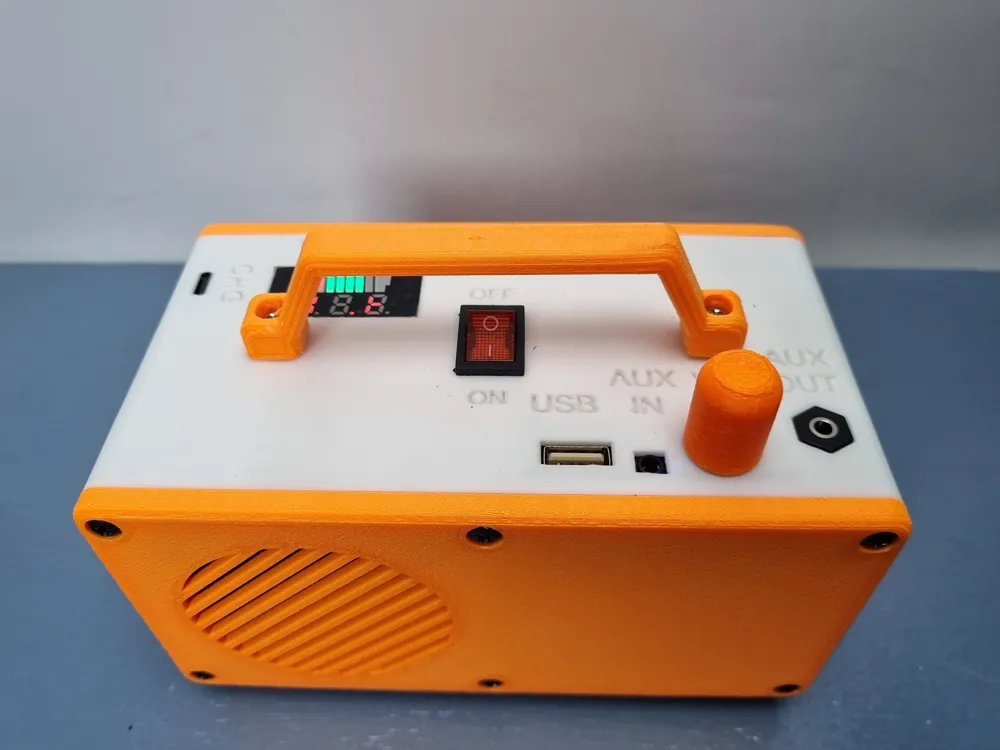

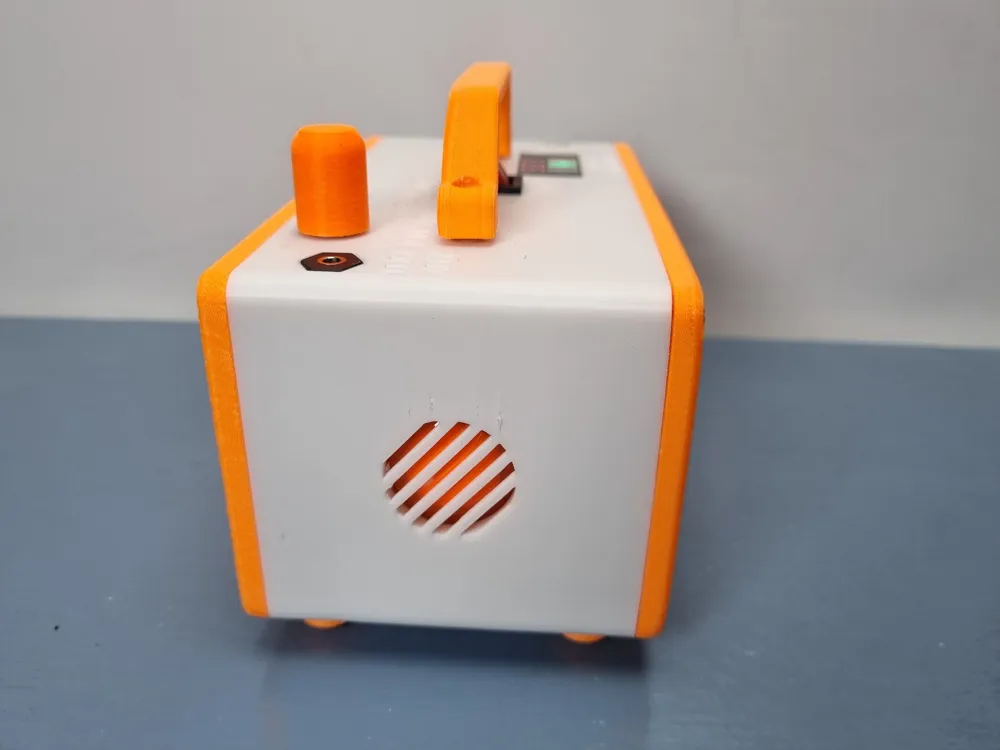

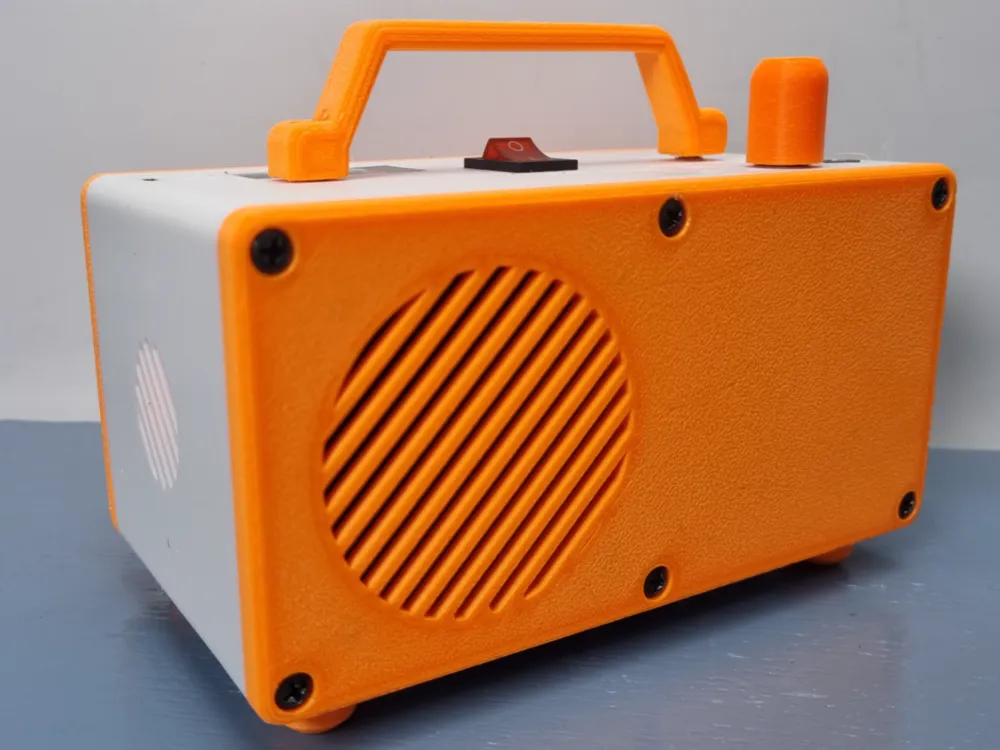

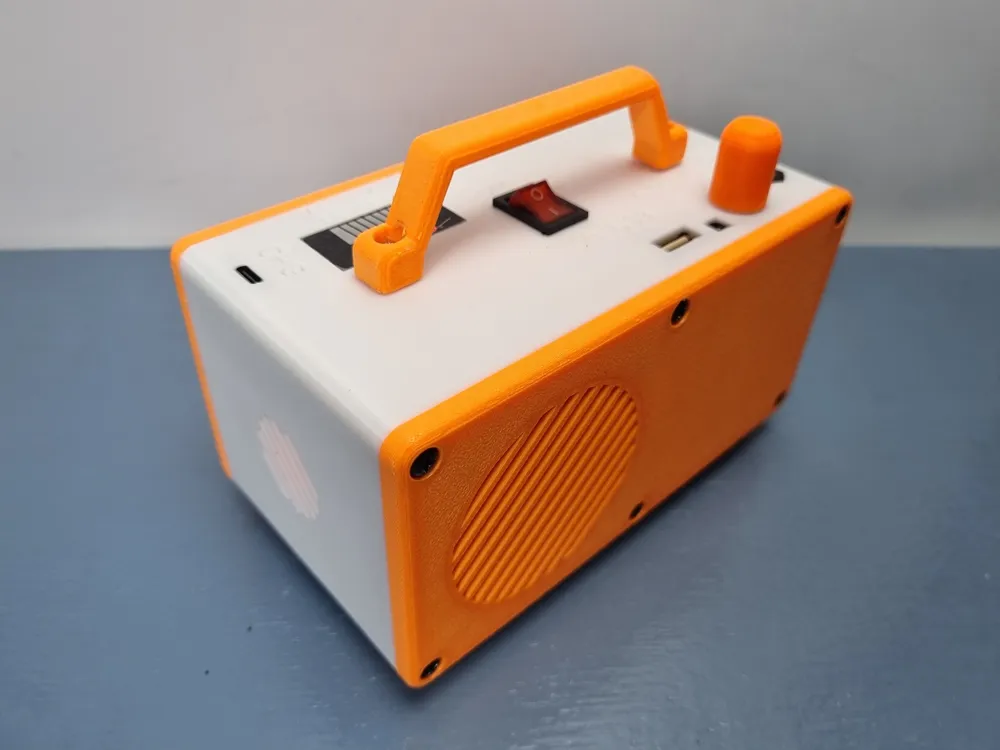

This is my second professional looking and good sounding bluetooth speaker which has 50 watt rms power
and it looks very good.

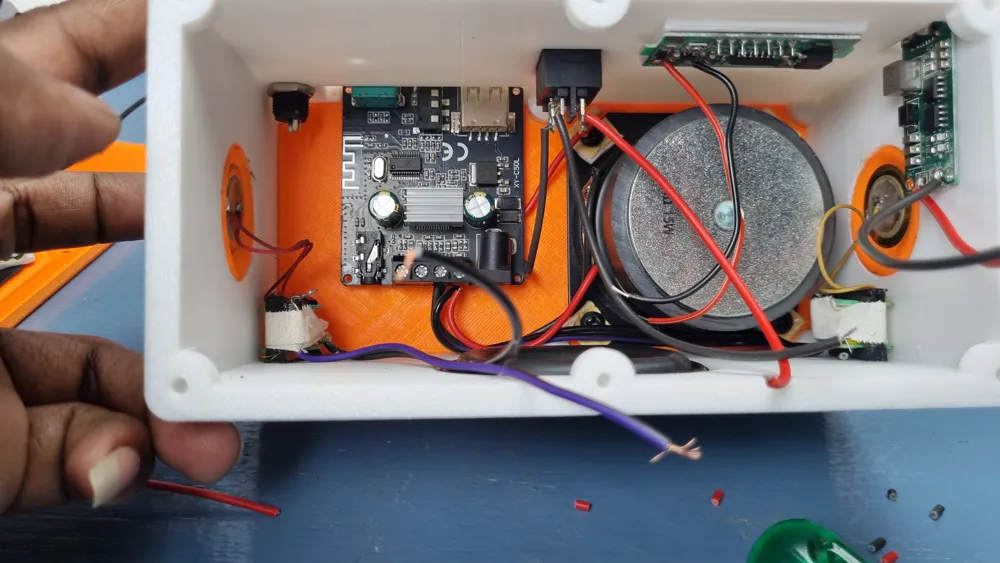

parts i used for this are

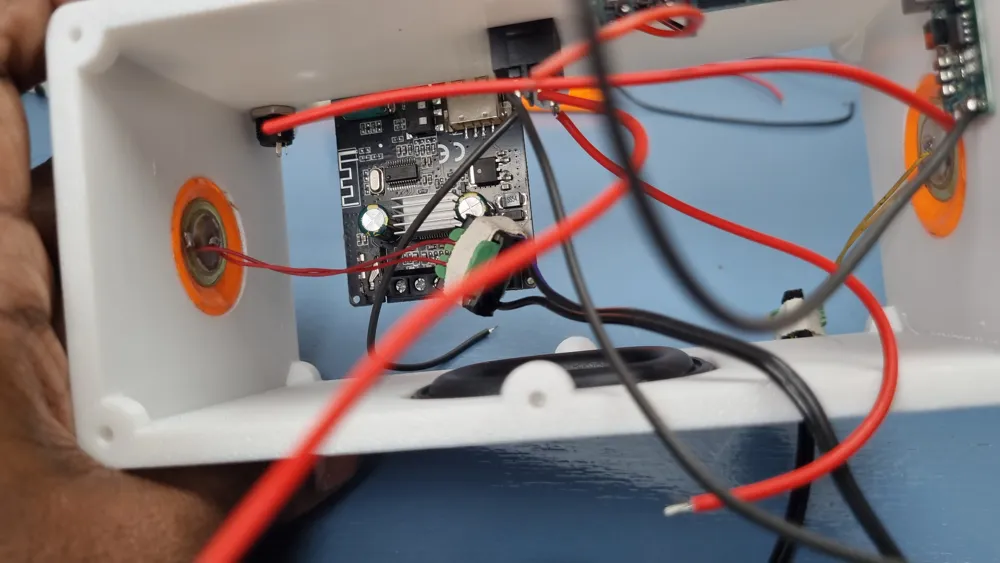

- xy-c50l amplifier board

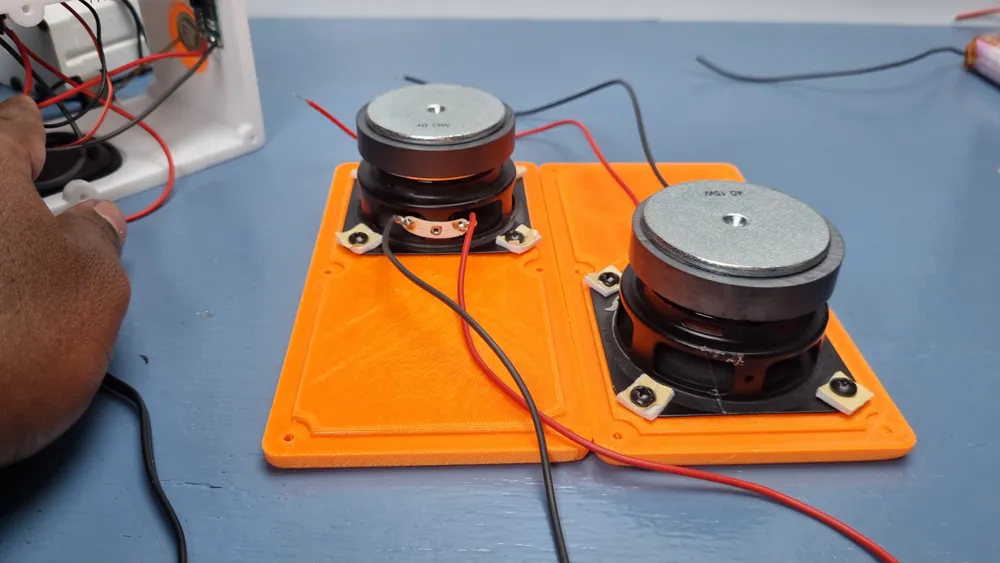

- 2.5 inch 4ohm 15 watt speaker
- 3cm 10 watt twitter
- 12v 3s 18650 battery

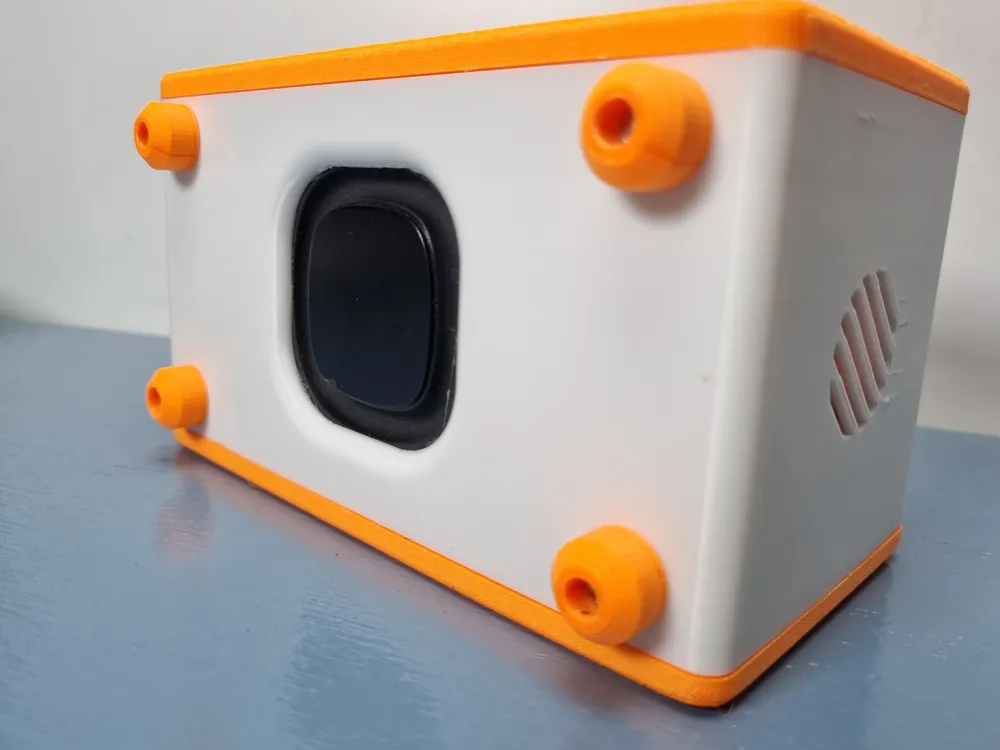

- 52 mm squre type passive radiator
- battery indictor
- on/off switch
- type c 3s battery charger
- 3.5 mm output jack
some 3mm screws
this speaker looks good and also sounds very good. plz join woofer and twitter in parallel for each output
u can use high power speaker also as amplifier board is capable of 50 watt stereo output but u have to increase power of amplifier
i use sunlu petg filaments as petg is very good for outdoor use but u can print it in pla as pla is more dense than petg
Boost Me (for free)
if u like this speaker build then give cheer up for me so i can design more such model for you
