ESP32 LAN Module

ESP32 LAN Module

This project adds wired connectivity and versatile I/O options to the Modular ESP32 Case system. The ESP32 LAN Module integrates seamlessly with the base enclosure and provides dual RJ45 ports that can be used for Ethernet networking, direct sensor connections, or custom communication links.

Designed with flexibility in mind, the LAN ports are not limited to networking only. They can be repurposed for structured cabling to sensors, industrial-style wiring, or point-to-point connections—making this module ideal for smart home installations, lab setups, and embedded projects.

Features

• Modular plug-in design for the Modular ESP32 Case
• Dual RJ45 ports for Ethernet, sensor buses, or custom I/O
• Clean front-panel access with precise connector alignment
• No supports required – fast and reliable FDM printing
• Stackable enclosure matching the base system design language

Getting Started

Get the base kit here: https://makerworld.com/en/models/2139553-modular-esp32-case#profileId-2317582

Or find modules of your liking in this collection: https://makerworld.com/en/collections/17199514-modular-esp32-case

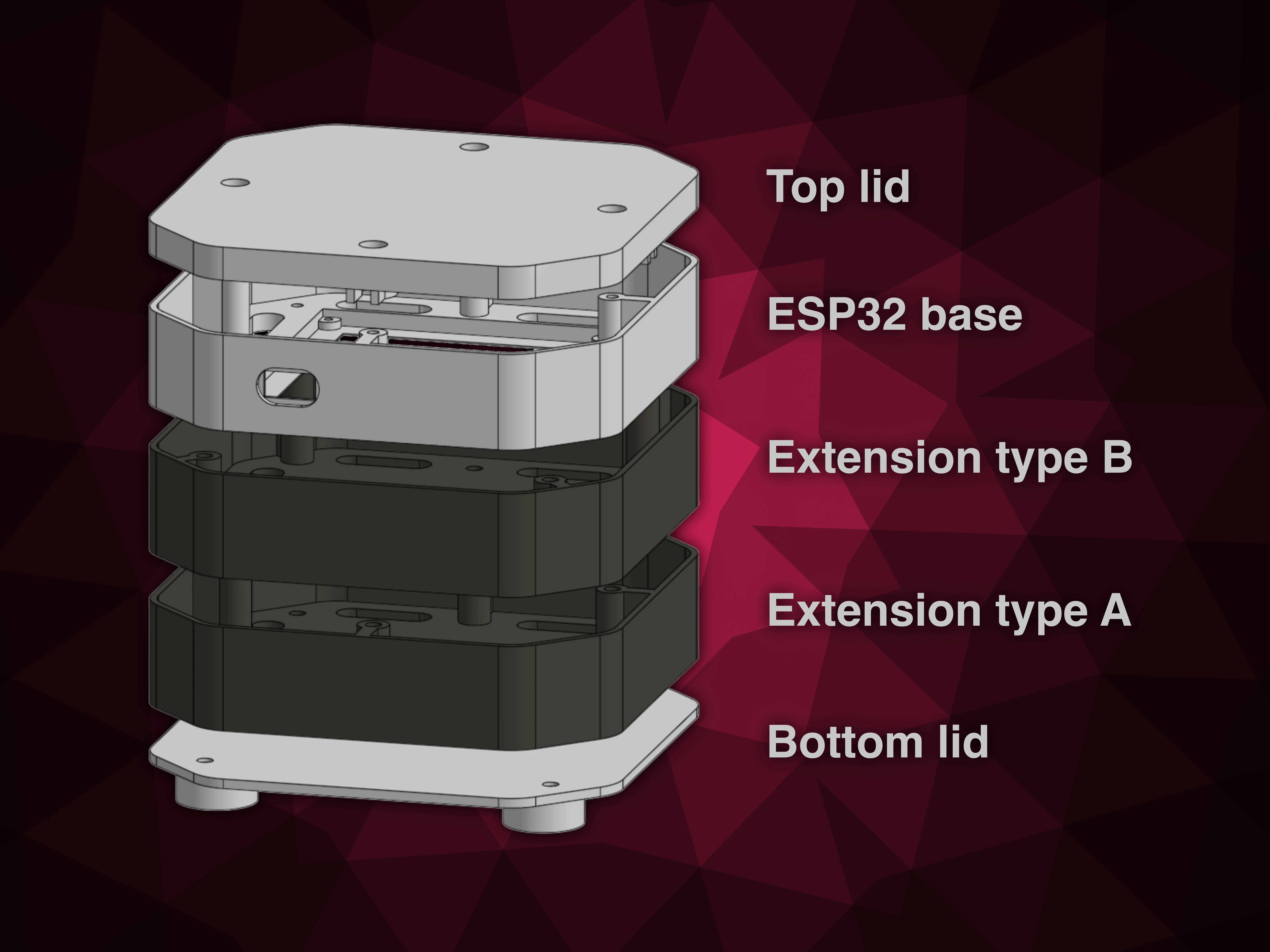

Then choose 1x top lid, 1x base module (holding the ESP32), and 1x bottom lid.

BOM

• 3D print the base kit: https://makerworld.com/en/models/2139553-modular-esp32-case#profileId-2317582
• LAN breakout board: https://www.amazon.de/dp/B0C1YWSSZR?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Printing Notes

• Tested with PLA and PETG
• Recommended 0.2 mm layer height
• No supports required

Part of a Growing Ecosystem

This LAN module is one of several planned expansion modules. More accessories and add-ons are coming, and community remixes are highly encouraged.

If you like this project, leave a like, share your make, and follow for future modules! If you are happy with the idea and liked the project, then hit the boost me button.

Help me out with designing more modules for the framework
