The Mini Barrel Box

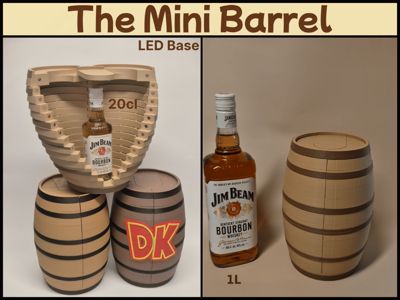

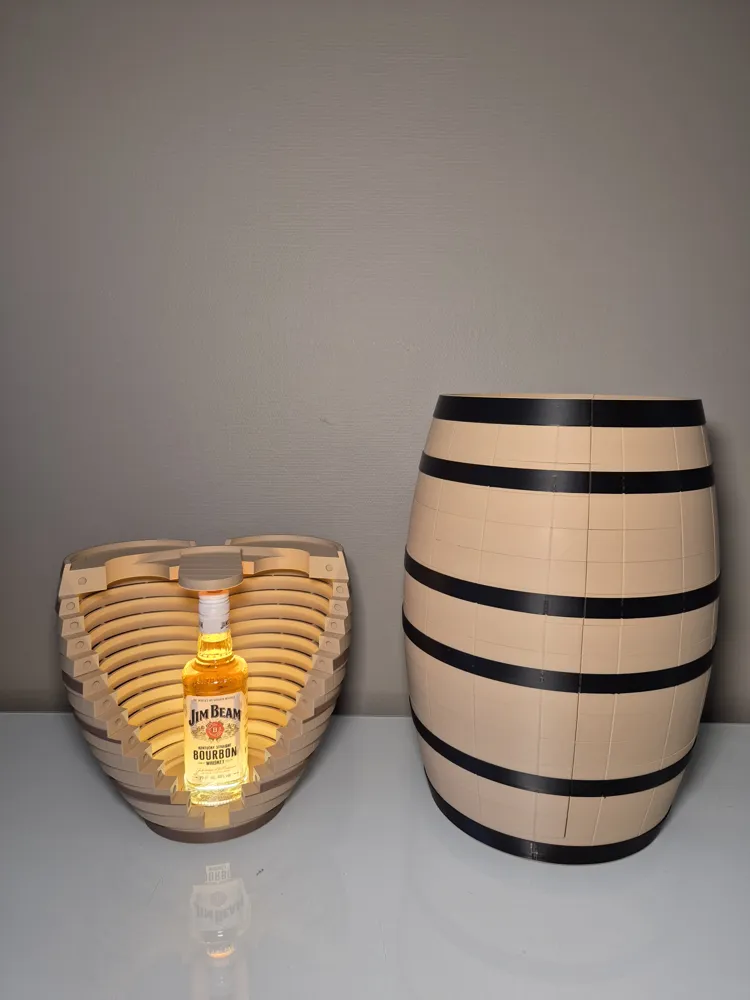

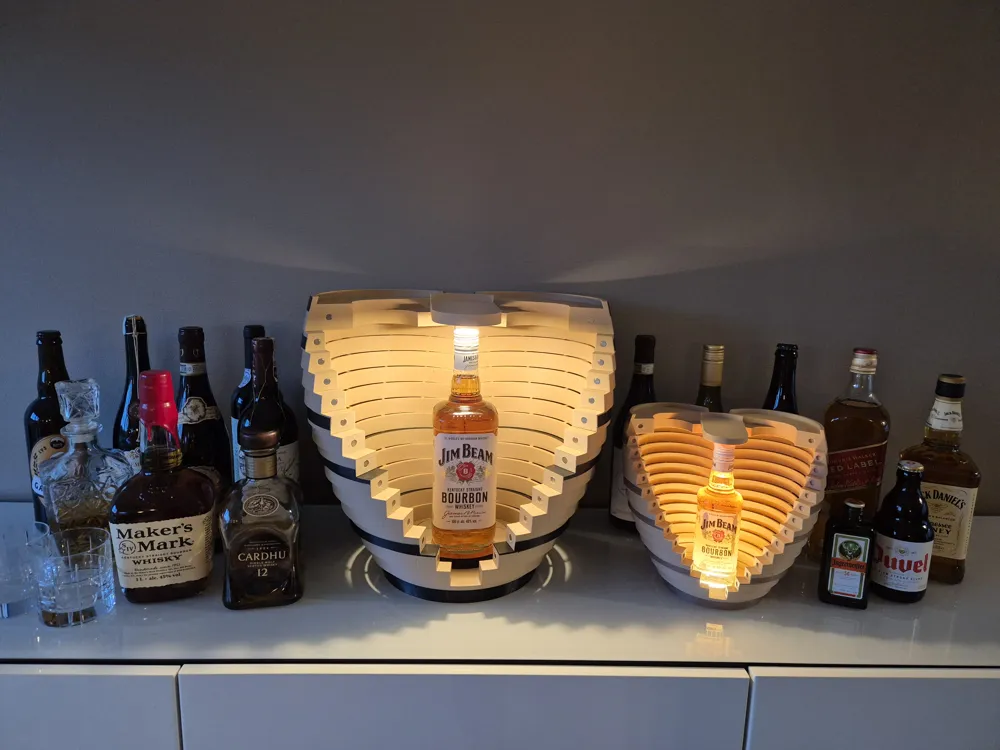

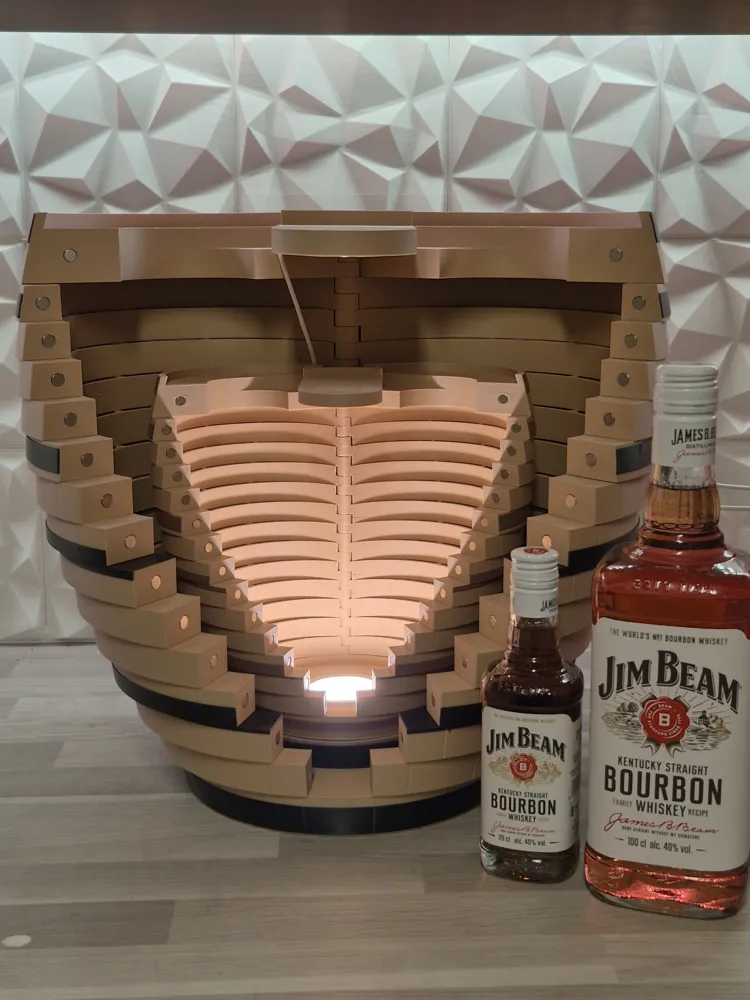

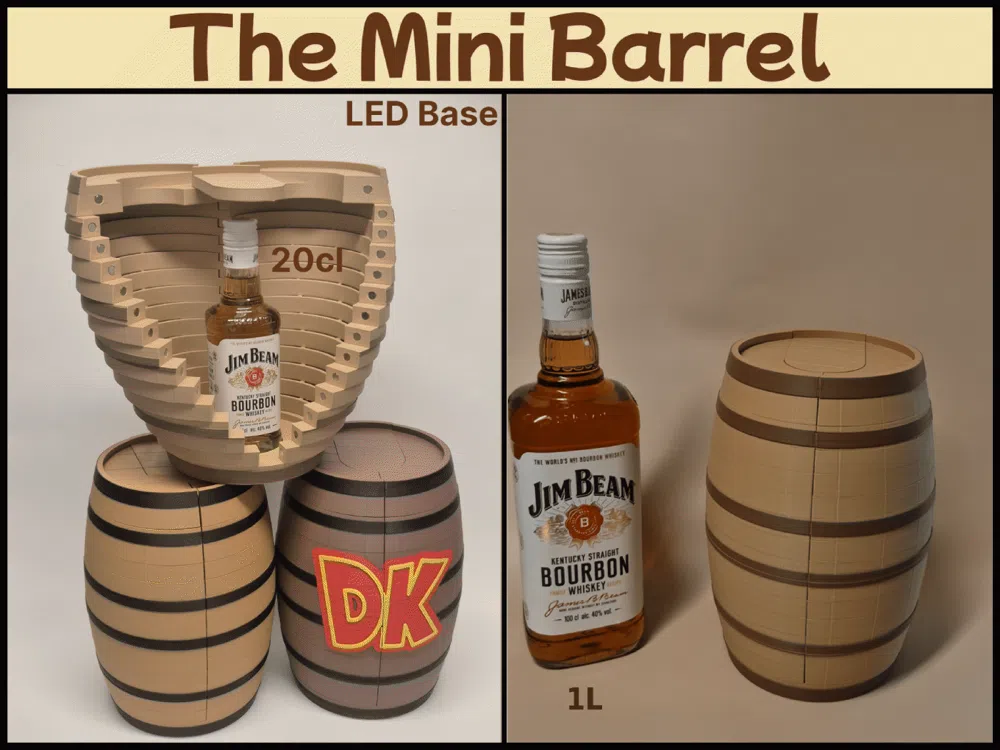

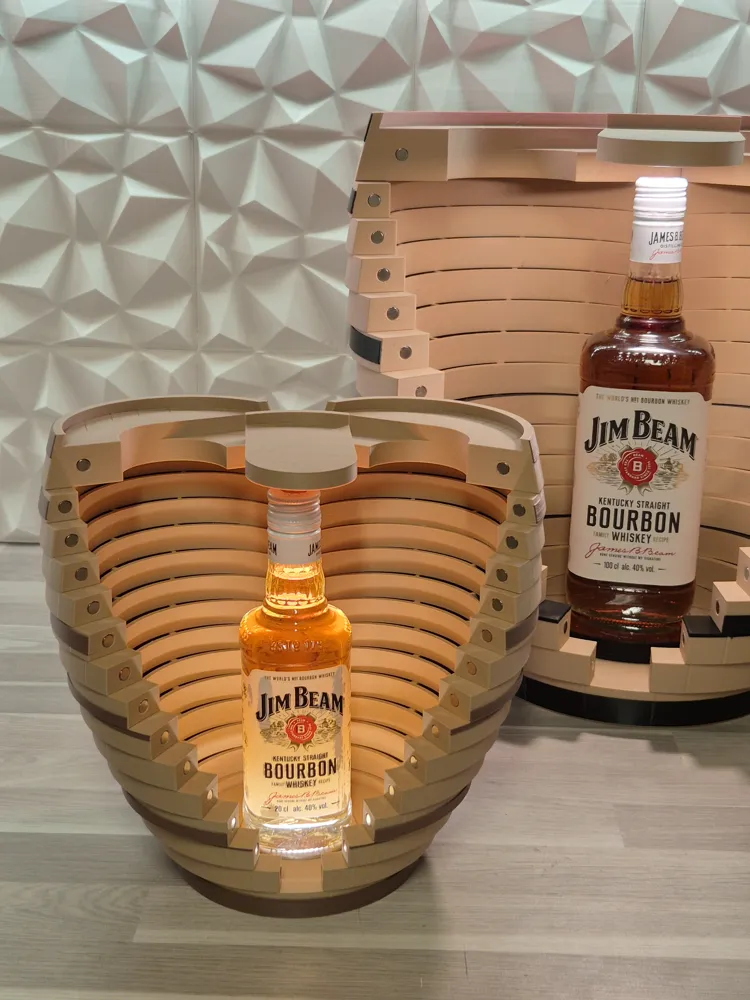

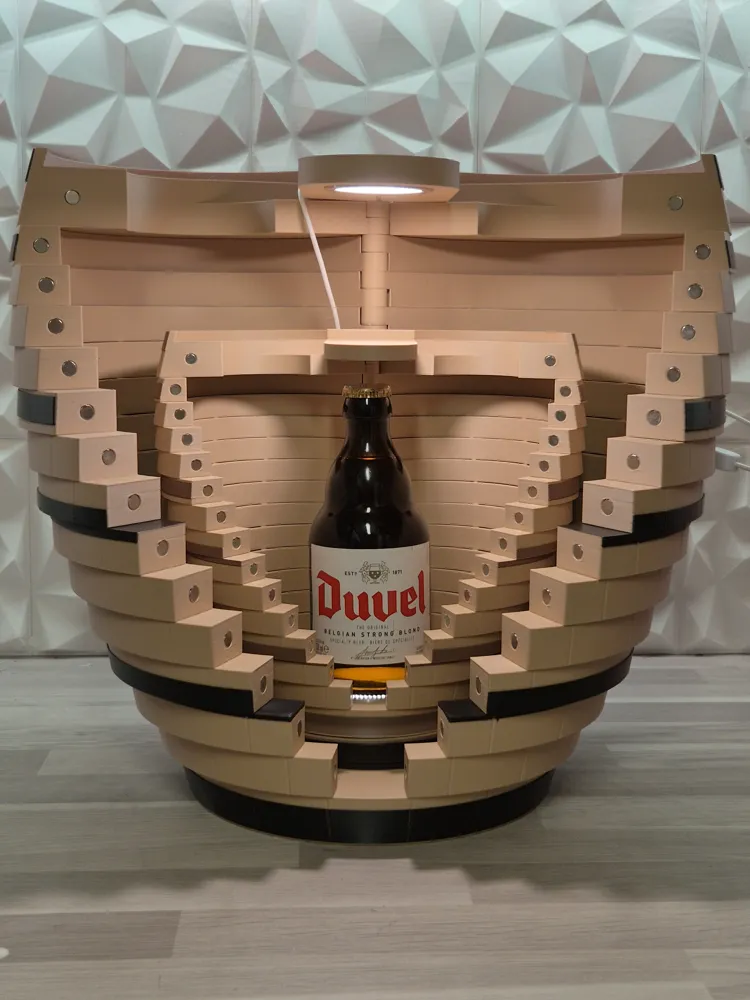

The Mini barrel is basically a scaled down version of The Big barrel Box. But seeing that it is so much smaller, there is no possibility for a turntable. (at least not atm) So instead i put the LED in the base. You can now display your tini tiny bottles. 😅 Maybe your favorite beer?

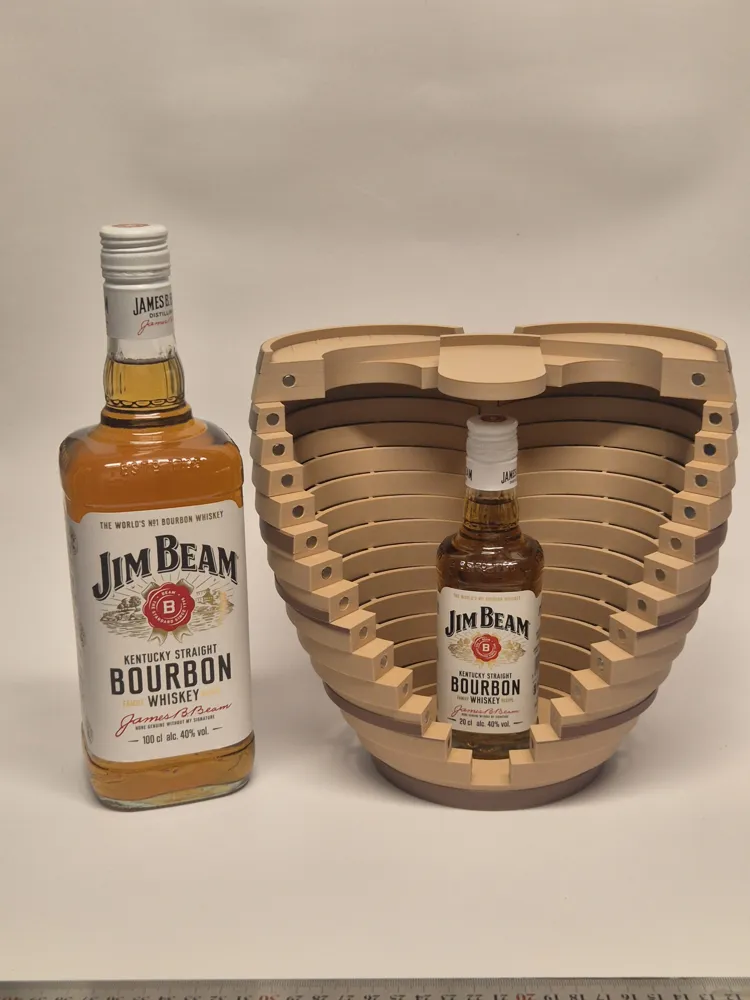

It fits bottles up to 175mm tall, and 110mm wide.

Want your Box to look like mine? I used Polymaker Panchroma wood brown and white PLA matte. Link in BIO.

Features:

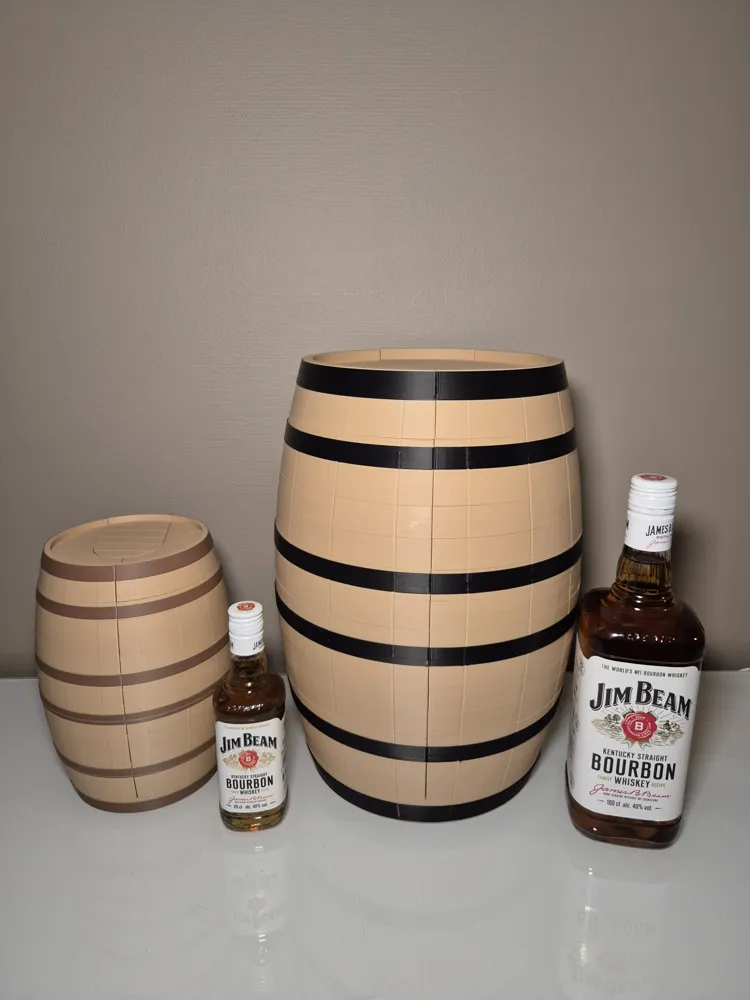

• Compact design - Three times smaller then The Big Barrel
• Display ready – Works great as a gift box, bar display, or collector’s case.
• Print friendly – Easy to print, painted and laid out for optimal print time and filament usage.

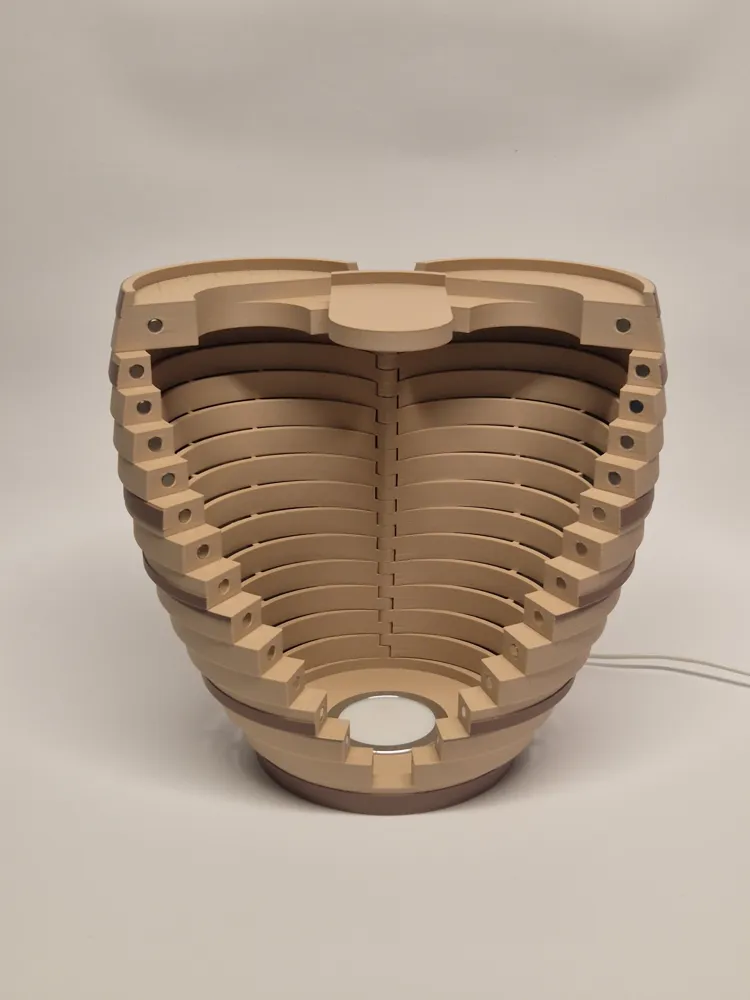

• Led Lamp kit 001 - Light up your displayed item with the led lamp kit.
• Assembly - Detailed instructions for assembly.

3D printed parts :

• Base x 1 (+ alternative base for LED)
• Top  parts x 3
• Door parts x 26

Other parts required :

• Steel rod ø6mm / 198mm long
• 28 pcs Round Magnets 6x2mm
• Ca glue.
• Led Lamp Kit 001.

Steel rod here  →    (affiliate link)

If Bambu i out of stock, buy LED here → (affiliate link)

!!! Be sure to check that the correct size is in stock before buying !!!

This is an affiliate link — I may earn a small commission if you buy through it, at no extra cost to you. It helps support my future designs.

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

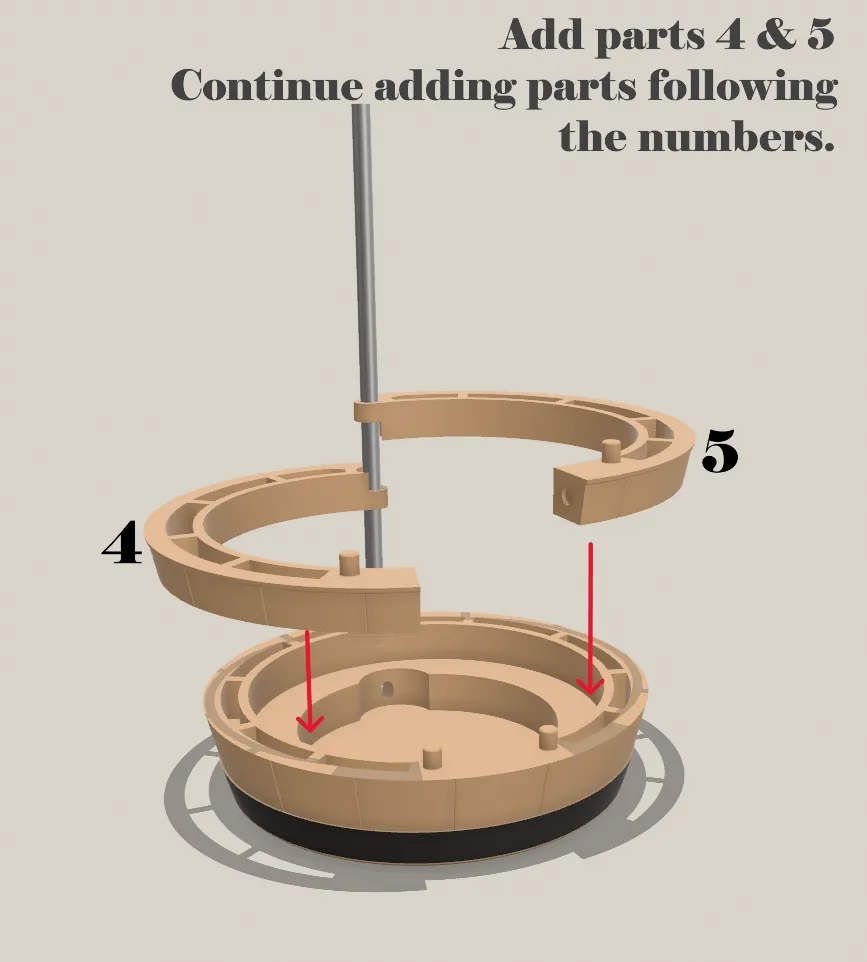

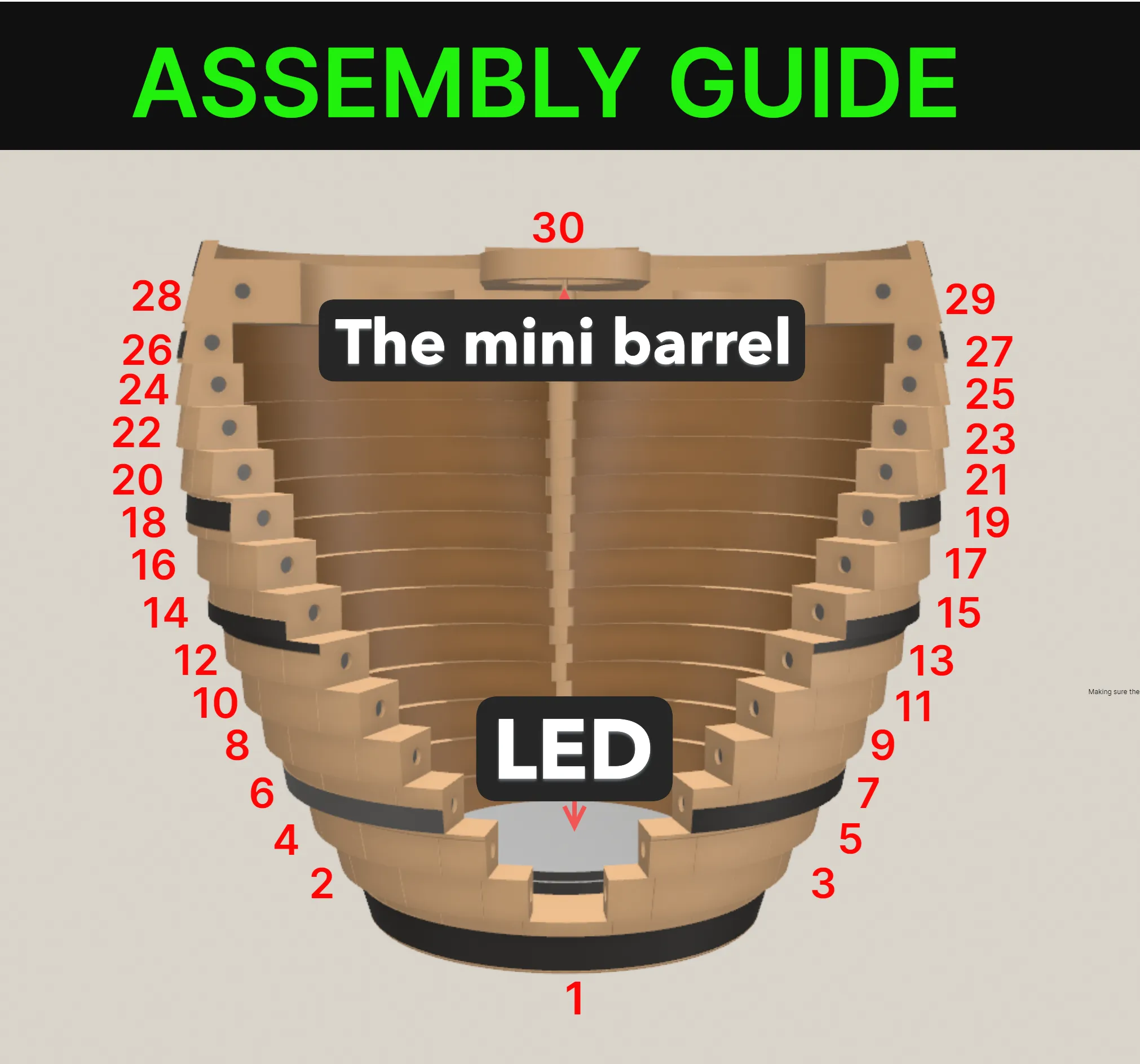

Each individual part is marked with a number, making it easy to track and assemble.

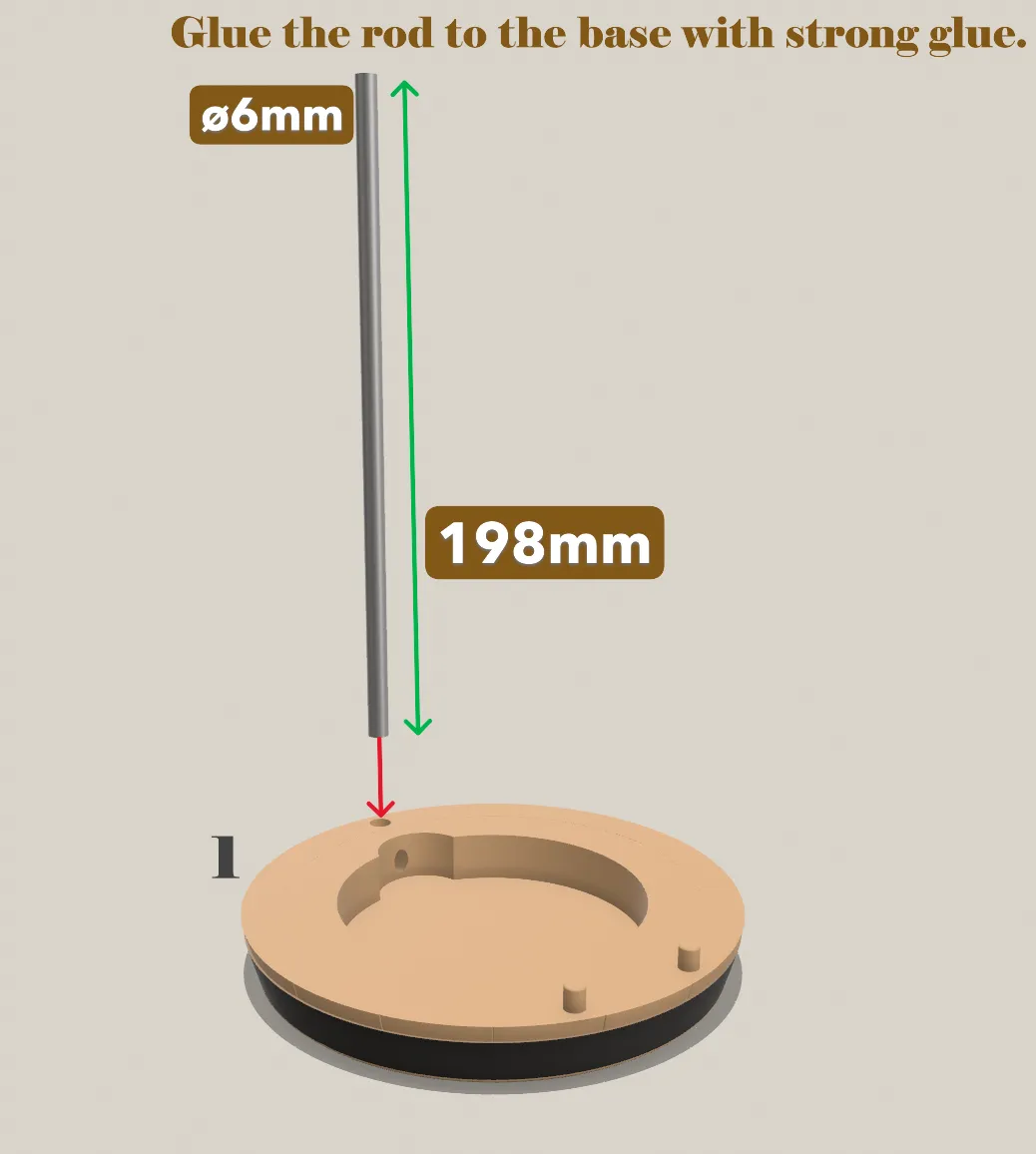

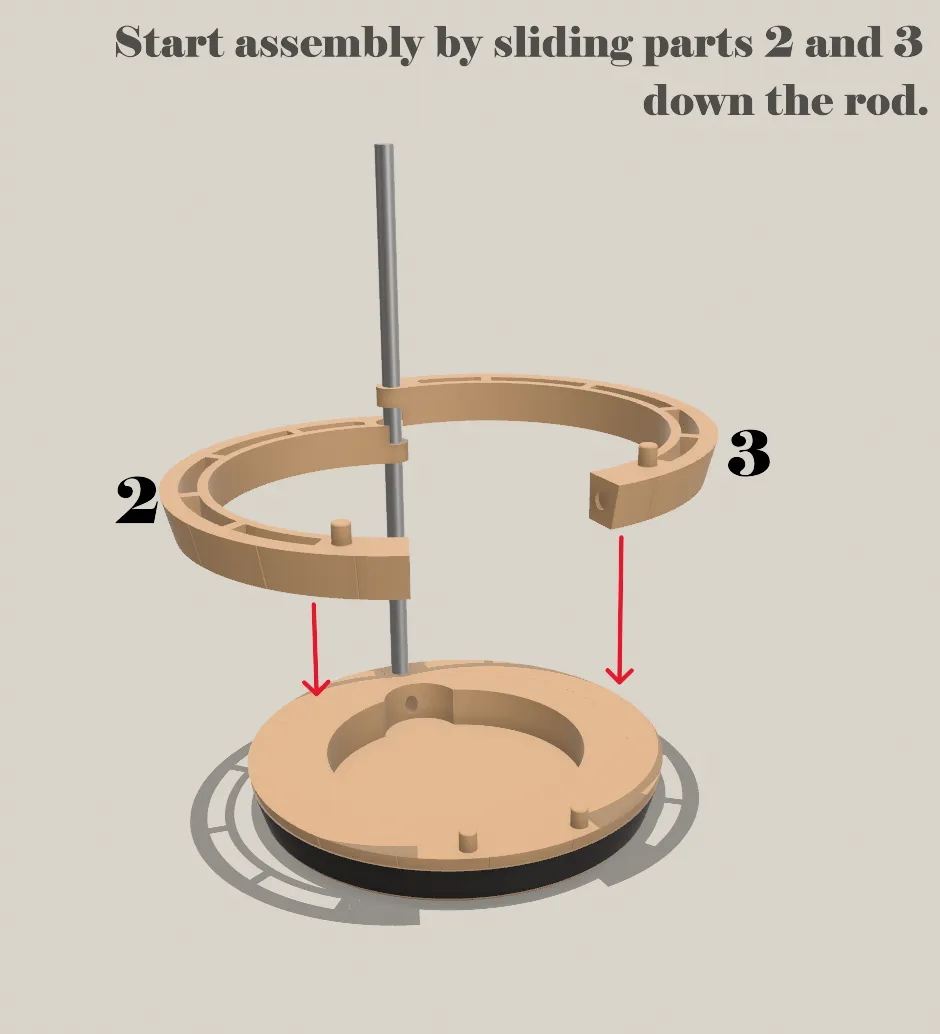

Start assembly with the base and steel rod.

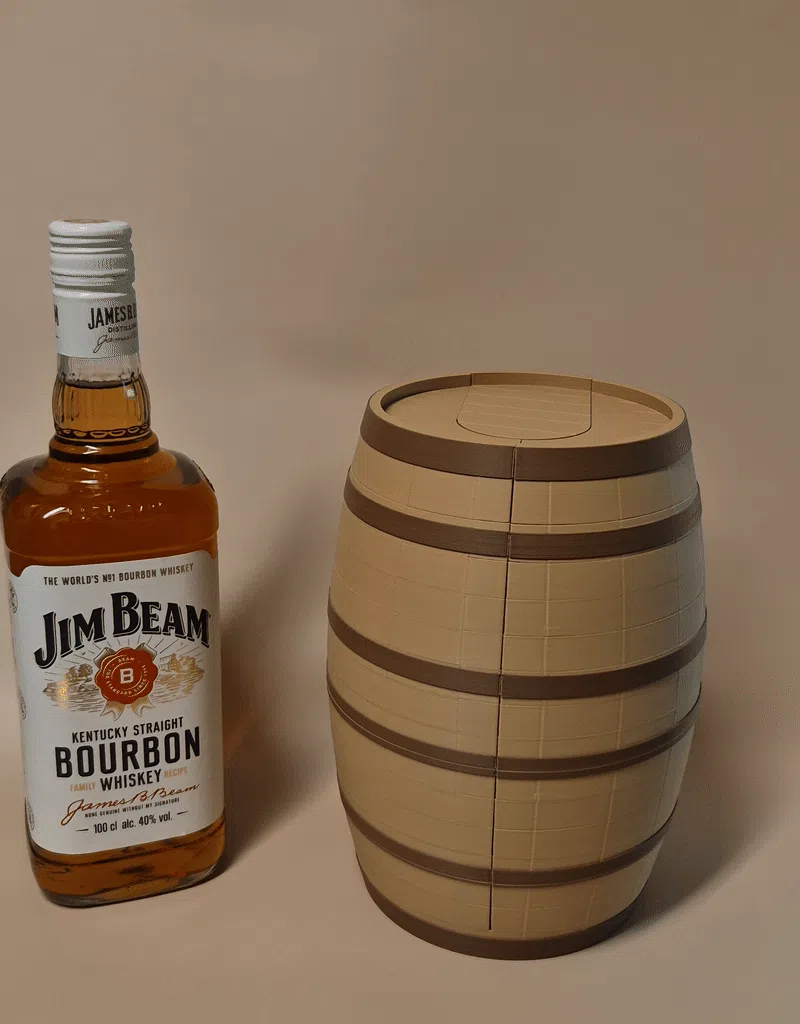

When it's done, it should look like this.

Follow me if you want to see more of my designs in the future!
