☢️ Nuclear Torch – Movable LED Flashlight

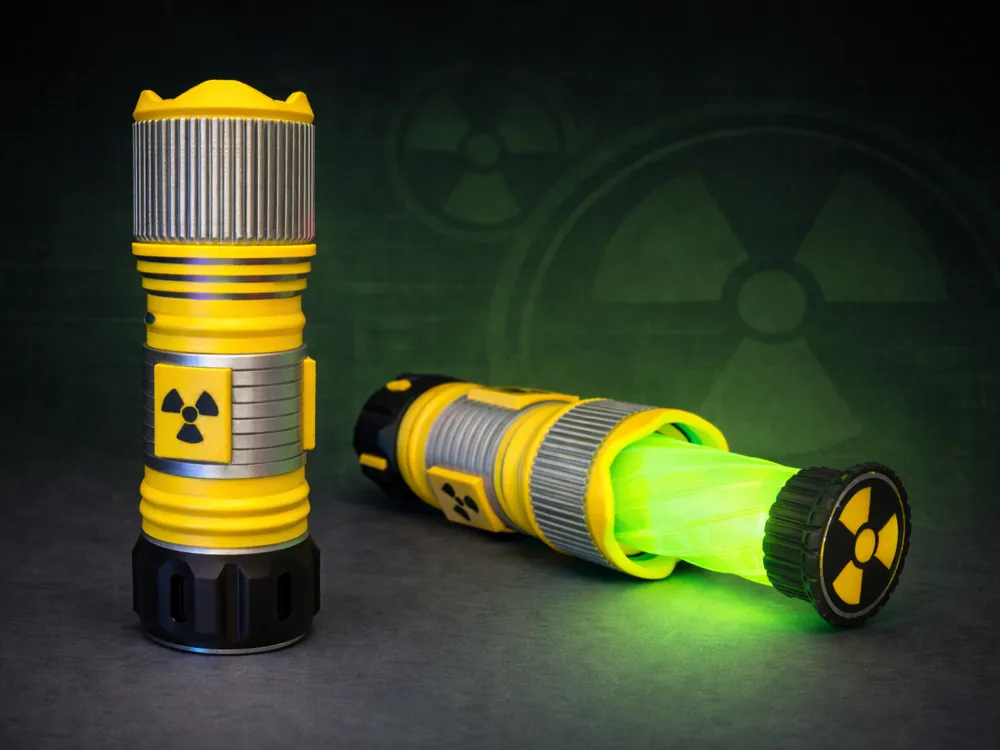

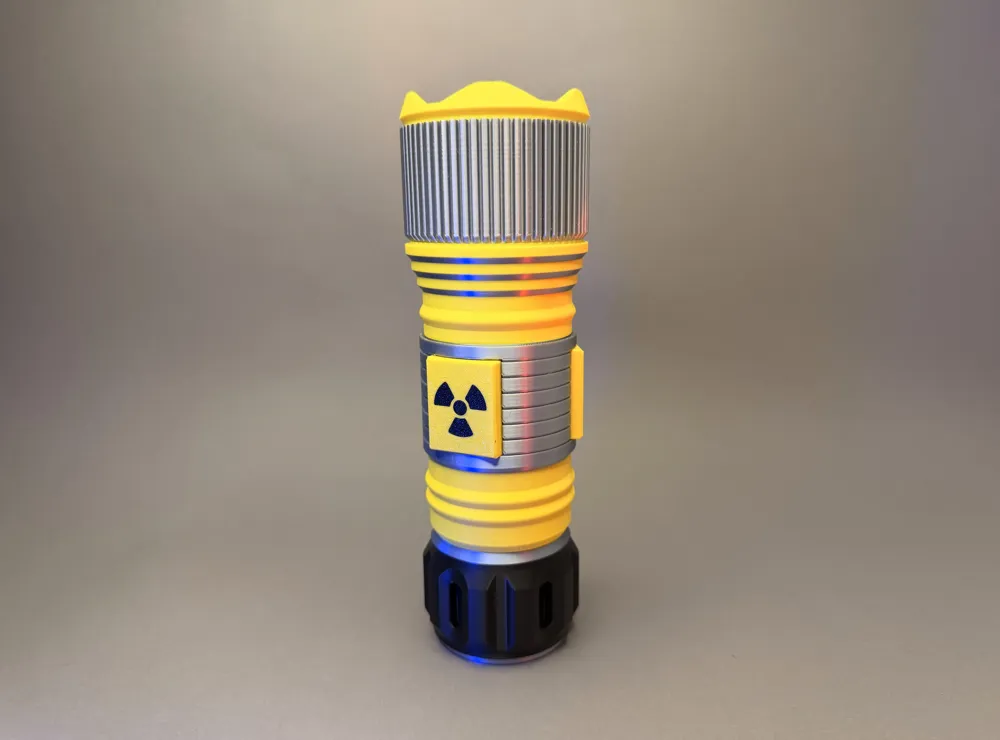

The Nuclear Torch is a 3D-printed flashlight in a sci-fi style with a sliding, glowing core.

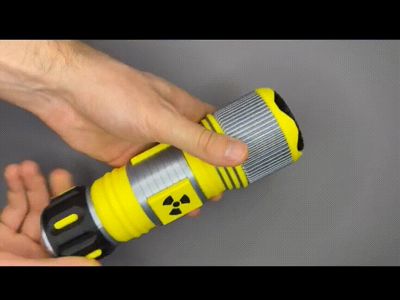

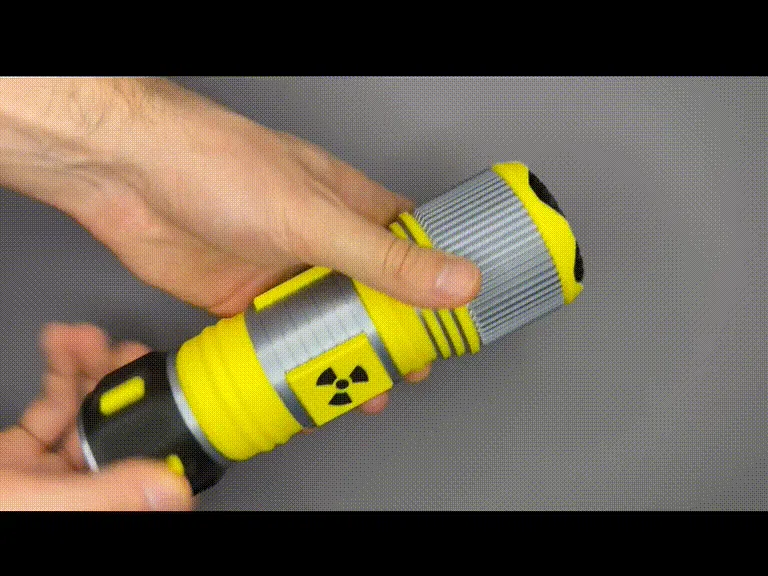

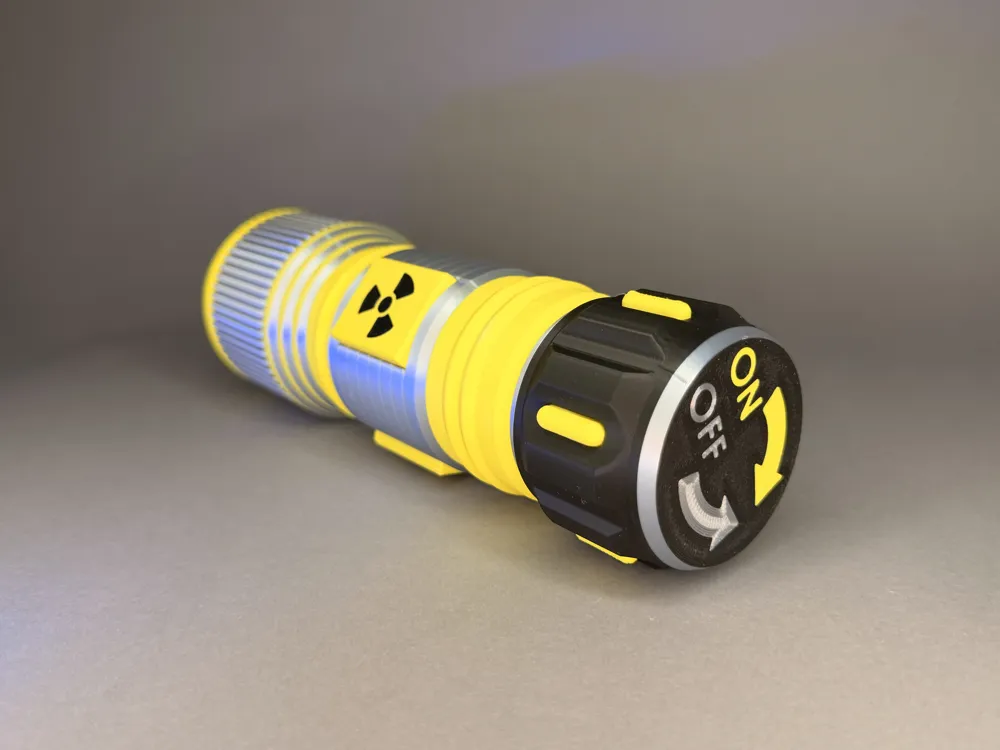

By turning the Control knob, the user moves the Sliding core using a screw mechanism, allowing smooth extension and retraction of the core.

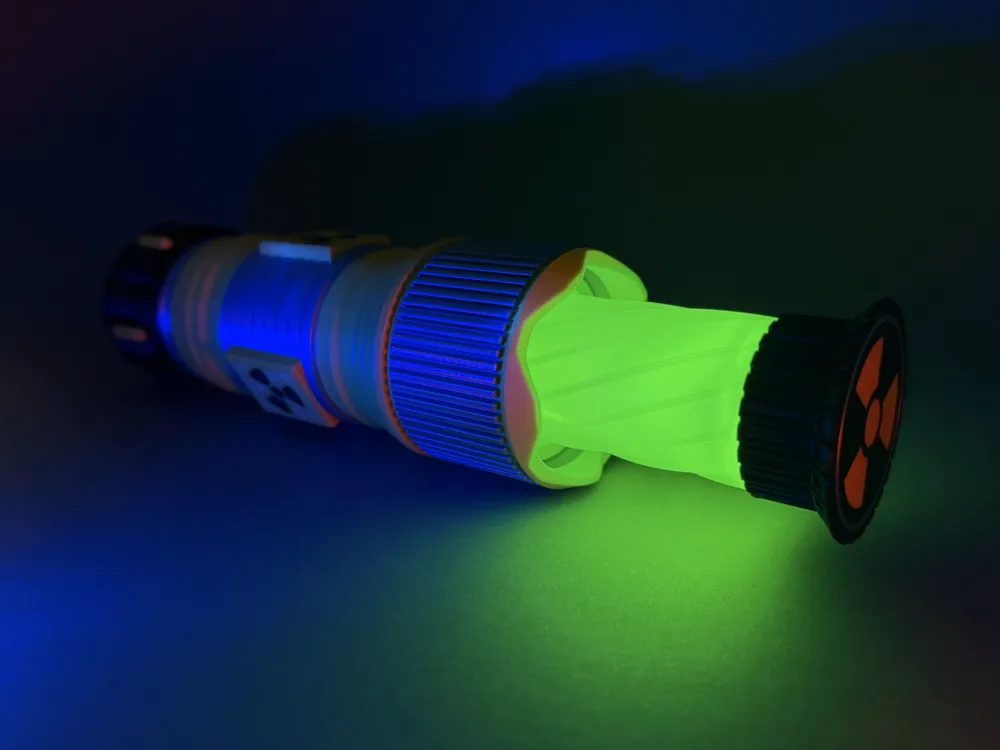

The lighting effect can be achieved in two ways:

• the core housing made from glow-in-the-dark filament,
• or a mini RGB LED installed inside the core.

The project combines moving parts, simple mechanics, and a futuristic design inspired by nuclear energy.

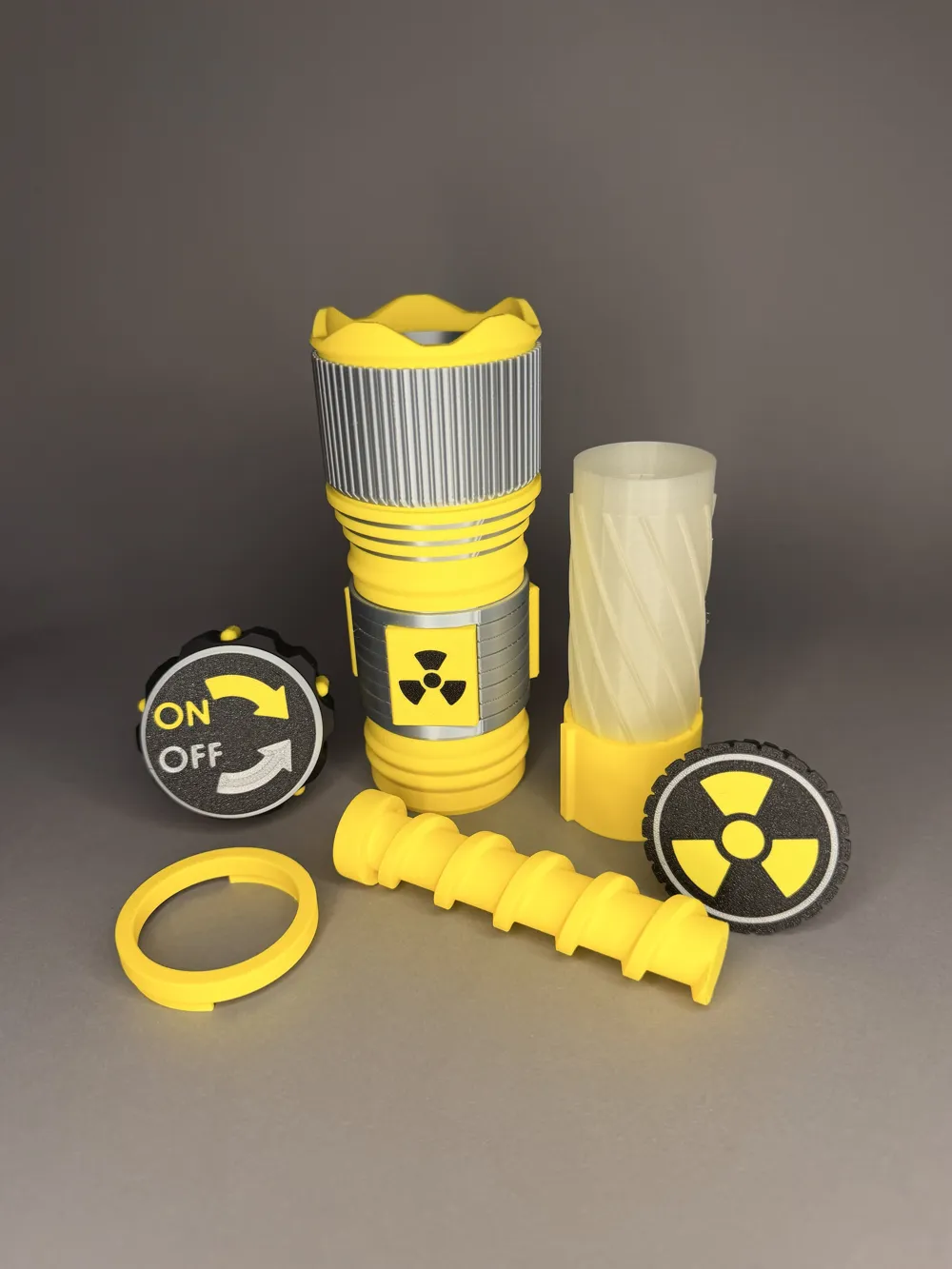

Model parts

1. Torch body
2. Sliding core
3. Drive screw
4. Control knob
5. Core stop
6. Core cap
7. Decorative element (x5)
8. Radiation symbol plate (x3)

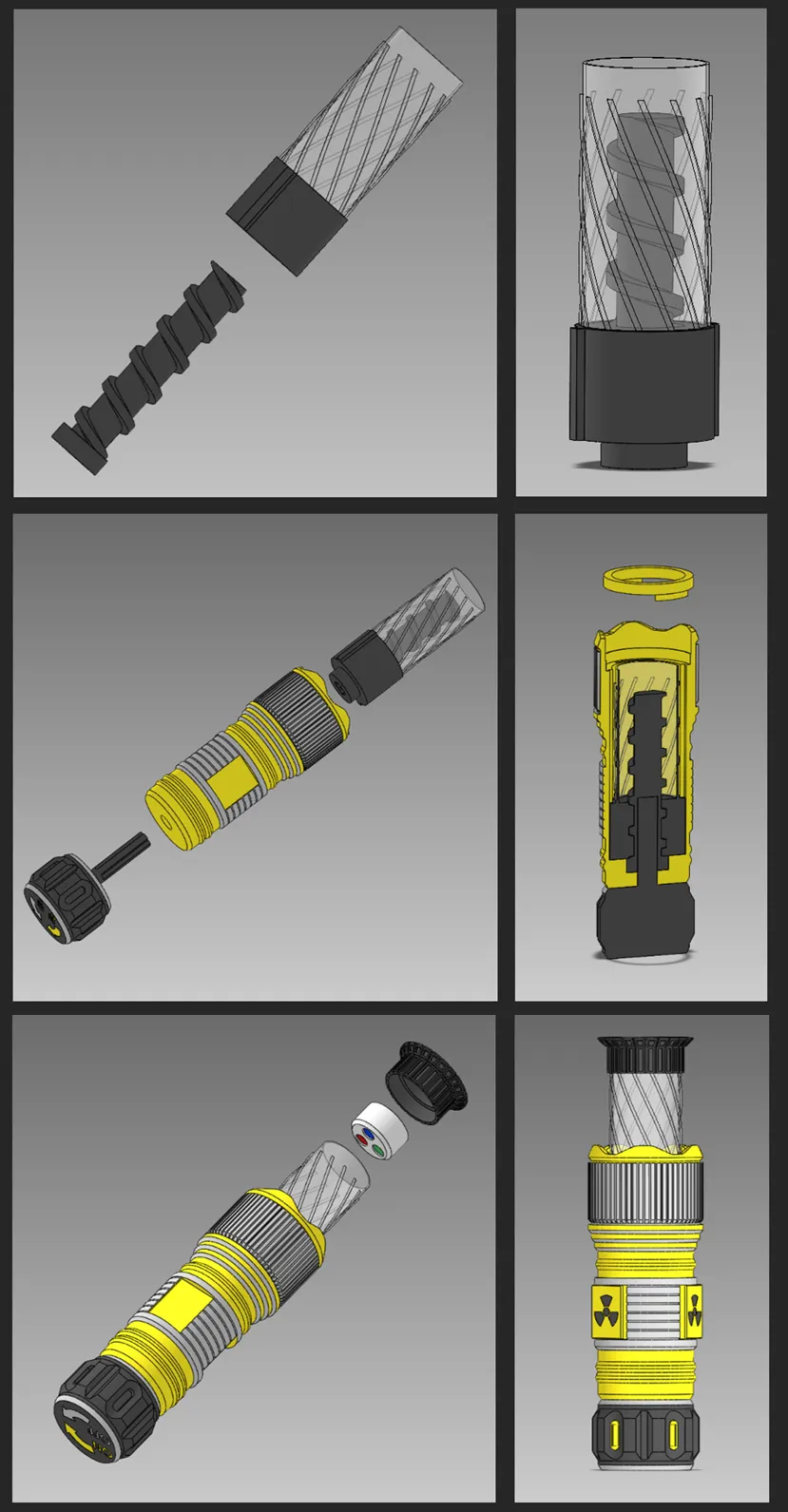

Assembly

1. Screw the Sliding core onto the Drive screw all the way down.
2. Add a small amount of glue into the hole in the Drive screw.
3. Insert the prepared assembly into the Torch body.
4. Insert the Control knob shaft into the glued hole in the Drive screw and wait for the glue to set.
5. Attach the Core stop into the appropriate holes in the Torch body and wait for the glue to cure.
6. Extend the Sliding core.
7. (Optional) place the LED inside the Core cap.
8. Attach the Core cap onto the Sliding core.
9. Install the Decorative element (x5) and Radiation symbol plate (x3).

10. Test the mechanism by turning the Control knob.



    Print. Assemble. Power up. ⚛️
