Solarmanager Pro
Print Profile(1)
Bill of Materials
- M4 Senkkopfschrauben x 4: 35mm
Description
To make my balcony power plant smarter, I used Shelly. Since I already have the power meter in the control cabinet, I also needed something to measure the feed-in. That's why I designed this part.

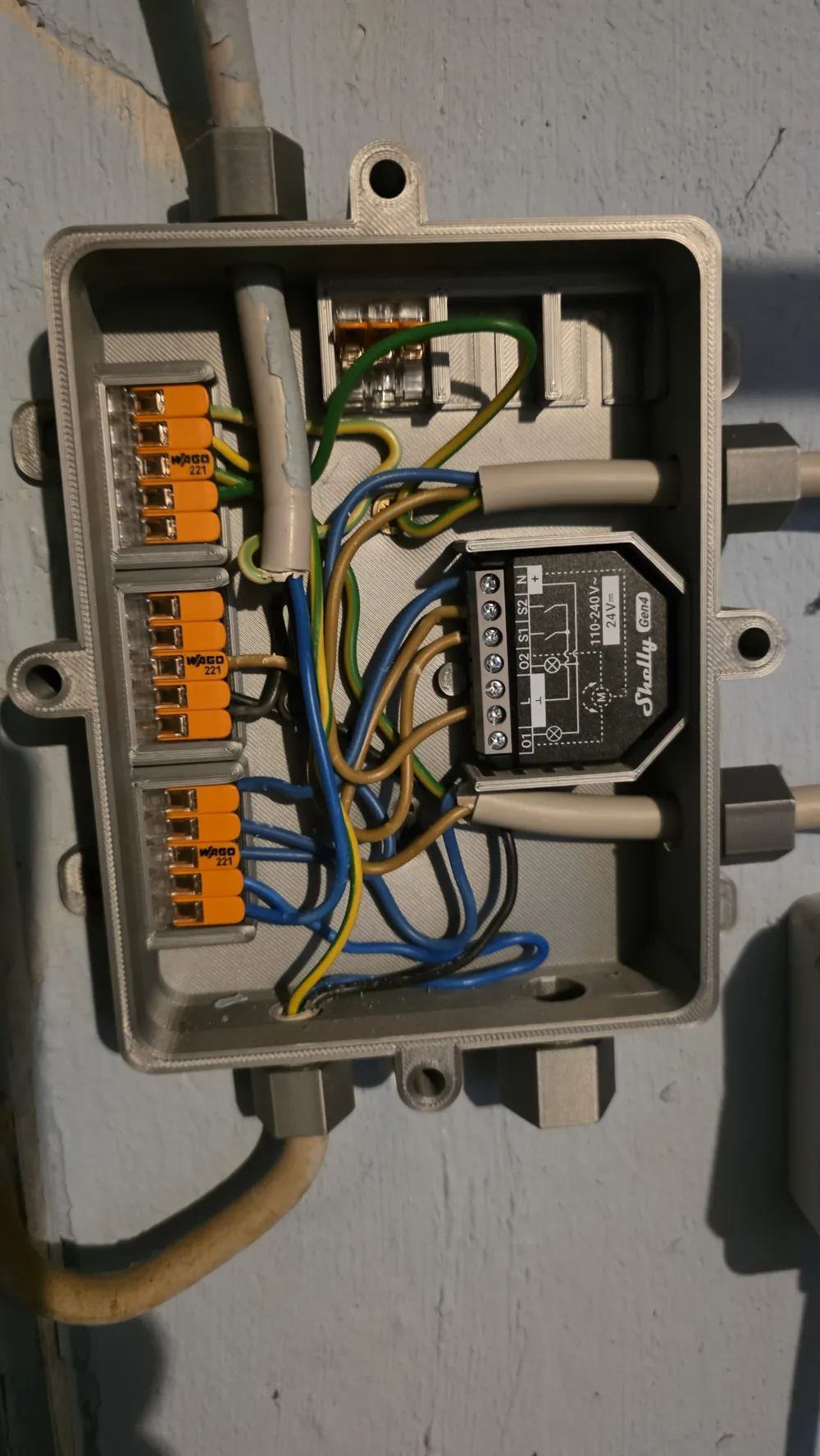

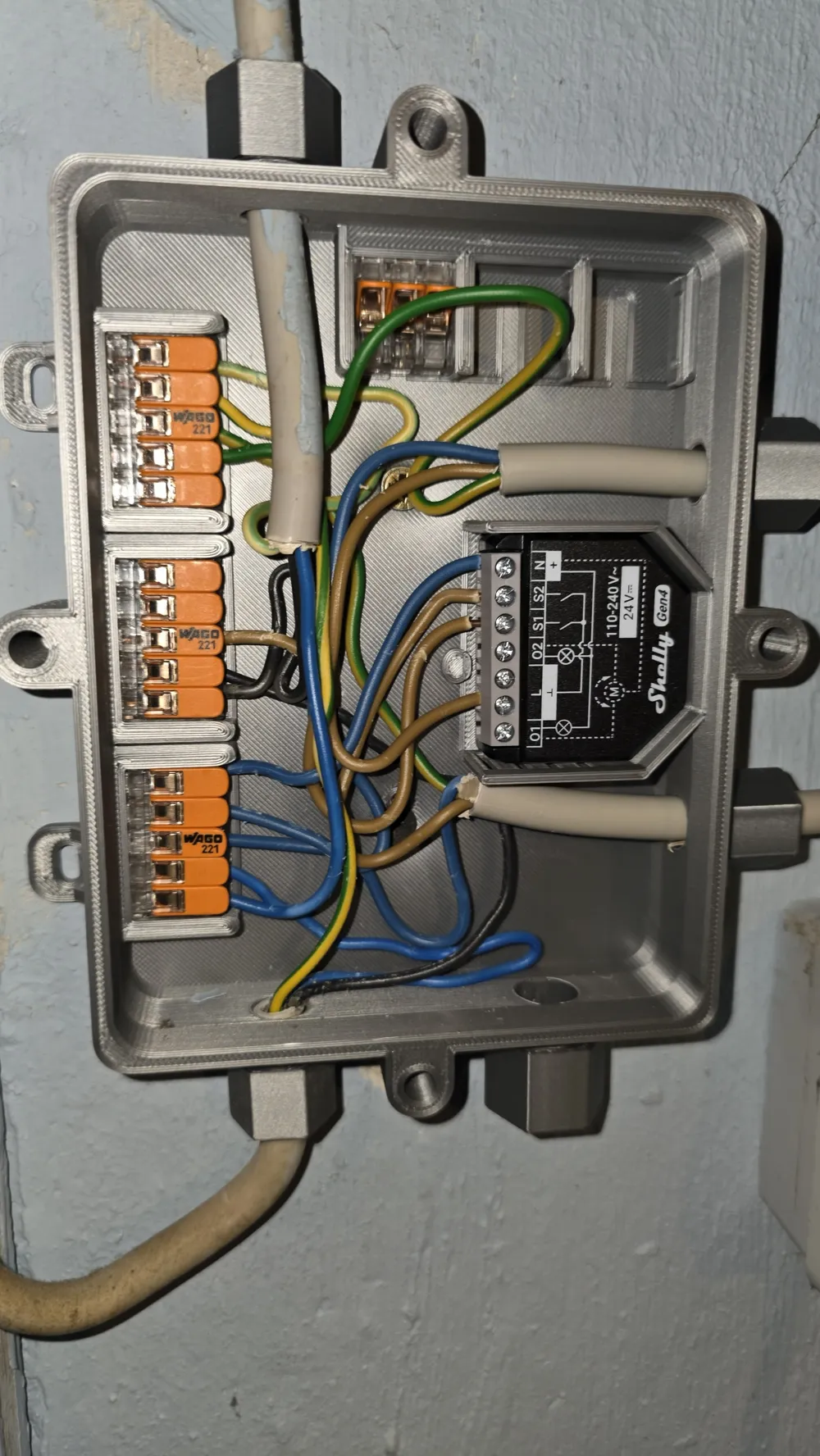

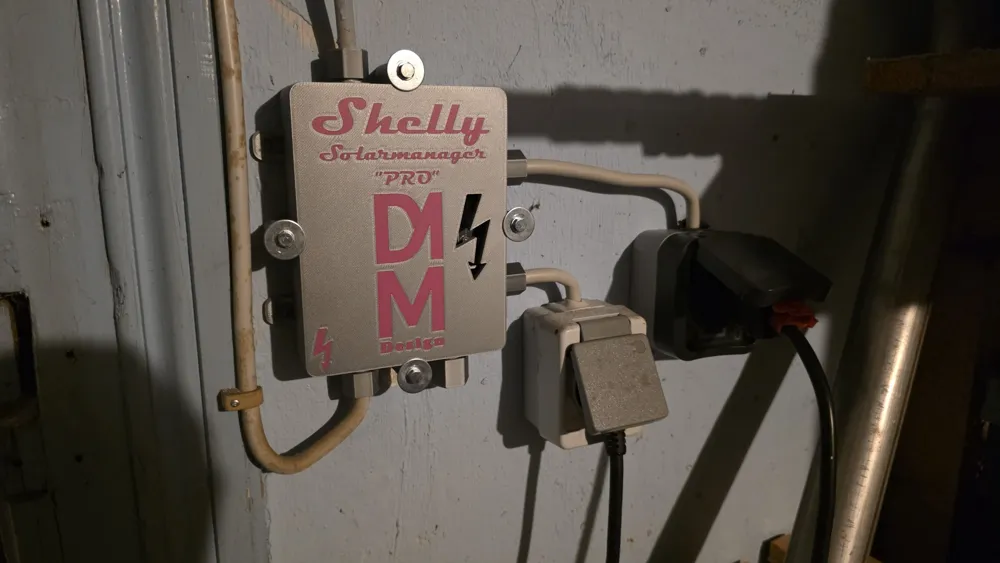

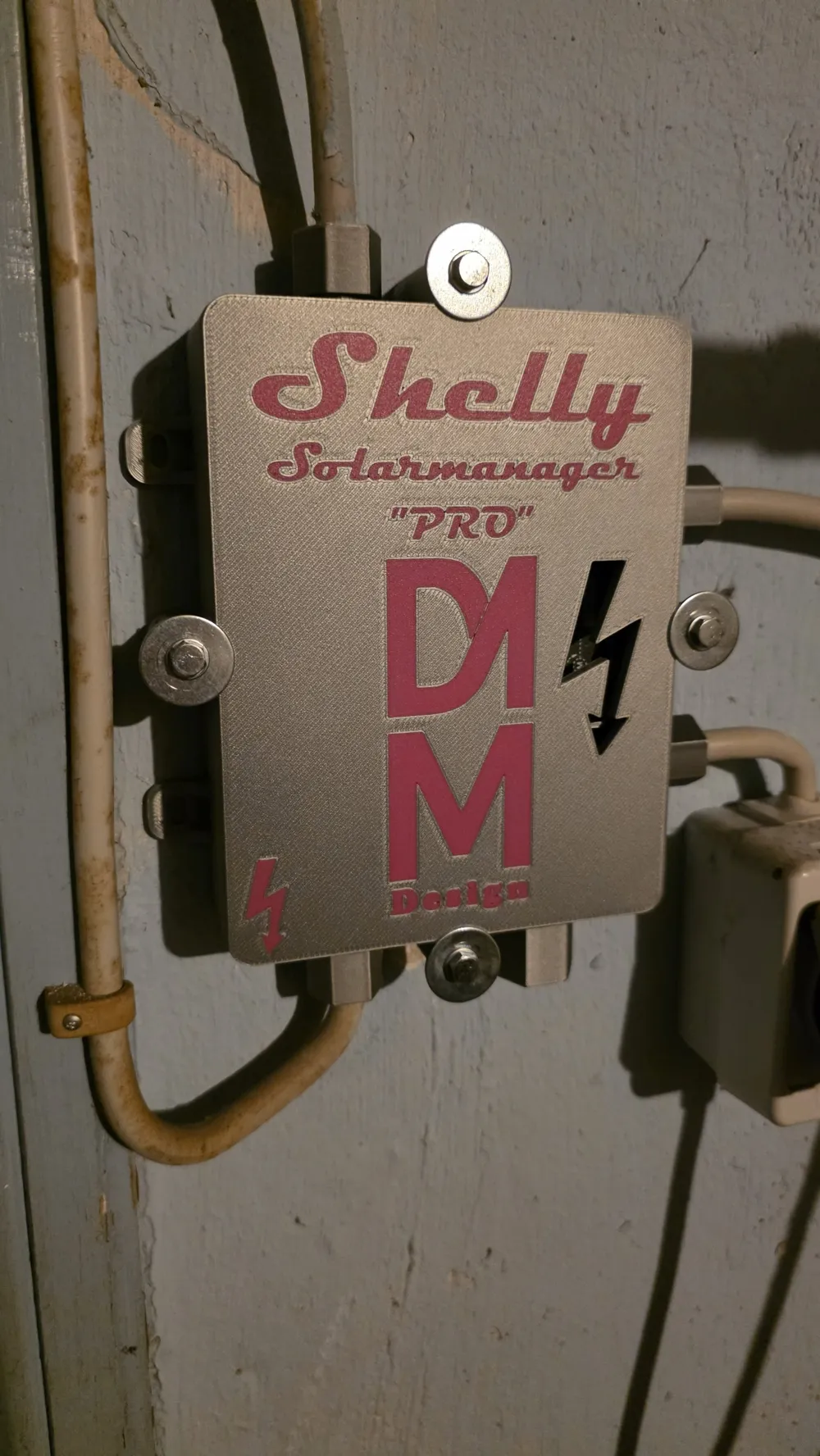

Fits the Shelly 1PM and 2PM. The box offers space for 3x 5-way and 3x 3-way Wagos. In addition, the box has 4 outputs in 10mm and one in 12mm. Seals and crimps for the box and cables are included. However, they are not really needed. For the lid, 4x 35mm M4 screws are required. The washers do not normally belong there. But I didn't have any with a countersunk head right now. ;-)
I printed it in PLA. However, I recommend ABS or at least PETG.
