Light Box

Description

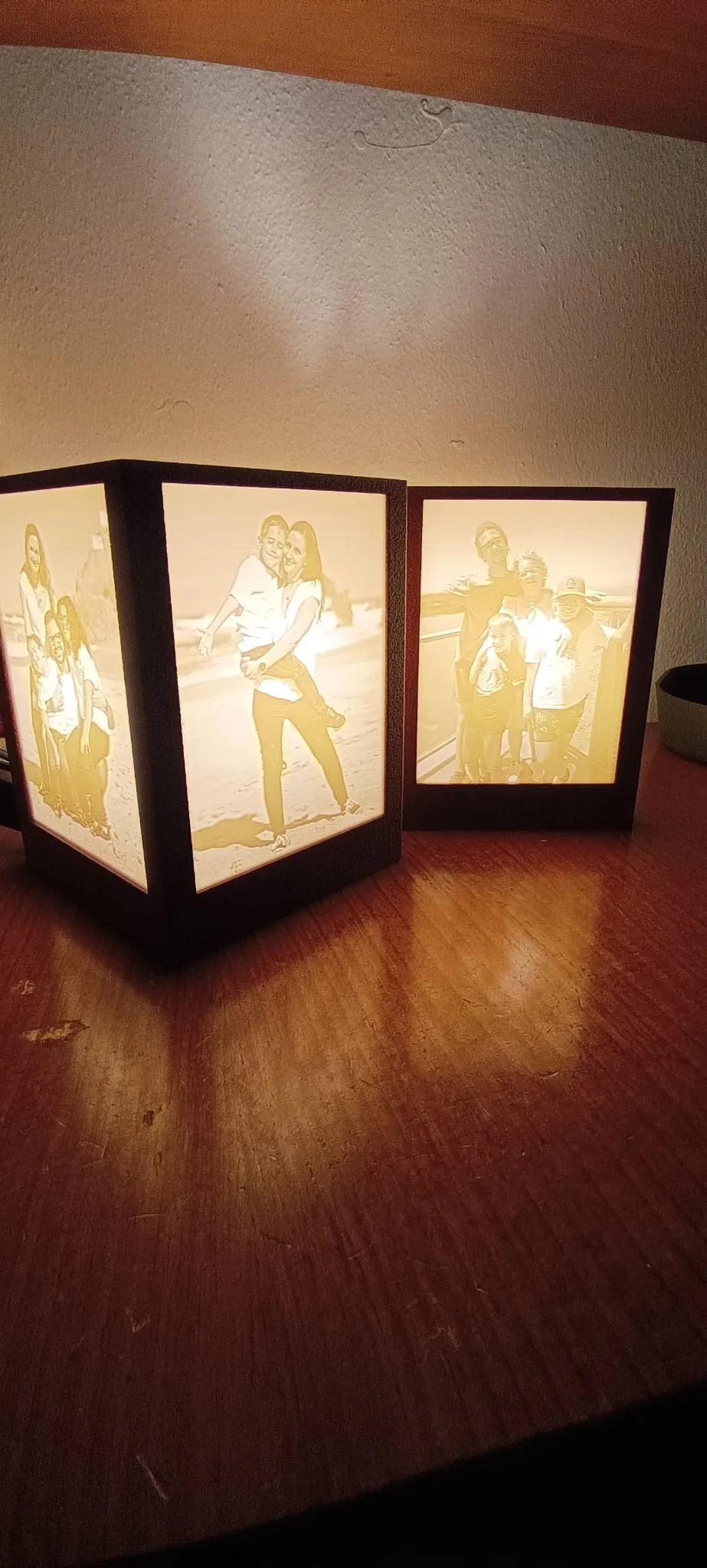

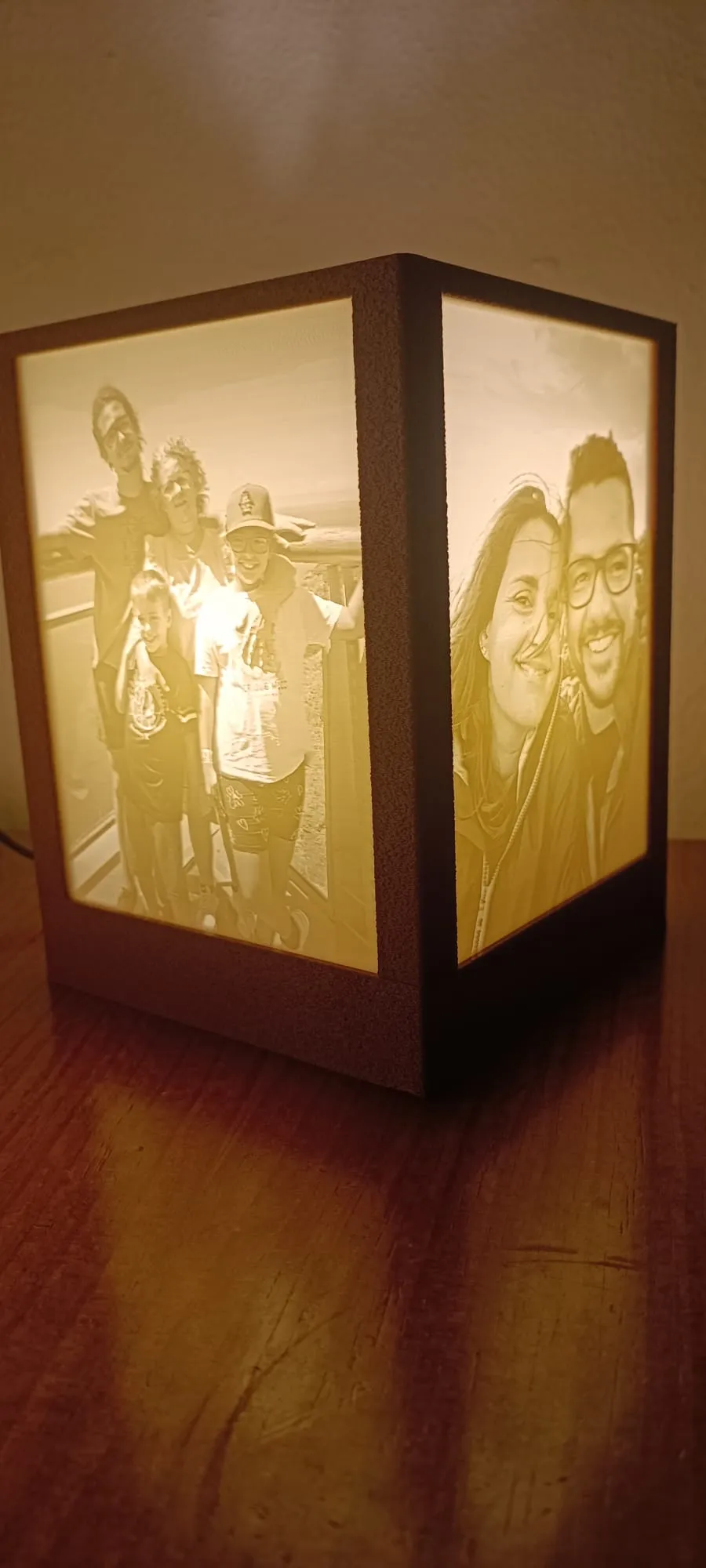

Customizable Photo Lamp with 4 Panels – E14 Socket (30 mm Diameter)

Add a personal touch to your space with this 3D printable lamp that combines light and memories! Designed to hold 4 custom photo panels, it’s perfect for gifting or creating a cozy, sentimental atmosphere at home or in the office.

📐 Technical Specifications:

• Shape: Cubic
• Number of photo sides: 4
• Visible photo area dimensions: 170 x 130 mm
• Recommended clearance when converting photos to STL: Leave 1–2 mm of margin around each image for a smooth, secure fit.
• Photo frame thickness: 5 mm, ensuring a sturdy structure and proper alignment with the lamp body.

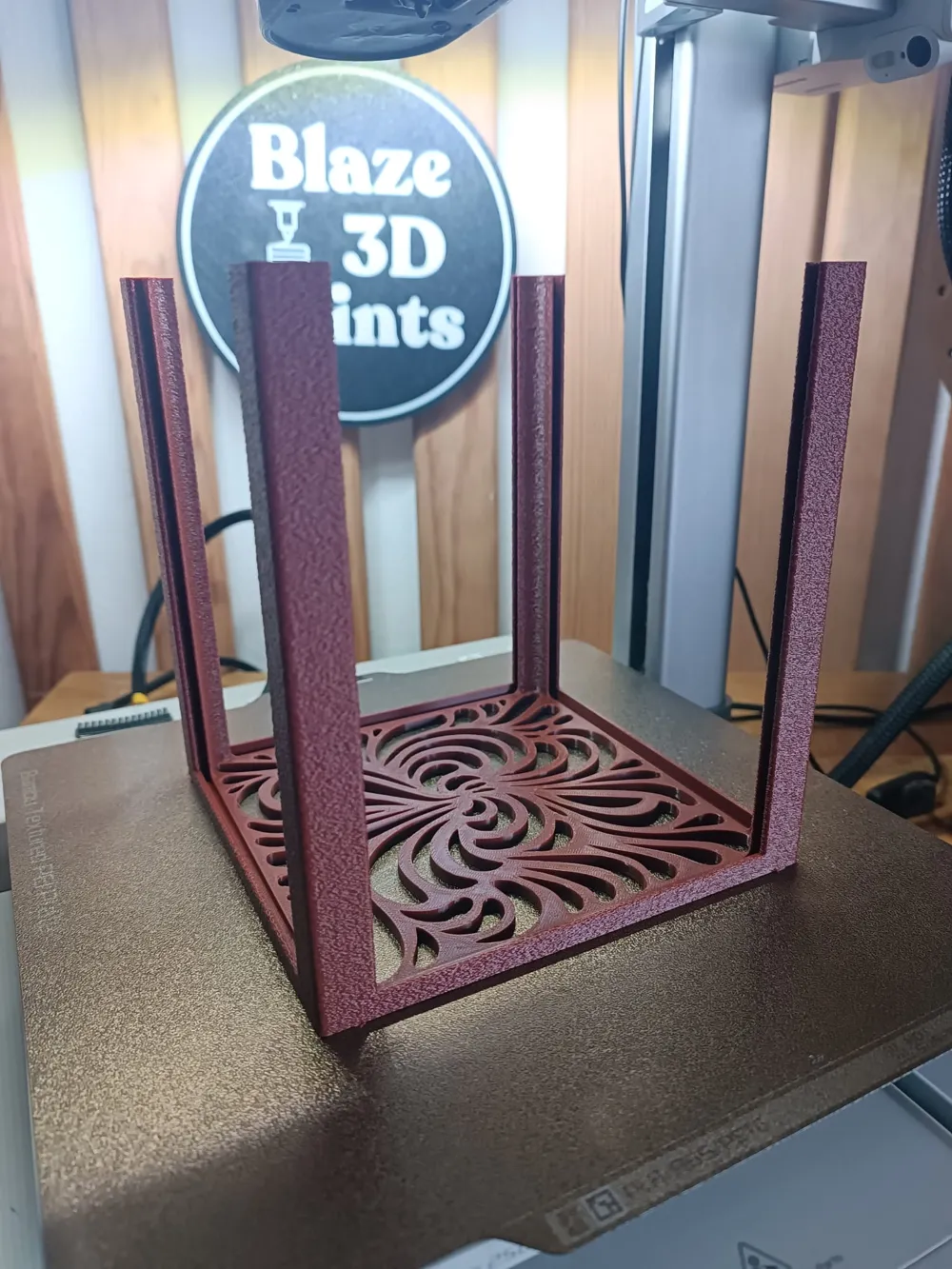

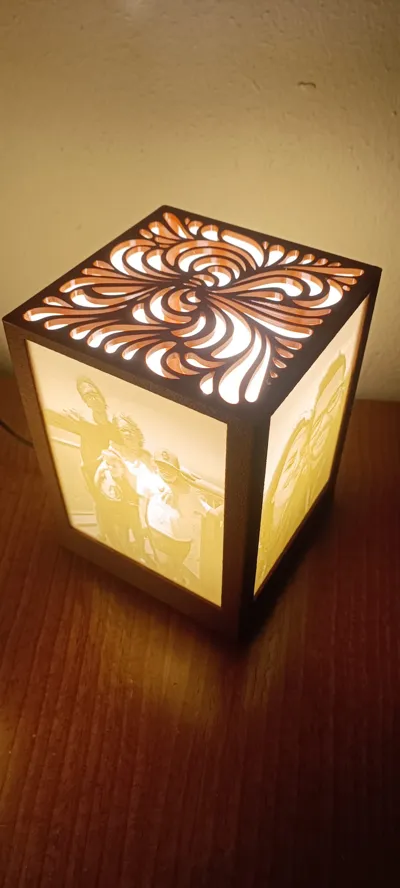

• Top: Decorative vented lid for light dispersion and ventilation.

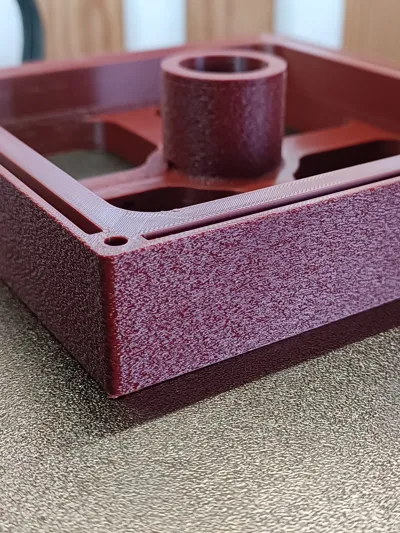

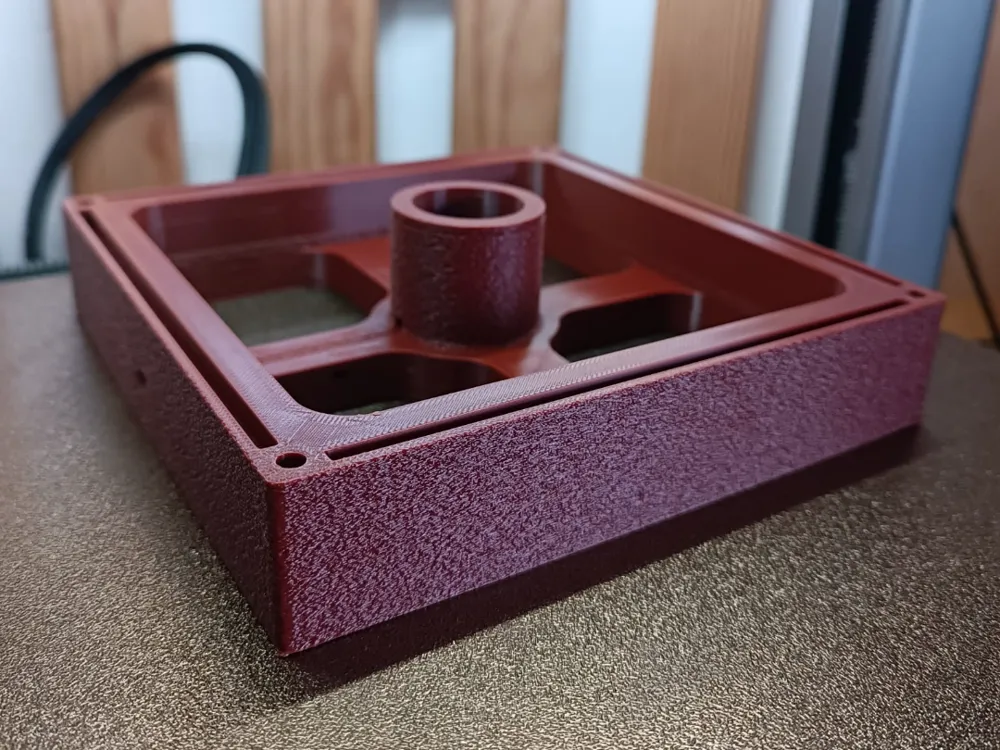

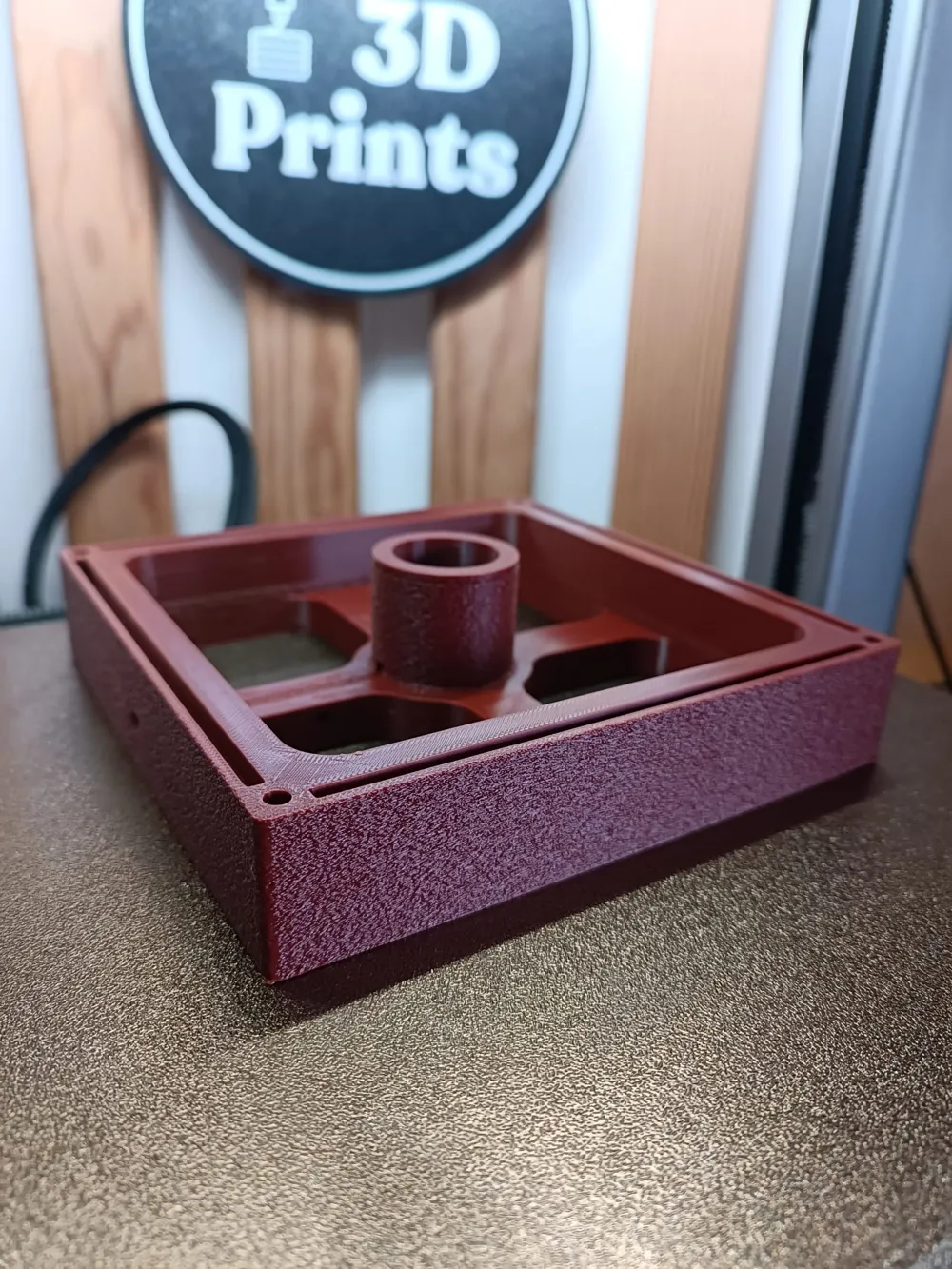

• Socket type: Compatible with E14 socket or any socket with a 30 mm diameter.
• Approximate height: 180 mm (adjustable)
• Recommended materials: PLA or PETG for the frame / translucent or white specific PLA for the photo panels.

💡 Tip:

Use low-wattage cool LED bulbs to prevent overheating and ensure safety.

Turn your favorite pictures into 3D reliefs (lithophanes) using online tools like ItsLitho or 3DP Rocks, respecting the measurements and clearances listed above.

All measures are avaliable in the attached PDF.
