Description

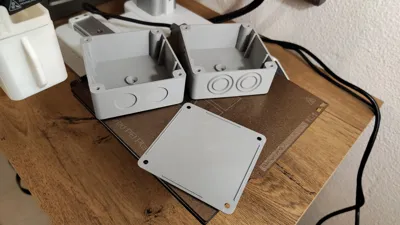

This is a general purpose junction boxes project with low profile to be used for indoor, outdoor or inside walls cable routing and connections.

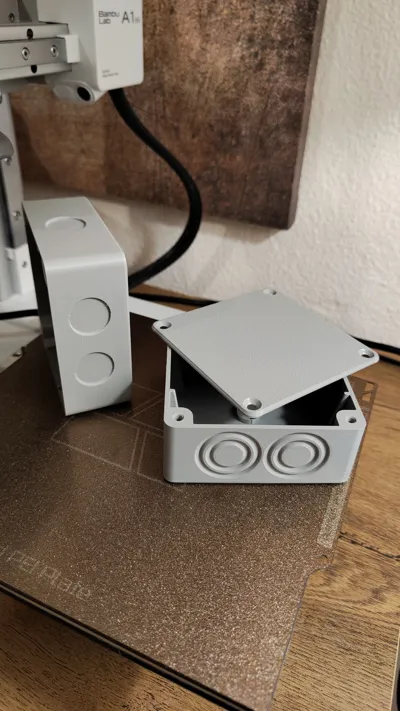

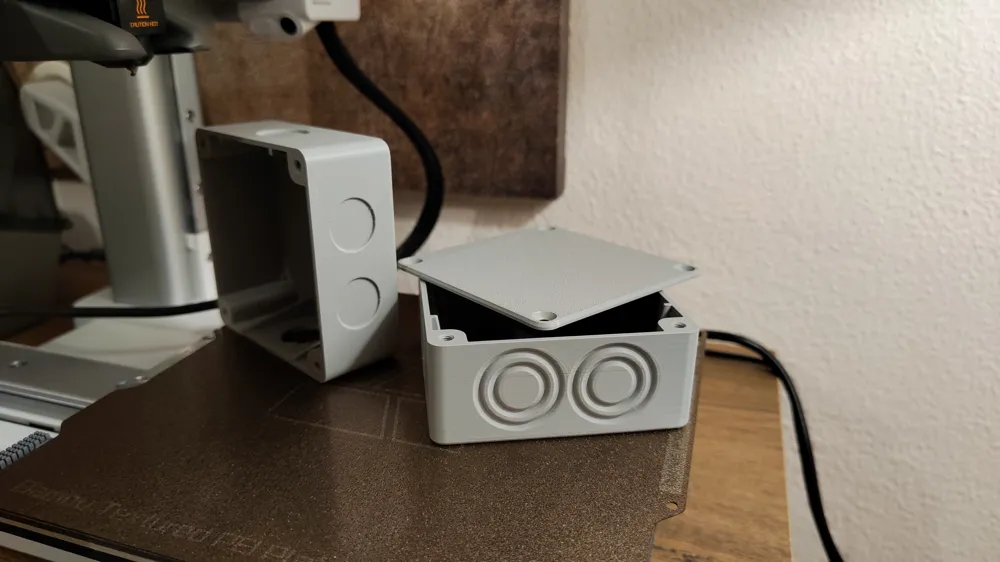

Option A: 6 x 16-25mm conduit inlets/outlets | Chamfered edges for better sealant adhesive placement (plate #1)

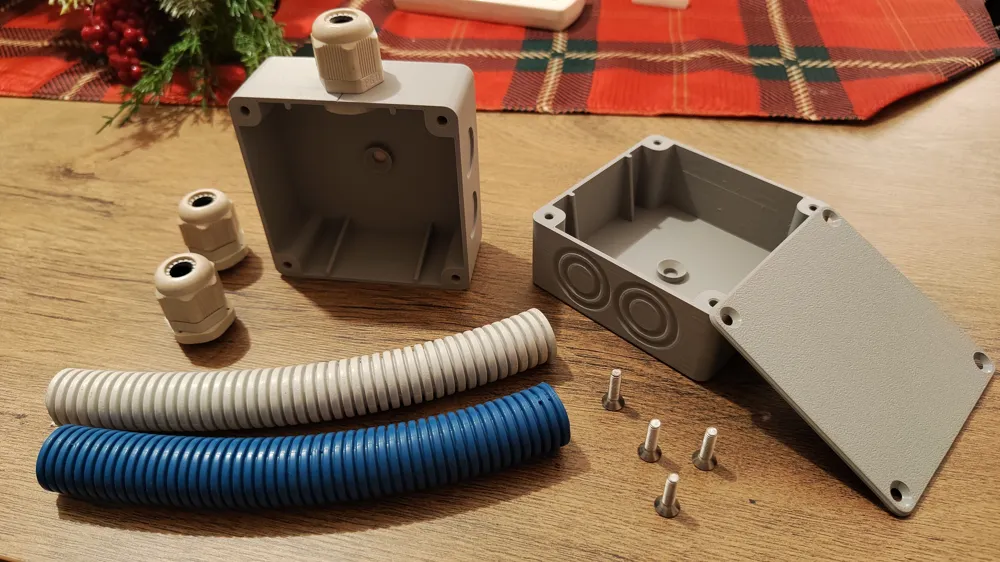

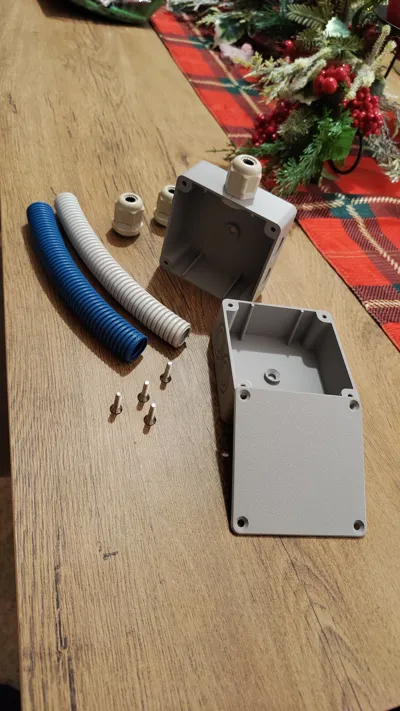

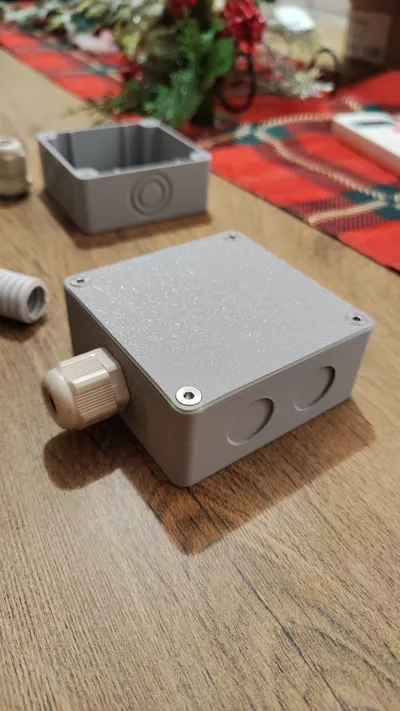

Option B: 6 x PG11 cable glands (plate #2)

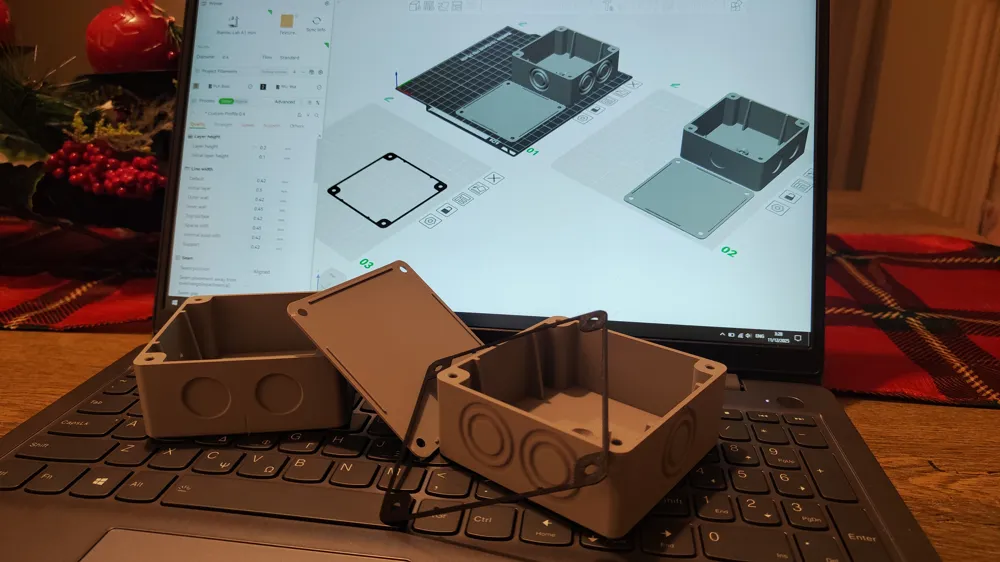

Optional flange for lid is on plate 3 for TPU print.

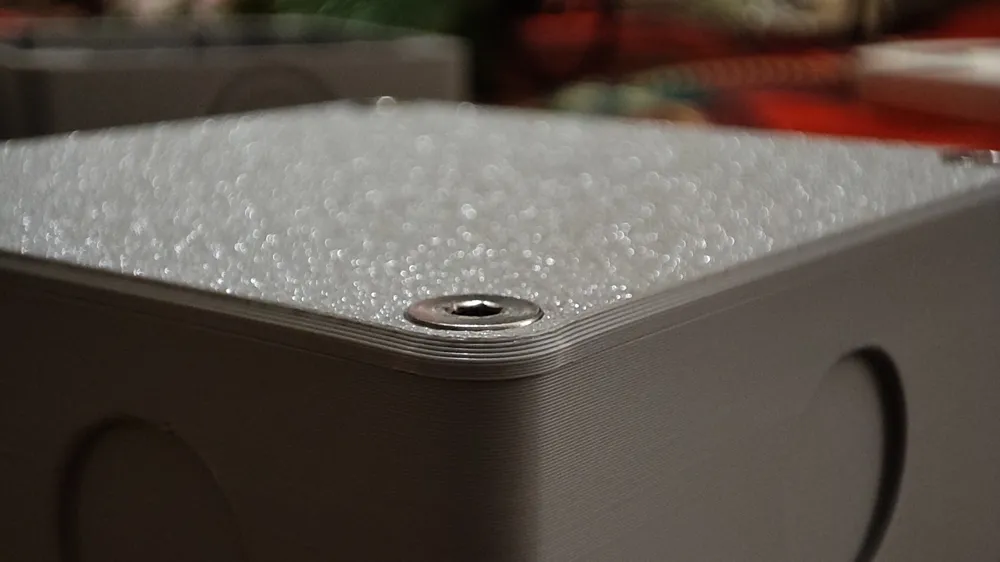

Wall mounting bottom thread for M5/M6/M8mm screws / 4 x M4 threaded screws of up to 18mm long can be used for the lid.
