ABS CF


TPU MAX 15KG


TPU MAX 20KG



Altura de capa 0,2.4 Paredes para el chasis.2 paredes para cubierta de rodamientoABS y TPU

0.2 layer height.4 walls for the chassis.2 walls for bearing coverABS and TPU

0.2mm layer, 4 walls, 25% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

Hola amigos! os comparto mis necesidades convertidas en realidad, la idea parte de la necesidad de crear un carro para portar mis rollos de filamento bajo el huevo de un mueble desaprovechado, éstas ruedas están diseñadas para su uso con rodamientos tipo 608-2z de 22mm, seguro que tienes alguno de algún proyecto antiguo que puedas aprovechar! ;)&nbsp;He realizado pruebas de resistencia, e impreso en ABS-CF y TPU 95A cuatro de éstas ruedas soportan mi peso (80KG), a si que si, son resistentes!Realizaré pruebas con Nylon y ver hasta donde son capaces de llegar :D.&nbsp;Incluye dos modelos de TPU diferentes, recomiendo usar el de perfil bajo para mayor resistencia al peso.&nbsp;Material utilizado:4x Rodamientos 608-2z4x Tornillos allen M8 de 30mm4x Tuercas hexagonales planas M8ABS-CFTPU 95A&nbsp;Plano Orientativo sobre dimensiones:<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002093213/design/2025-12-08_cd921816d3756.png"></figure>

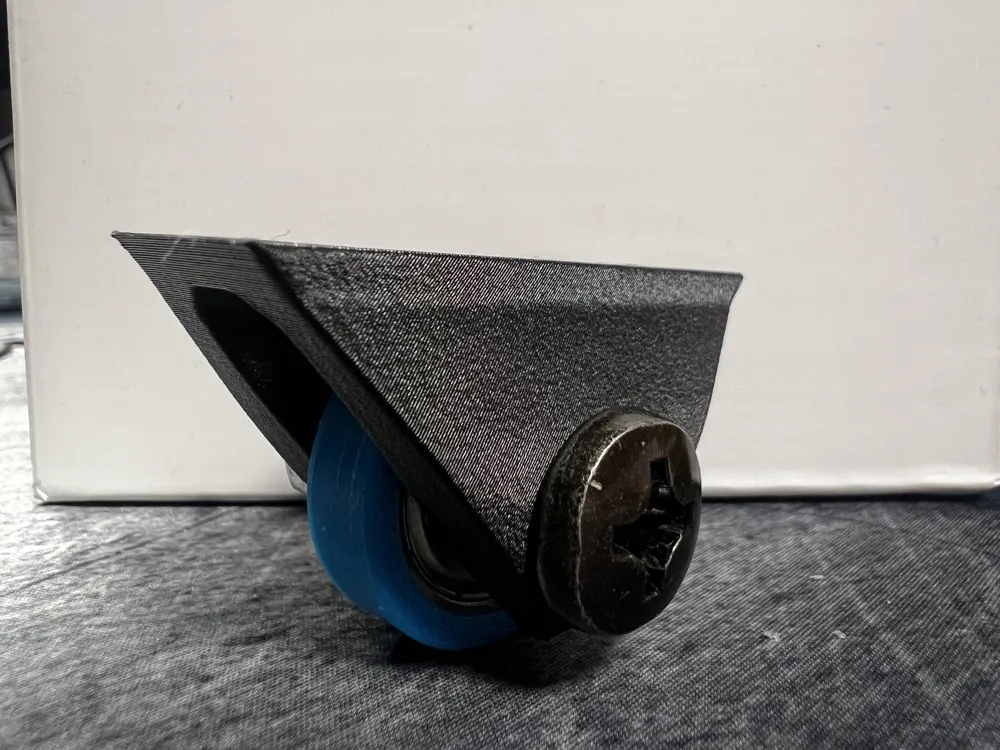

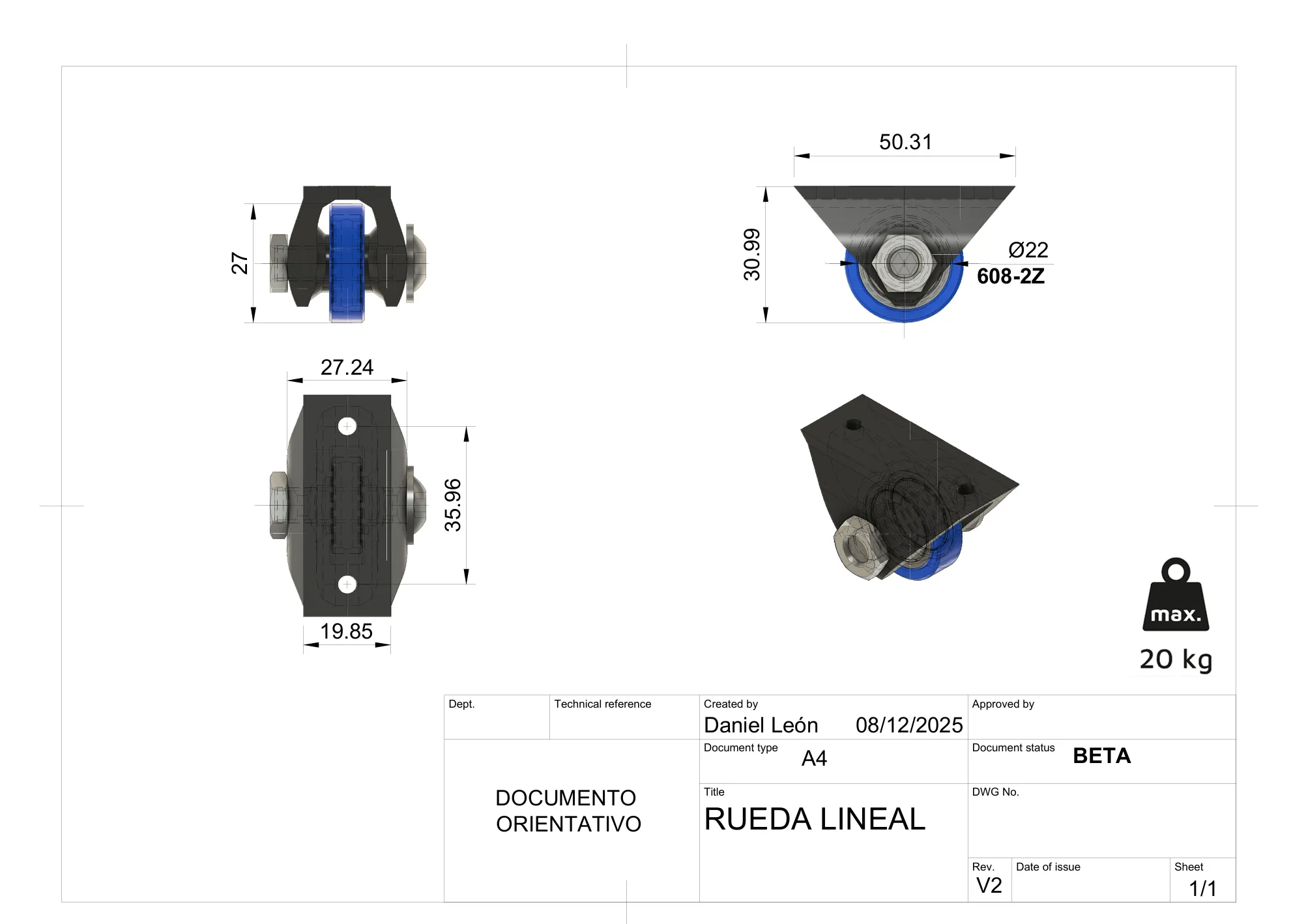

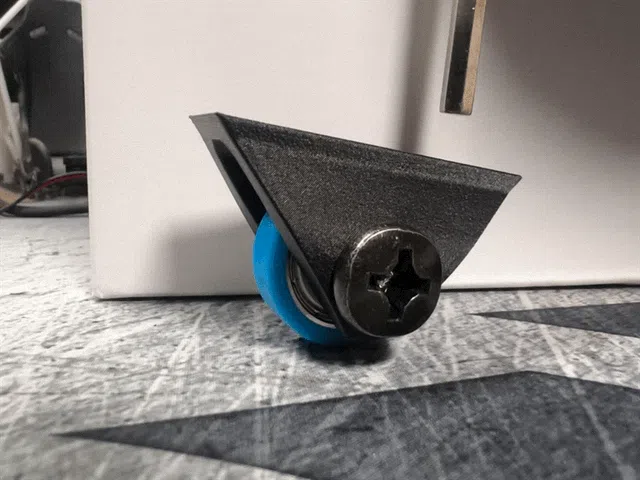

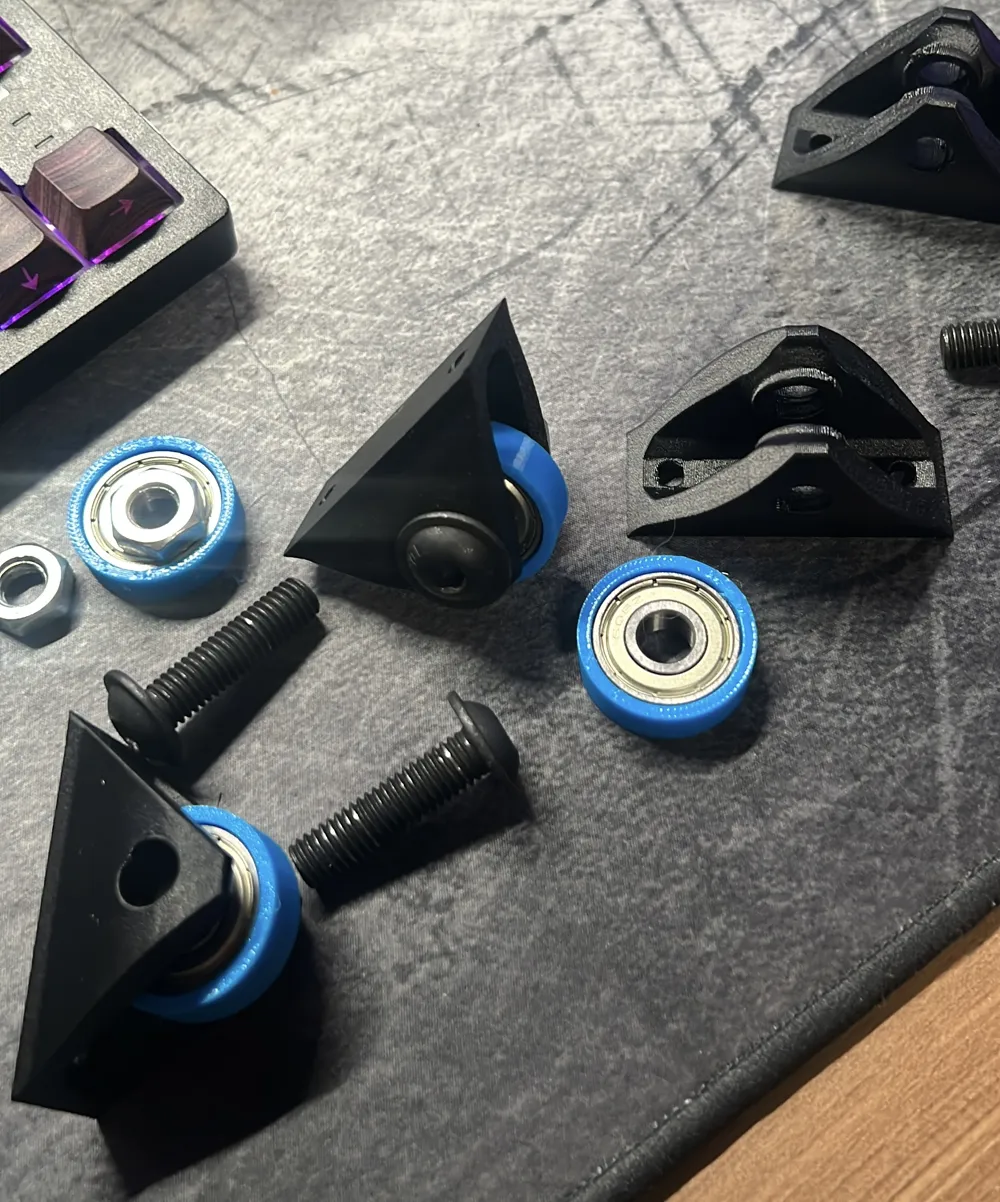

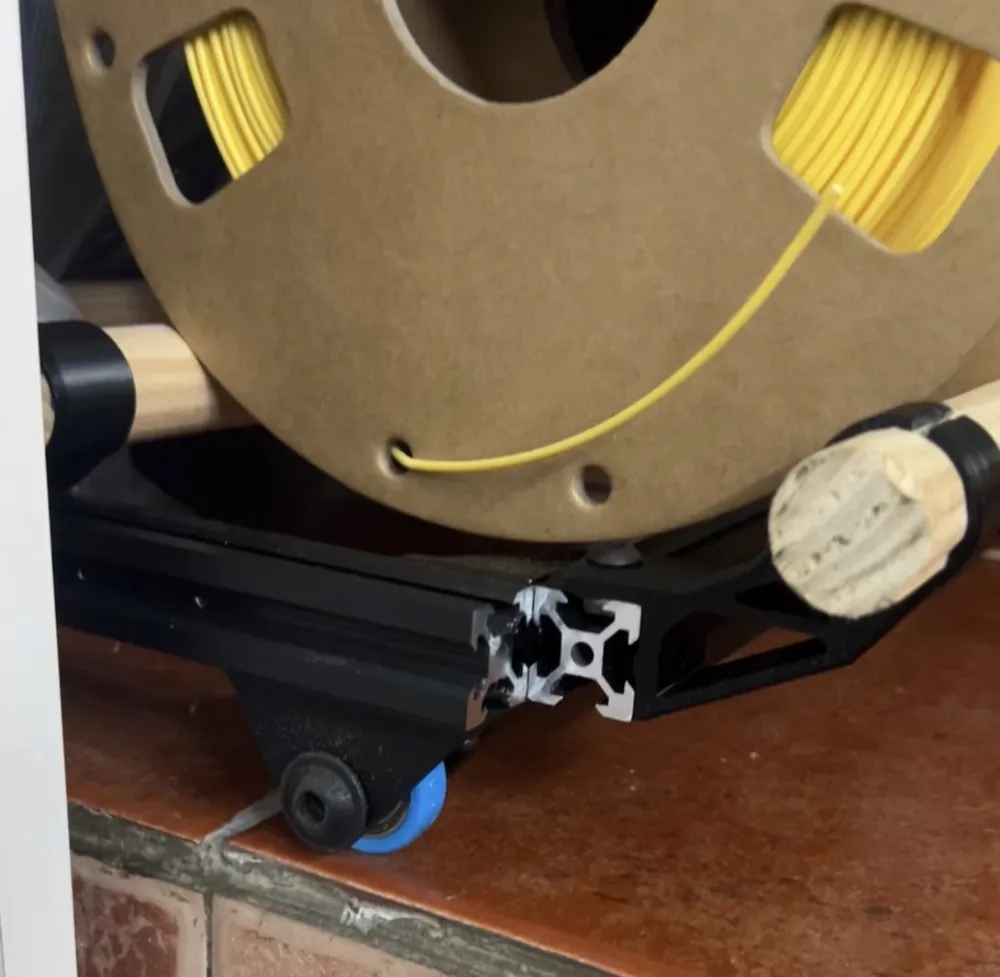

Hello friends! I'm sharing my needs turned into reality. The idea stems from the need to create a trolley to carry my filament spools under the unused space of a piece of furniture. These wheels are designed for use with 22mm 608-2z type bearings. I'm sure you have some from an old project you can use! ;)&nbsp;I have conducted resistance tests, and printed in ABS-CF and TPU 95A, four of these wheels support my weight (80KG), so yes, they are resistant!I will perform tests with Nylon and see how far they can go :D.&nbsp;Includes two different TPU models. I recommend using the low-profile one for greater weight resistance.&nbsp;Material used:4x 608-2z Bearings4x M8 30mm Allen screws4x M8 flat hex nutsABS-CFTPU 95A&nbsp;Indicative Plan on dimensions:<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002093213/design/2025-12-08_cd921816d3756.png"></figure>
