Parametric Gridfinity Silverware bin

Gridfinity Parametric Silverware Organizer

Overview

Transform your kitchen drawer into an organized paradise with this fully parametric Gridfinity-compatible silverware organizer! Perfectly designed to hold knives, forks, spoons, dessert forks, and teaspoons in custom-fit slots that match your exact flatware dimensions.

✨ Key Features

🎯 Fully Parametric Design

• Customize everything: Adjust slot dimensions for each utensil type to perfectly match your flatware
• Smart layout: Reorder utensil sections (knives, forks, spoons, etc.) to match your preferences
• Wizard mode: Auto-calculate slot counts based on your stack size, or use manual mode for full control

🍴 Precision Utensil Slots

• Knife slots: Accommodates blade curvature and handle variations with configurable blade curve
• Fork slots: Smooth shoulder transitions from handle to tines
• Spoon slots: True ovoid (egg-shaped) bowl profiles for accurate fit
• Dessert forks & teaspoons: Separate optimized profiles for smaller utensils

🎨 Customization Options

• Central finger trench: Easy-access cutout with configurable angles (straight or wavy pattern)
• Handle retention collars: Optional tabs to keep utensils securely in place
• Multiple alignment modes: Center, top-align, bottom-align, or neck-align your utensils
• Orientation control: Standard, flipped, or alternating utensil orientations
• Miscellaneous bin: Optional extra storage space for small items

🔧 Advanced Features

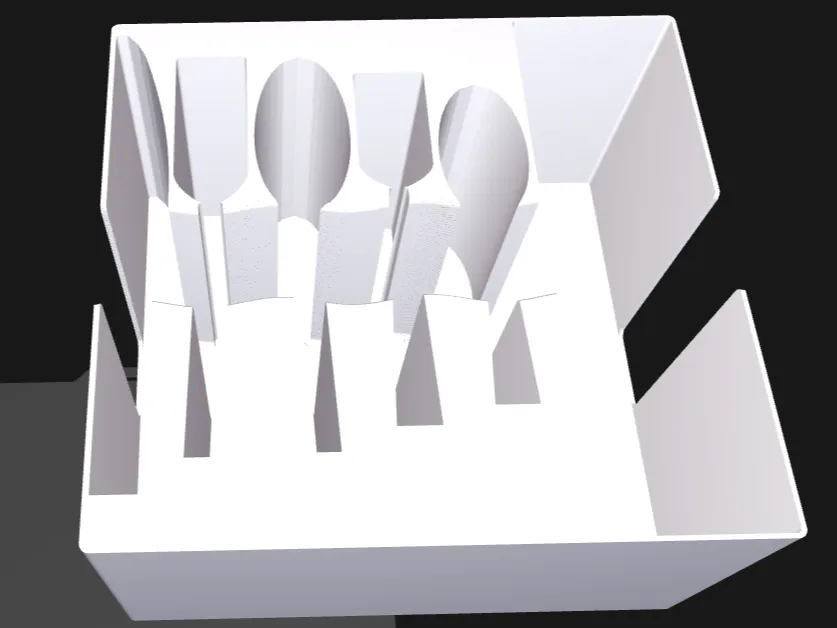

• Test slice mode: Print a thin test slice to verify fit before committing to a full print
• Minimalist mode: Reduce material usage with optimized wall thickness
• 2D footprint projection: Generate paper templates for layout planning
• Gridfinity compatible: Standard Gridfinity base with optional magnets and stacking lip
• Fractional grid edges: Fine-tune positioning for perfect drawer fit

📐 Technical Specifications

• Gridfinity compatible: Uses standard 42mm pitch grid system
• Maximum bin height: 186.5mm (configurable)
• Wall thickness: 2mm (standard) or 1.2mm (minimalist mode)
• Slot clearance: Configurable clearance for each utensil type
• Stack capacity: Default 12 items per stack (customizable)

🖨️ Print Settings Recommendations

Material

• PLA/PETG: Recommended for durability and ease of printing
• TPU: Optional for flexible retention tabs (if modifying)

Print Settings

• Layer height: 0.2-0.3mm
• Infill: 15-20% (sufficient for structural integrity)
• Supports: Not required
• Brim: Recommended for better bed adhesion
• Print orientation: Base down (Gridfinity base on build plate)

Post-Processing

• Remove any stringing or support material
• Test fit with actual utensils before finalizing dimensions
• Consider sanding slot edges for smoother utensil insertion

🎓 How to Use

1. Measure your flatware:
   • Length, handle length, handle width (base and neck)
   • Blade/head dimensions for knives/forks
   • Bowl width for spoons
2. Open in OpenSCAD:
   • Adjust parameters in the Customizer panel
   • Start with test slice mode to verify dimensions
   • Fine-tune until perfect fit
3. Generate STL:
   • Render the model
   • Export as STL
   • Slice and print
4. Optional: Print 2D footprint first to test layout on paper

💡 Tips & Tricks

• Start with test slice: Always print a test slice first to verify slot dimensions
• Measure multiple utensils: Use average dimensions if your flatware varies slightly
• Consider drawer depth: Adjust grid size to fit your drawer dimensions
• Use minimalist mode: For faster prints and less material usage during testing
• Enable handle collars: For better utensil retention in drawers that get moved frequently

🔄 Version History

V10.1.2 - Current version

• Improved slot profiles with better curvature handling
• Enhanced alignment options (neck alignment mode)
• Optimized trench cutout with triple-offset fillet technique
• Added wavy trench option for decorative purposes
• Improved ovoid bowl profiles for spoons

📝 Notes

• This is a parametric model - you MUST customize dimensions to match your flatware
• Default dimensions are examples and may not fit your specific utensils
• Test slice mode is highly recommended before full print
• Gridfinity base requires compatible drawer base or grid system

🙏 Credits & Inspiration

Inspired by the Gridfinity storage system and various cutlery organizer designs. Built with precision and customization in mind.

Happy printing! 🎉

If you find this useful, please consider leaving a like or review. Customization questions? Check the OpenSCAD comments in the file for detailed parameter descriptions.
