Gridfinity Stackable Bins

Here is my take on stackable Gridfinity storage !

You can find 4 version of this model :

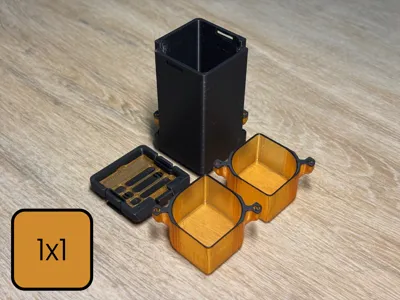

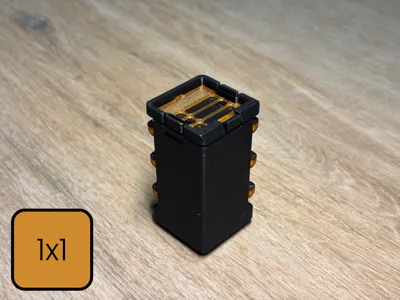

1. 1x1 Gridifinity Size, with 3 Bins
2. 1x1 Gridifinity Size, with 4 Bins

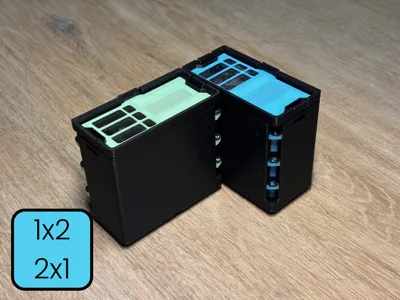

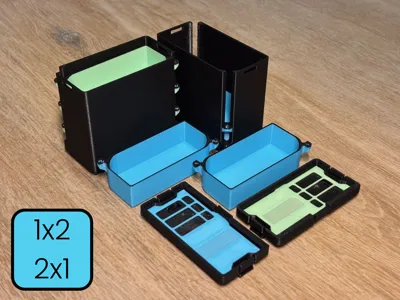

3. 1x2 / 1x2 Gridifinity Size, with 3 Bins

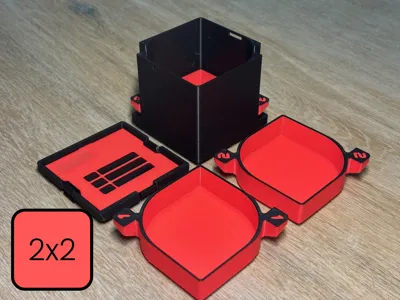

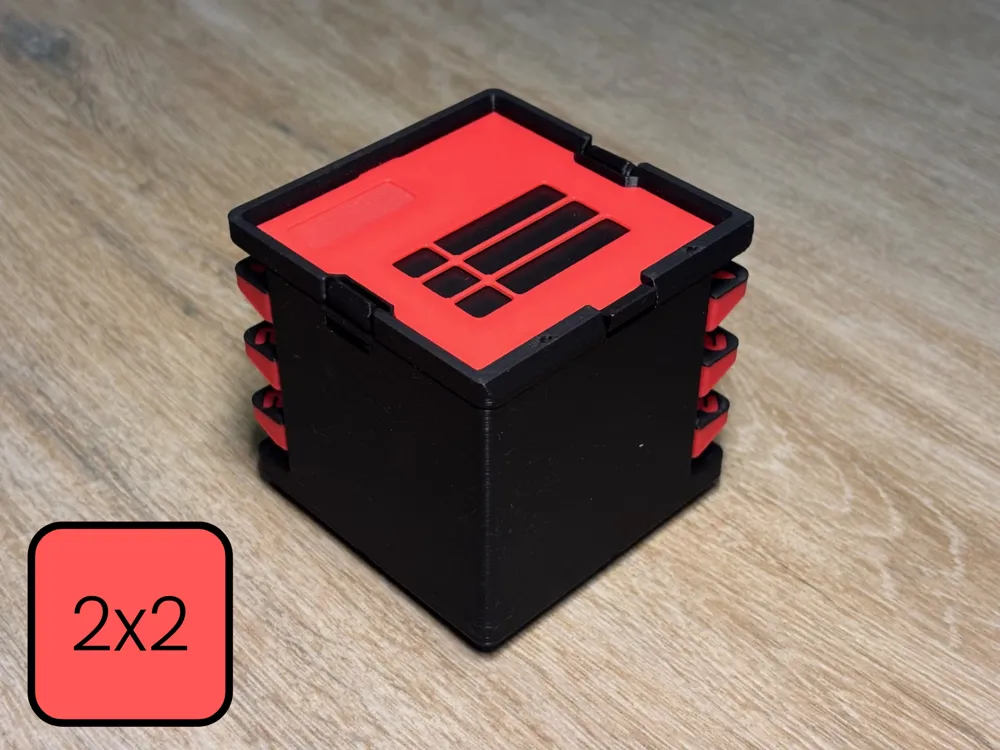

4. 2x2 Gridifinity Size, with 3 Bins

For each model you can find the Lid that snaps onto the outer shell (outer bin) which you can slide each bin into. The outer shell is 9 units tall without the lid added on top. You can also print the label which you can snap onto the Lid using 2 notches back and front of it, do not forget to face the 2 triangle pairs for alignment. And a sticker measuring 30x50mm or 30x30mm can be placed underneath it to keep track of what's inside.

To achieve the best contrast, I suggest using the color scheme provided by the 3mf files.

Print Profile :

• Layer Height : 0.2 mm
• Use Arachne wall generation
• I recommend ironing the topmost layer of each bin for better number visibility (60mm/s, 30% flow)
• Support : Only needed for the "Lid" AND On build plate ONLY( Normal Grid Support Recommended)

If you find any design flaws or would like to give me suggestions, please don’t hesitate to contact me.
