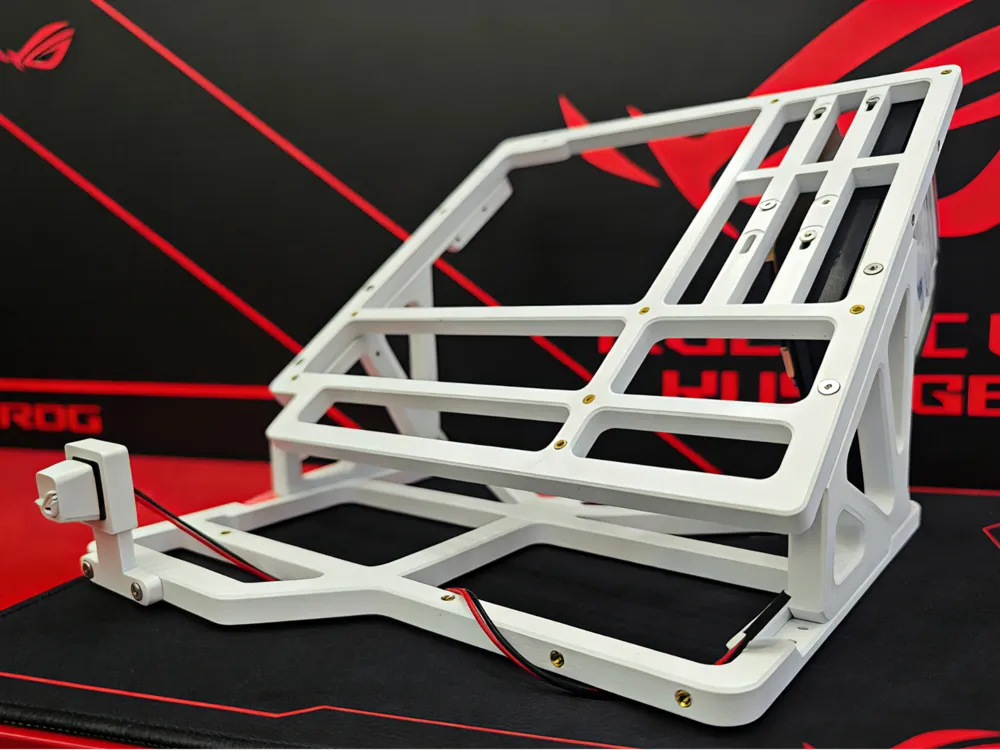

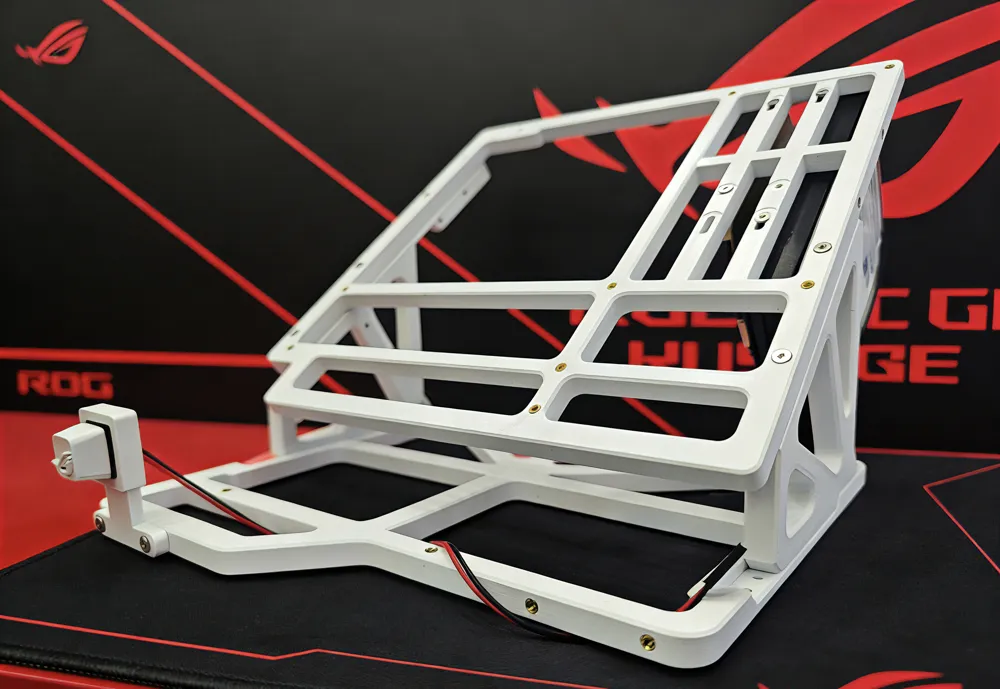

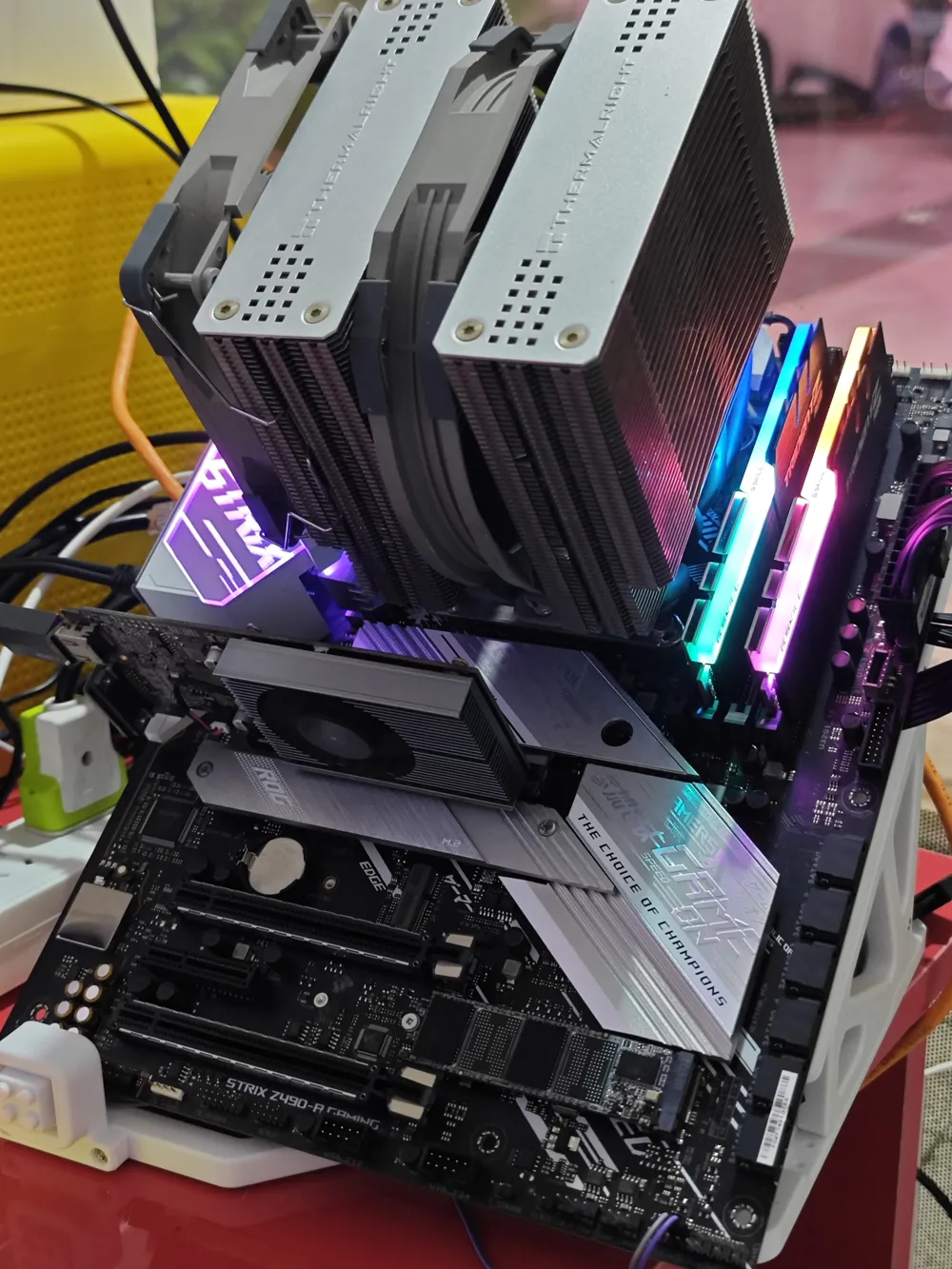

Open Frame PC Case [compatible with ATX/MATX/ITX]
Print Profile(2)
Description
Boost Me (for free)
1. Changed power button to be compatible with ATX motherboards

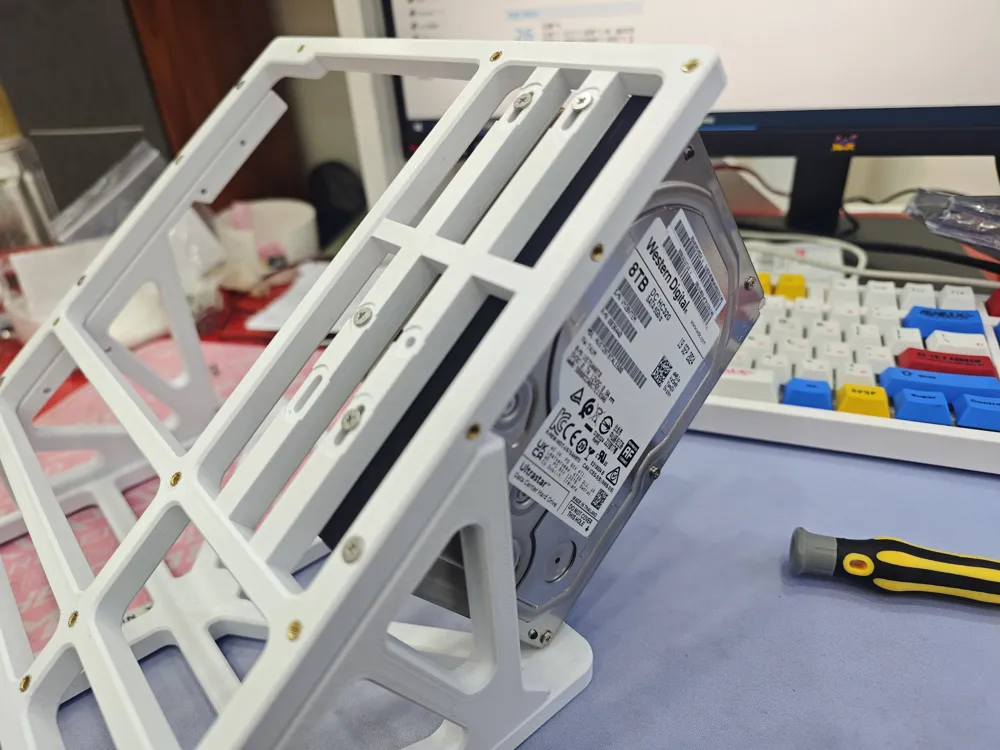

2. Tray #3 adds compatibility for 2 x 3.5/2.5 hard drive bays, vertically mounted

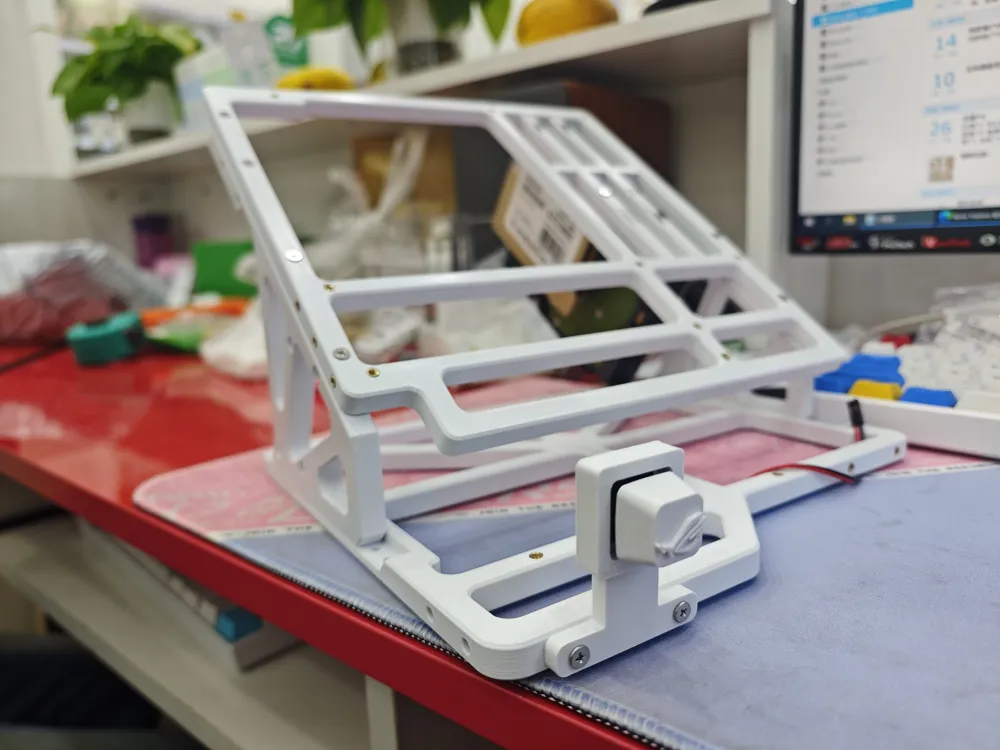

3. ROG power button (mechanical switch)
-------------------------------
Assembly BOM
M3 screws (8 x 12mm long) (8 x 8mm long) head/neck to your liking (recommended greater than 5mm)
M3 heat-set inserts (33 pieces, 4mm long * 4mm diameter) longer ones are also fine (do not exceed 8mm)
US #6-32 * 1/2" long * 3 pieces --- for securing power supply
M3 brass standoffs 4mm screw length - 7mm standoff length * 9 pieces
One switch jumper
One mechanical switch
