Angle Vise
Print Profile(1)
Bill of Materials
- Ruthex m5 x 7:
- M5x15 x 6:
- M5x20 x 1:
- M4x7 x 4:
Description

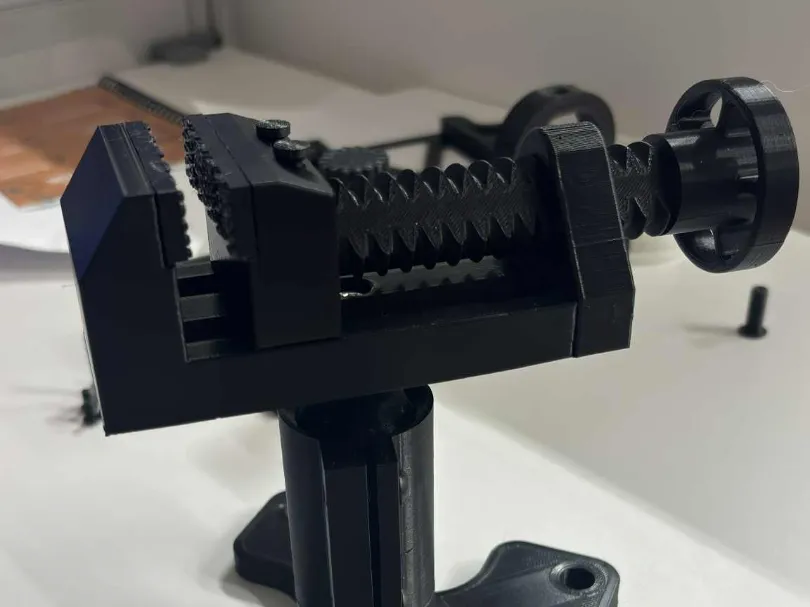

Adjustable Bench Vise – Durable, Precise, and Maker-Optimized

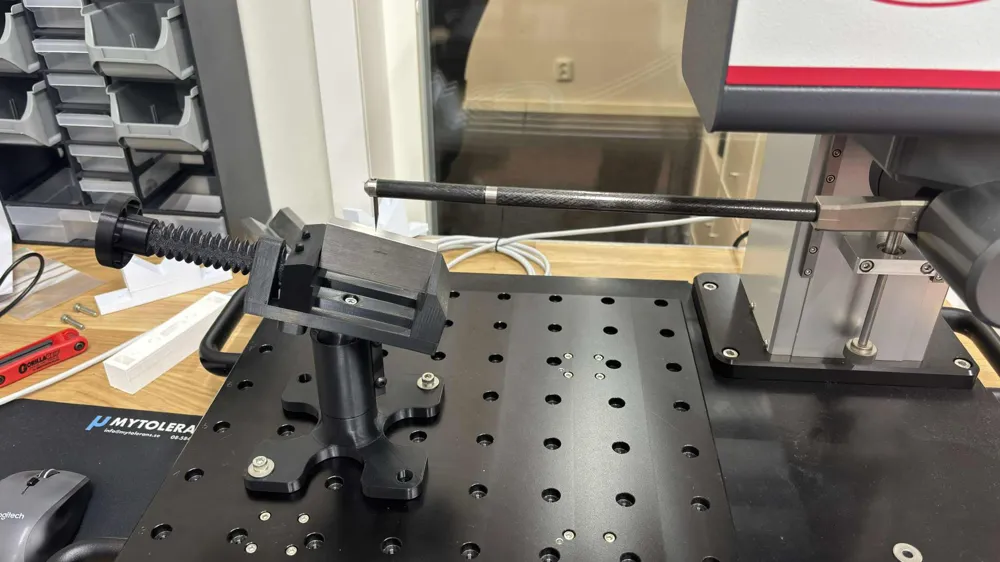

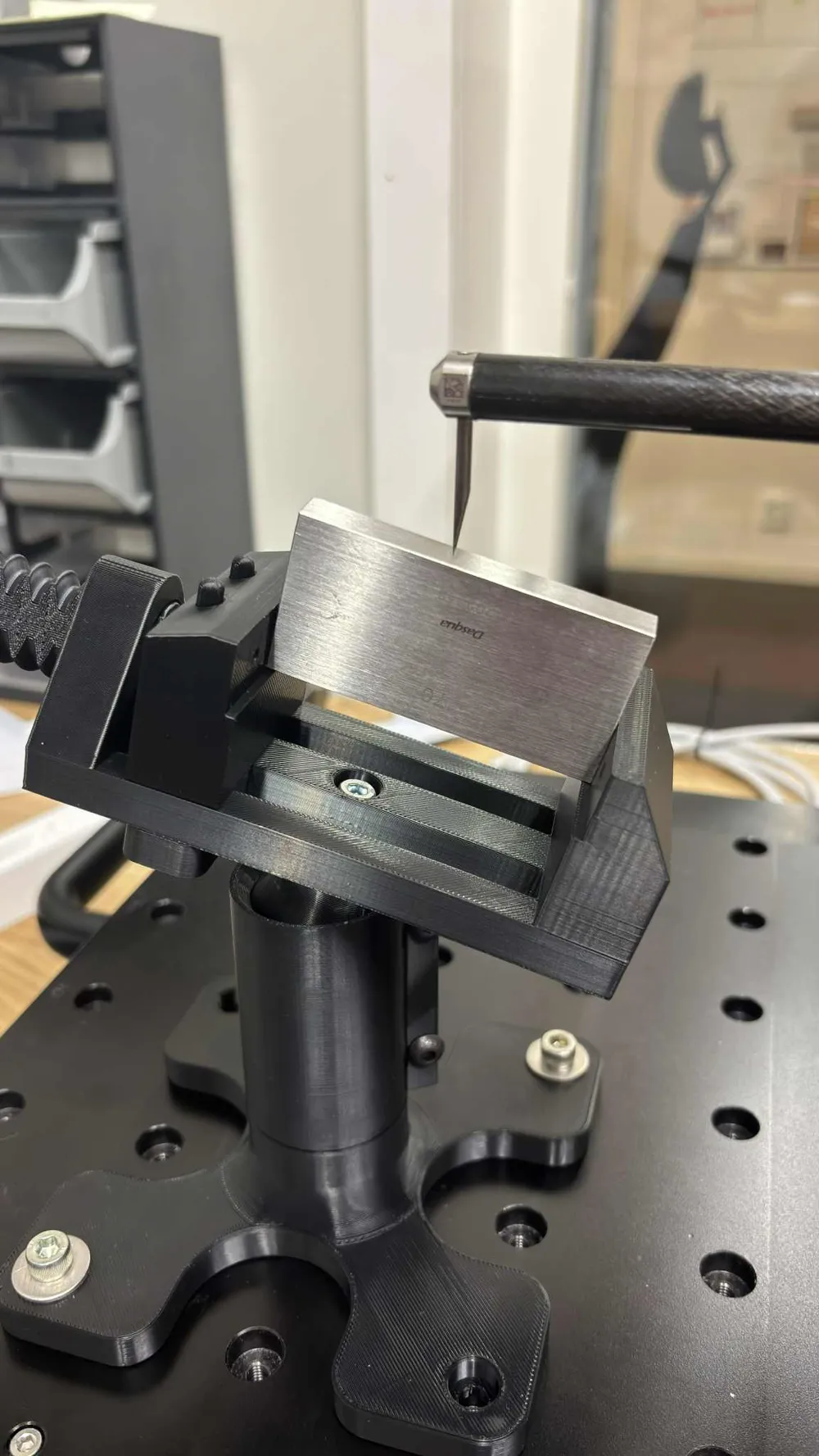

This fully 3D-printable adjustable vise is designed for makers who need a reliable, compact, and versatile clamping solution. Whether you're assembling small parts, sanding, gluing, or doing precision work, this vise provides exceptional stability and smooth operation.
🔧 Features
- Adjustable angle design – Tilt and lock the vise at the perfect working angle.
- Strong mechanical layout – Optimized for high clamping force without compromising printability.
- Maker-friendly assembly – Easy to put together with standard hardware.
- Compact footprint – Fits perfectly on any workbench or hobby setup.
📦 Hardware Required
To assemble the vise, you will need:
- 7 × M5 Ruthex threaded inserts
- 7 × M5 × 15 mm screws
- 4 × M4 × 7 mm screws
These components ensure strong threaded connections and smooth, durable adjustment.
🖨️ Print Recommendations
- Material: PLA+, PETG, or ABS for best strength
- Infill: 30–50%
- Supports: Only where needed depending on orientation
- Layer height: 0.2 mm recommended for part accuracy
🛠️ Assembly
Insert the Ruthex M5 inserts into the designated holes, attach the moving jaws and adjustment components with the M5×15 screws, and finalize the angle mechanism using the M4×7 screws. Once assembled, the vise is ready for immediate use.
💡 Perfect For
- Electronics work
- Model making
- Small mechanical assemblies
- Hobby projects and workshops
