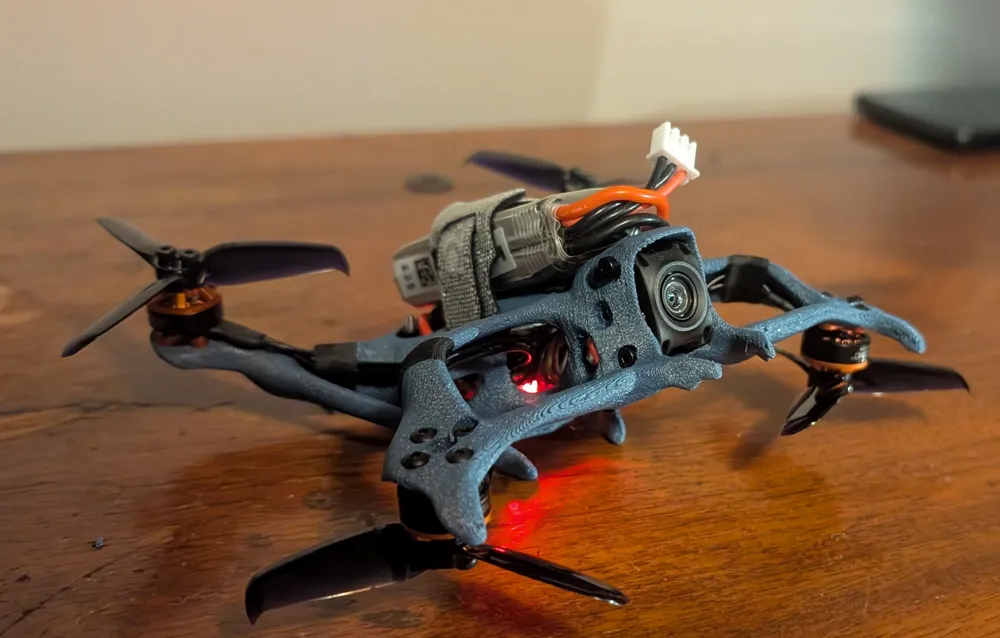

Here's my remix of the Aether 4 frame thanks to the generous files provided by Dr. J. Ma. I tweaked the body a decent amount in blender to suit the O4 camera as well as the battery/FC area changes needed for the rescale. Mounting features were reapplied in OnShape so all of the parts still bolt up correctly.

This is designed to fit a O4 lite and an AIO FC and flown on 2S with 2.5" props. - Another user confirmed that 3" props do fit as well. 3" will likely be a more optimal build for this frame as I scaled the body as small as possible - hence the added difficulty to build.
Build is tricky and involves figuring out favorable board orientations and you'll likely have to solder your motors to the FC with everything threaded through the frame but not bolted down.

There is also a hole for a 14mm camera (analog/walksnail/hdzero), but you will need some small tpu washers to fill the gap between the camera and body. I have not personally mounted one, but I checked clearances with a Caddx ant in cad, so please let me know if it works for you.

Print with 3 walls and 0% infill. Frame should be 24/25g out of PETG-CF

My apologies if you run into any issues with your print, this is my first foray into a project of this complexity. My print worked correctly, but please let me know if you have issues and I will try and address them :)

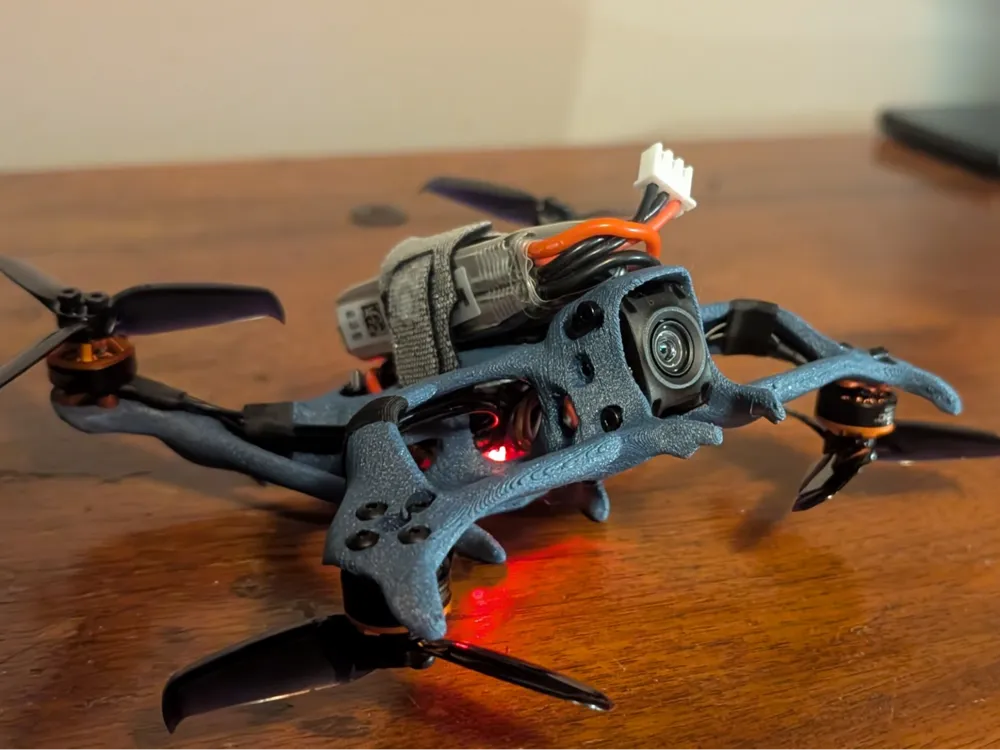

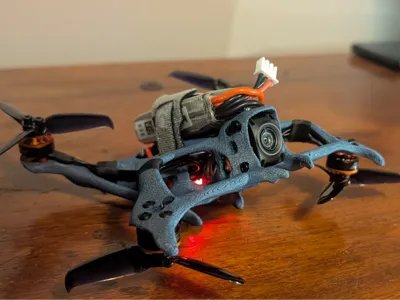

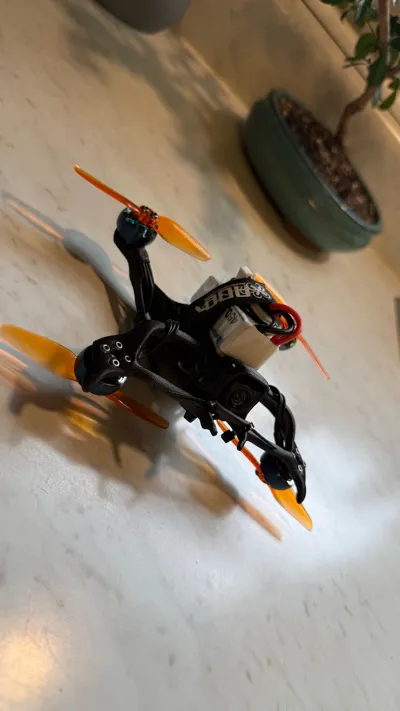

Build pictured:

FC: JHEMCU G474ELRS AIO 1-2S 12A

Motors: 1104 8600KV YISDO

Props: GEMFAN Flash 2540

VTX: DJI O4 “lite”

Battery: Tattu R line 550 2s

Comment & Rating (58)

@minim4dness

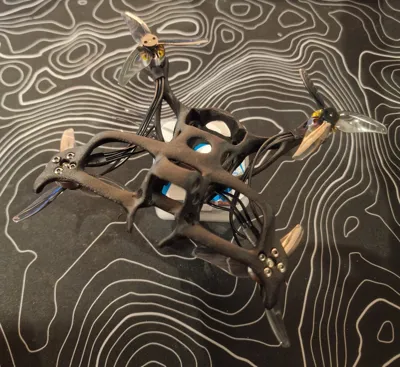

Printed super nice in ASA-CF! Which AIO did you end up using? @hashi

The designer has replied

@hashi

I used the JHEMCU G474ELRS (1-2S 12A esc AIO). I updated the post with the parts as well. thanks for asking :)

(Edited)

@minim4dness

Replying to @The account has been deleted :

Sparkhobby 1103 8500kv. I had a few spares from a Kayoumini build. @hashi How did you mount your aio? Seems like most of them have the usb on one of the 4 corners and that collides with the print?

@hashi

Replying to @minim4dness :

I mounted the o4 on the bottom of the stack and the AIO on top with the USB in one of the rearward corners so it is accessible

@user_408303398

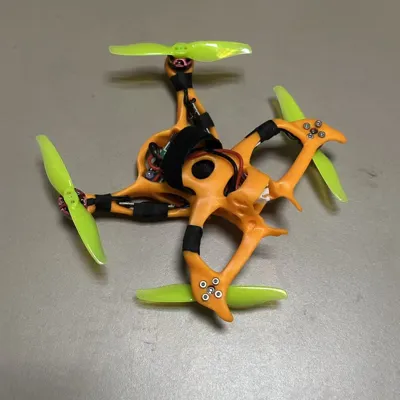

Excellent, we successfully took off. I'm a Chinese player.

The designer has replied

@user_408303398

The image shows a 3-inch propeller.

@user_2035599937

Do you have electrical parts

Show original

@user_408303398

Replying to @user_2035599937 :

1103 7800kv

@user_20757255

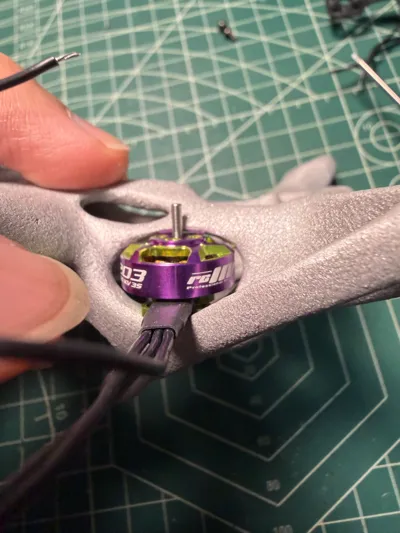

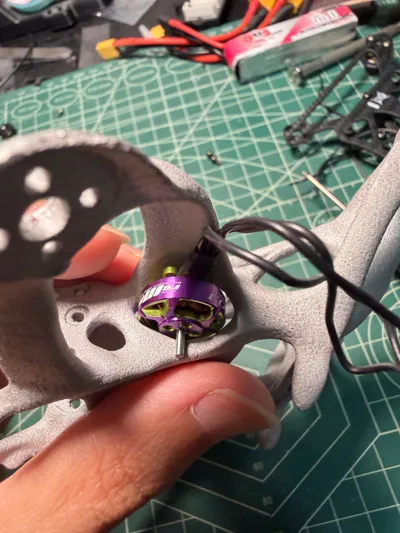

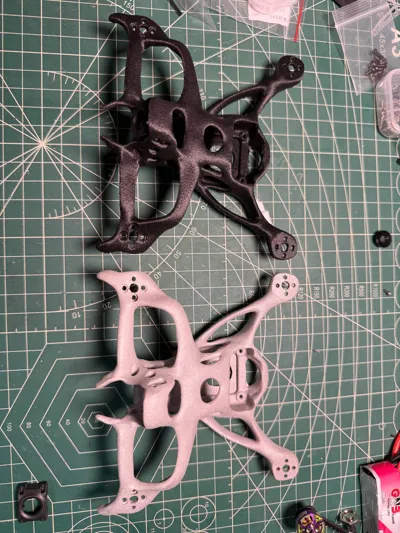

I printed two versions—one in PAHT-CF and another in 3D-printed metal. Both turned out with an excellent finish. However, I encountered a couple of issues during the build: • Issue 1: I initially assumed the AIO's USB port could be oriented downward, but in practice, it didn't fit properly within the layout. • Issue 2: The motor wires cannot be pre-soldered to the AIO before installation because the frame's cutouts are too small for the motors to pass through. This forced me to solder the motors inside an extremely cramped space, which was incredibly challenging. Final Verdict: Even as a static display piece, it looks stunning. The optimization for the O4 Lite is spot on. Great job on the mod! 👍
