Tank platform
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
34
63
0
2
64
6
Released
Bill of Materials
List other parts
- Screw M3x25 x 6: 4 for motors, 2 for body
- Screw M3x16 x 4: for wheels
- Screw M3x8 x 6: for body
- Nut M3 x 4: for motors
- Fused brass insert M3x5x4.2 x 10:
- Yellow geared motor x 2:

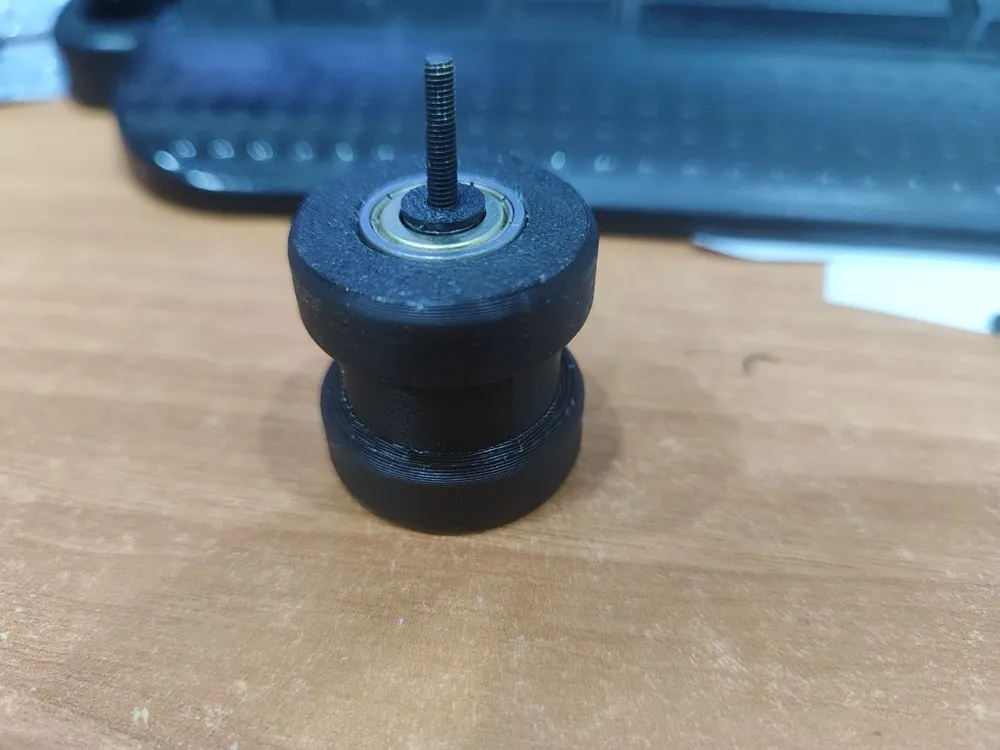

- Bearing 625 (16x5x5) x 4:
Description
BOM
Screws:
M3x25 - 6 (4 for motors, 2 for body)
M3x16 - 4 (for wheels)
M3x8 - 6 (for body)
Nut M3 - 4 (for motors)
Fused brass inserst:
M3x5x4.2 - 10
Yellow geared motor - 2
Bearing 625 (16x5x5) - 4

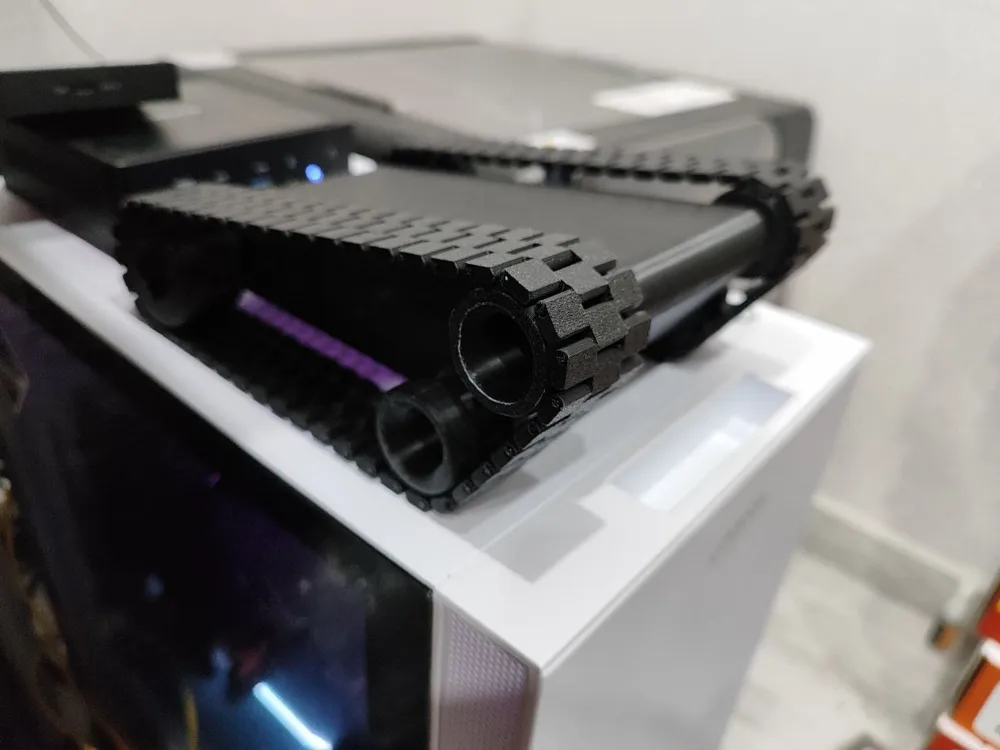

The tracks are connected by pieces of filament, 44 pieces per side.
The file name indicates how many pieces to print.
