P2S Simple Riser / Negative Pressure Riser
Print Profile(2)
Description

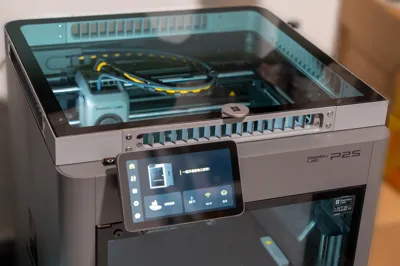

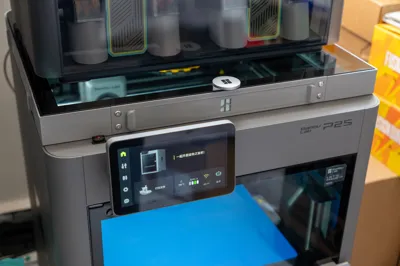

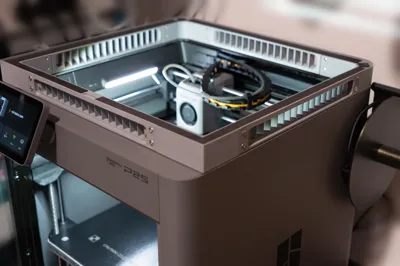

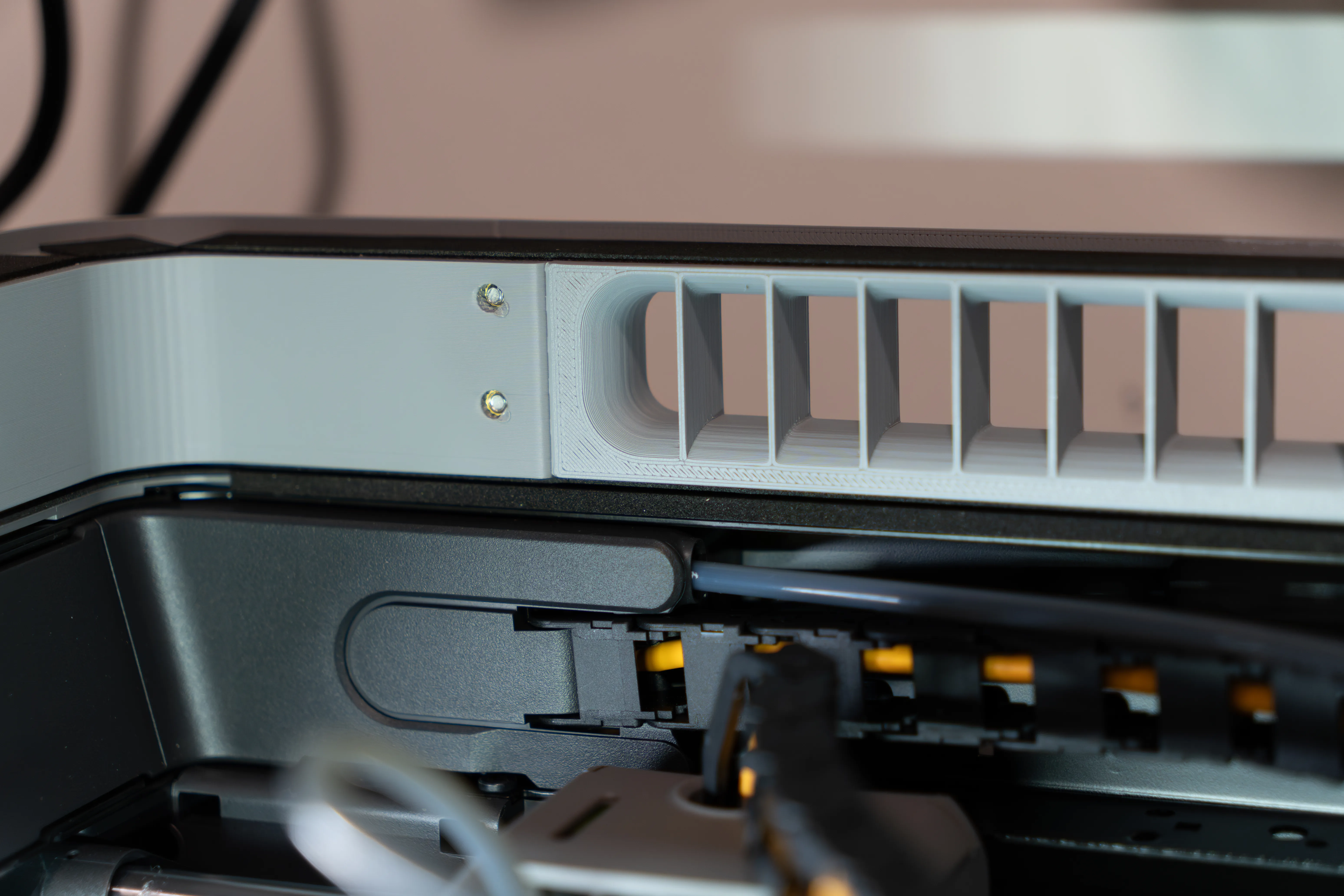

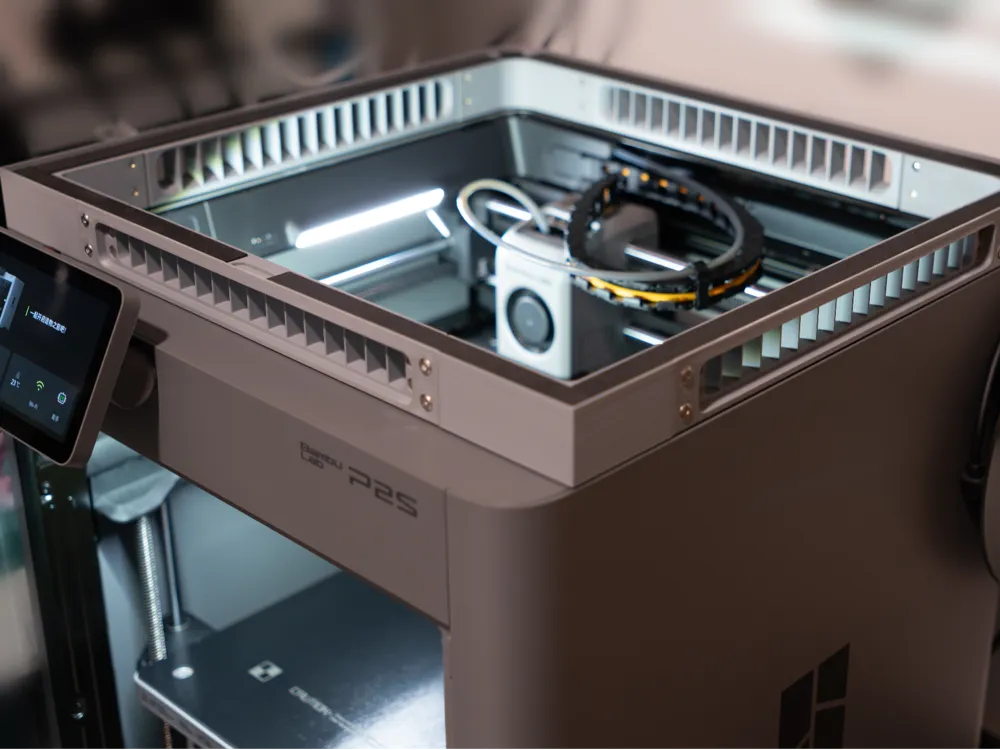

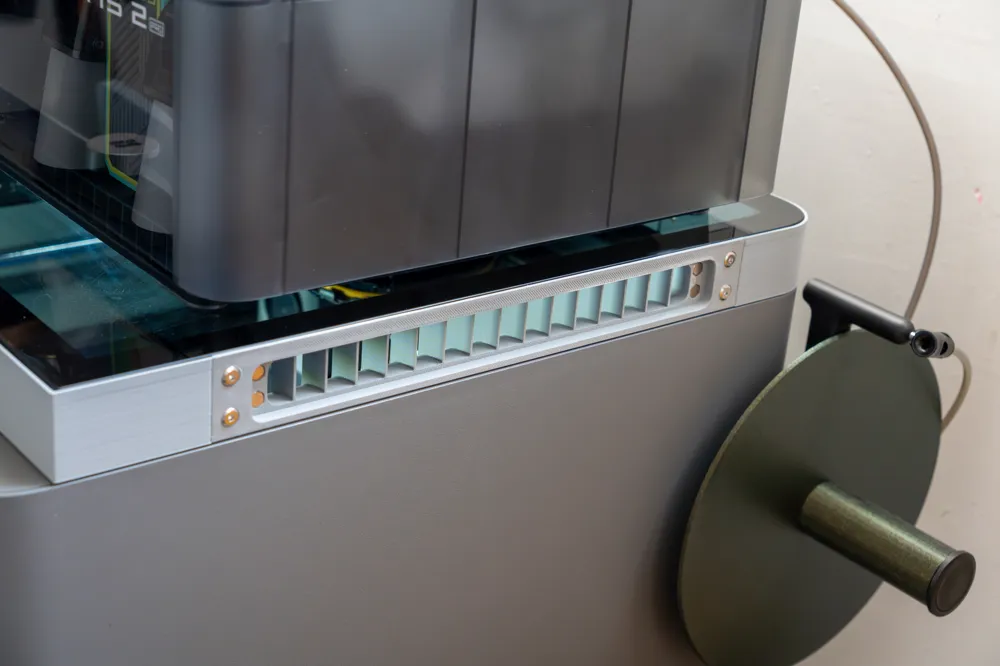

for P2S with a simple design, only 31mm high, optimized vents allow internal gas to be expelled more easily, only requires 400g of filament

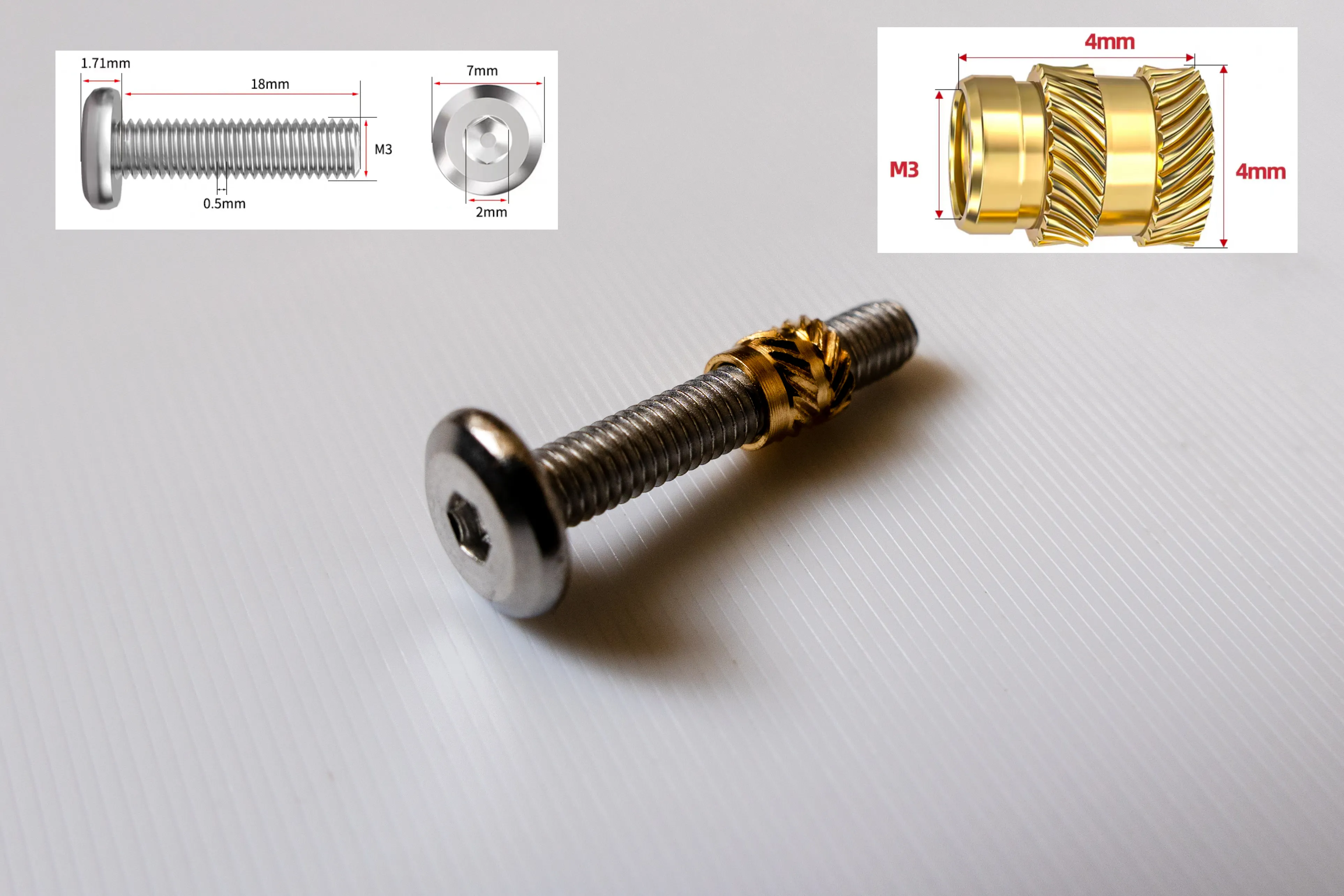

Requires 16 screws and heat set inserts (If you need a version without hardware, please leave a comment, and I will design a version without hardware if there is demand), magnet size is 6mm*3mm

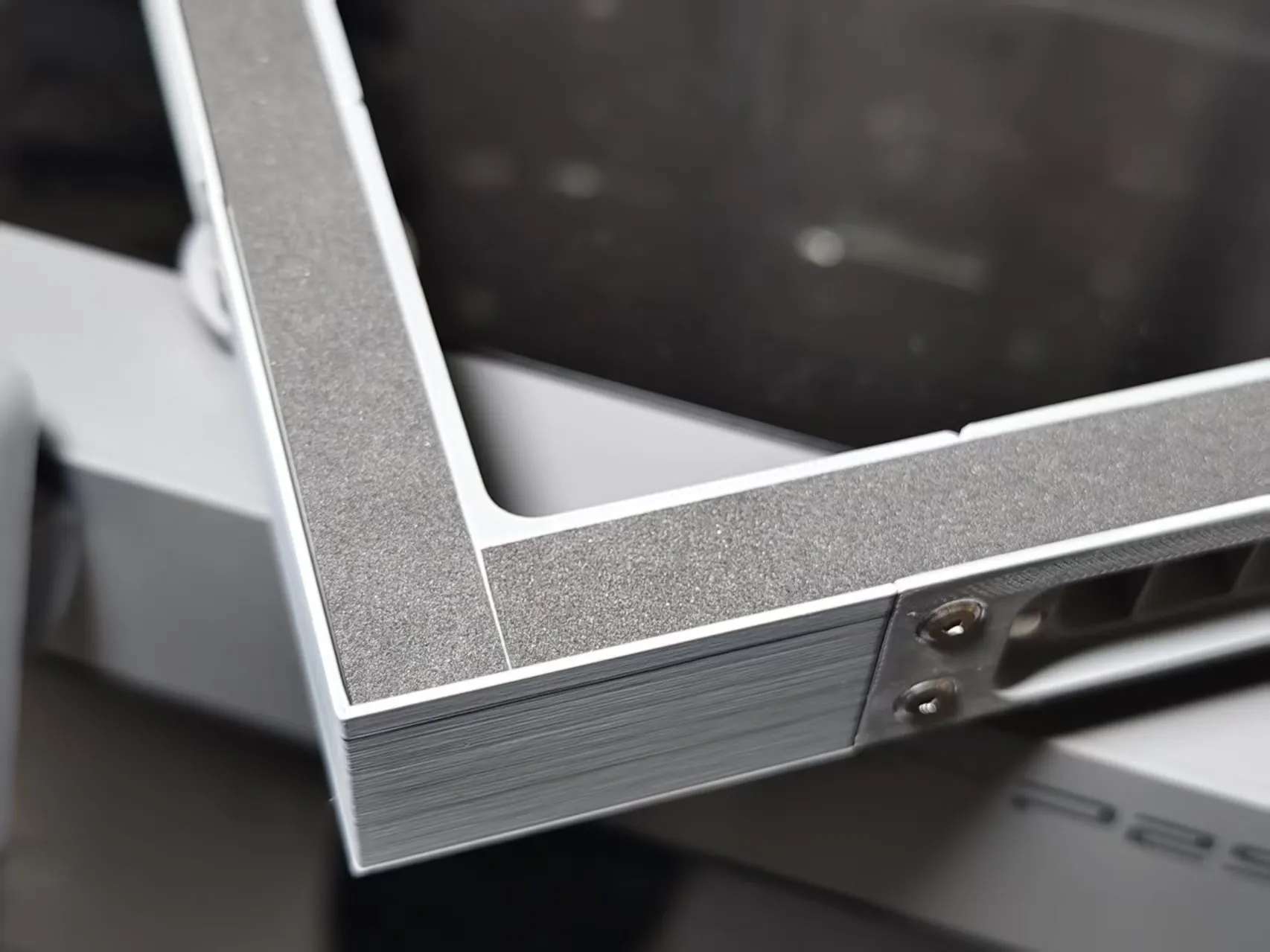

It is recommended to attach 1mm thick foam tape on the top and bottom, which can reduce vibration and increase sealing
It is recommended to print in multiple plates, which can reduce aesthetic imperfections caused by heat shrinkage

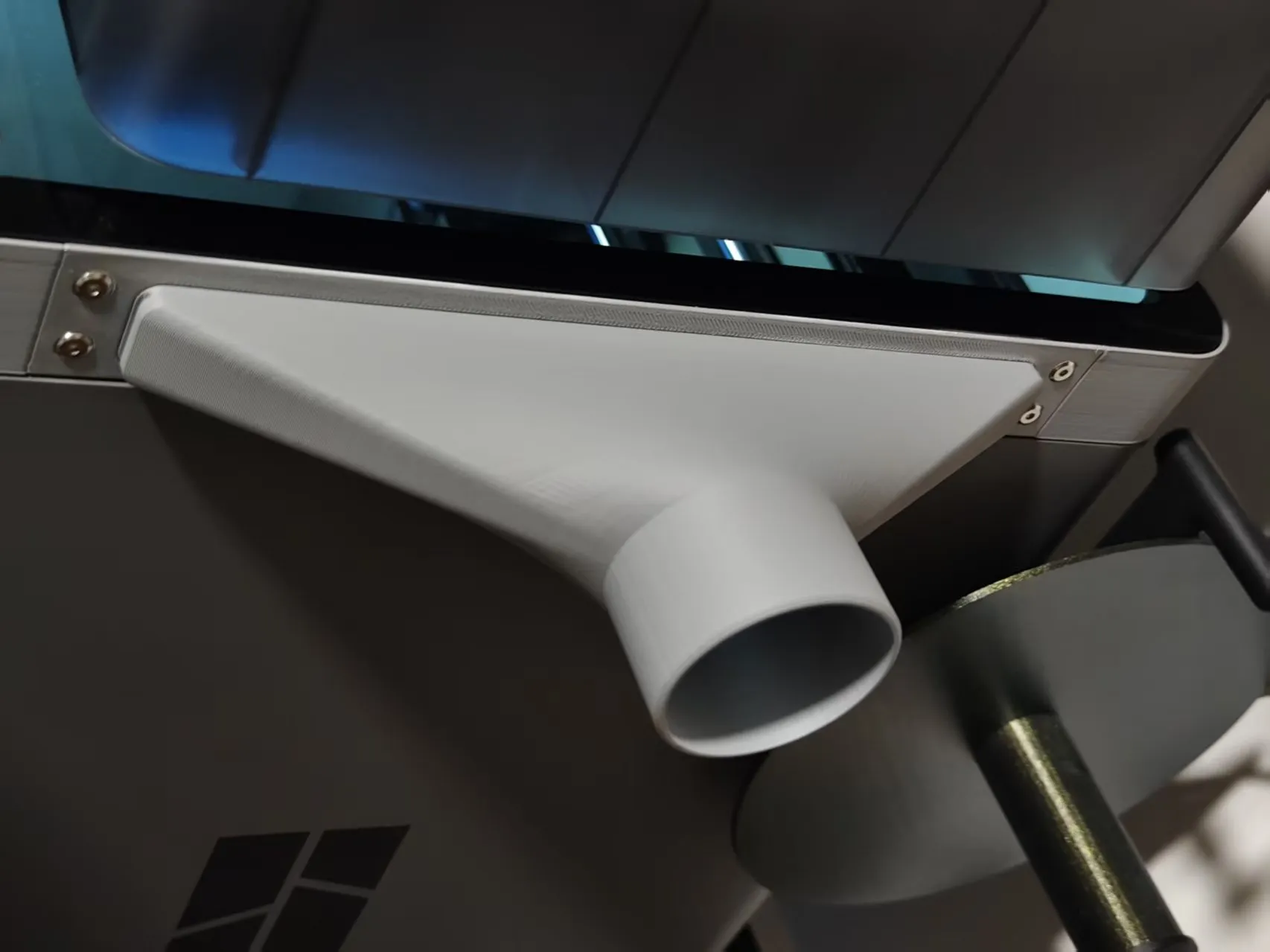

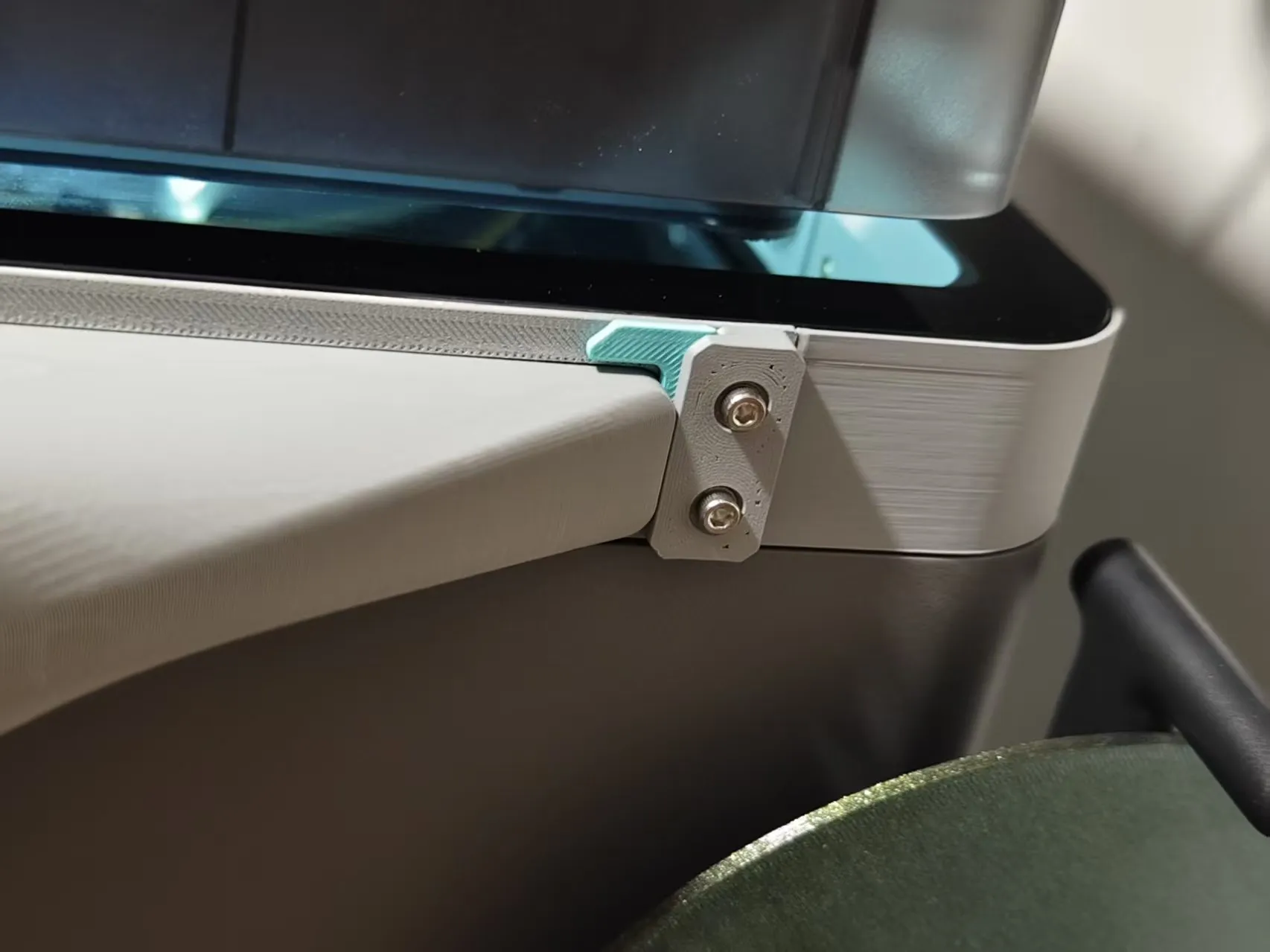

The air duct features a magnetic design, if you feel the magnetic force is weak you can print buckle components (secured with M3*25mm screws), only two simple buckles are needed to securely attach the air duct to the riser
