Rotating Display Stand
This is an easy to print and assemble USB C powered turntable model.
Whole is only 4cm high❗️
Printing guide 📖
Print all parts from any material in any color you want. I printed everything from black PETG.
Use supports for the main body and bottom.
2 or 3 walls and infiil 5 - 15% is enough.
Non-printed parts you need:
N20 motor with a angular gear 3mm diameter shaft. - I used a 13 rpm
The mount is for a 33mm long motor.
10x15 push button switch
USB C socket - 2 pin
3x1 neodymium magnets - 8pcs
M3 screws and nuts - 2pcs
After printing all the parts, proceed as follows ⬇️

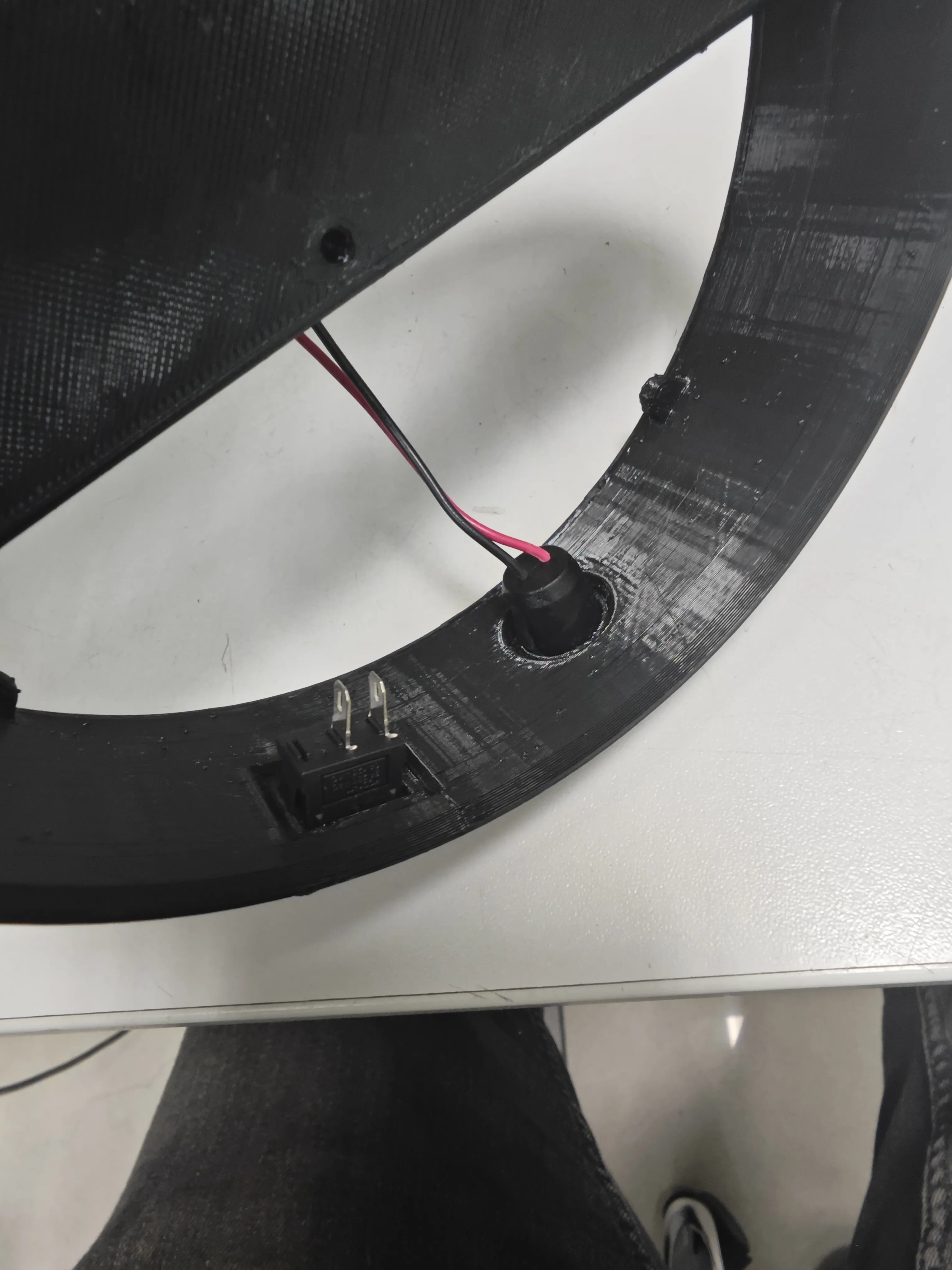

Place the switch and USB socket into the housing by pressing them in ⬇️

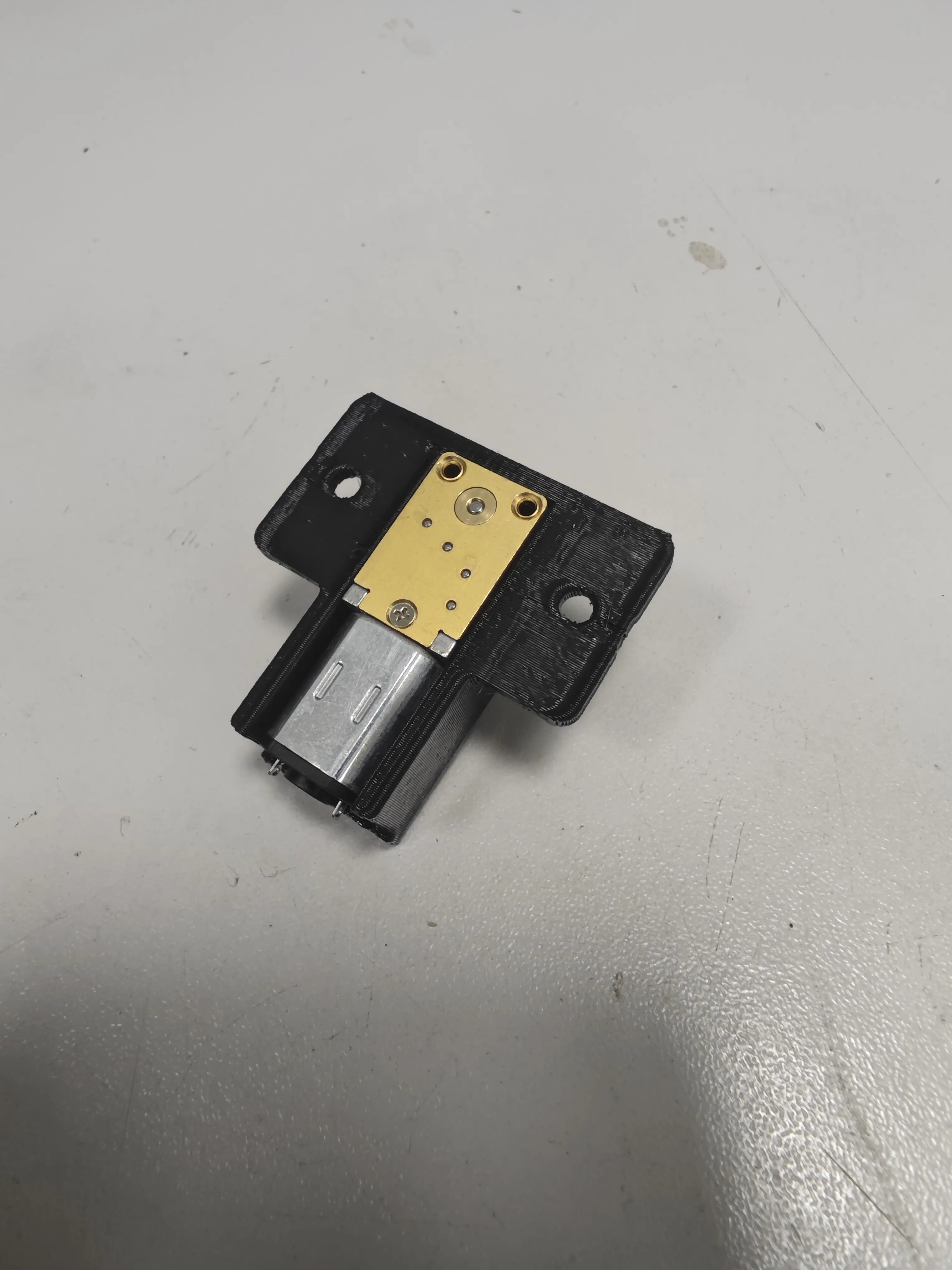

Place the motor in the printed mount ⬇️
Glue the magnets into the holes.

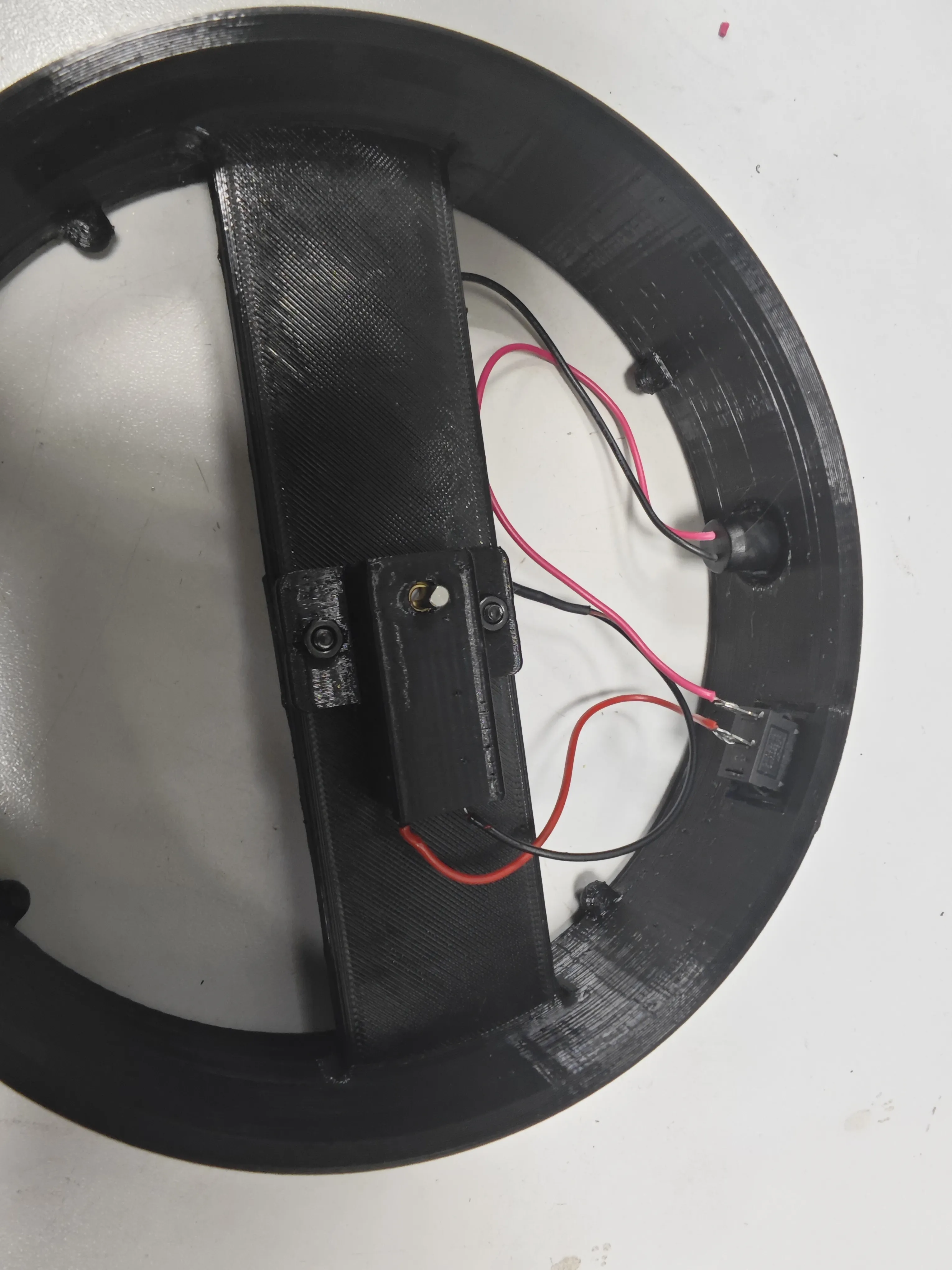

Screw the motor to the main body with two M3 screws.
Connect black wires together.
The red (+) wire from the USB port to the switch. On the other side of the switch connect the red wire from the motor ⬇️

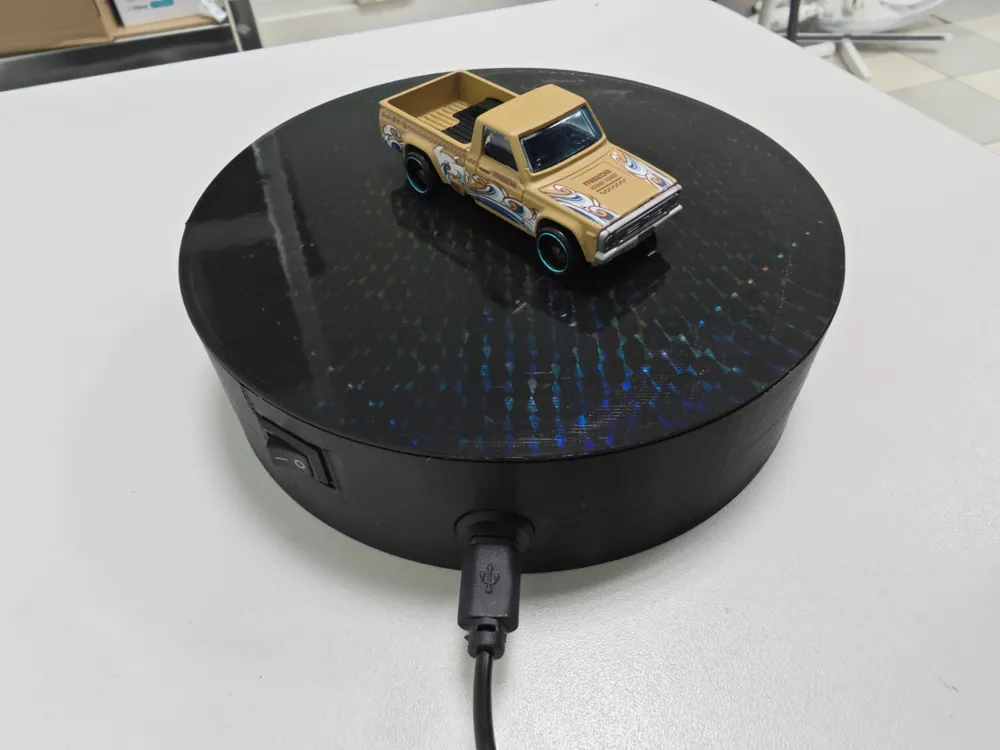

Close the lid and connect the USB-C cable.

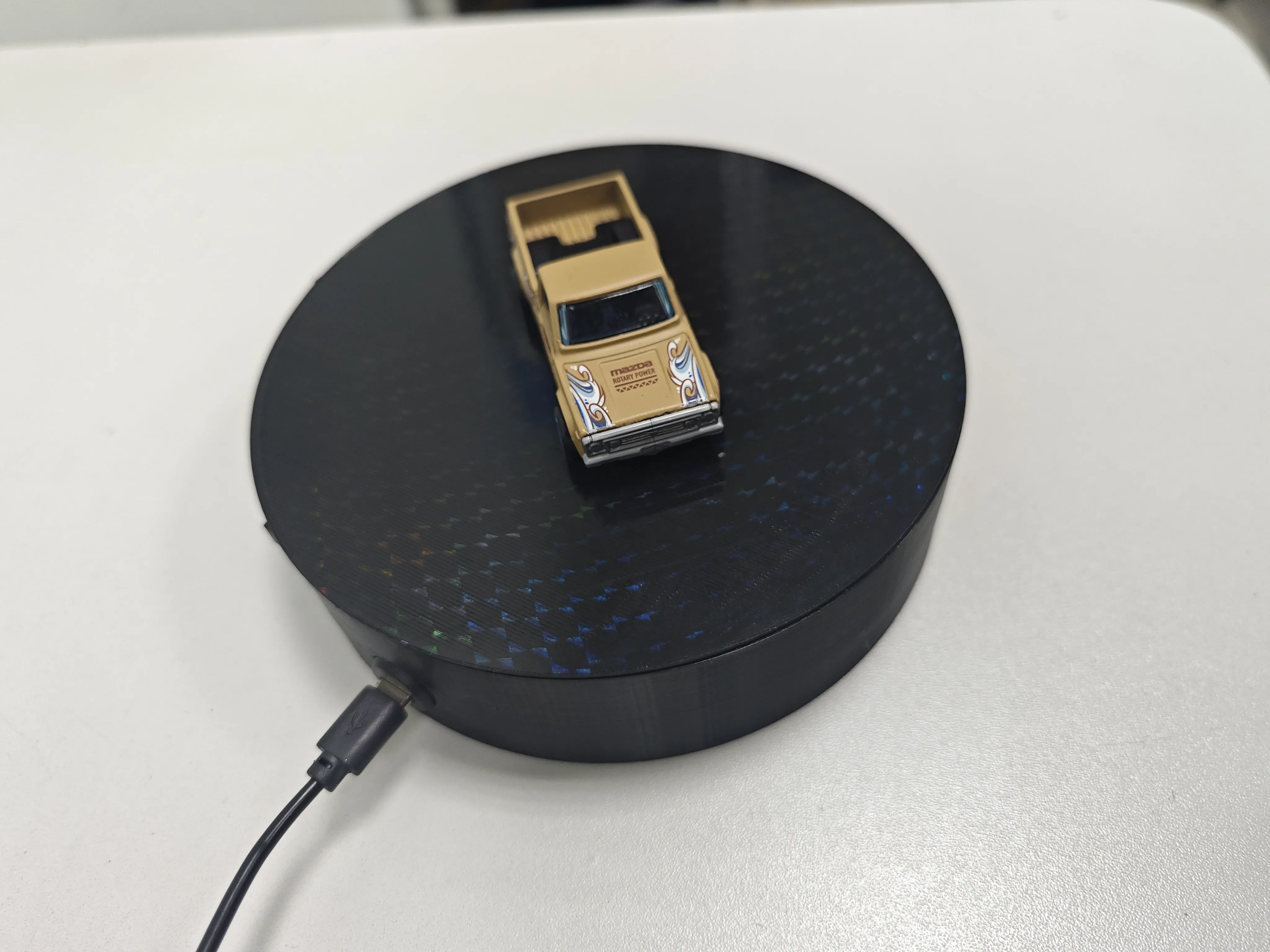

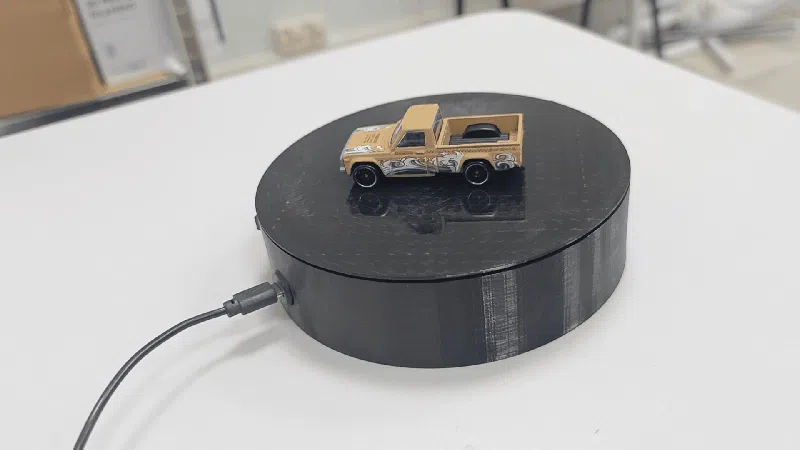

Enjoy your new Display Turntable❗️
❗️Be careful when connecting soldered components. If you don't have the knowledge, don't do it. Remember, you do it at your own risk.❗️
