Mechanical Hand (Added Joystick Lock)

Designer

18.7 h

7 plates

4.9(107)

A1 mini 95% Scale Complete Locking Version

Designer

19.2 h

10 plates

4.8(22)

Original printed these can be printed separately changed to joystick lock

Designer

3.4 h

3 plates

A1 mini Original upgraded locking mechanism 95% scale already printed the original version replace several parts of the upgraded locking mechanism

Designer

3.5 h

3 plates

Click to see more

Open in Bambu Studio

Boost

3296

6959

276

271

4.8 k

1.4 k

Released

Description

Content has been automatically translated.

Show original

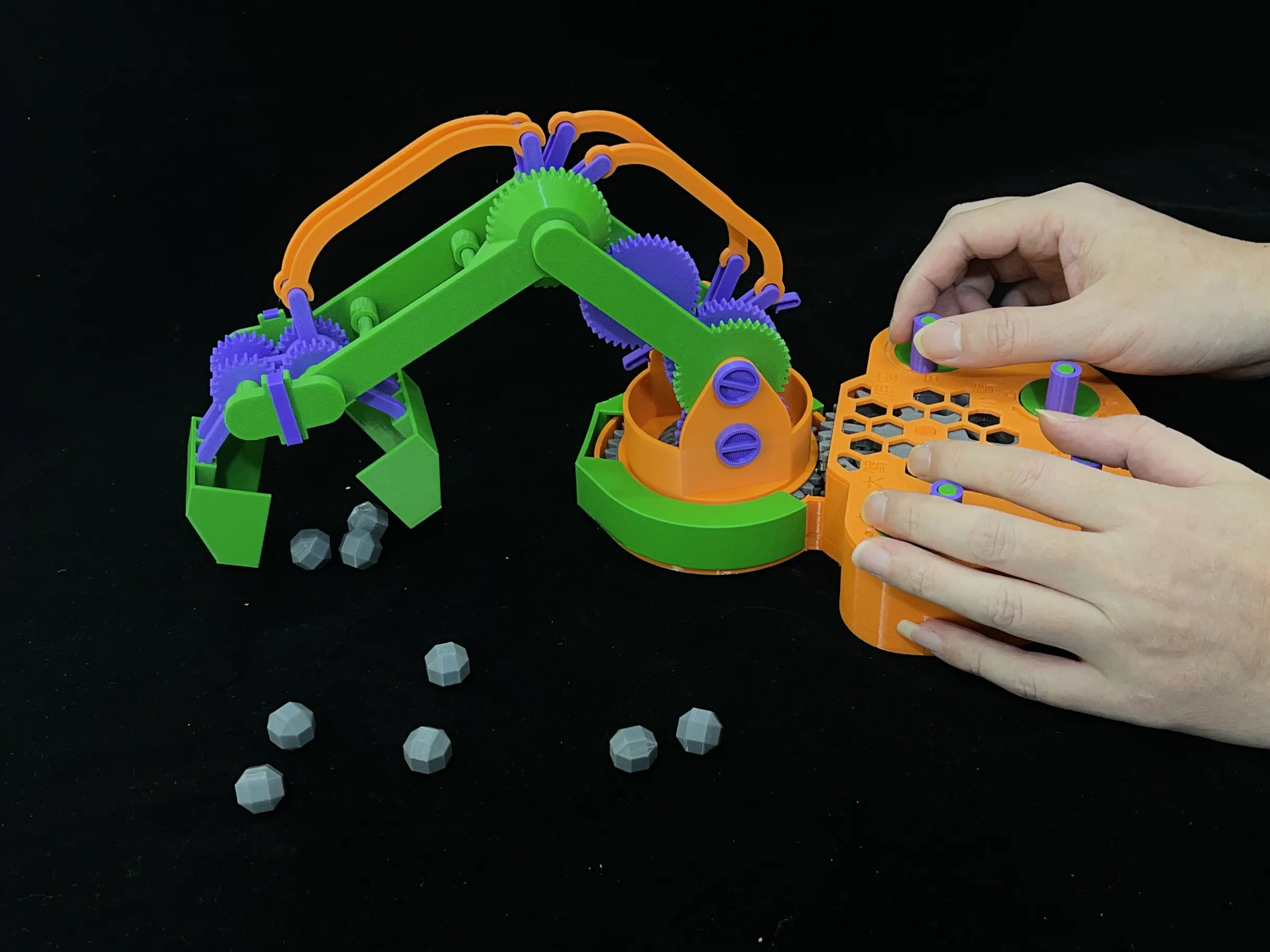

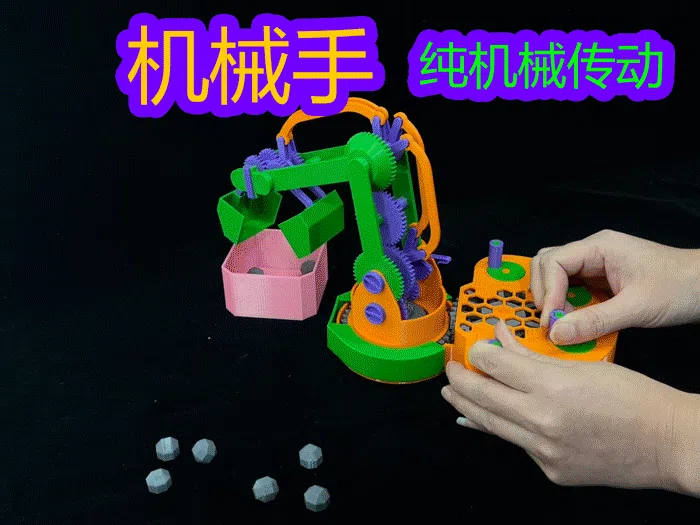

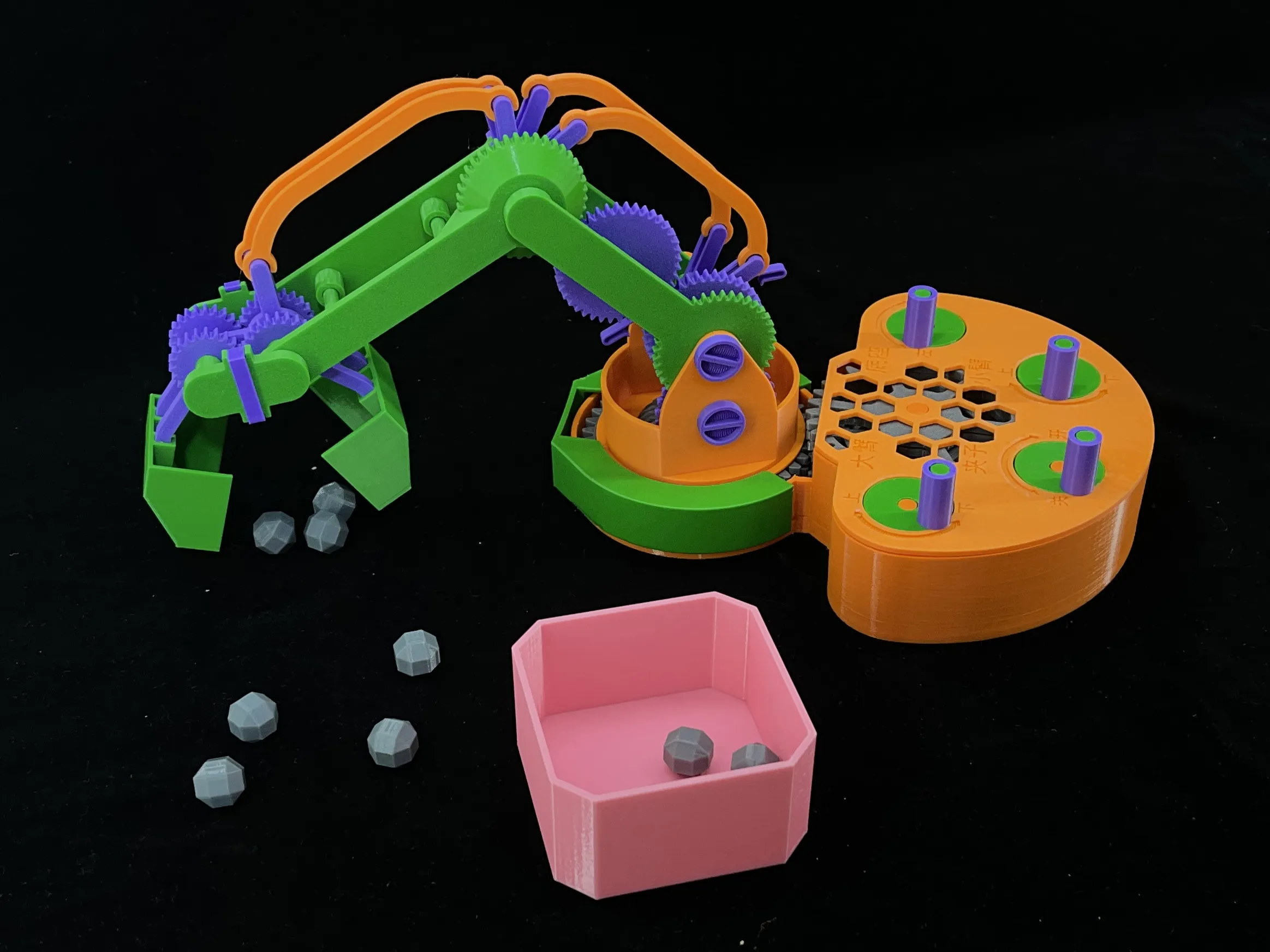

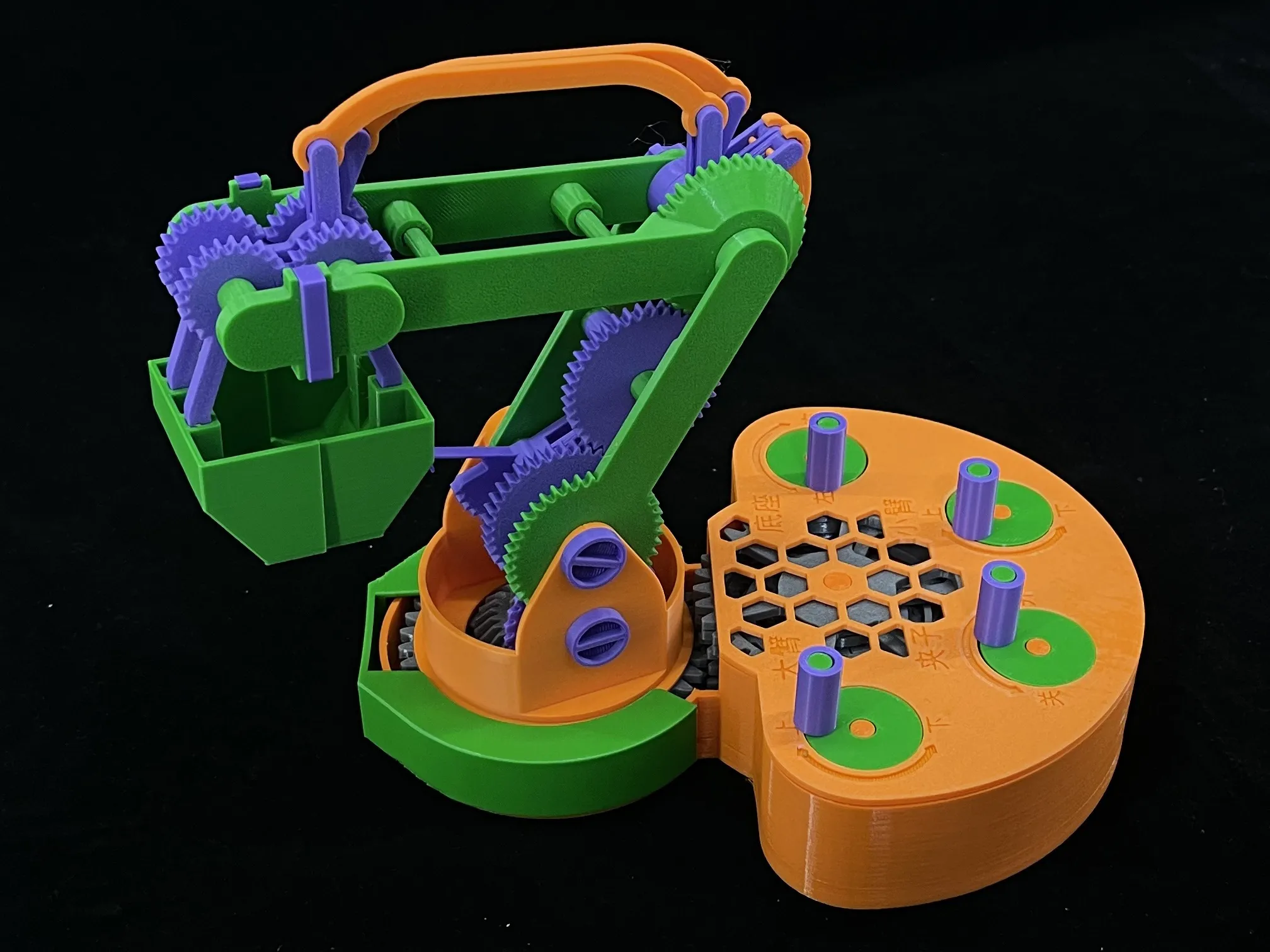

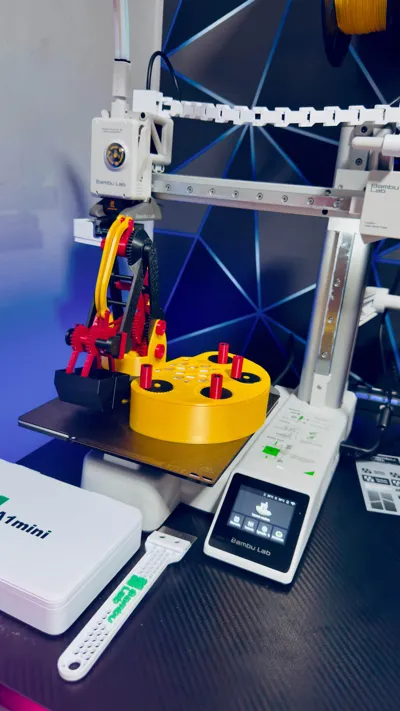

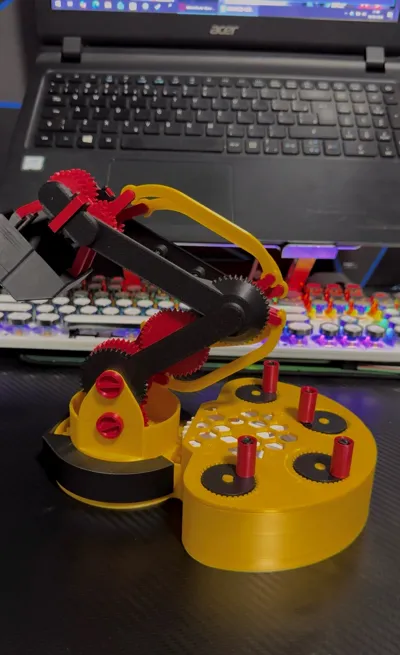

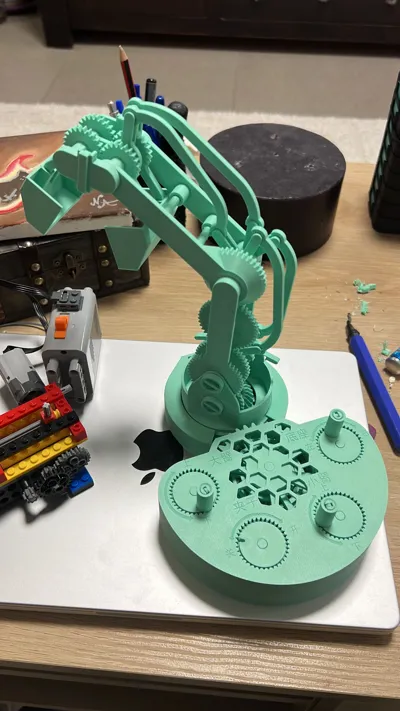

Mechanical Hand

Purely Mechanical Transmission

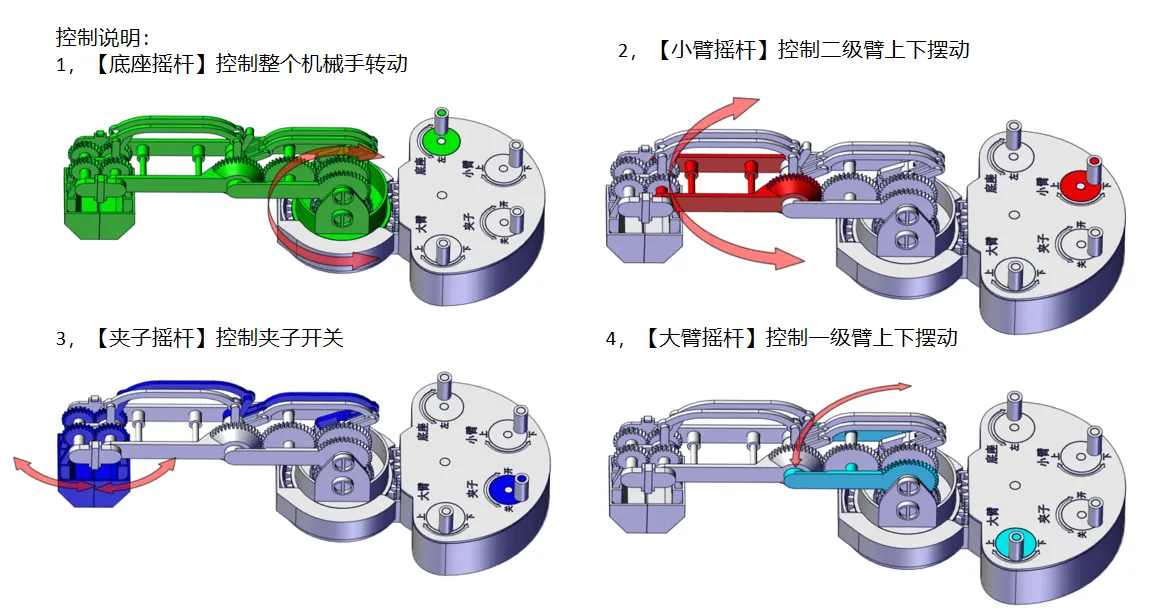

Uses gears, planetary gear sets, and independently separated control sections to ensure each control is independent

Utilizes a four-bar linkage mechanism for transmission to control gripping and ensure the end clamp remains horizontal

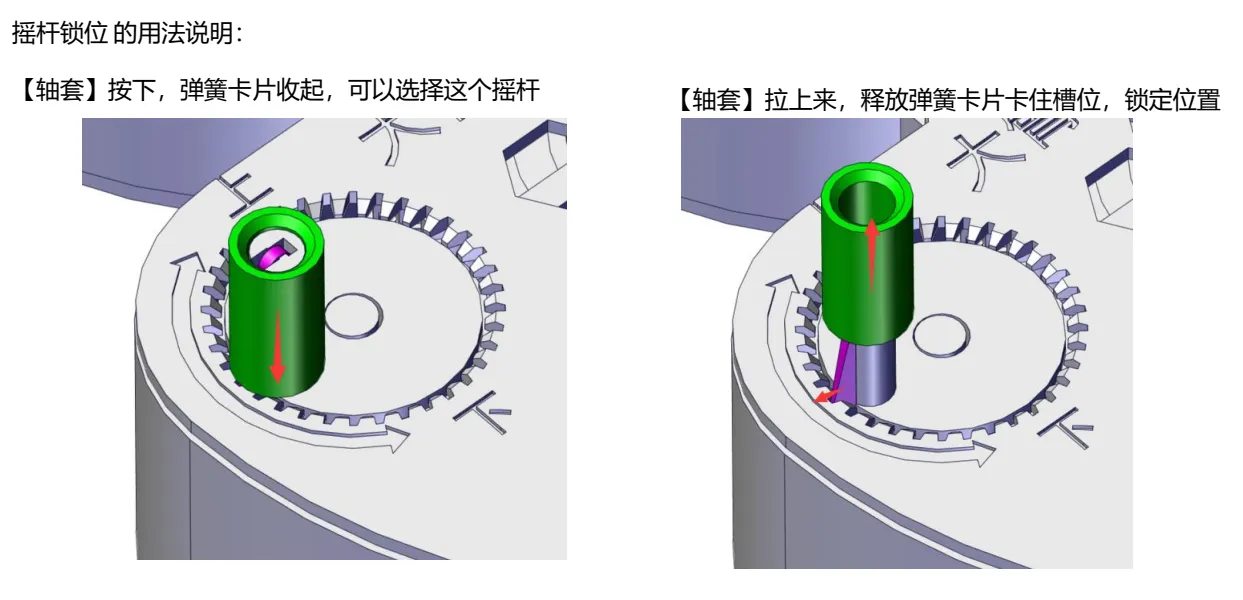

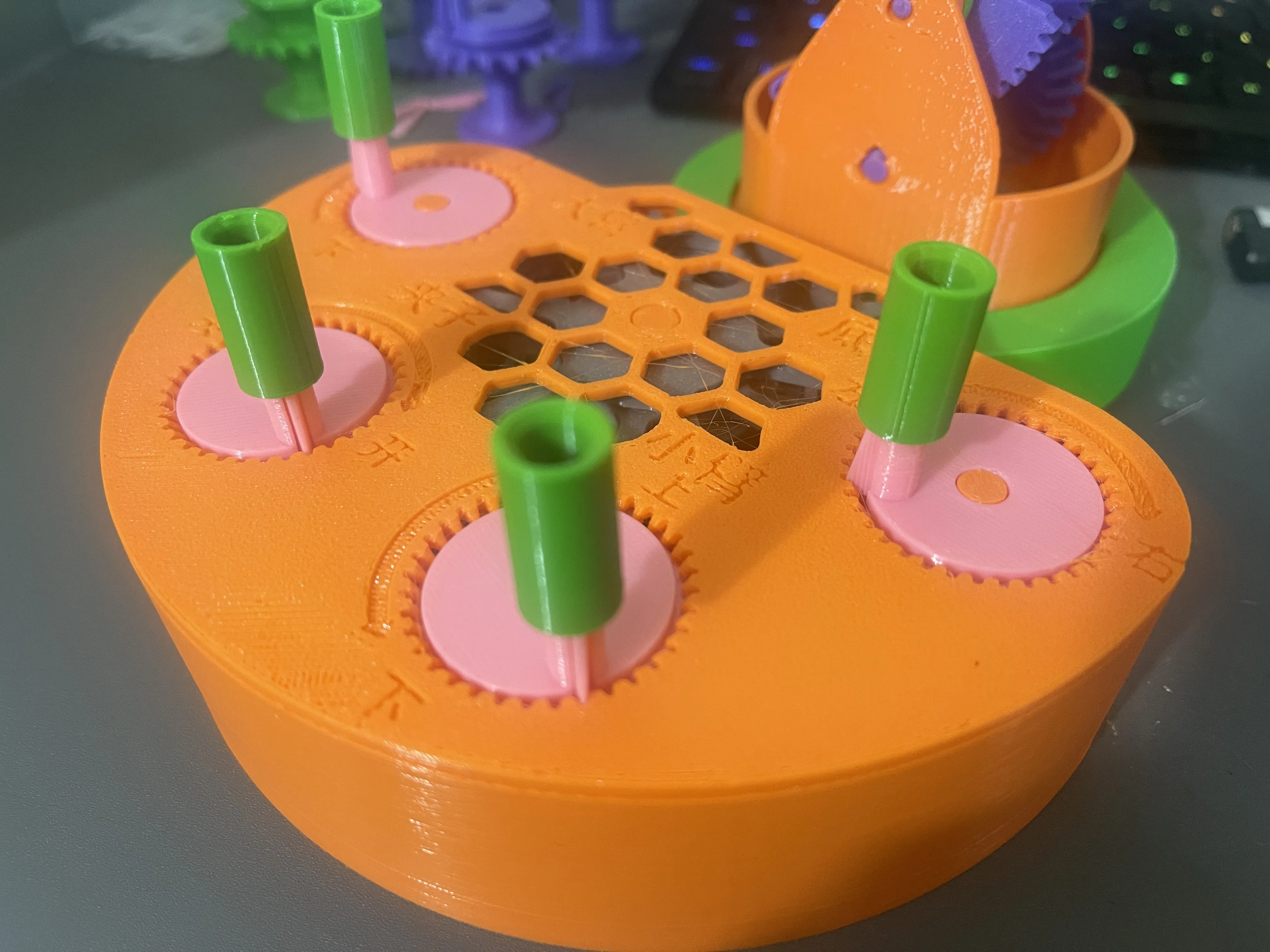

At user's request (rocker lock added, tested with no issues)

Mechanical Hand

Mechanical Transmission

Documentation (3)

Assembly Guide (3)

机械手组装说明锁位版.pdf

已打印原版的如何更改锁位.pdf

Assembly instructions for robotic arm in English version.pdf

Comment & Rating (276)

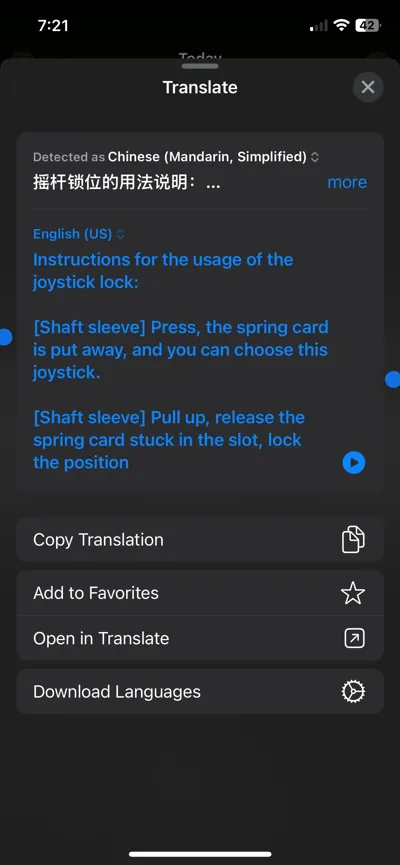

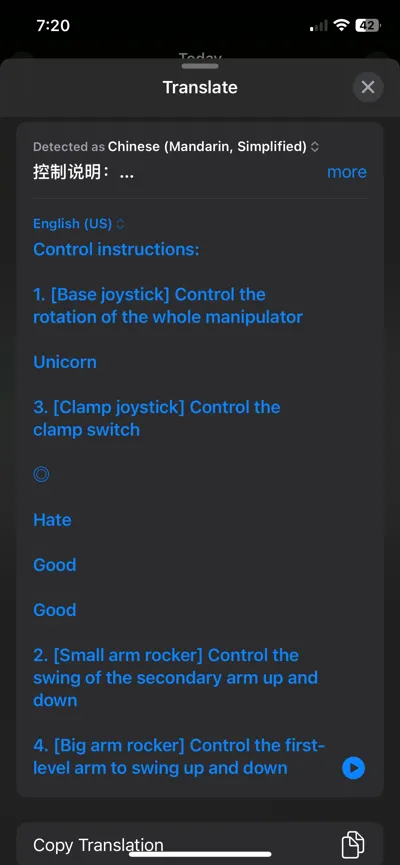

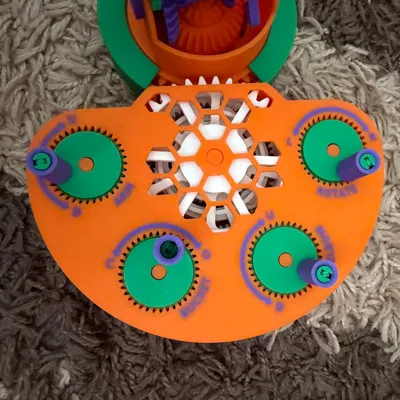

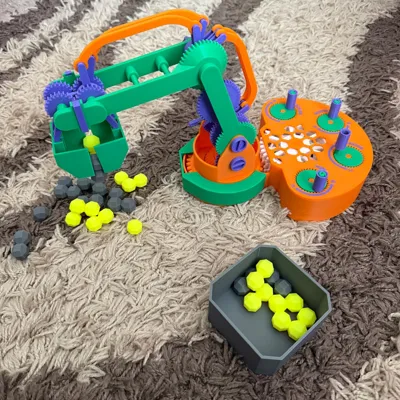

@gabriel.csakany

here is the translation your welcome 👍

The designer has replied

@SW_MFYXY

Uploaded English version assembly instructions Assembly instructions for robotic arm in English version.pdf

Show original

@you_mama828

Replying to @SW_MFYXY :

where did you post the English

@you_mama828

Replying to @SW_MFYXY :

where did you post the English version

@ges3d

Boosted

Print Profile

Mechanical Hand (Added Joystick Lock)

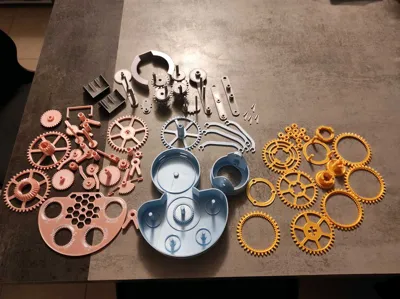

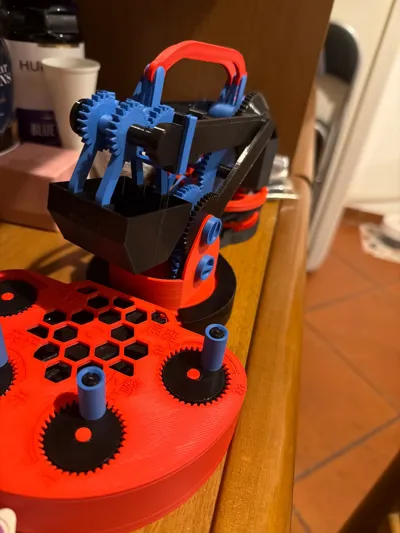

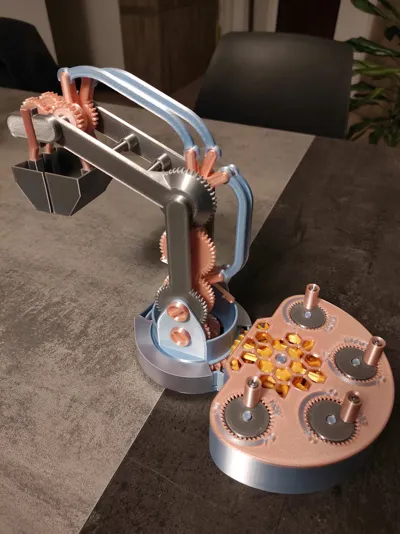

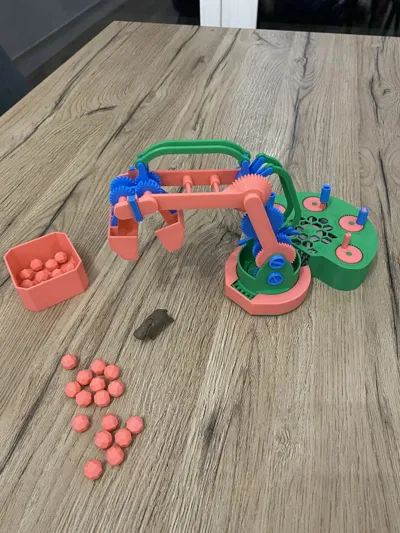

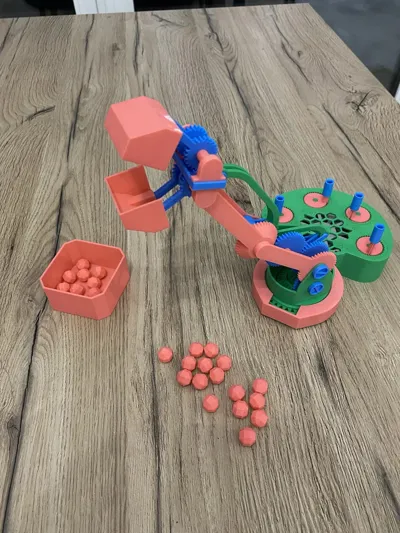

Tutto pla silk+, the colors were chosen by my daughter 😅😂 she is super happy, I just added some grease to the gears and it improved a lot, thank you 😊

The profile uploader has replied

Show original

@SW_MFYXY

Thank you for your support

Show original

@fracobi

@ges3d since I'm having some troubles with the PLA Silk+, can I ask you if you had some issue too?? printing with the default settings seem not working...Have you changed something, or dou you have any tips?? thanks

@ges3d

Boosted

Replying to @fracobi :

Yes, I used a dedicated profile for Bambu silk+ PLA, you need to modify the speed on the outer perimeter to 50 mm/s, set everything else to 200mm/s, the volumetric flow rate is set to 10mm*/s so it limits itself anyway. Flow 100%, cooling I keep at 60/70%, nozzle 220*C and bed at 60*C. Try to align the seams to the corners, or a single one in the center on round parts, rotating the pieces if necessary, the surface remains beautifully shiny and uniform and the layers remain solid, even though the silk tends to not adhere well, layer by layer, like basic PLA. I greased all the pins and gears, my daughter is using it daily and so far I have no problems. I hope this was helpful 😉

(Edited)

Show original

@Puffy24

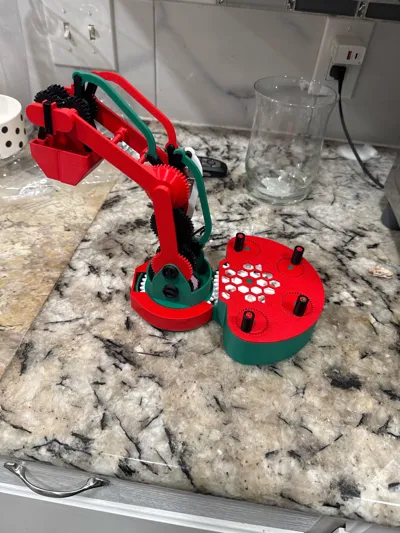

very fun build thank you! kids love it.

The designer has replied

@SW_MFYXY

Thank you You're welcome

Show original

@user_141156788

Have you made the top lid yourself?

@Puffy24

Replying to @user_141156788 :

I translated it myself yes

@petman

Boosted

Print Profile

A1 mini 95% Scale Complete Locking Version

top, well made and fun

Show original

@harellevy

Boosted

Print Profile

A1 mini 95% Scale Complete Locking Version

great model, to make the parts more durable I changed print orientation and added support (mainly for hinges)

The profile uploader has replied

@SW_MFYXY

Thank you for your support

Show original

@JDFF23

Print Profile

Mechanical Hand (Added Joystick Lock)

I don’t know if it was mentioned but adding a little lubricant to the gears make the functions work smooth, works great

@cartoondragon

It works great! The kids are thrilled. They didn't print for three days in vain! Abundantly lubricated the gears with WD40 grease

@CRAFTER01

Boosted

Print Profile

A1 mini 95% Scale Complete Locking Version

Excellent project, I made some modifications to the screws, but even so they broke, with 4 walls and 30% infill, so I applied some super glue after the "thread" to hold it temporarily nothing wrong with the project, just screws and good stainless steel that doesn't cause headaches now it's easier because I have the sample 🤣🤣 another thing I did was apply some glue to the T where the arm mechanism is attached to the joystick, it helps to keep the mechanical arm's gears in place because when assembling and moving the control, it would lift the front gears and it was necessary to remove the protective cover, remove the arm, and reassemble it

Show original

@NedLex

Print Profile

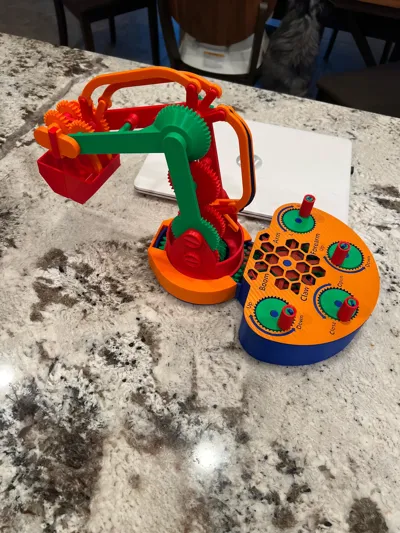

Faceplate w/ English Labels - Color Inlay

Turned out great! Thanks!

@NedLex

Print Profile

Mechanical Hand (Added Joystick Lock)

This was an impressive assembly of all the components. My kid and I really enjoyed it. Thank you!
