Cable Guide Mount
Print Profile(13)
Description
A set of parts designed to organize and secure parallel cables in a modular way. Each model includes a base and one or two covers, depending on the chosen version
---
Components
- Base
The piece that is fixed to the surface and holds the cables in position Covers
The cover slides over the base, creating the final finish and keeping the cables in place
---
Installation
1. Base Installation
- The surface must be clean and dry

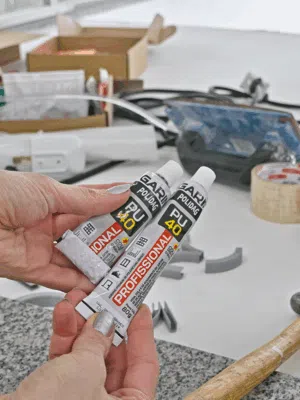

- Use PU glue in the groove of the piece's base
- Press firmly and wait for complete curing before proceeding

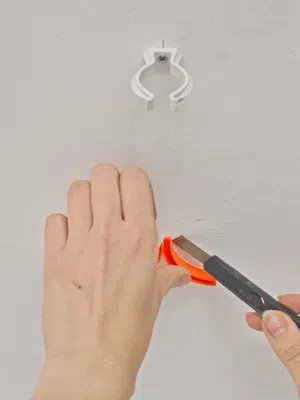

- If glue leaks from the sides, remove the excess with a utility knife
Important: if glue remains on the edges, the cover will not slide correctly
2. Cable Preparation

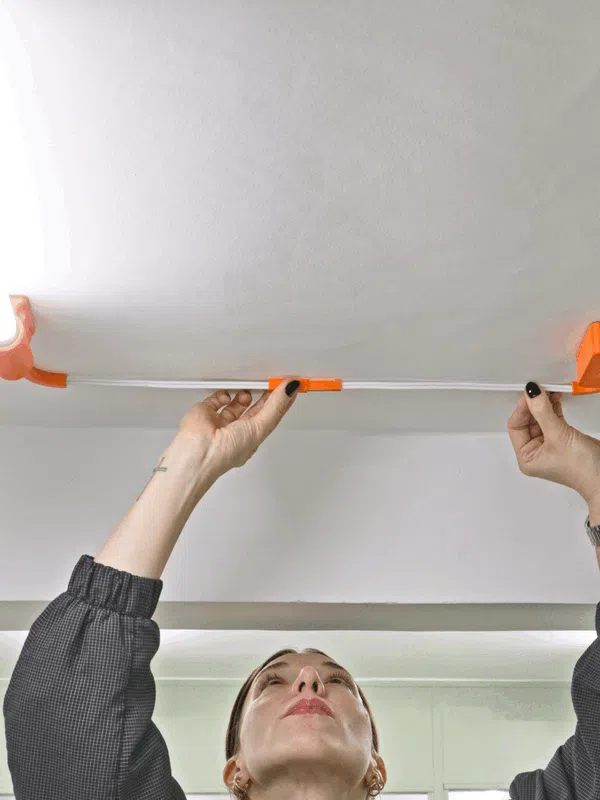

- Position the parallel cables inside the base
- Leave extra cable in areas where there is a curve. If it's too tight, the curved cover will not fit

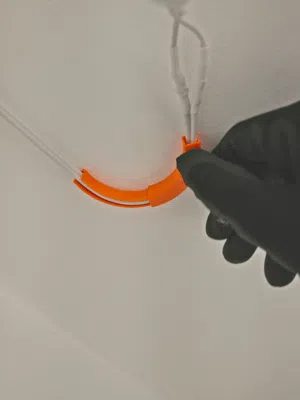

3. Attaching the Covers
- For curves, the edges of the base must be 100% aligned to allow smooth sliding
- Slide the cover until it naturally locks into the model
---
Recommended Materials
- PETG or ABS
Better withstand heat and deformation - Avoid PLA
May soften with heating from lamps or cables
---
Safety Warning
⚠️ Working with electricity presents risks
- Consult a qualified electrician for lamp installation and connection
- Use this model at your own risk
- Regularly check for any signs of excessive heating, deformation, or looseness in the support
- The author is not responsible for damages caused by incorrect use or improper installation
