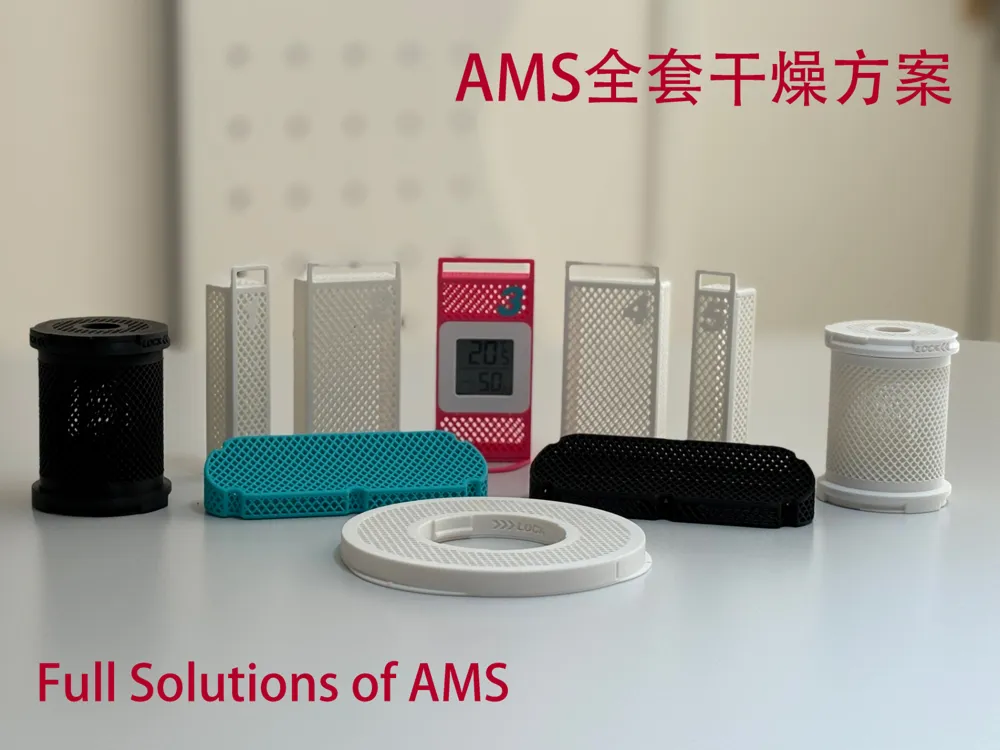

Complete AMS drying solution

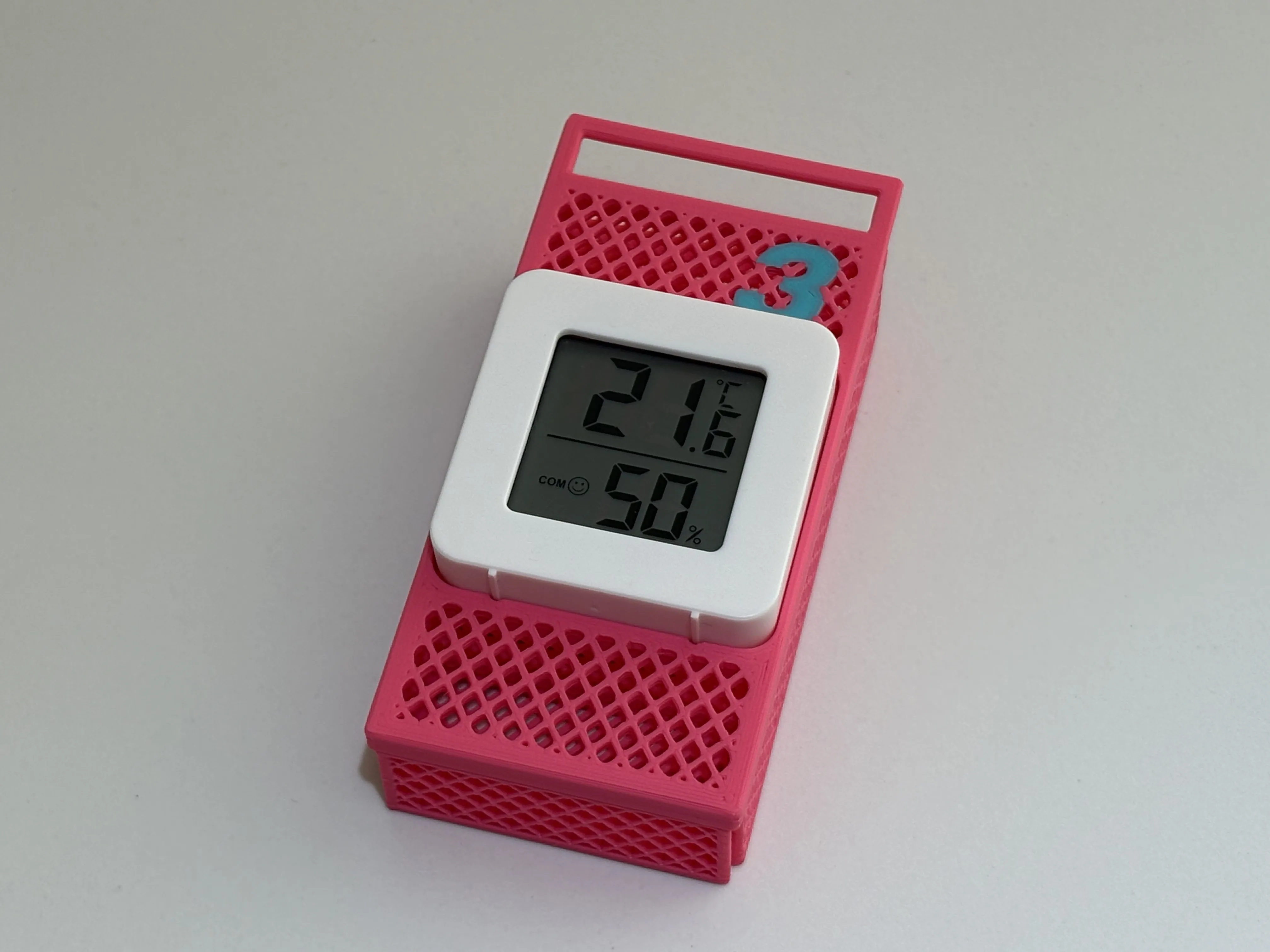

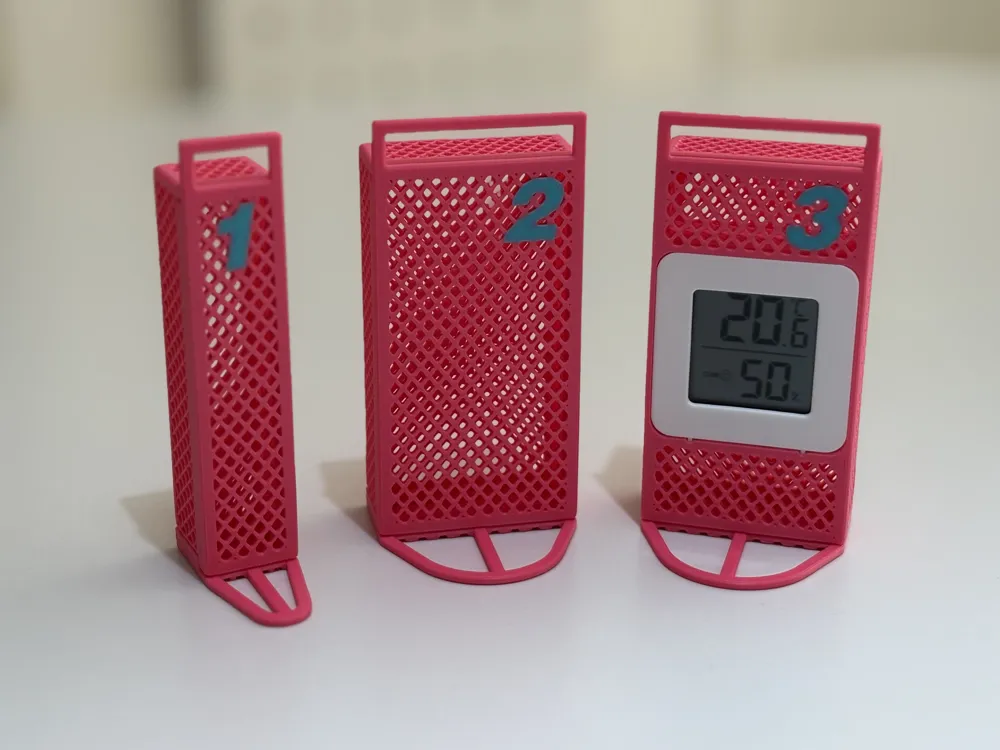

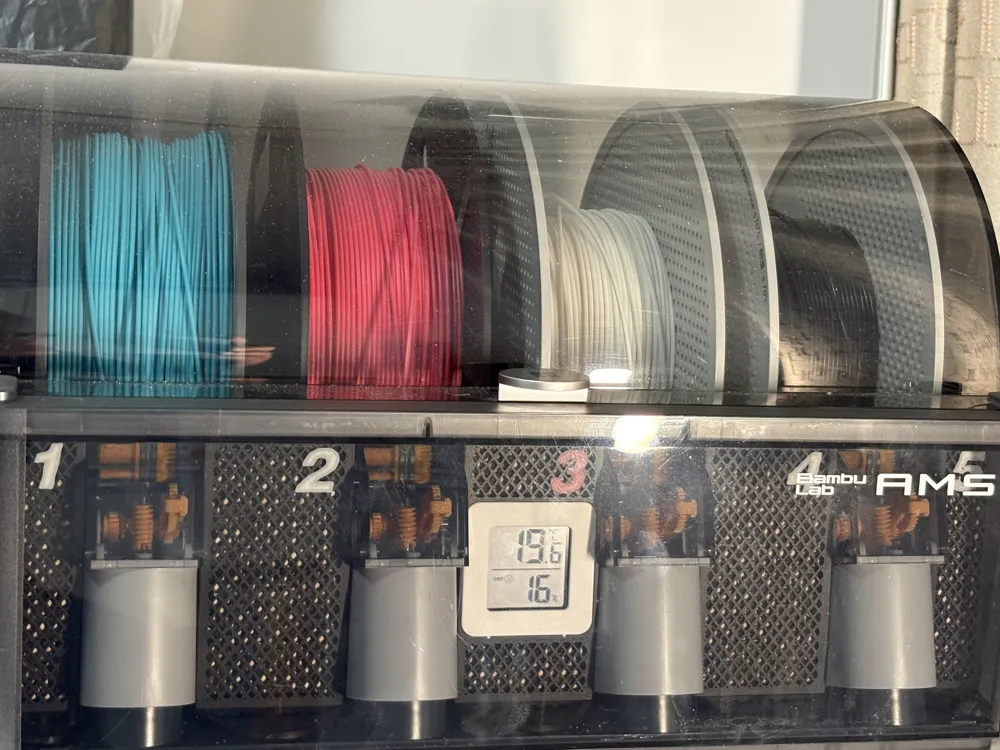

Box module corresponds to the front empty slot, can be equipped with a hygrometer, no need to remove the filament spool when inserting, added base bracket, adds auxiliary stopper

Original bottom box design, desiccant has a place to be stored

Core module hollow design, increases air contact area

Side plate module external hanging design, maximizes remaining AMS space

All parts use improved slot rotation interfaces, overhangs print flat without supports, and parts are easy to assemble and disassemble

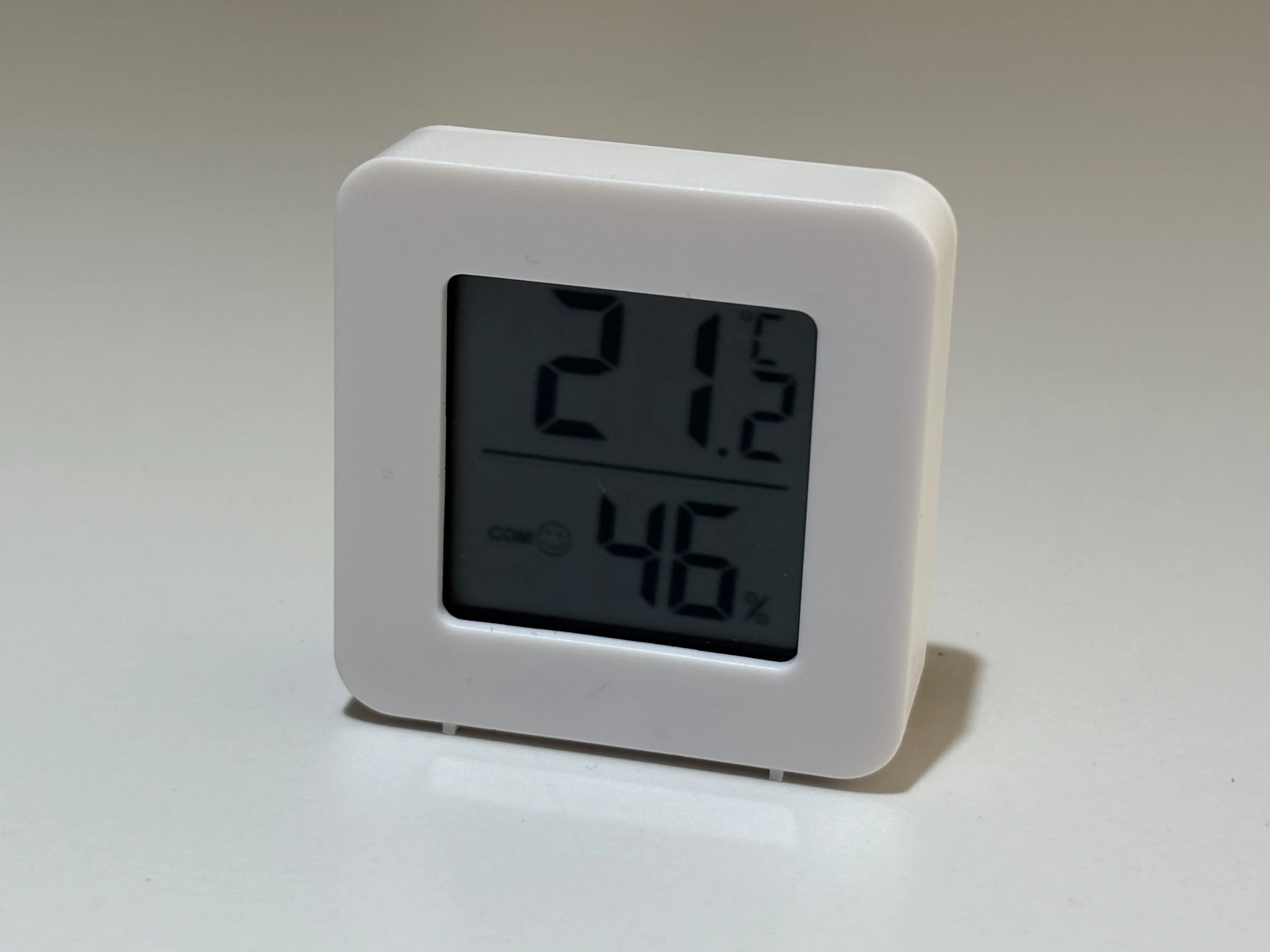

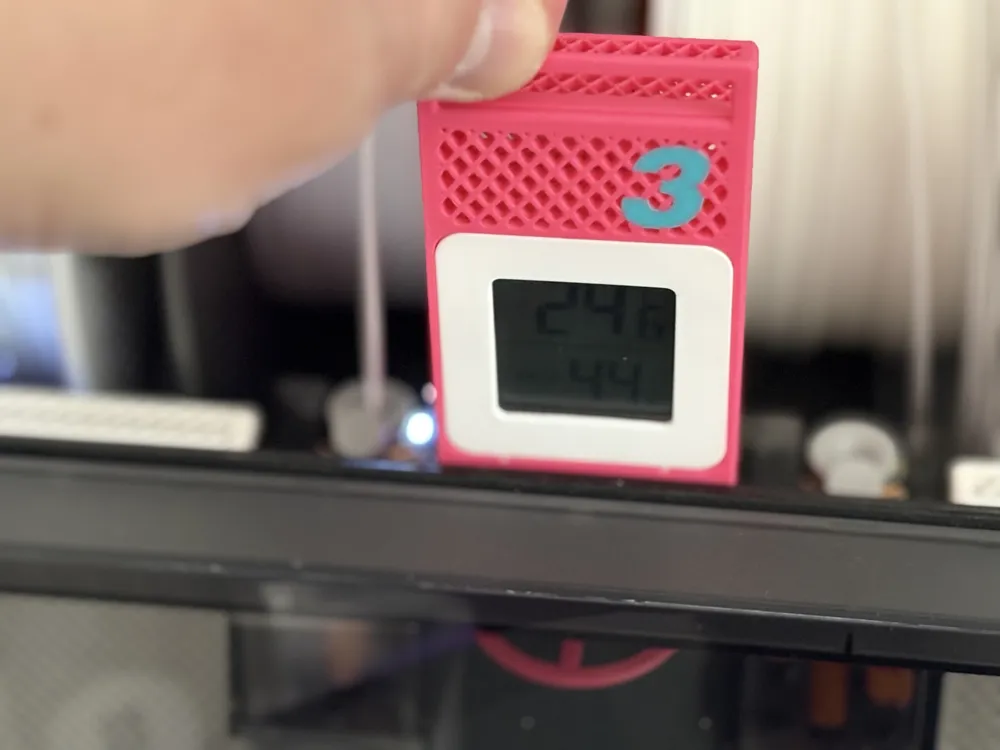

The hygrometer supports models with two feet as follows, dimensions: 45mm x 45mm (including feet), thickness: 16mm

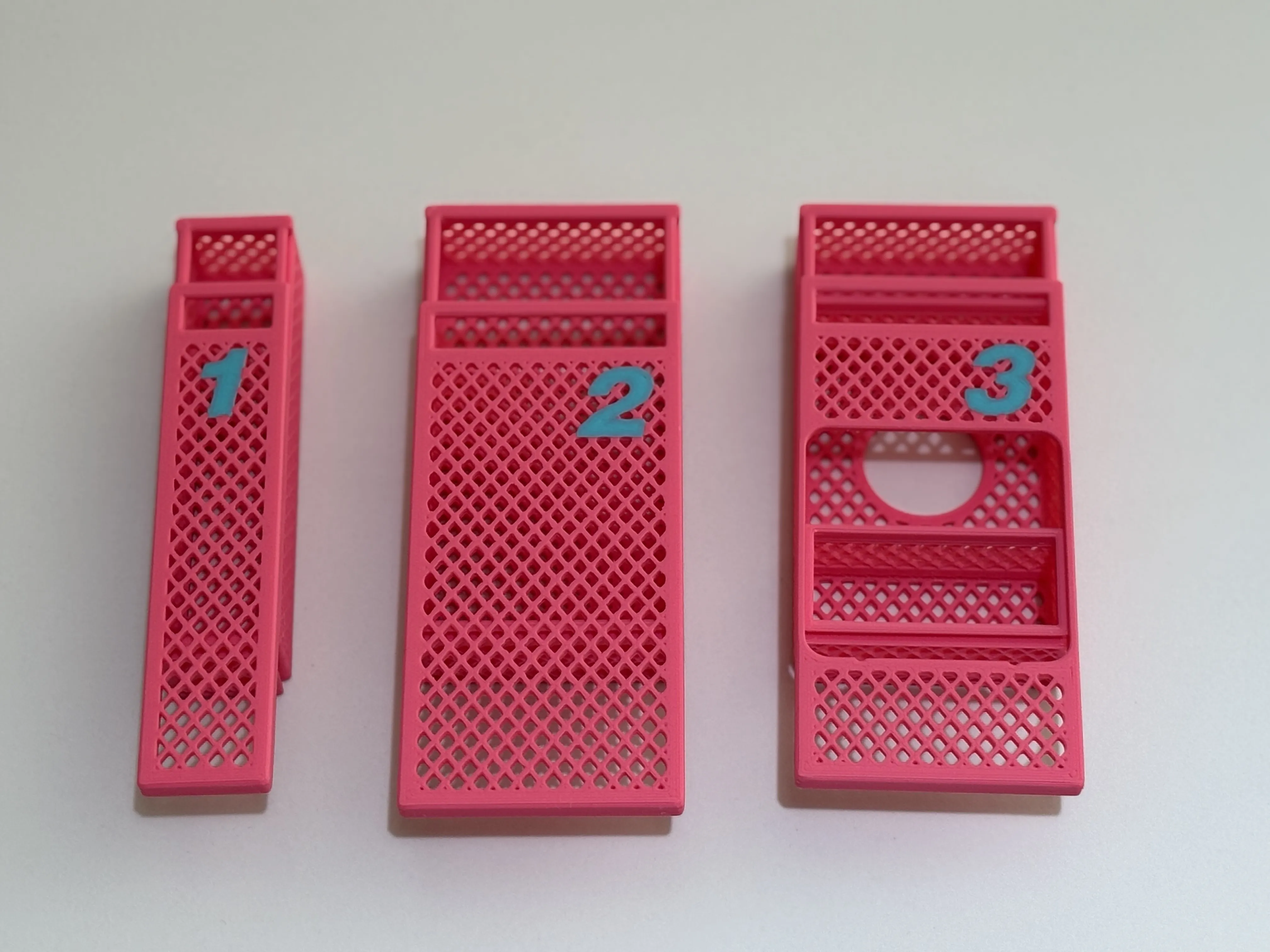

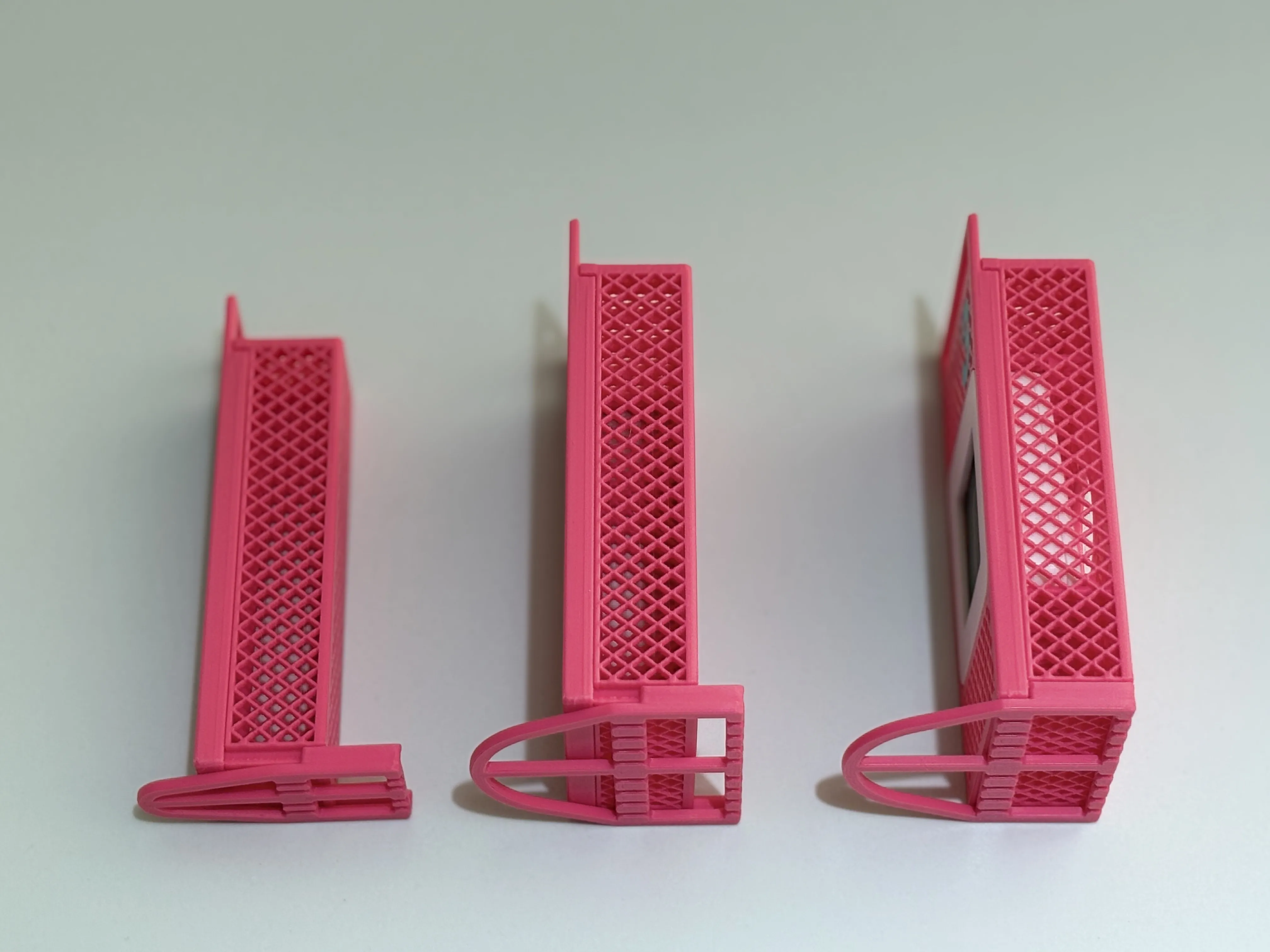

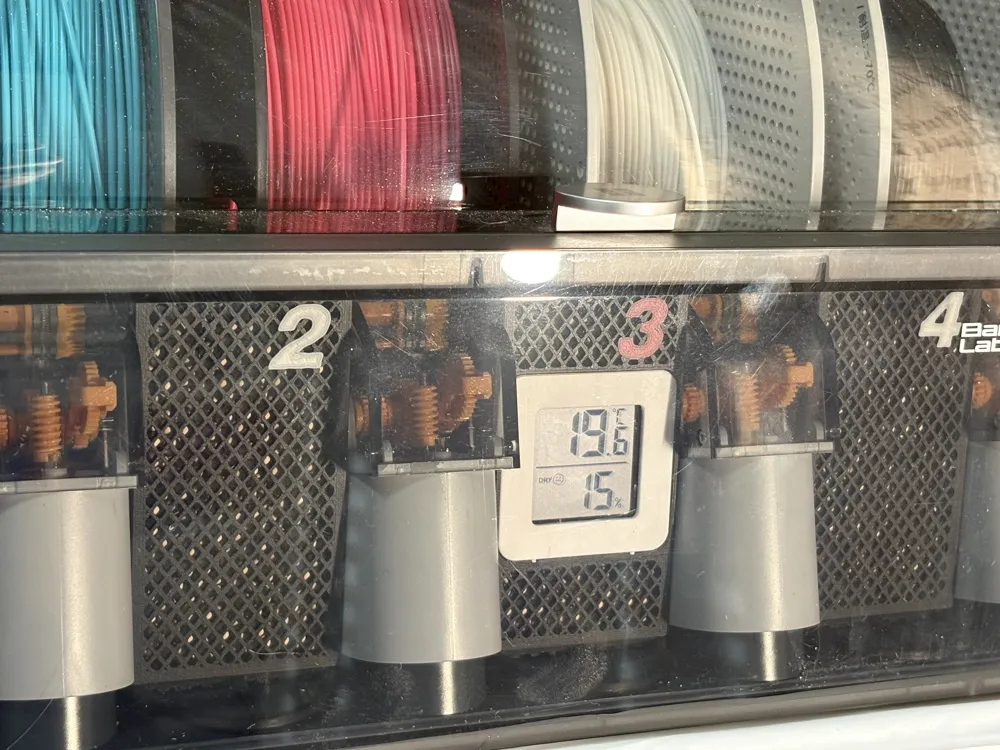

The main body of the box module and the lid, as well as the main body and the base bracket, are all assembled using a sliding slot method. When assembling, first load the desiccant, then install the lid (slide in from bottom to top, as shown in the bottom left image), and finally install the base bracket (slide in from back to front, as shown in the bottom right image). When inserting the box module into the AMS, there is no need to remove the filament spool. Tilt the main body of the box module forward, and after the base bracket part is placed into the AMS, it can be slid down into place

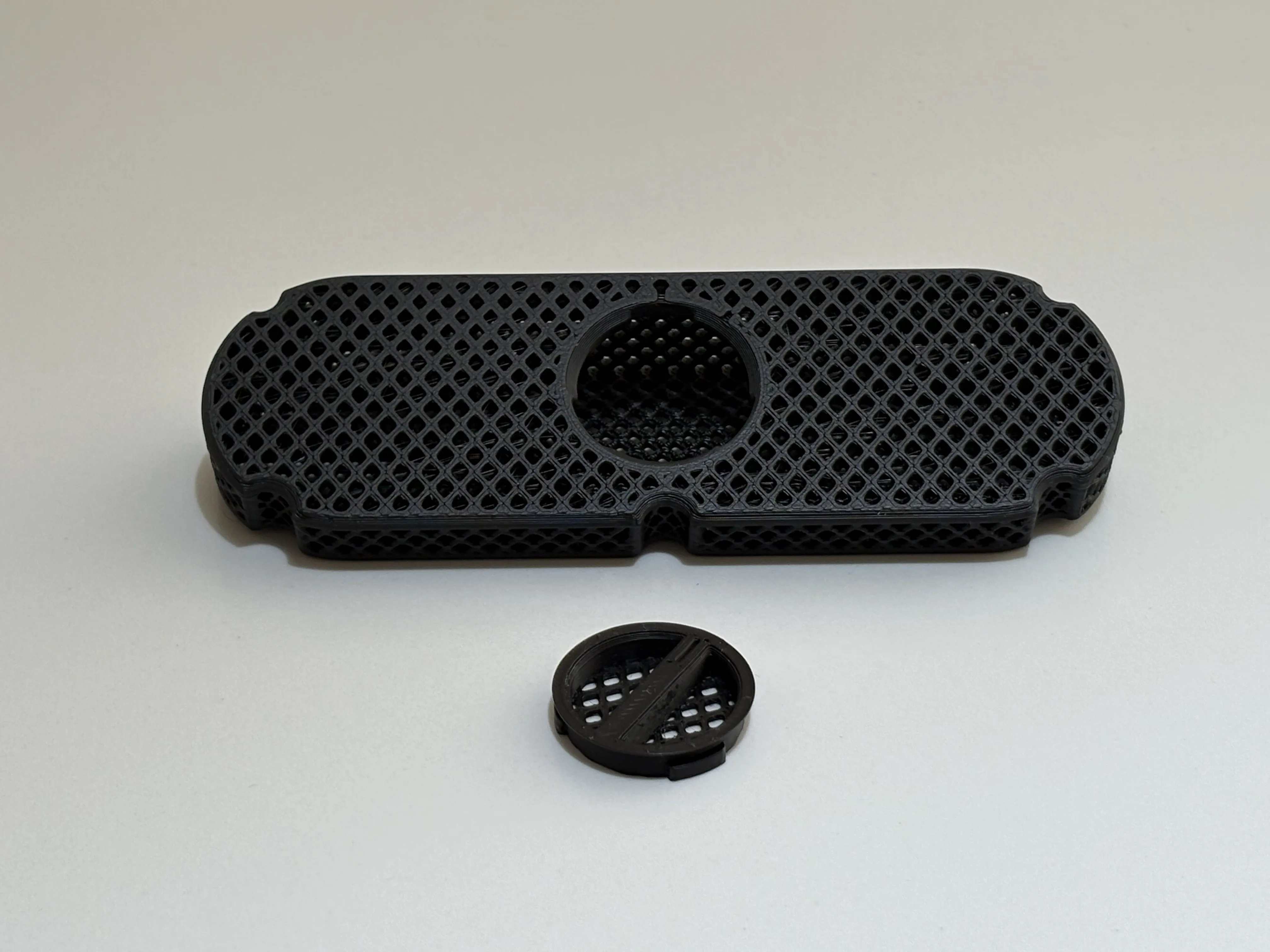

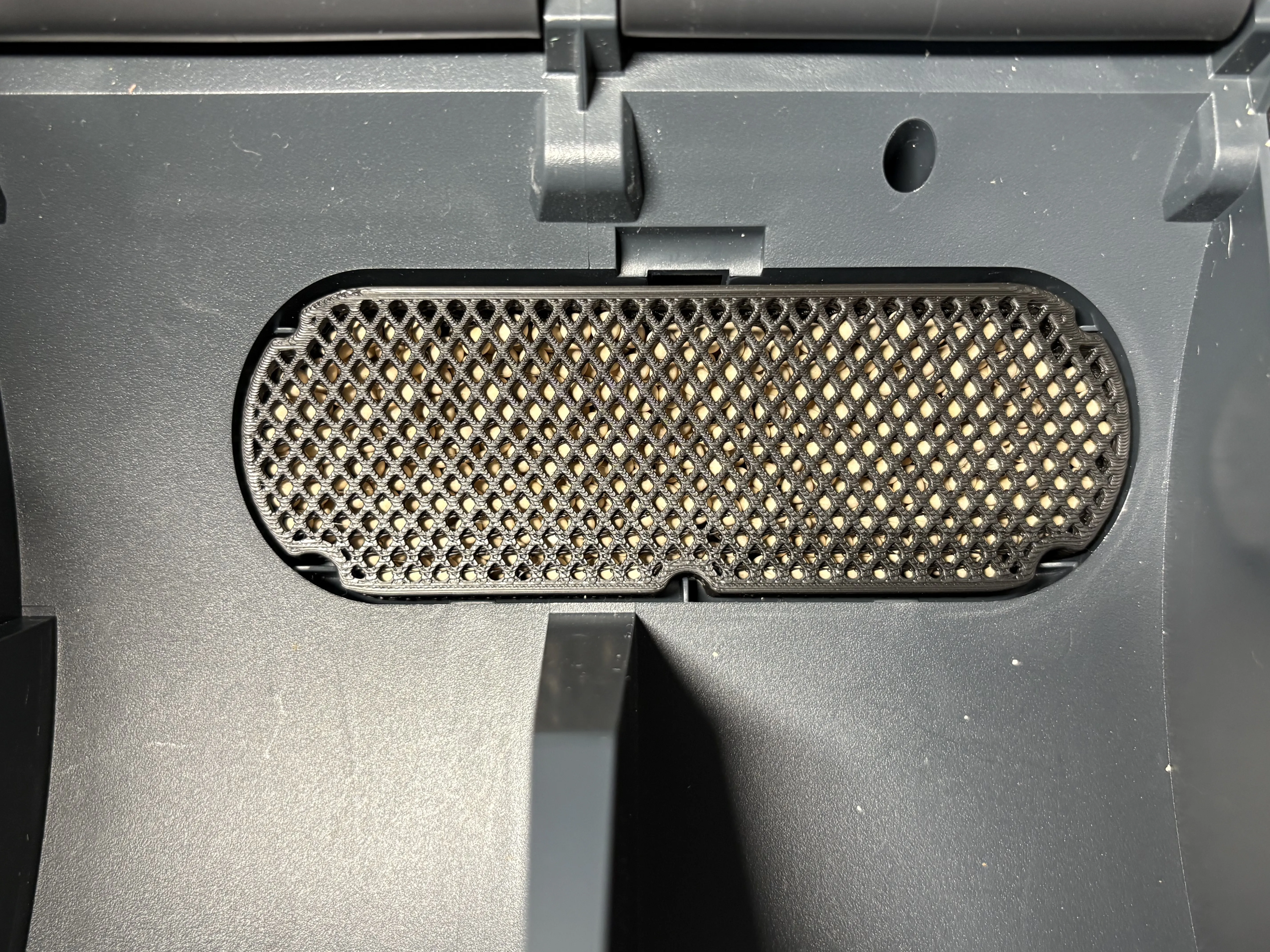

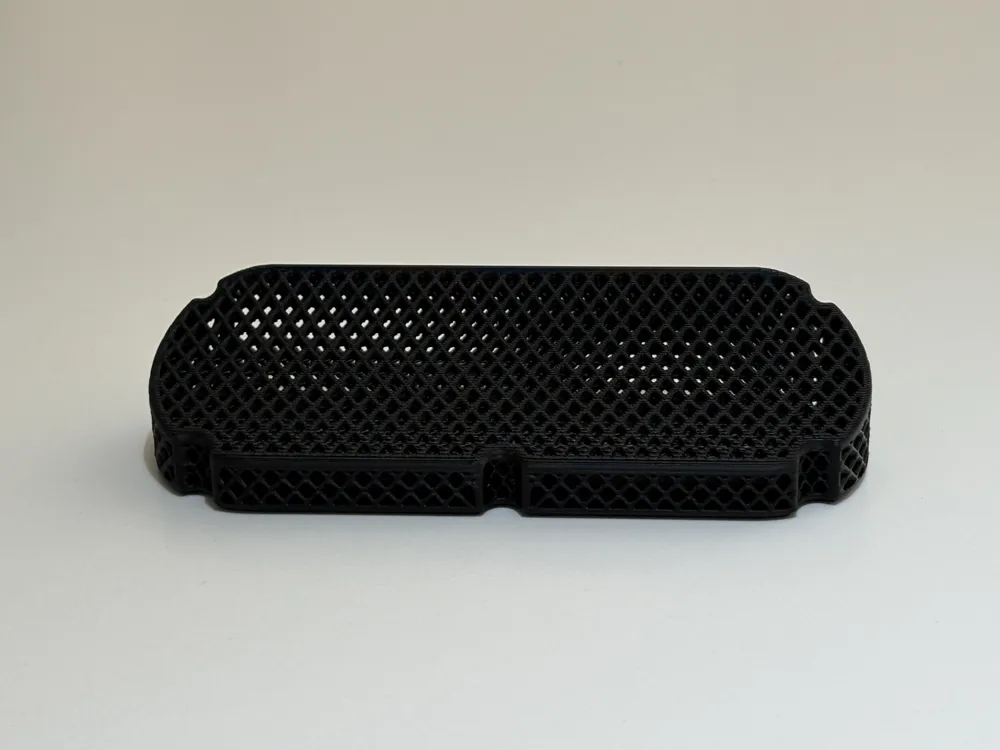

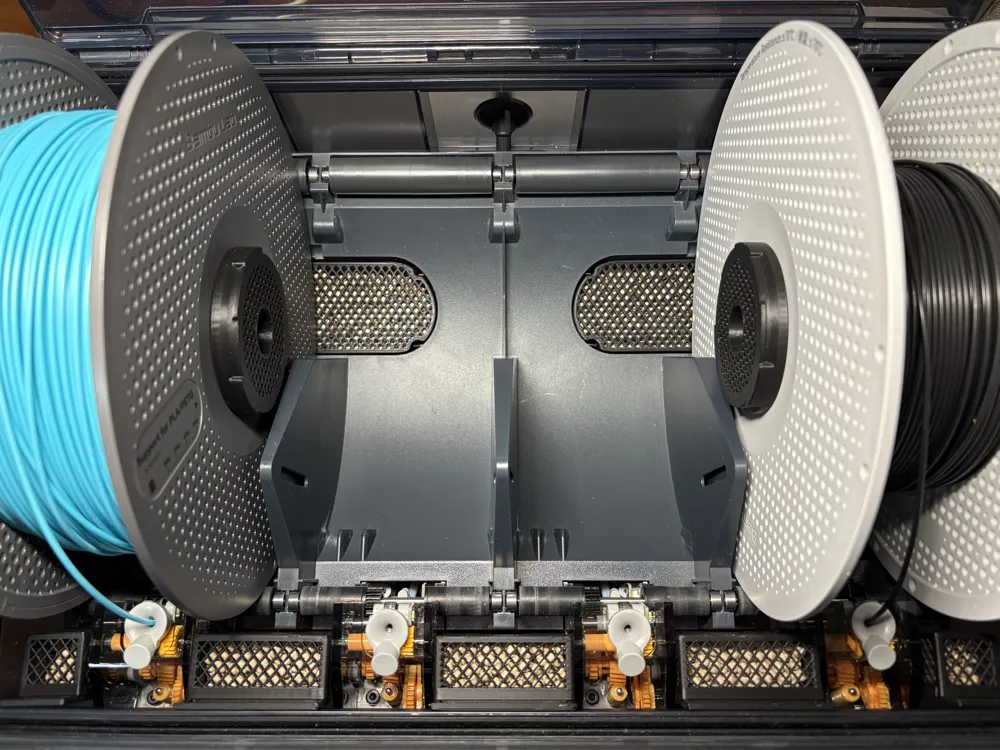

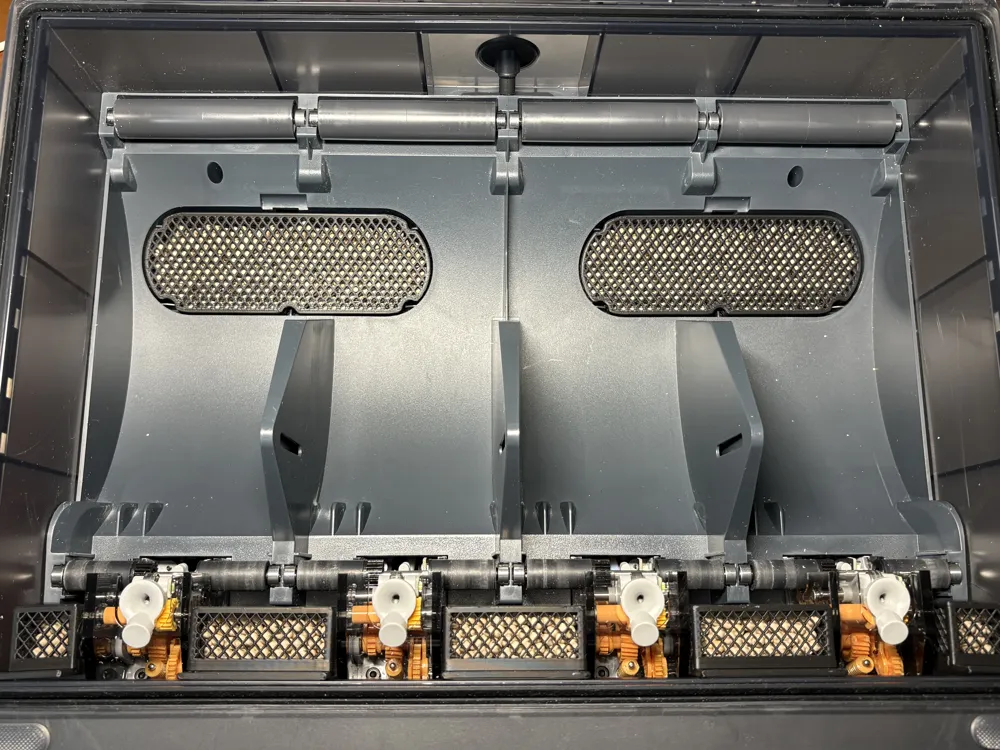

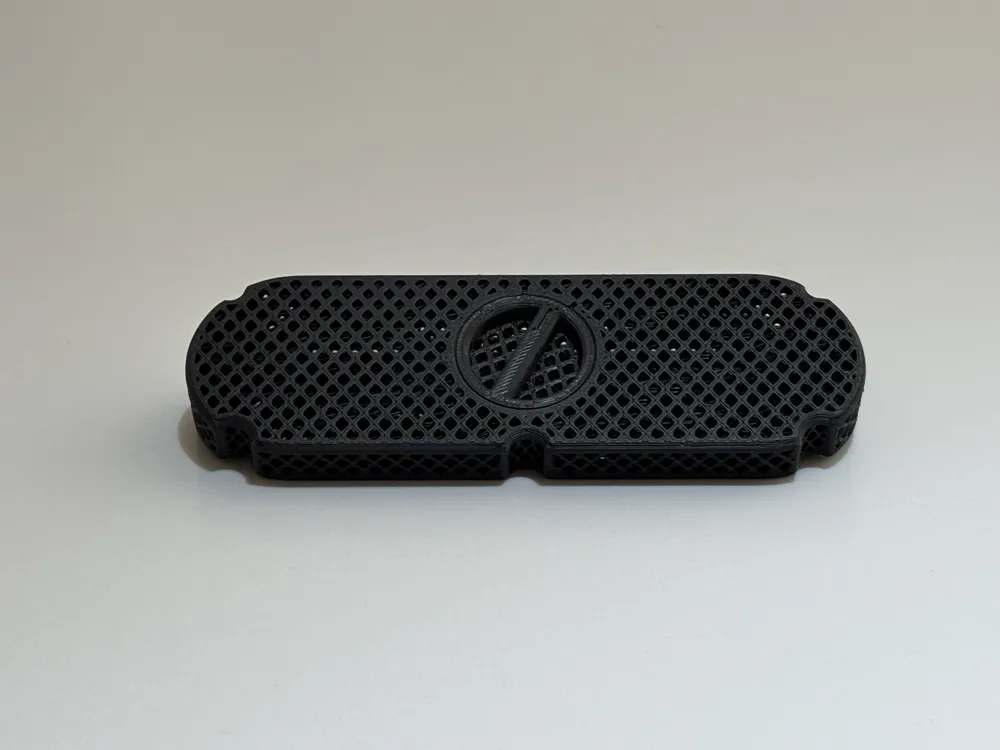

The original bottom box is designed based on the internal space of the AMS, fitting perfectly. The desiccant inlet is located on the bottom surface of the module, installed with a rotating bayonet fitting

The core desiccant box is designed based on the physical space of the Bambu Lab filament spool's central axis

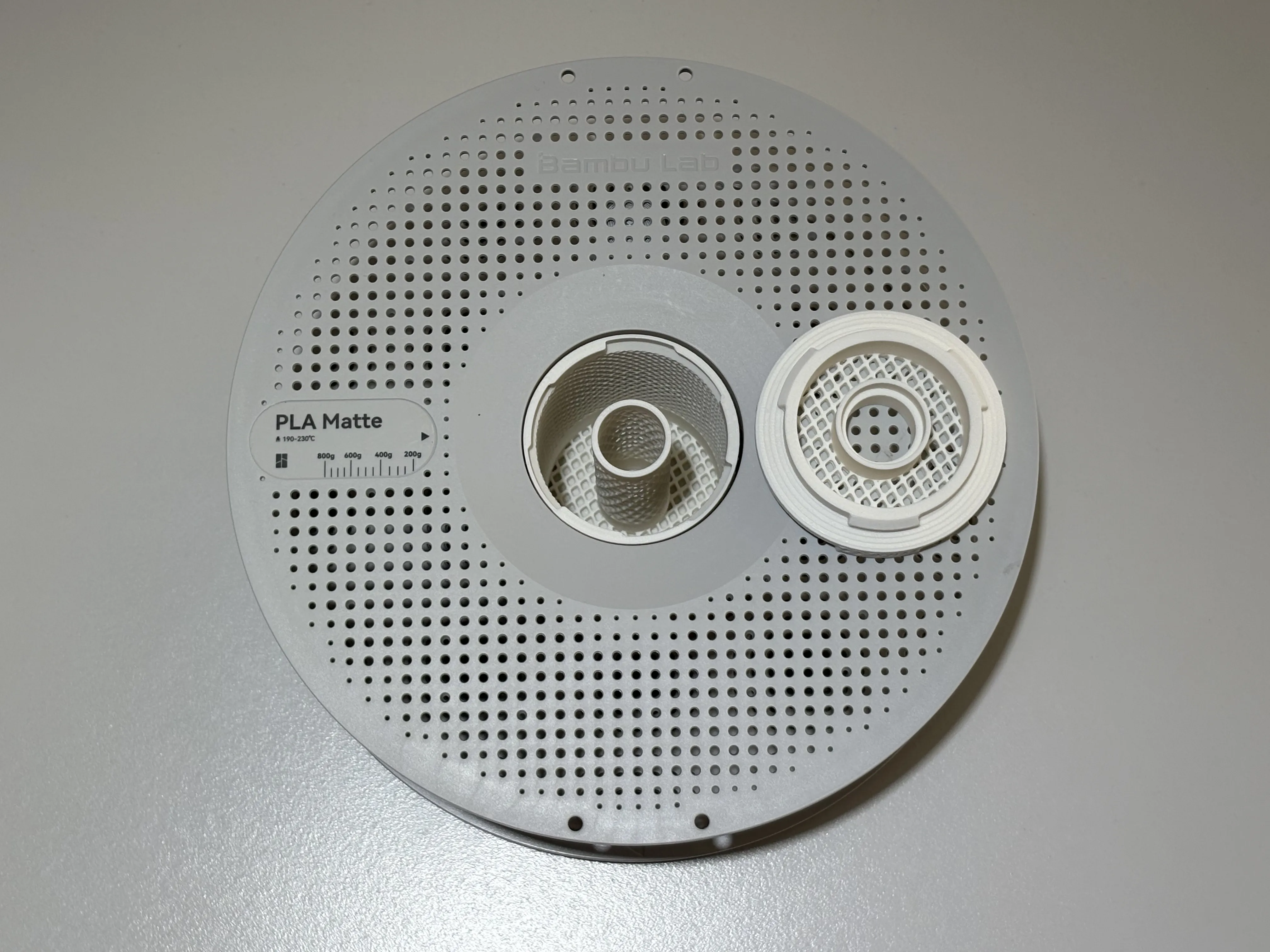

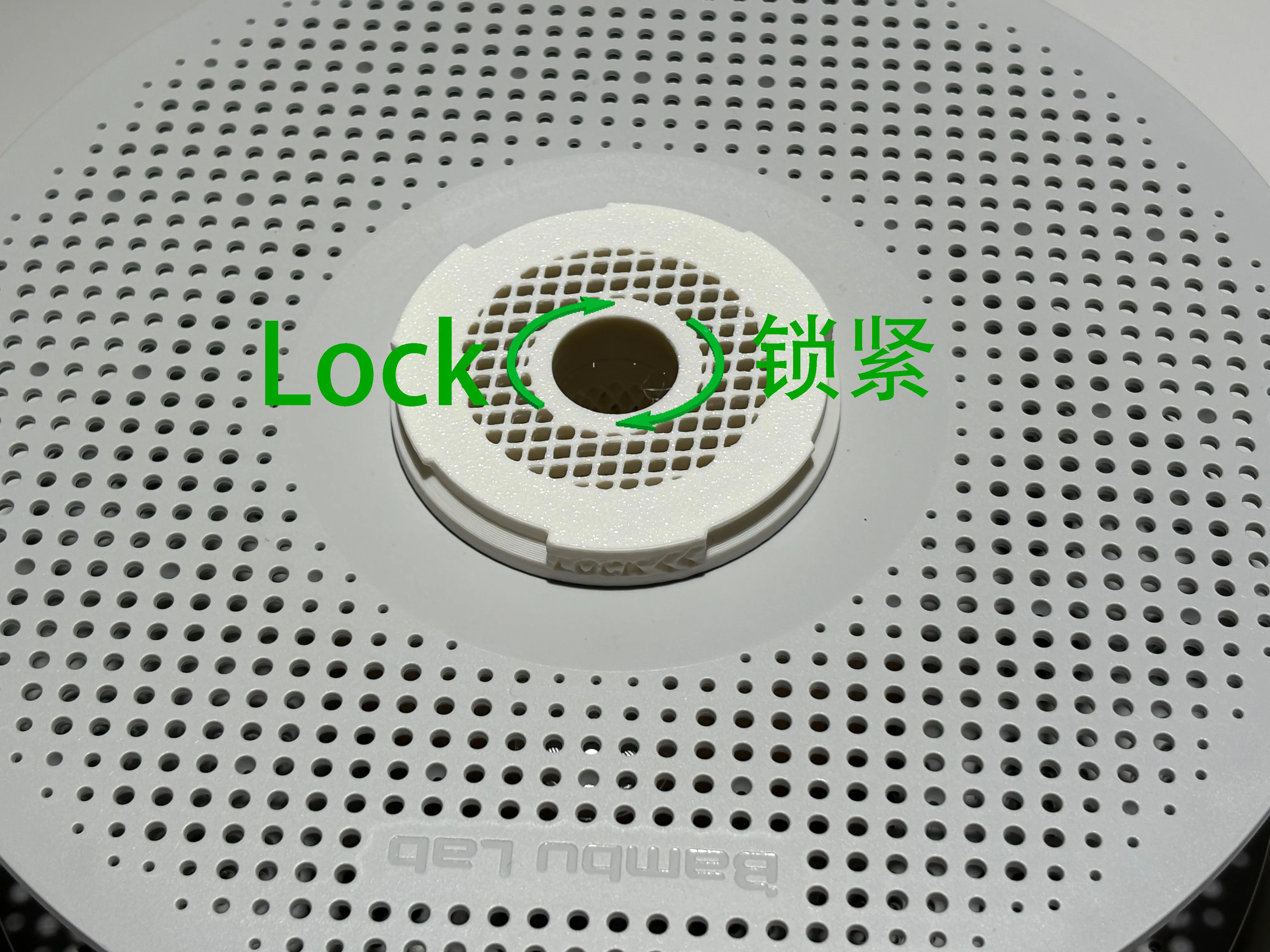

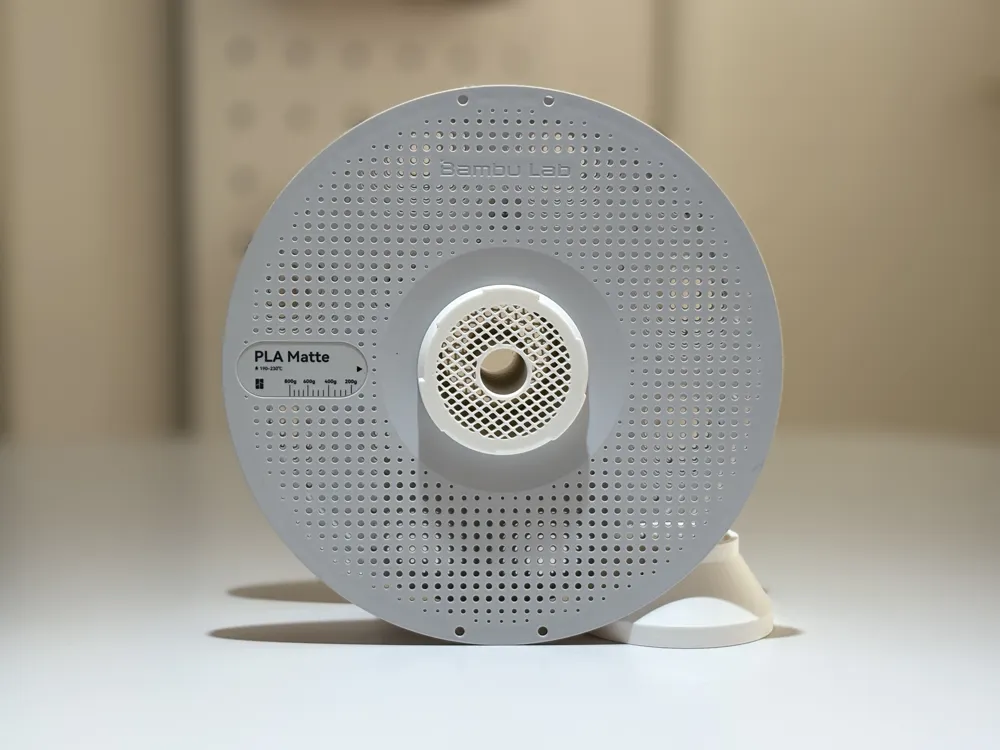

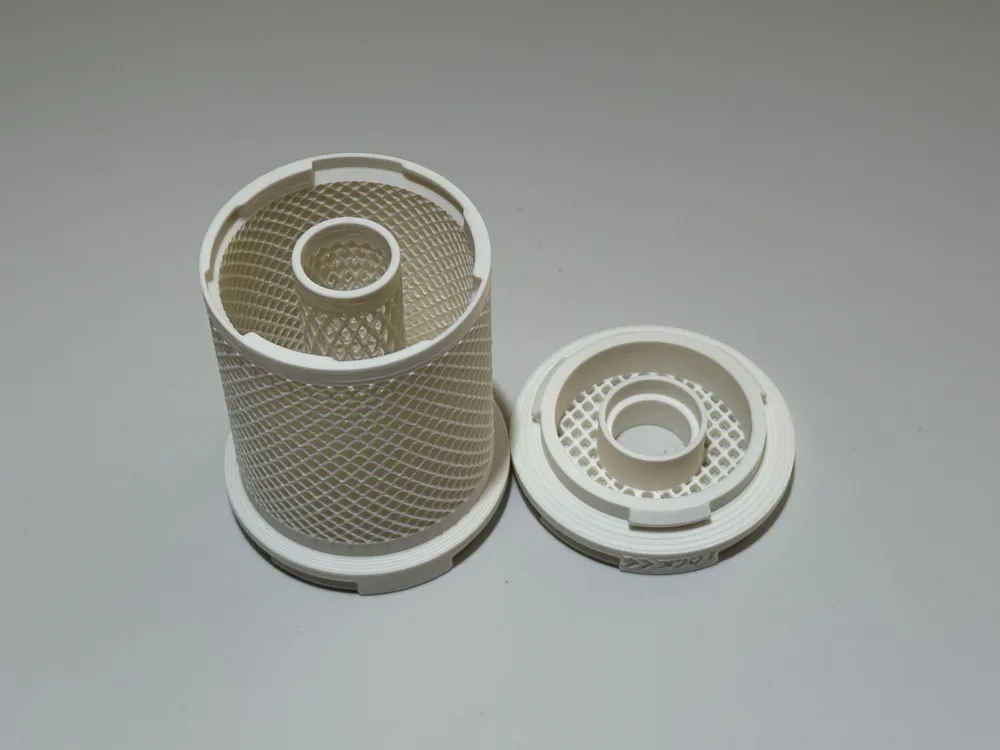

The core module is a hollow cylindrical design, with an overall carved-out hollow shape. It is fastened with a slot rotation method and can be secured to both sides of the Bambu Lab filament spool. The hollow design effectively increases the contact area between the desiccant and air, and it can be directly installed on the filament spool for use in the AMS system

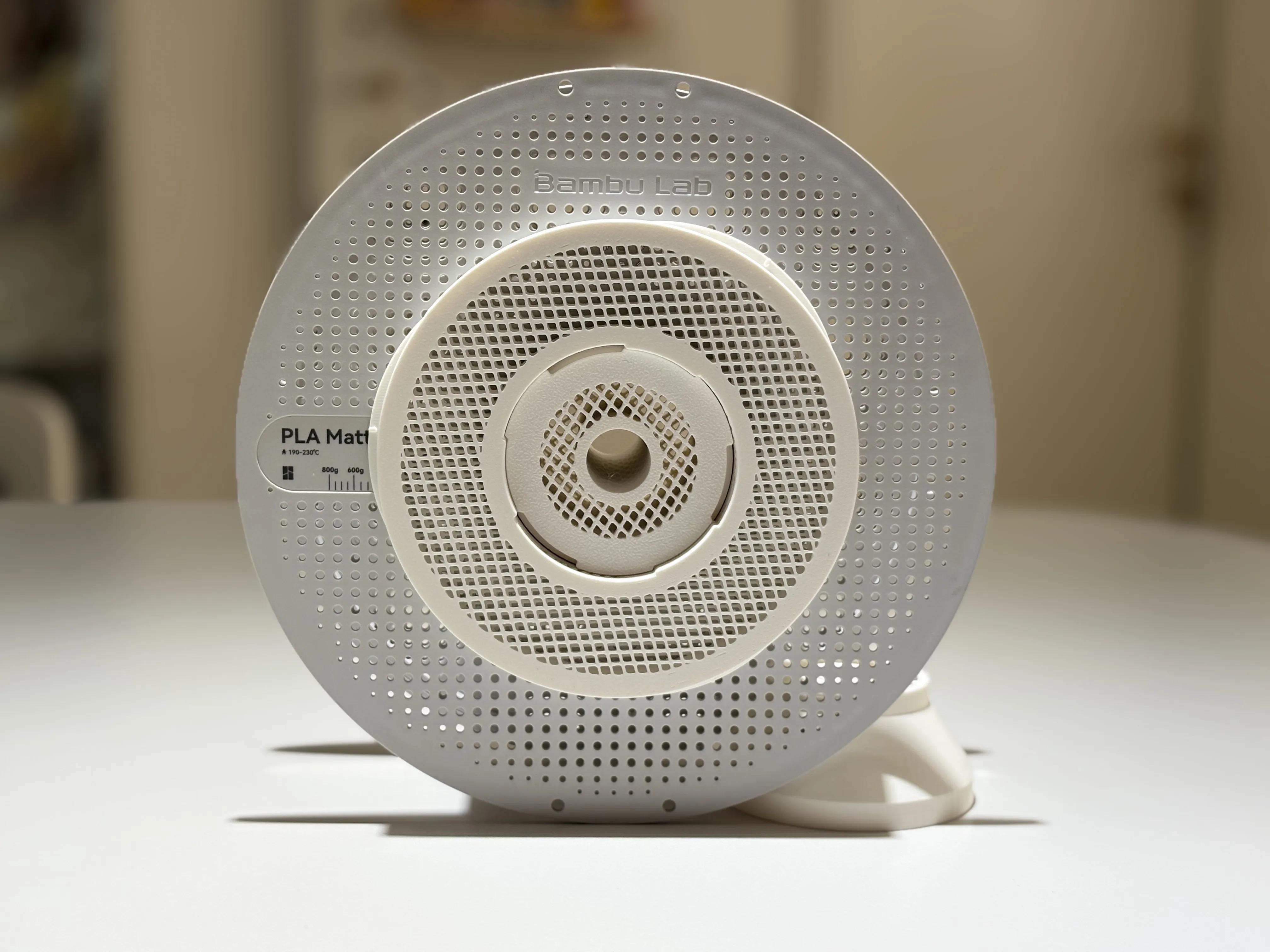

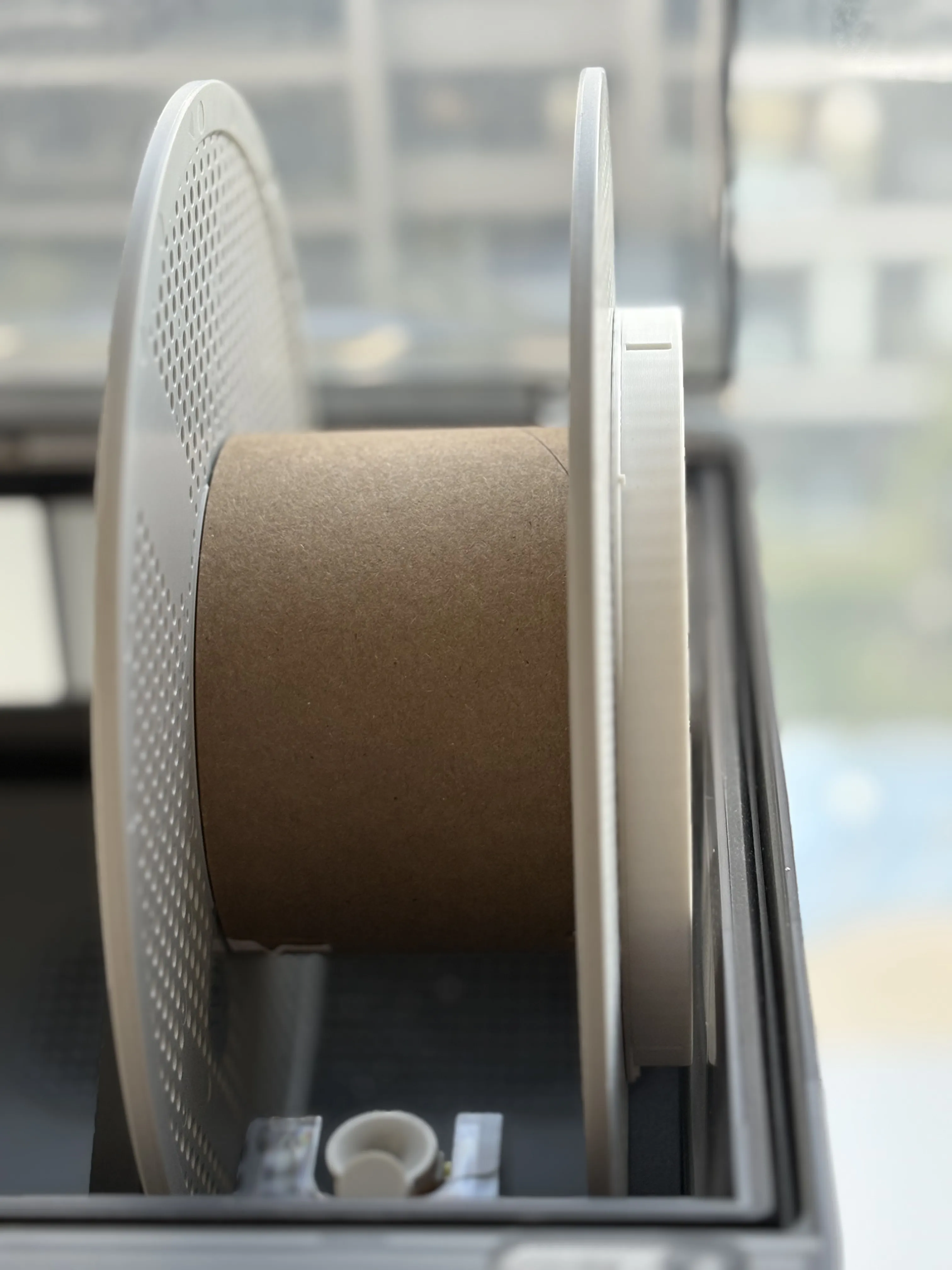

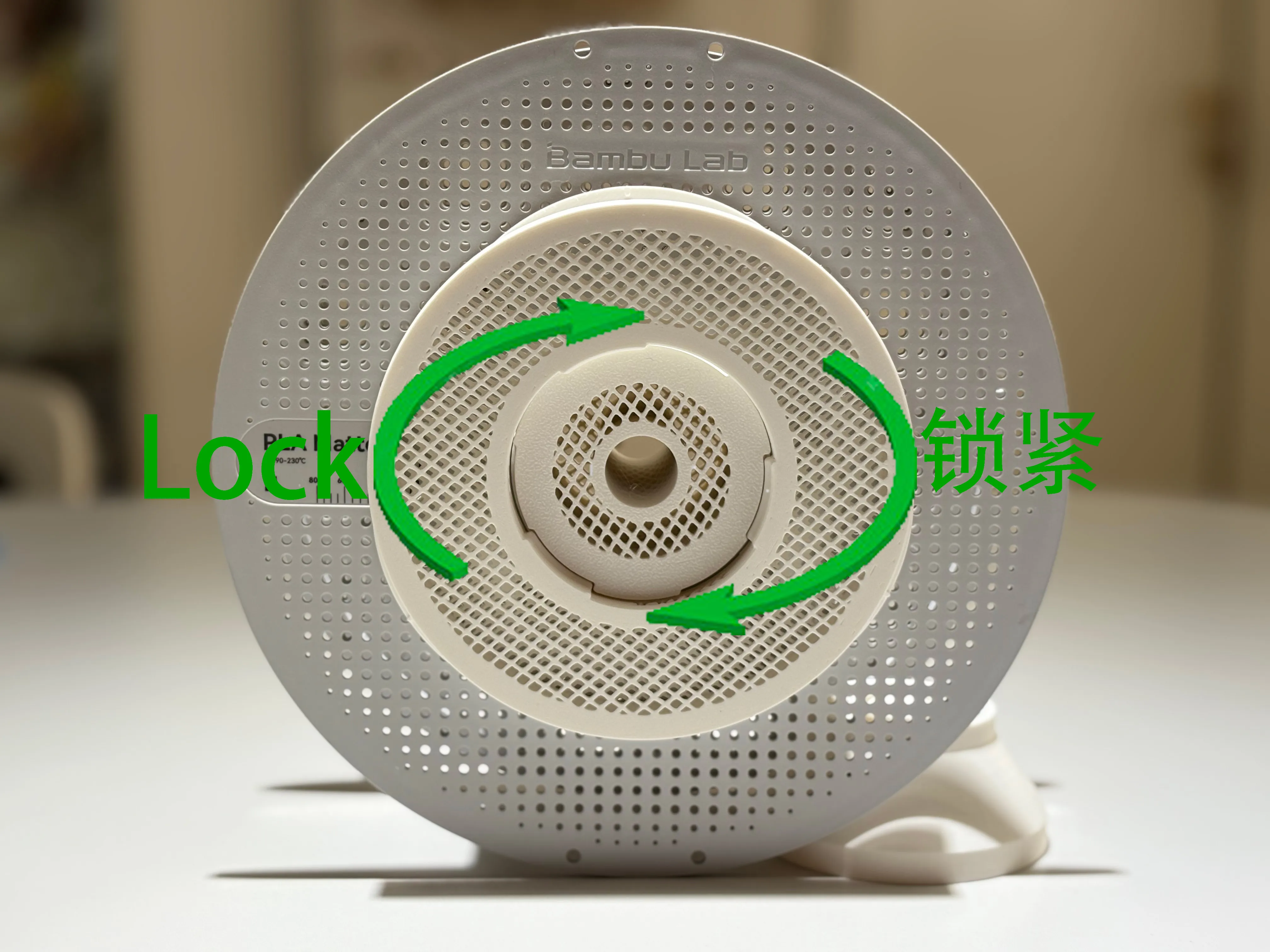

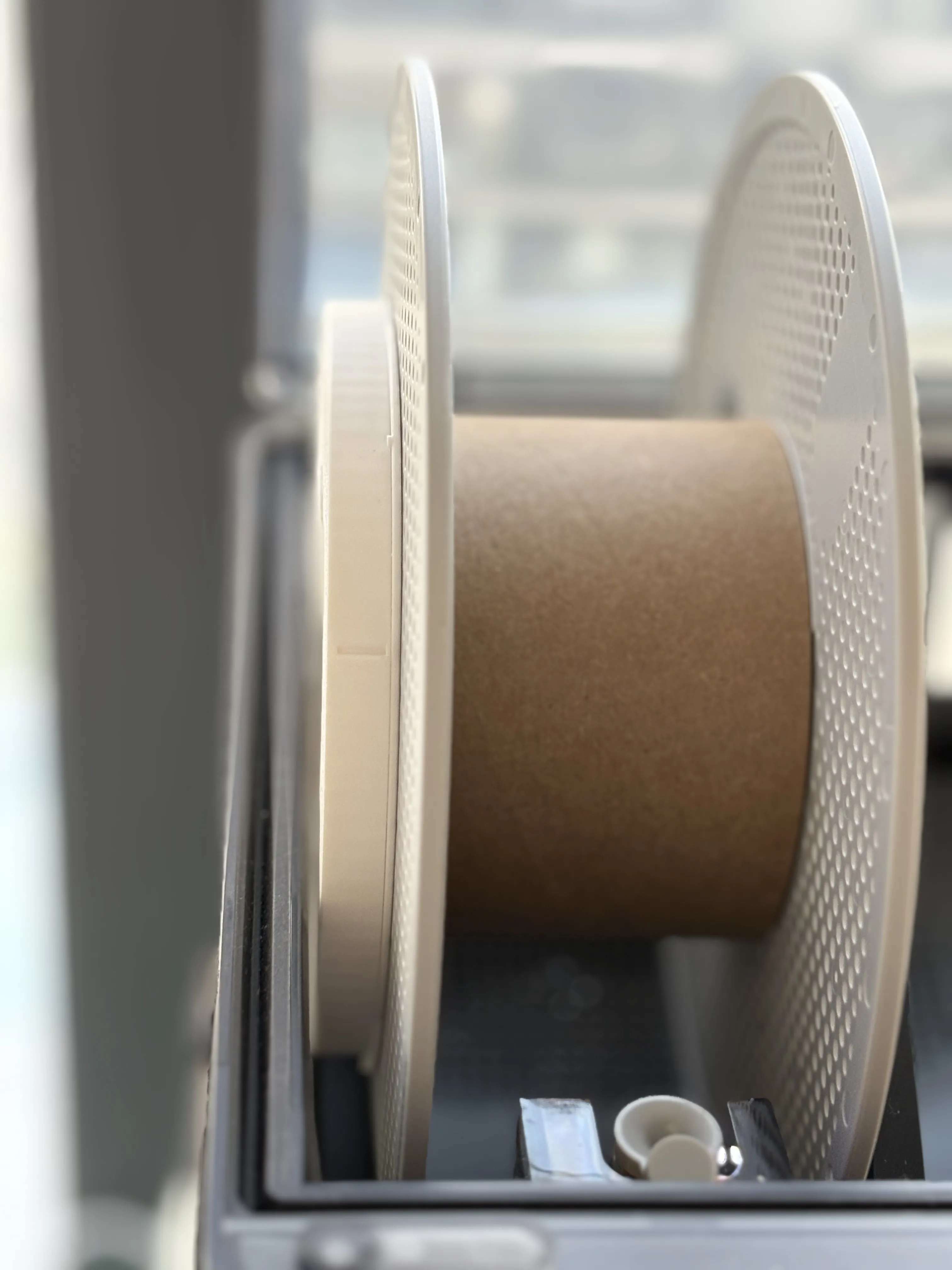

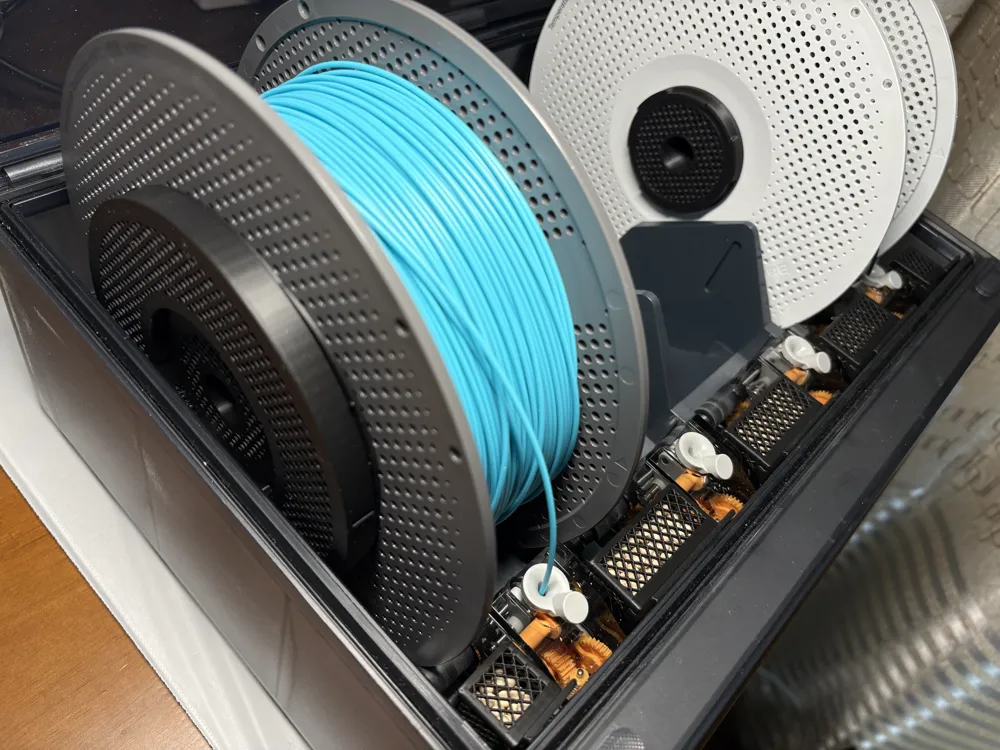

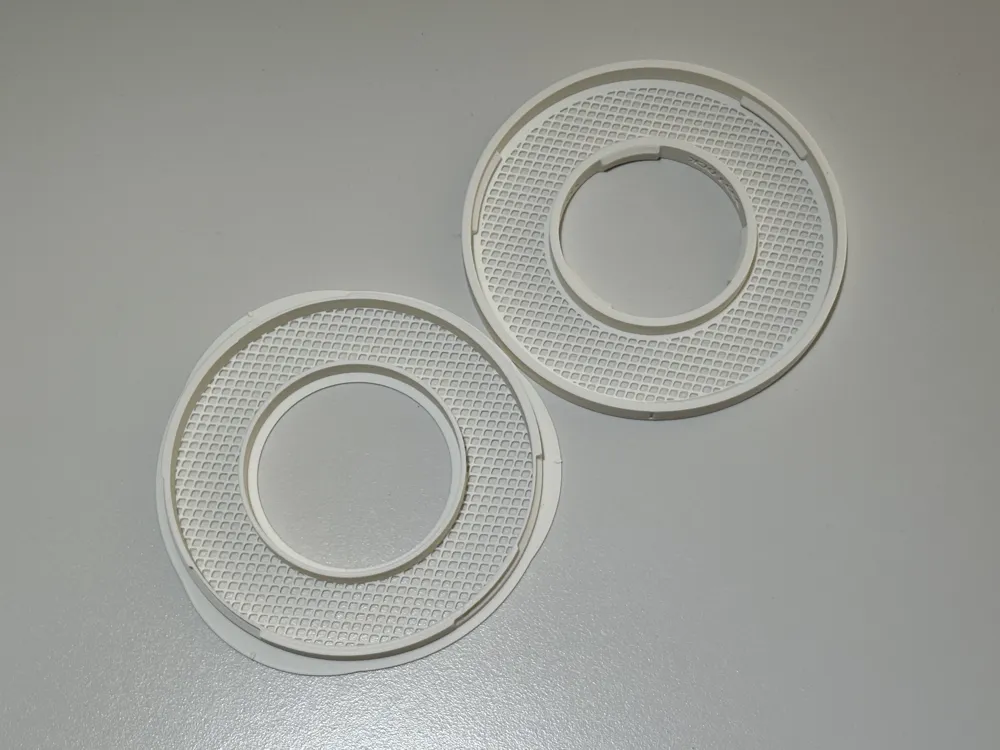

The side plate module is a disc-shaped design that can be installed on the core module by rotating it into a slot, effectively increasing the physical area for drying. When placing the filament spool in the Bambu Lab AMS system, due to AMS space limitations, this side plate module can only be installed on the left side of spool 1 and the right side of spool 4 of the AMS system

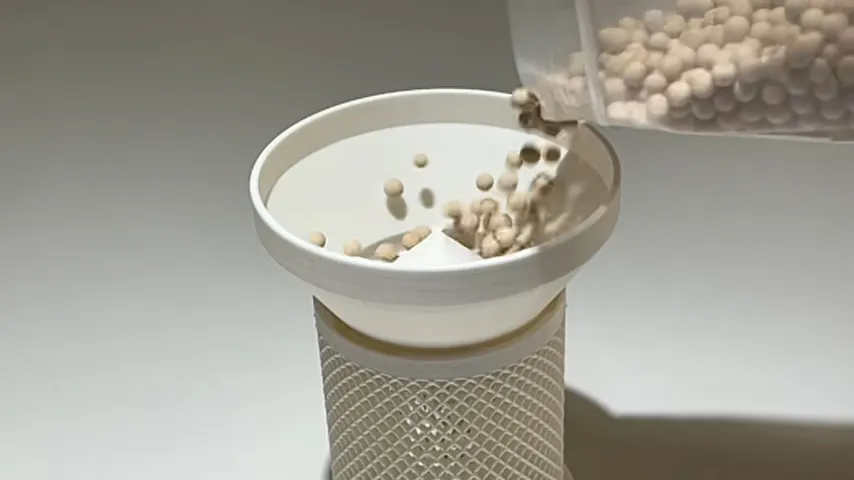

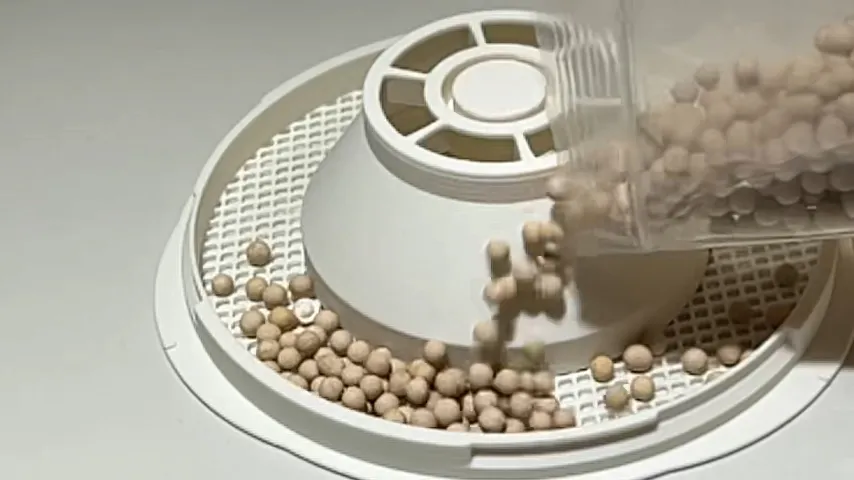

The specially designed desiccant loading funnel can be used for both the core module and the side plate module, preventing the desiccant from spilling easily during loading. When placing the funnel on the core module for desiccant loading, please ensure the desiccant loading height does not exceed the lower edge of the funnel, to avoid difficulty installing the core module's top cover if too much desiccant is loaded

Note: As I only have a P1S AMS system, the use of the side plate module in the AMS system has only been tested for the P1S AMS. Please provide valuable suggestions for its application in other AMS systems, thank you
