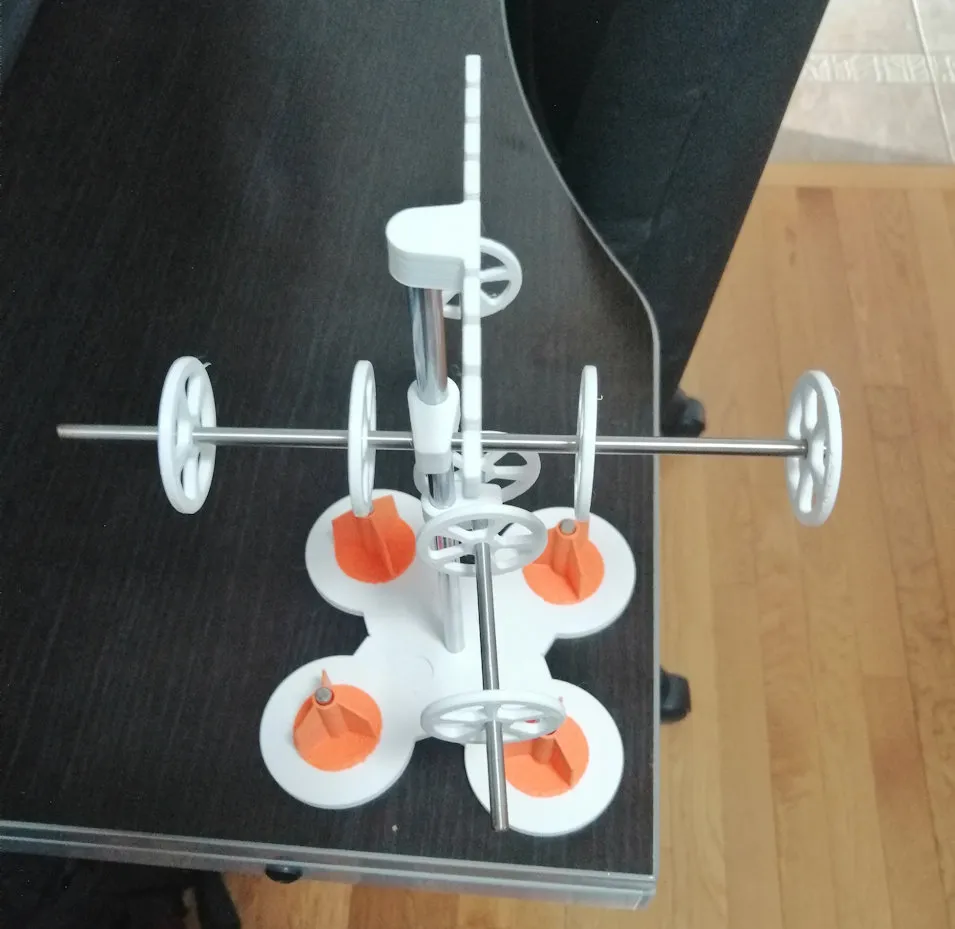

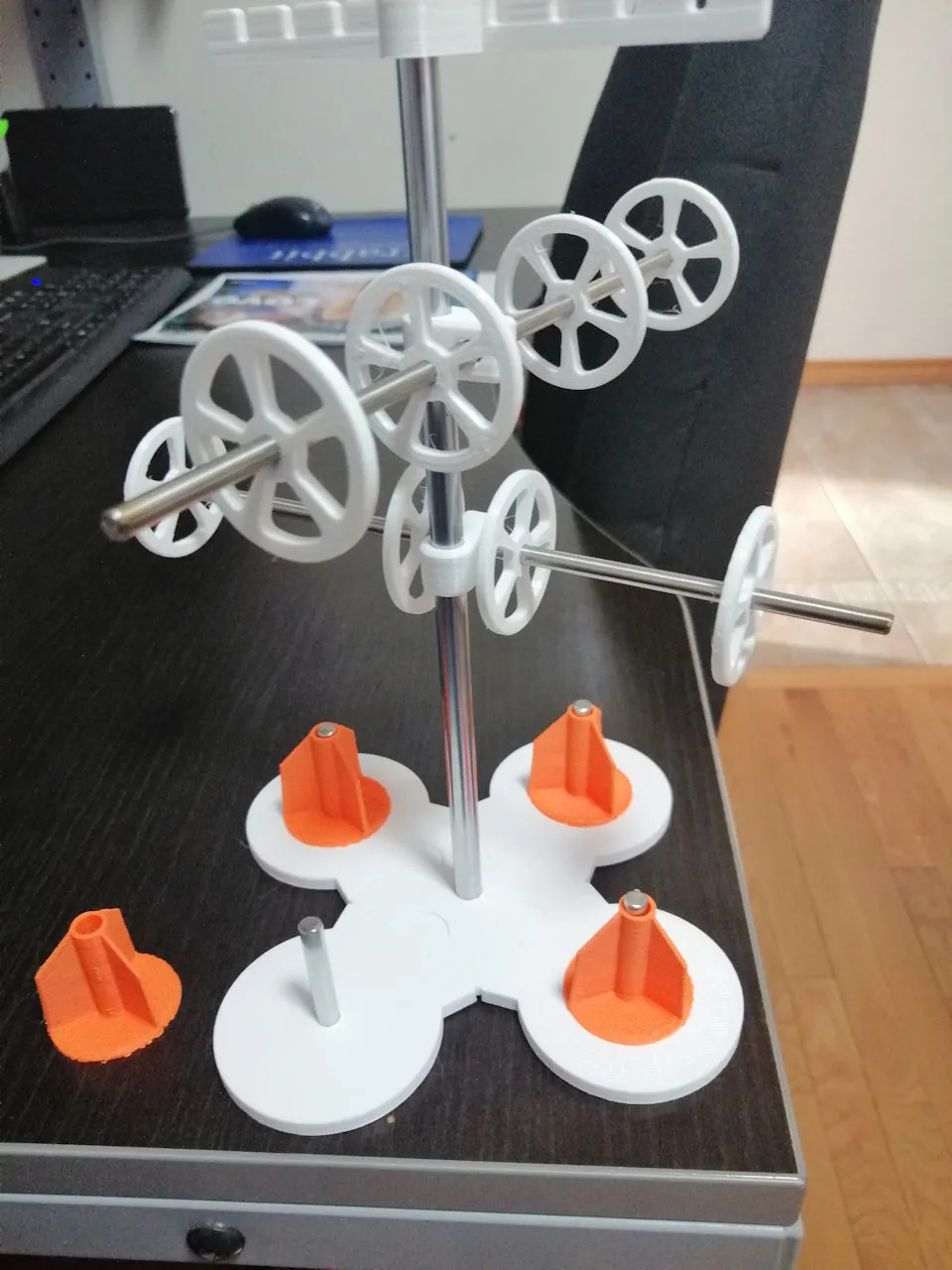

Sewing Machine Thread Holder

Updated

Added updated Bobbin wheels of varying sizes based off https://www.thingiverse.com/thing:2875543

Original

Remixed to reduce the printing time and plastic used by almost 50%.

Original would take approximately 16hrs and use 138g (0.3lb) of filament

New would take approximately 8 1/2hrs and use 76g (0.7lb) of filament

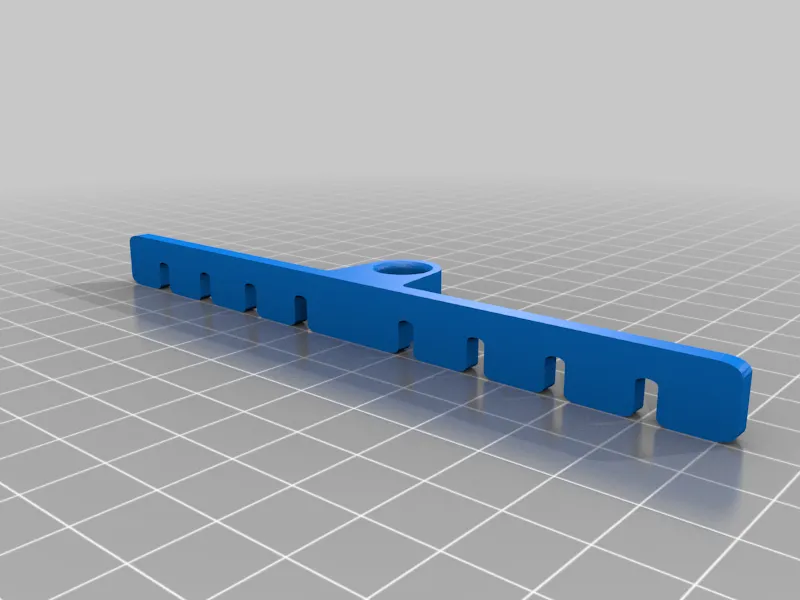

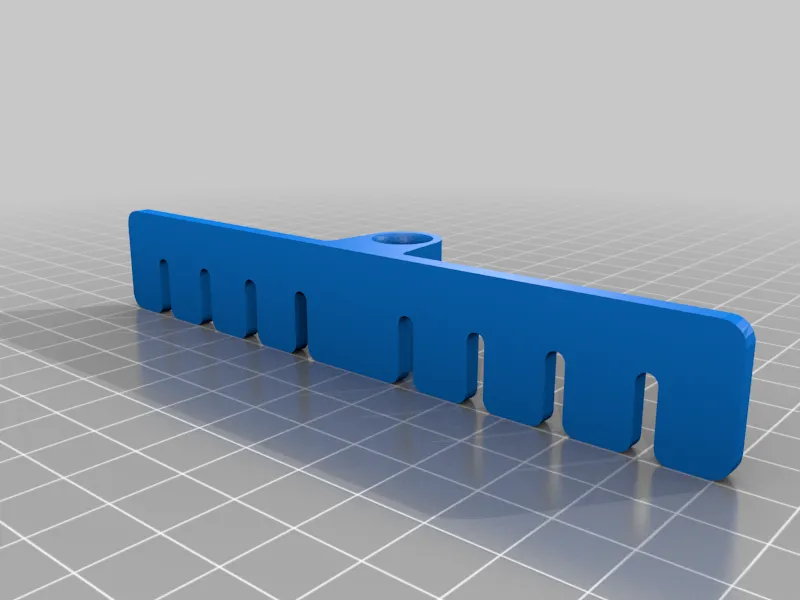

There are 2 version of the horizontal rod holder as I did not have enough 6mm rod. Large size takes 6mm rod, small size take 3/16” (roughly 4.8mm) rod

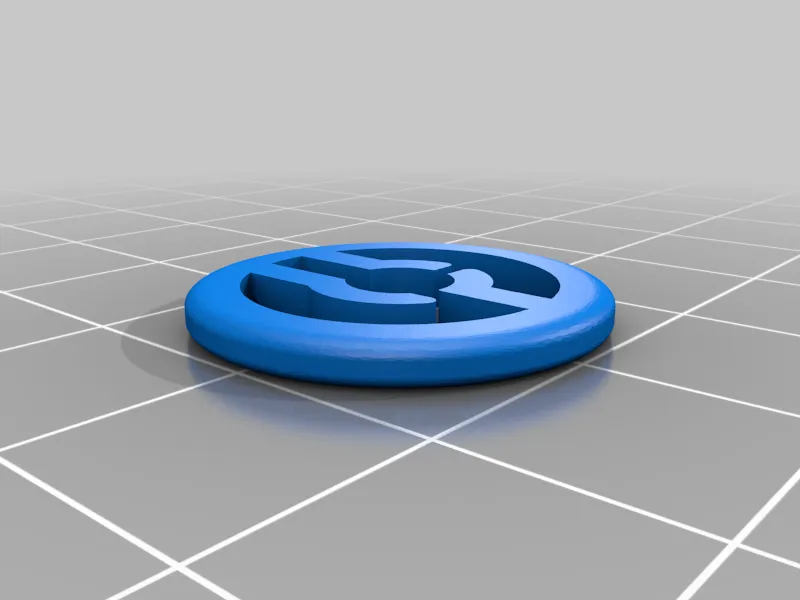

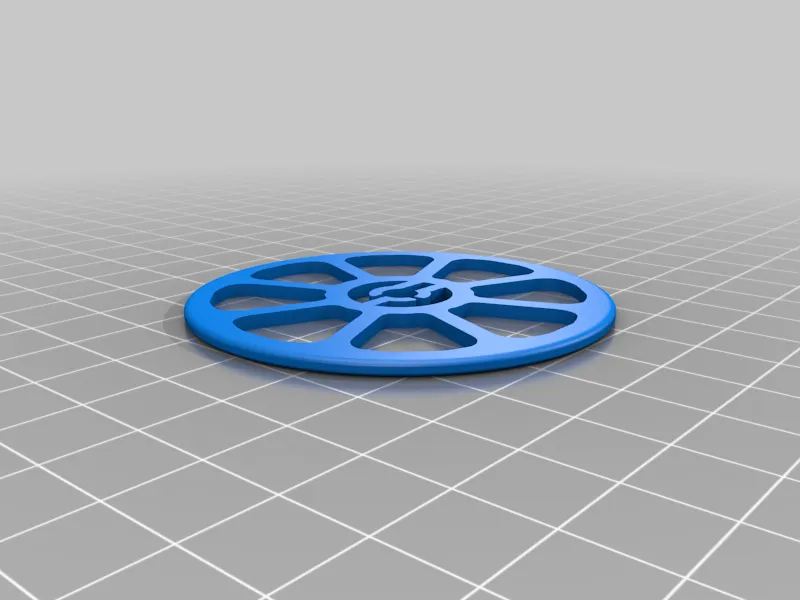

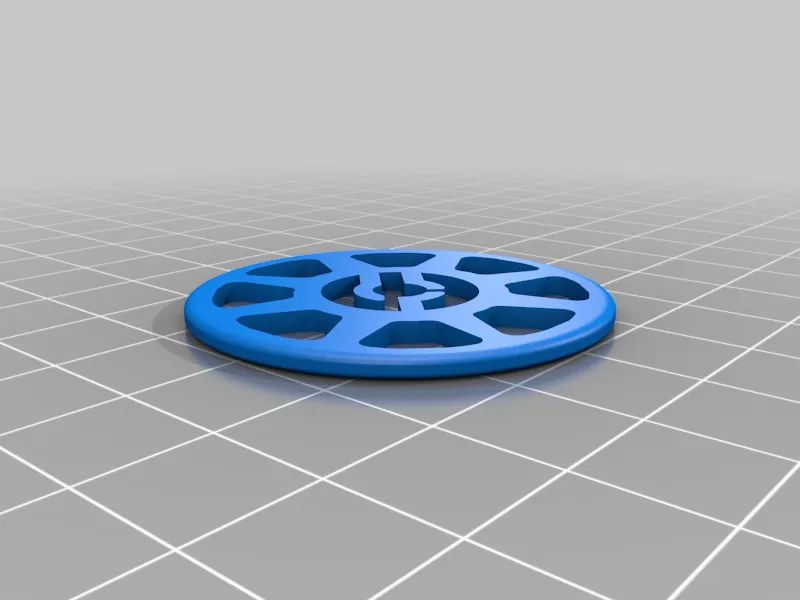

Also 2 version of the Bobbin Wheel, large diameter takes 6mm rod, the other takes 3/16” (roughly 4.8mm) rod

1 x Central rod 8mm x230mm (longest I had)

2 x horizontal rods 3/16 x 200mm

4 x vertical rods 6mm x 40mm

Print

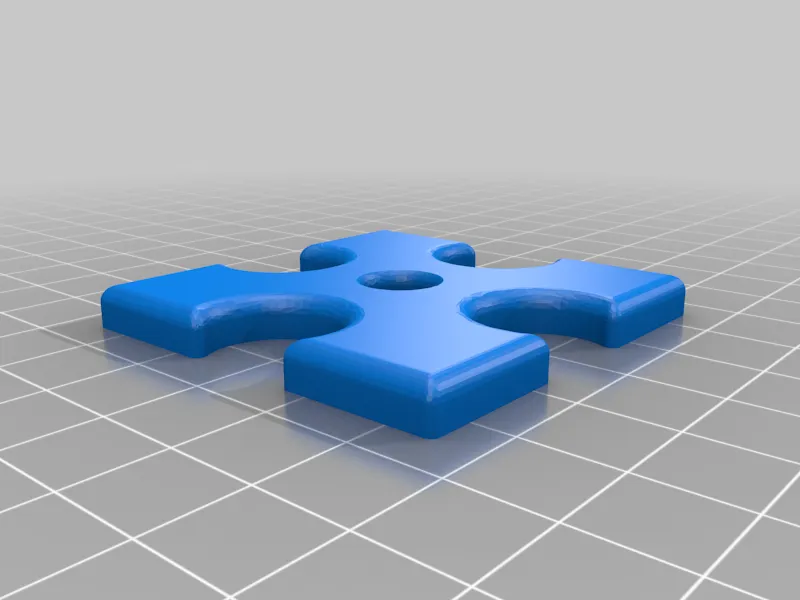

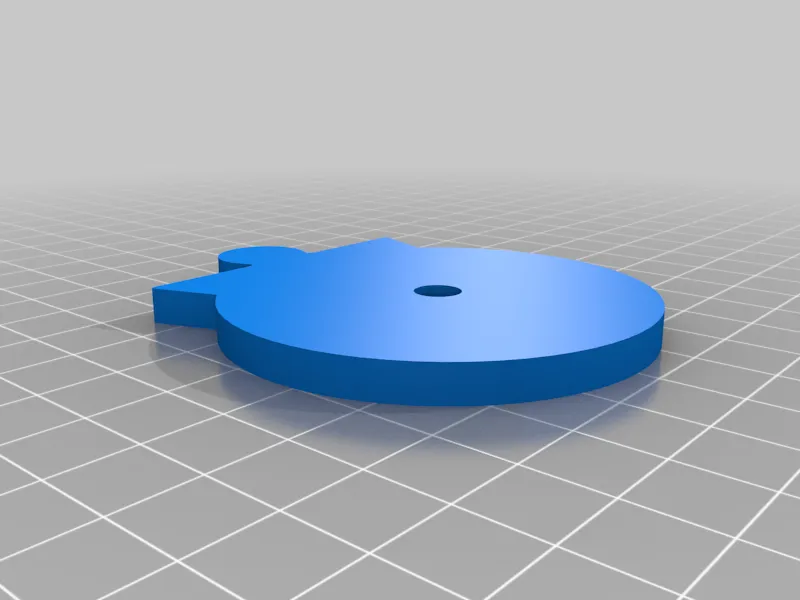

4 x Petal

2 x Horizontal Brace

Depending on your preference

4 x Cone Holder and 8 x Bobbin wheel

or

12 x Bobbin wheel

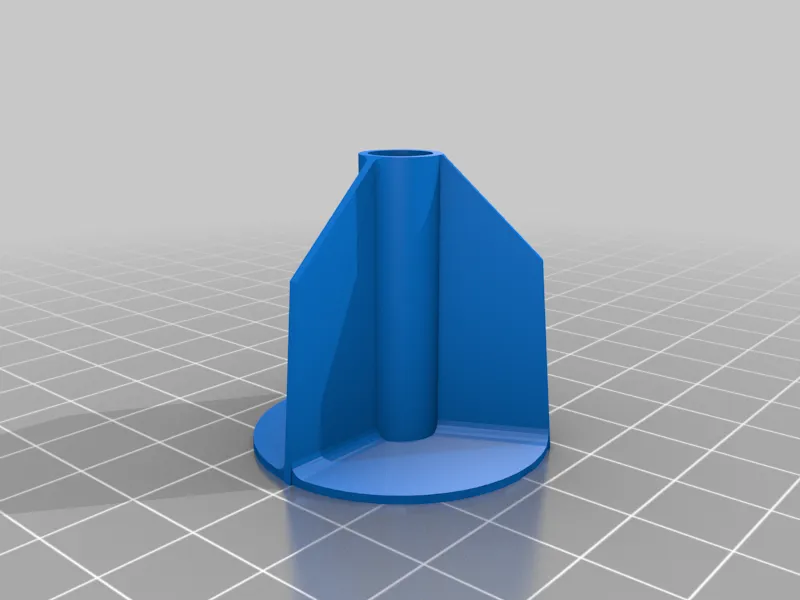

The Cone holders are designed to fit overlock thread 'cones' which are much cheaper than buying regular bobbins. These are a remix of https://www.thingiverse.com/thing:3600438
