Propeller Evaluator
Print Profile(1)
Bill of Materials
- 5pcs 6x12mm DC Coreless Motor, Micro Coreless Motor 3.7V 21800RPM for Aircraft Model/Toy/Quadcopter x 1: https://www.amazon.se/-/en/dp/B08HX58FZJ
- 30 Pairs JST 1.5 ZH 2-Pin Connectors, Mini Micro Female and Male with 150mm 26AWG Cable (Black Red) x 1: https://www.amazon.se/-/en/dp/B0CBWZ8BZJ
- Mini Scale Digital Kitchen Scales 700gx0.01g Pocket Scales Precision Scale with Backlit LCD Display x 1: https://www.amazon.se/-/en/dp/B0F18QGBRD
Description

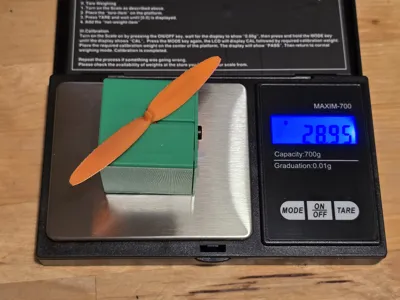

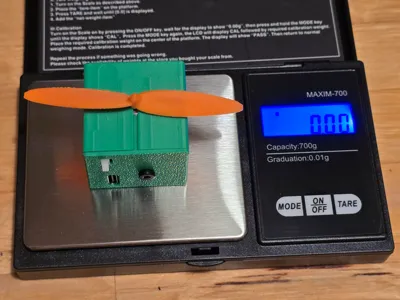

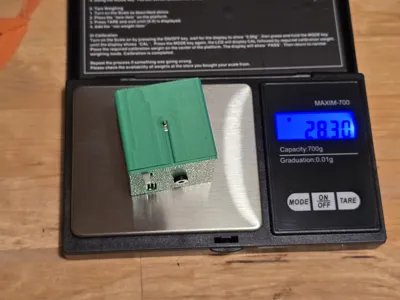

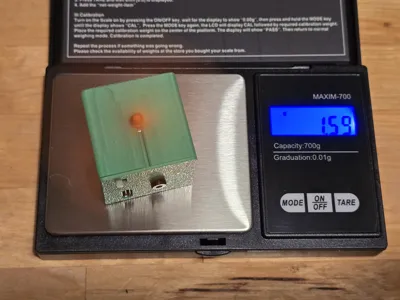

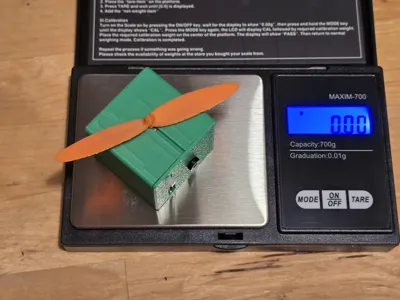

I needed something to evaluate how much force of drag/lift the propellers I was designing produced, so I designed a small cube housing with room for the intended hardware for the plane/drone, that could be placed on a scale to measure the force created.

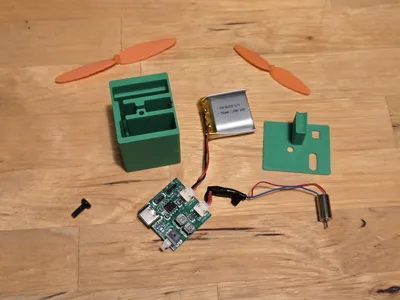

The hardware is based on the Rechargeable Power Kit, but uses a D6x12mm motor instead. You'll need some cables and 1pc of BT3x8mm screw either from the Maker's Beginner Kit or ordered separately, to put it together. I've attached photos that I help will make the assembly process clear. Note: For the motor, angle it so you first push in the axle to the slot and then use something to press the motor all the way down, and please cautios about the wires from the motor, so that they are placed vertically(-ish) in the back slot to not get damaged against the walls.
Link to parts:
- Rechargeable Power Kit
- 5pcs 6x12mm DC Coreless Motor, Micro Coreless Motor 3.7V 21800RPM for Aircraft Model/Toy/Quadcopter
- 30 Pairs JST 1.5 ZH 2-Pin Connectors, Mini Micro JST ZH 1.5mm 2-Pin Female and Male with 150mm 26AWG Cable (Black Red)
- Oderra Mini Scale Digital Kitchen Scales 700g x 0.01g Pocket Scales Precision Scale with Backlit LCD Display, 2 Batteries Included
- 1pc BT3x8mm screw
