TOOL GRID
Print Profile(1)
Description

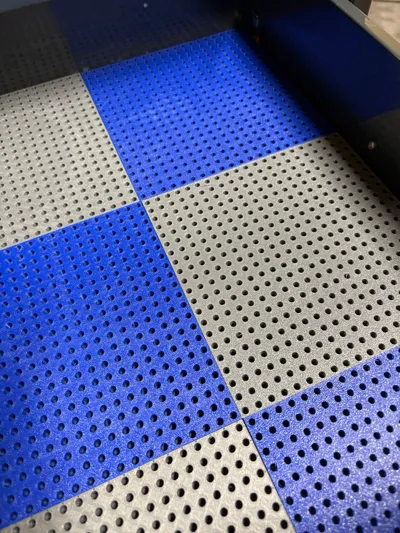

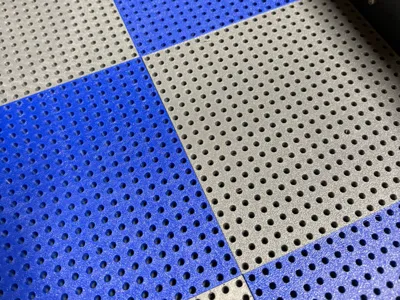

Tool grid with 3.5mm holes for screwing in M4 self-tapping screws for plastic
The center distance between the holes is 7mm

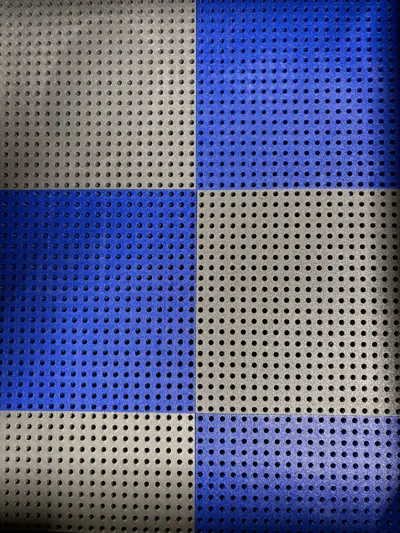

The dimensions are 146mm x 146mm for the square and 146mm x 76mm for the rectangle
The dimensions are designed for a drawer with dimensions of 585mm x 370mm
To prevent it from moving, I applied a small rivet for each grid, but with the weight of the tools, they won't move much anyway, it all depends on what tools will be placed on them
This is the link for the screws I used SCREW M4 x 8 10-50 pieces Torx Round Head Self-tapping Screw for Plastic M2 M2.3 M2.6 M3 M3.5 M4 M5 Six-lobe Round Head Stainless Steel Self-tapping Screw - AliExpress 13
