Description
Content has been automatically translated.

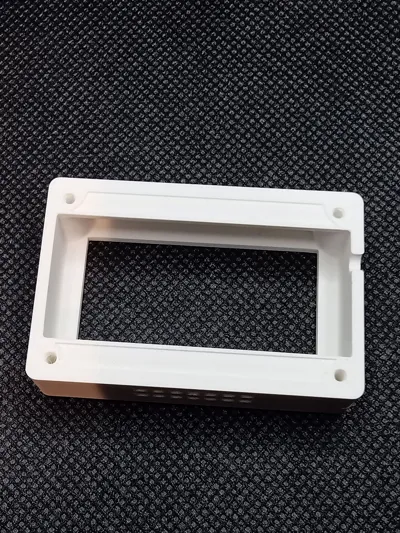

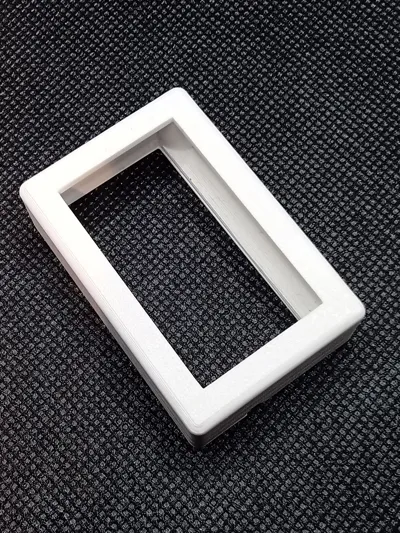

Temperature Sensor Holder – Temperature Sensor Holder

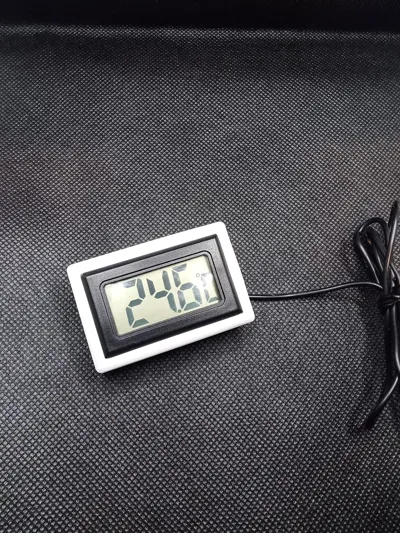

A compact enclosure designed for aesthetic and durable mounting of a wired temperature sensor. The design ensures convenient cable routing, stable fastening, and a neat appearance of the installation
Features:

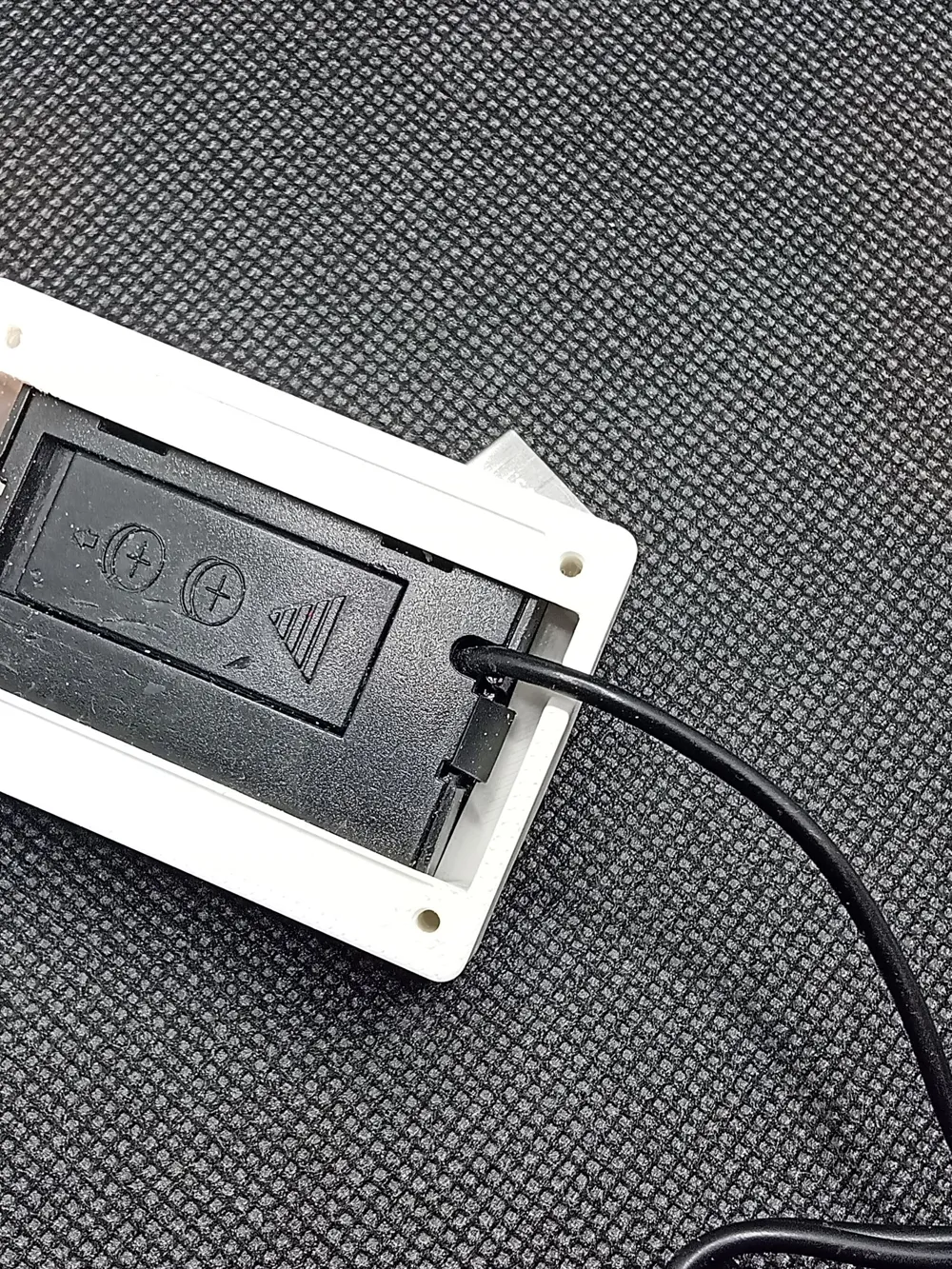

- Cable Passthrough – an integrated channel allows for convenient cable routing without excessive bending

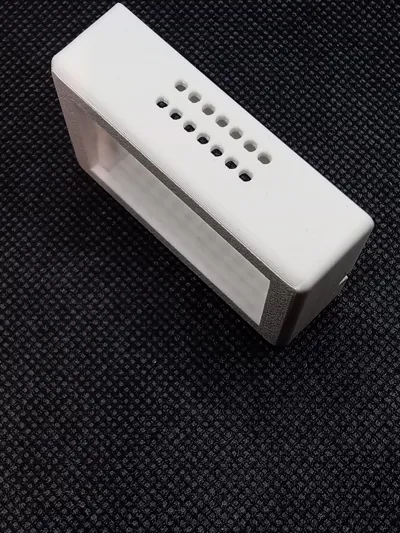

- Ventilation Holes – small perforations with an aesthetic and structural stress-relieving function they do not affect temperature measurement (the sensor operates via the cable)

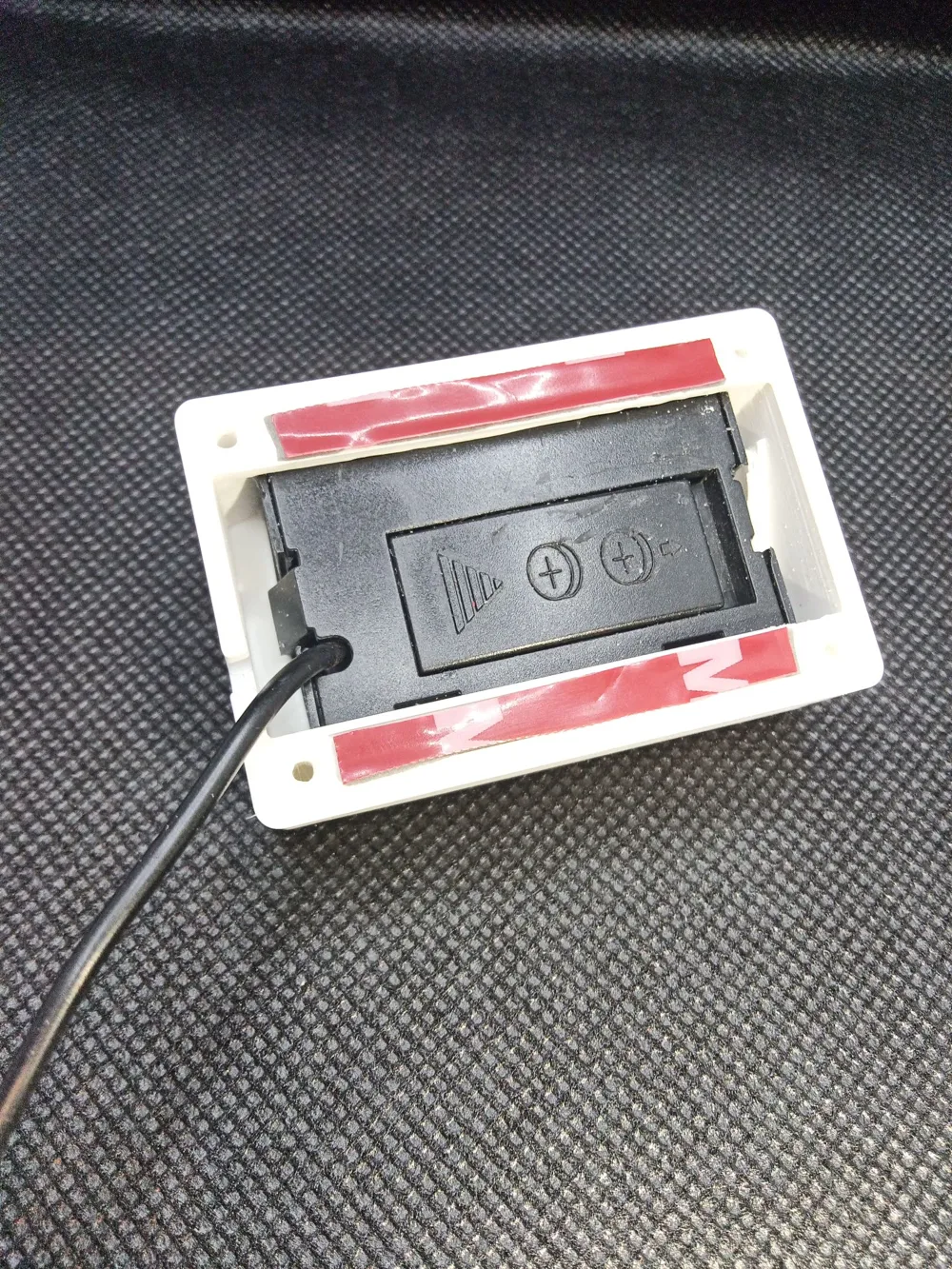

- Surfaces for Mounting Tape – special recesses allowing the use of double-sided tape with a thickness of 1 mm
- The recesses themselves are 0.5 mm deep and 4 mm wide therefore it is best to use 1 mm × 4 mm tape which perfectly fits the prepared space
- M2.5 Mounting Holes – the rear part of the enclosure contains holes for M2.5 screws allowing the holder to be permanently screwed to any surface
- Solid, Minimalist Design – a compact, durable, and easy-to-print model
Application:

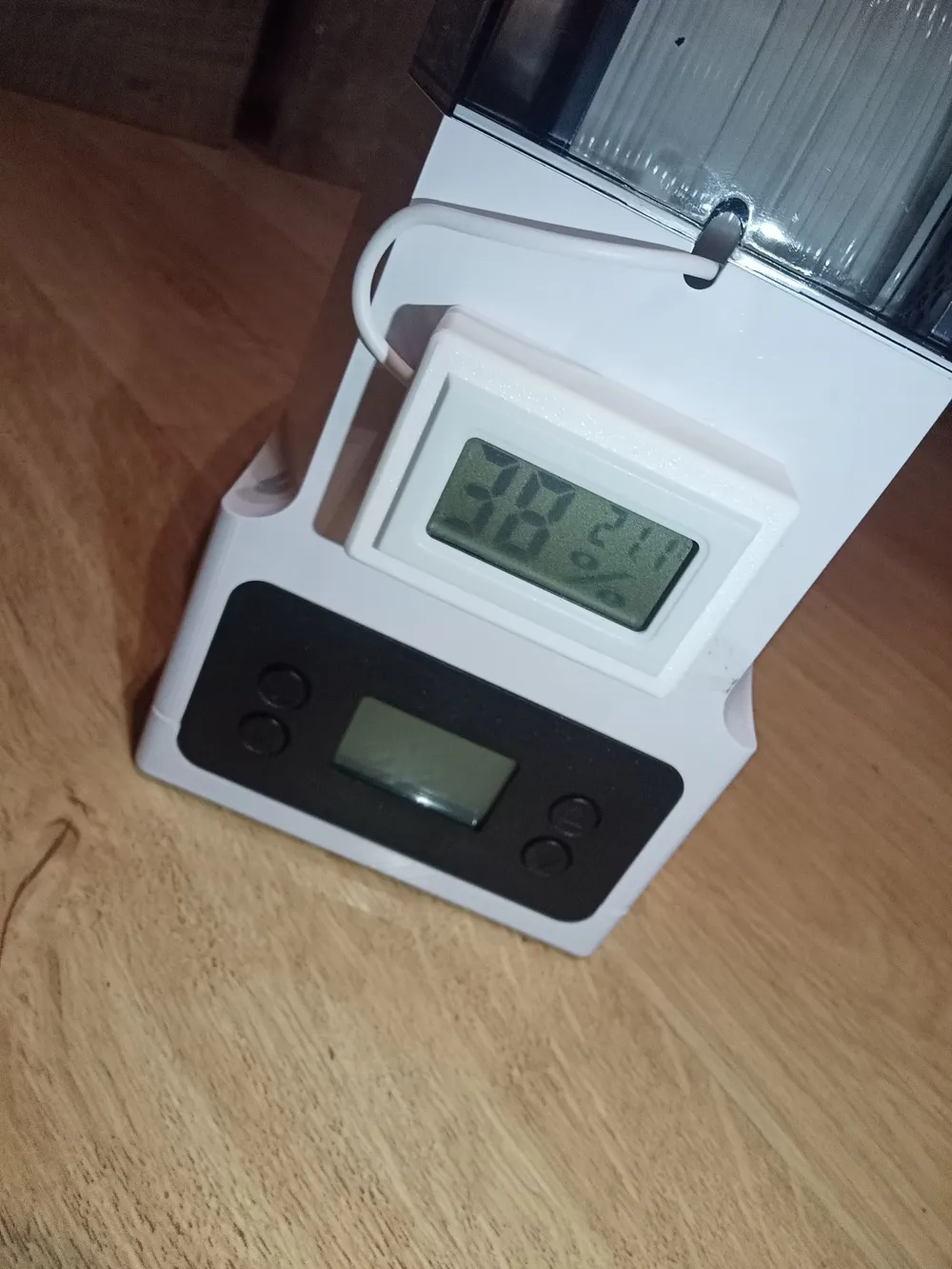

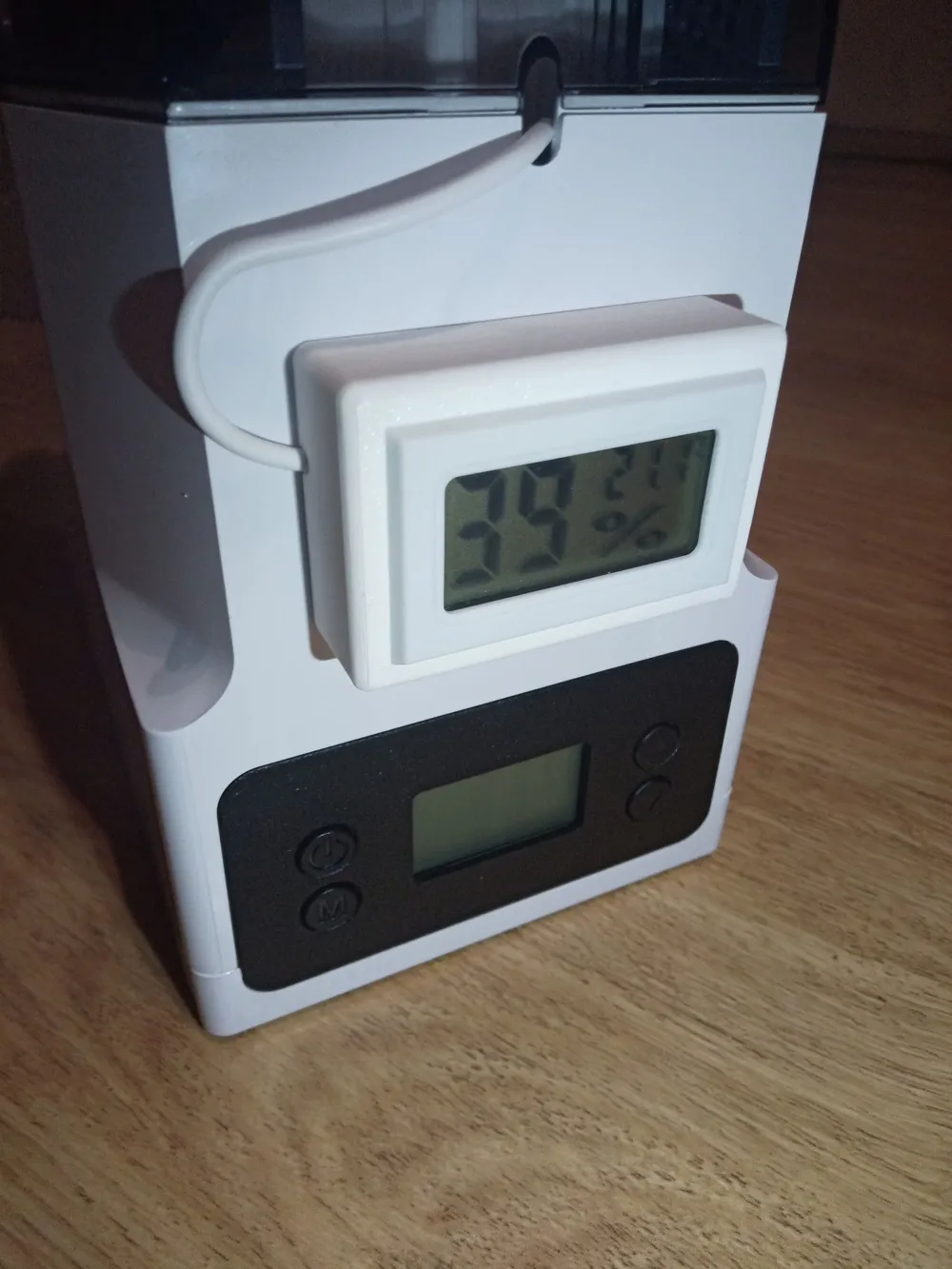

For mounting temperature sensors in smart home installations, DIY projects, environmental monitoring systems
