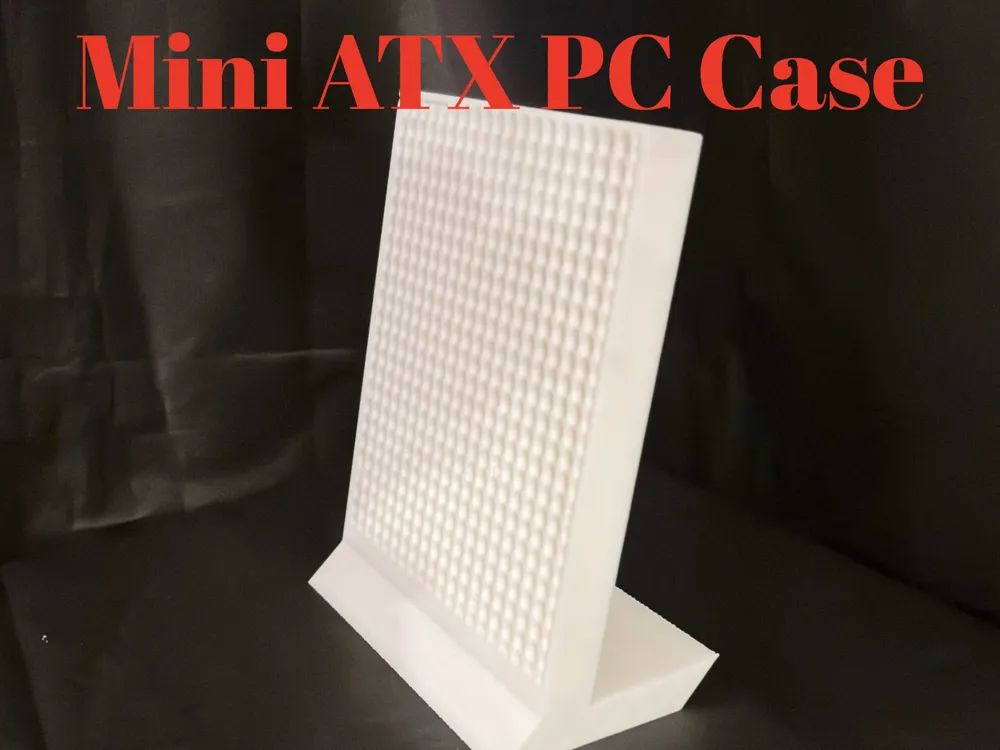

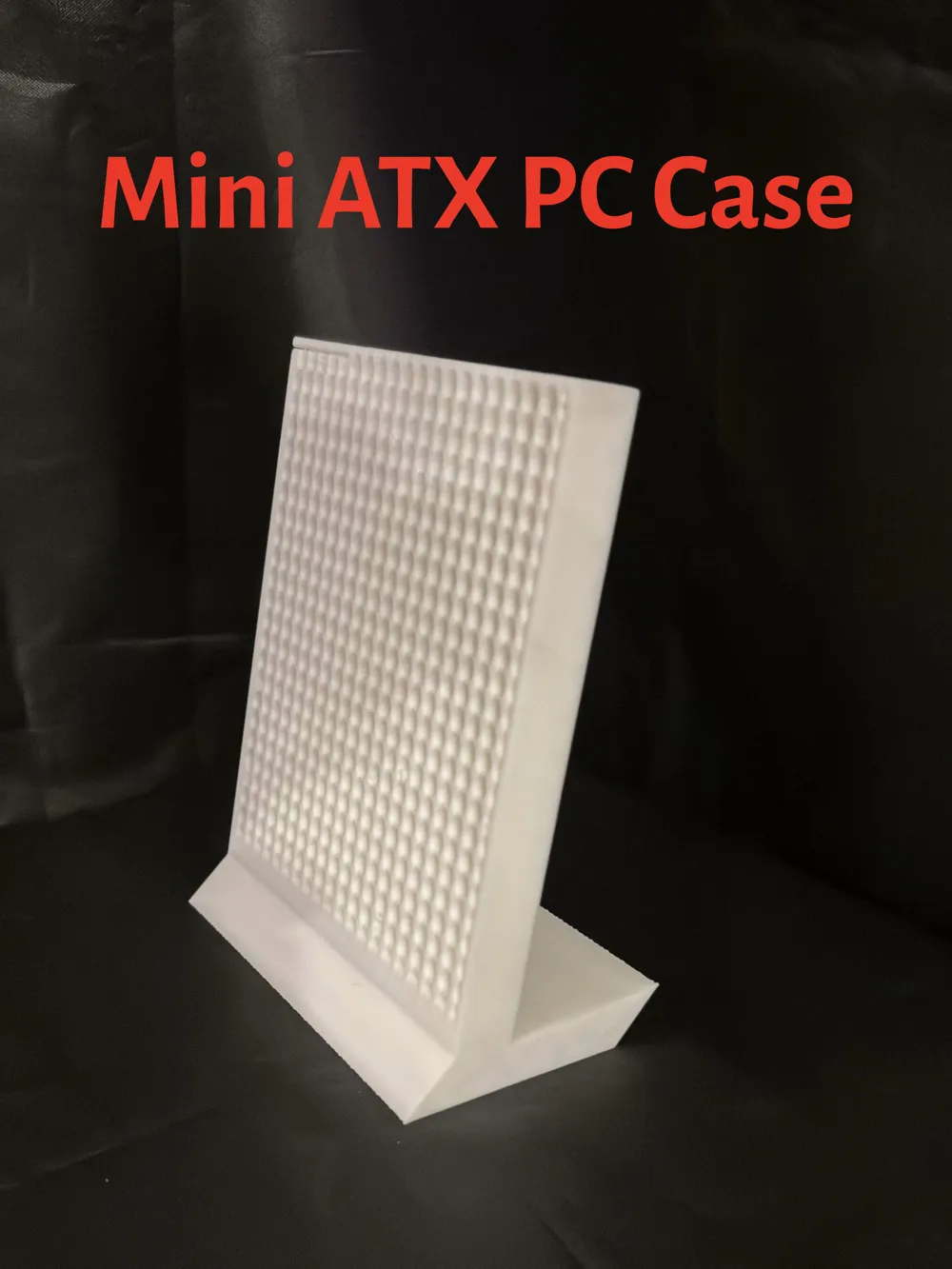

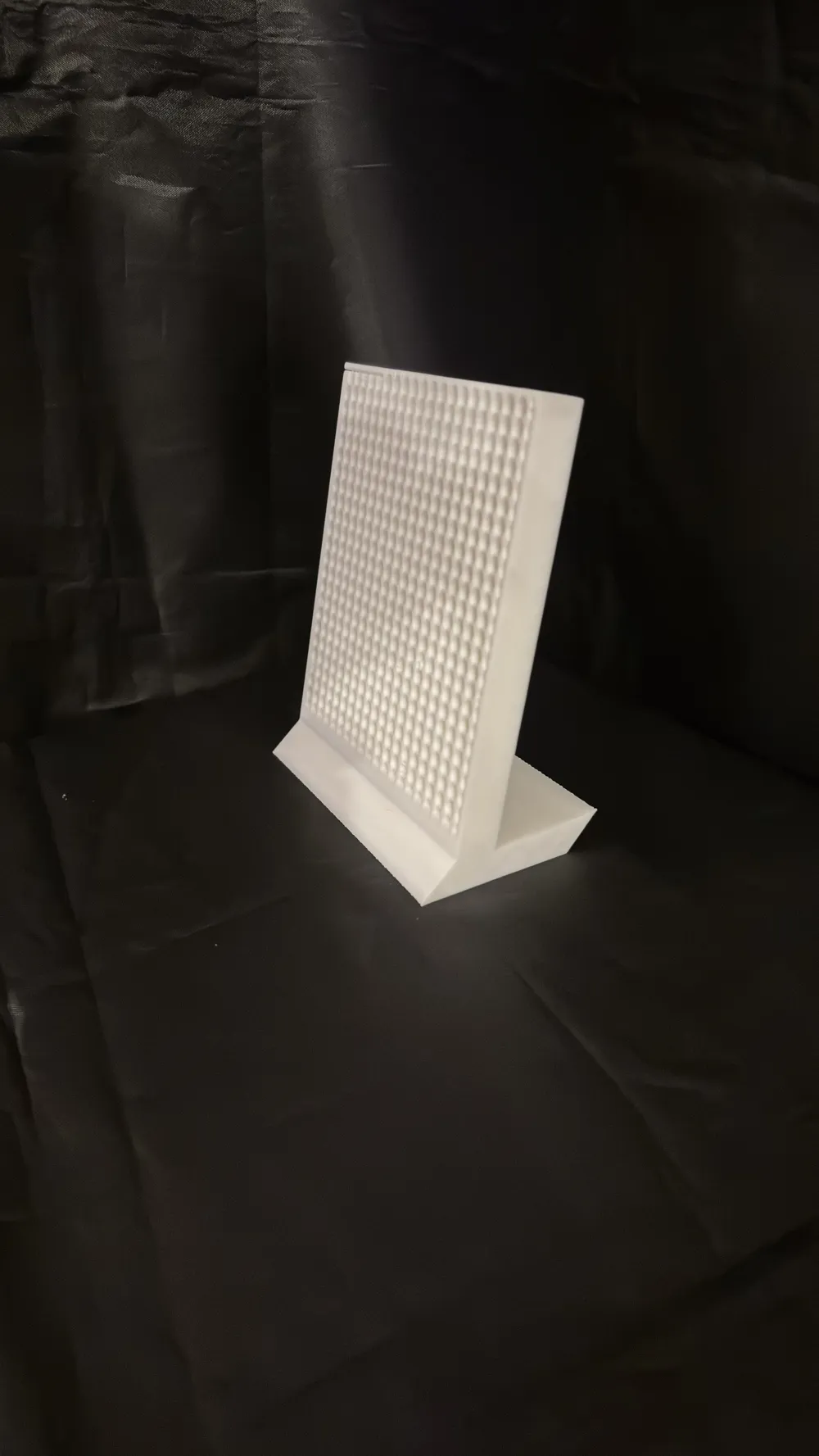

Compact Open-Frame PC Case — Honeycomb A520M-A II Edition
Focused around the PANORAMA 240 WHITE

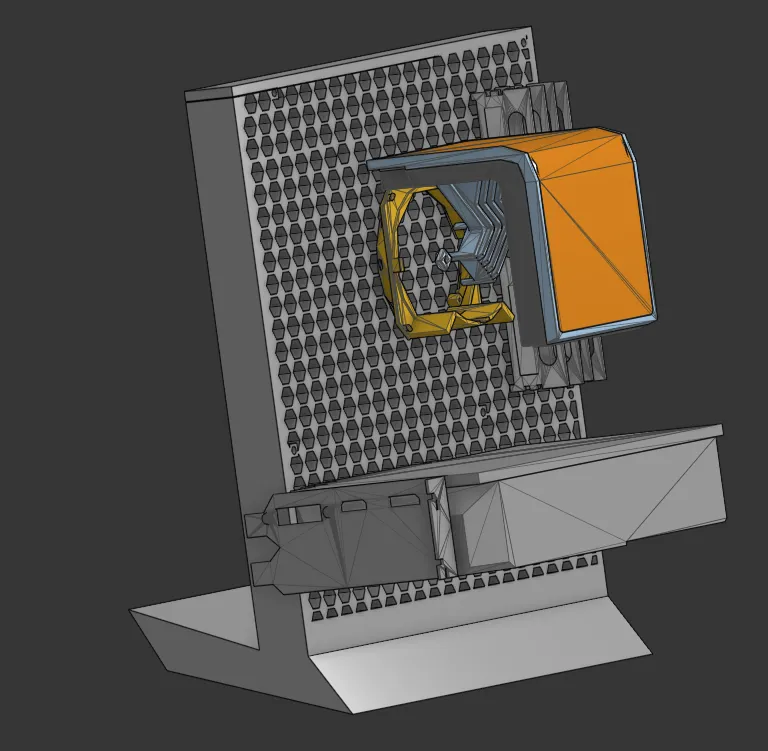

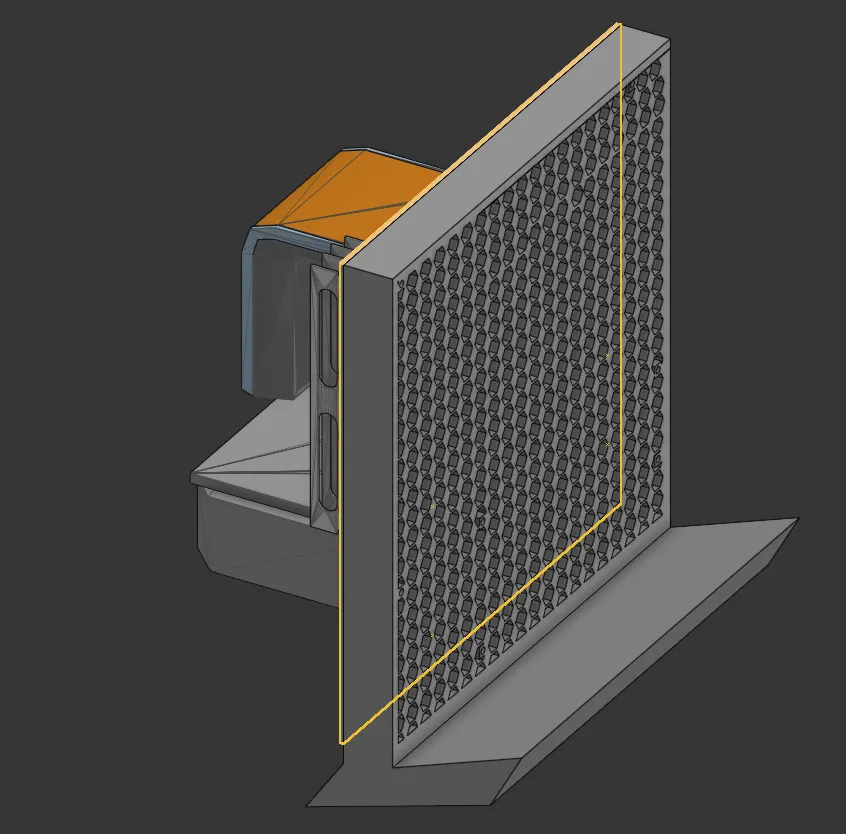

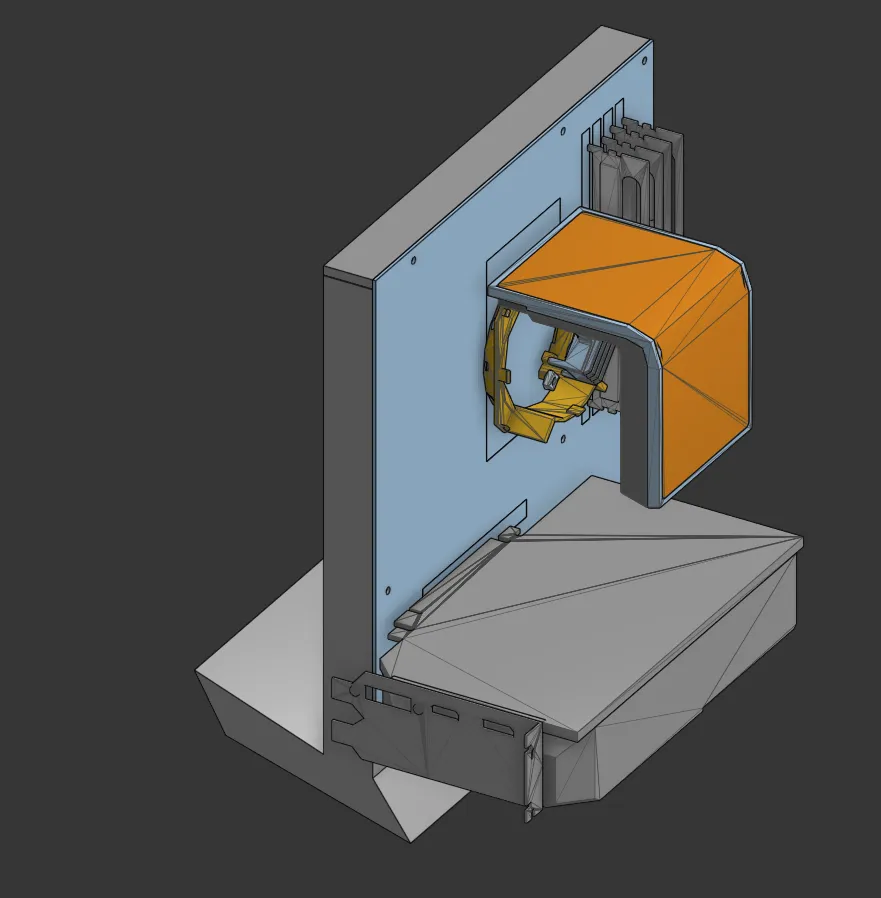

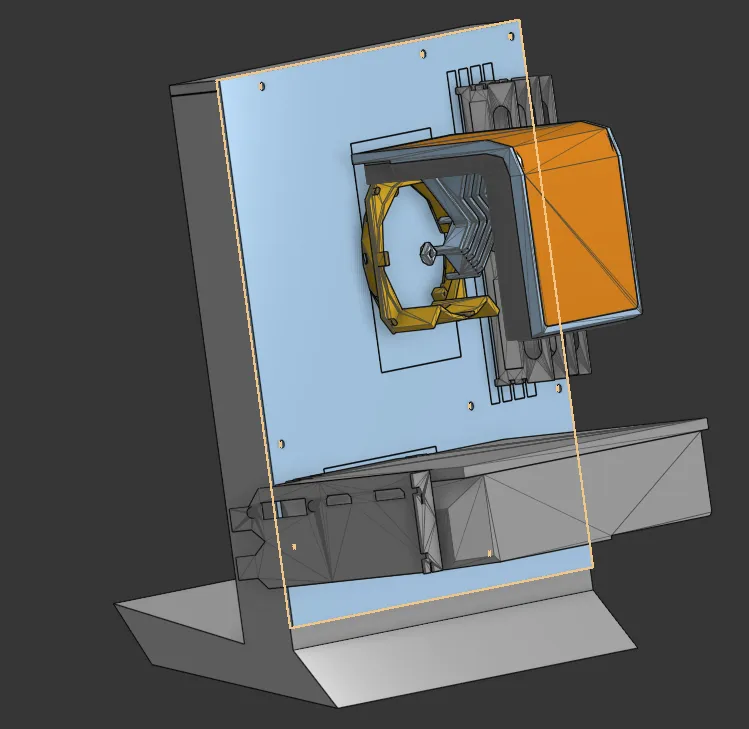

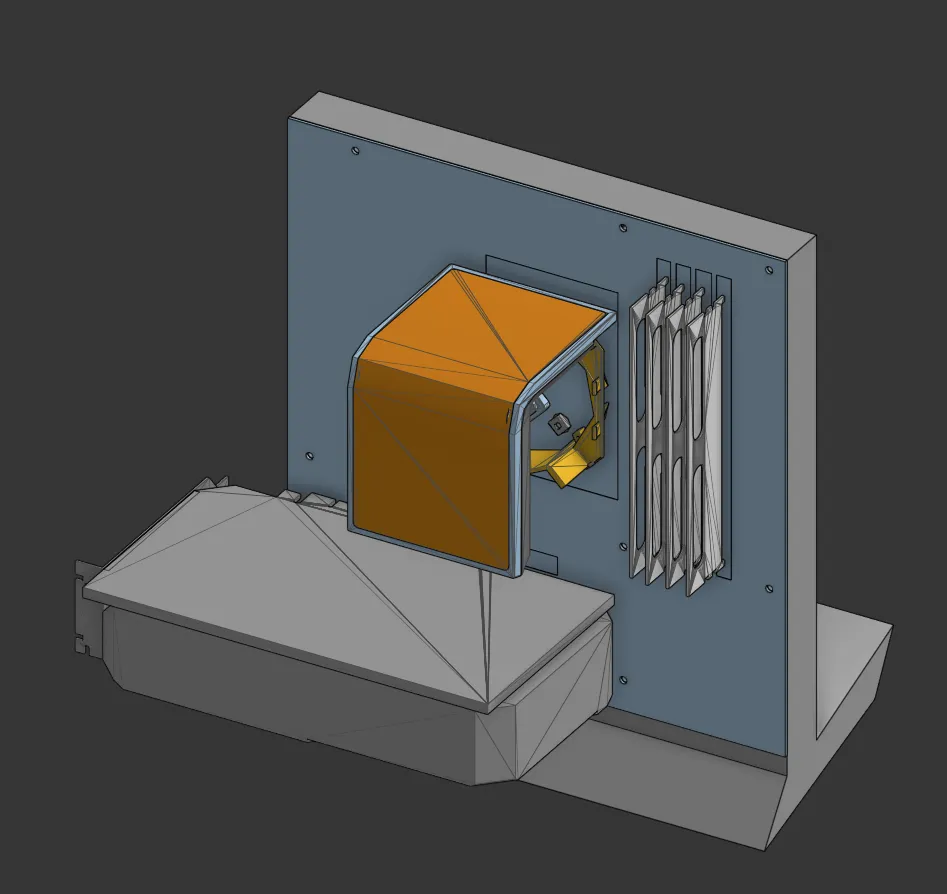

This open-frame PC case is designed around the ASUS A520M-A II motherboard, providing a lightweight, airflow-focused platform for compact desktop builds, display PCs, and test-bench-style setups. The layout is clean and minimal, built around a large high-density honeycomb ventilation panel that delivers excellent rigidity and airflow while keeping the print straightforward.
Although this version is tailored for the A520M-A II, additional motherboard configurations will be added in future releases, making this design part of a growing family of printable PC cases.
PC Components👨🏻💻
I have looked online for cheap and well functioning PC parts for this design.
⚠️ Important Grounding Notice
This is a 3D-printed open-frame PC mount, and the motherboard must be electrically grounded to the PSU (power supply) to operate safely.
Use standard metal motherboard screws and standoffs connected to the PSU ground to ensure proper electrical grounding.
✅ Features
- Designed specifically for the ASUS A520M-A II motherboard

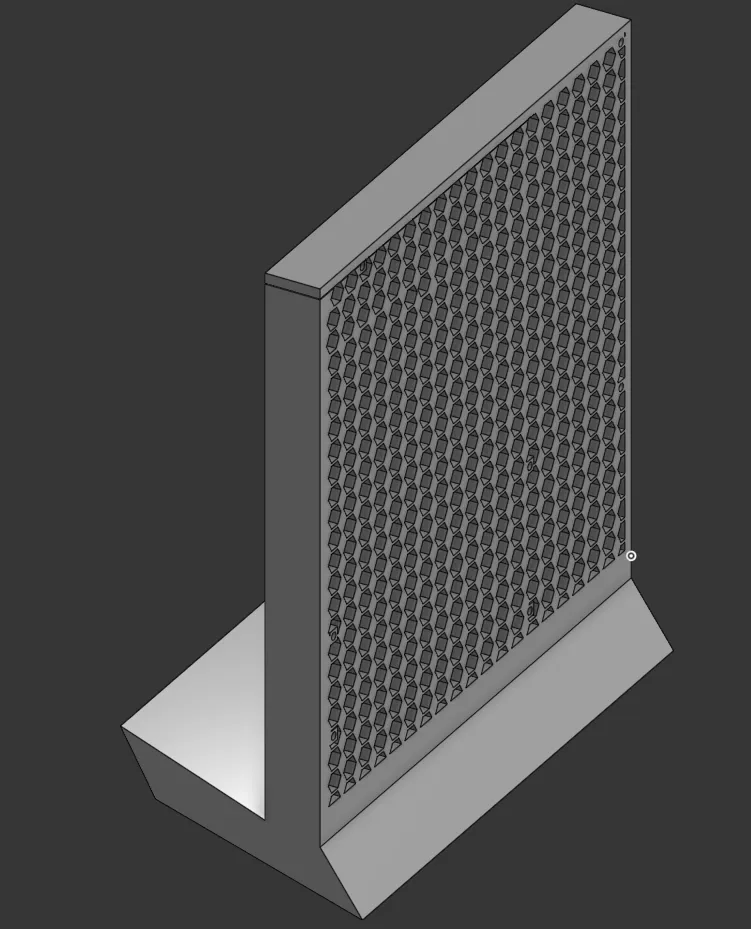

- Large honeycomb ventilation wall for maximum airflow
- Angled, stable base for secure placement on a desk or shelf
- Space for fan shrouds, cable runs, and simple additions
- Straightforward geometry that is easy to print on most machines
- Stylish geometric accents ideal for show builds or test bench use
🧩 Included Components

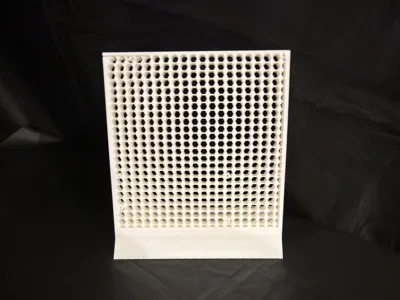

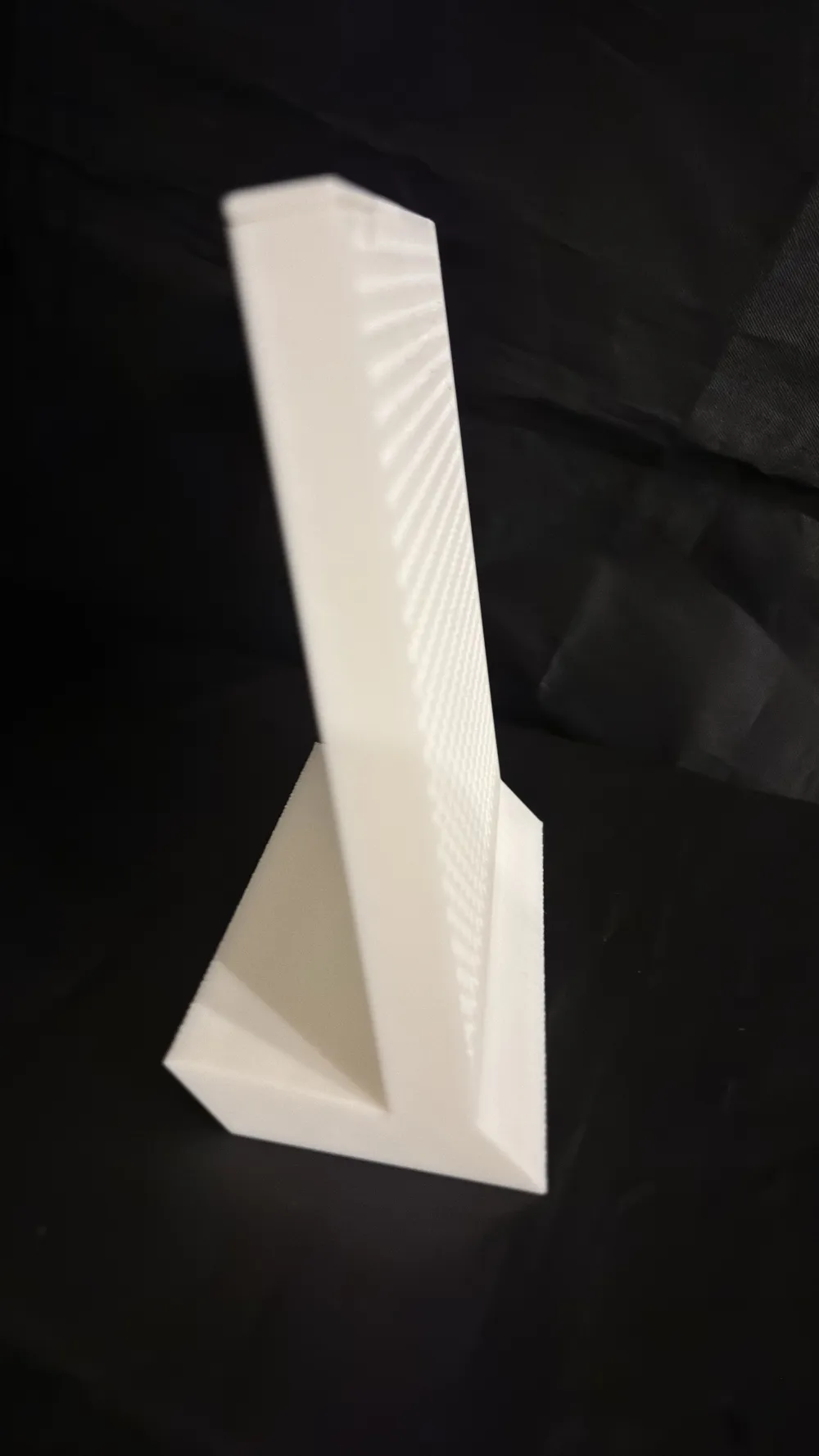

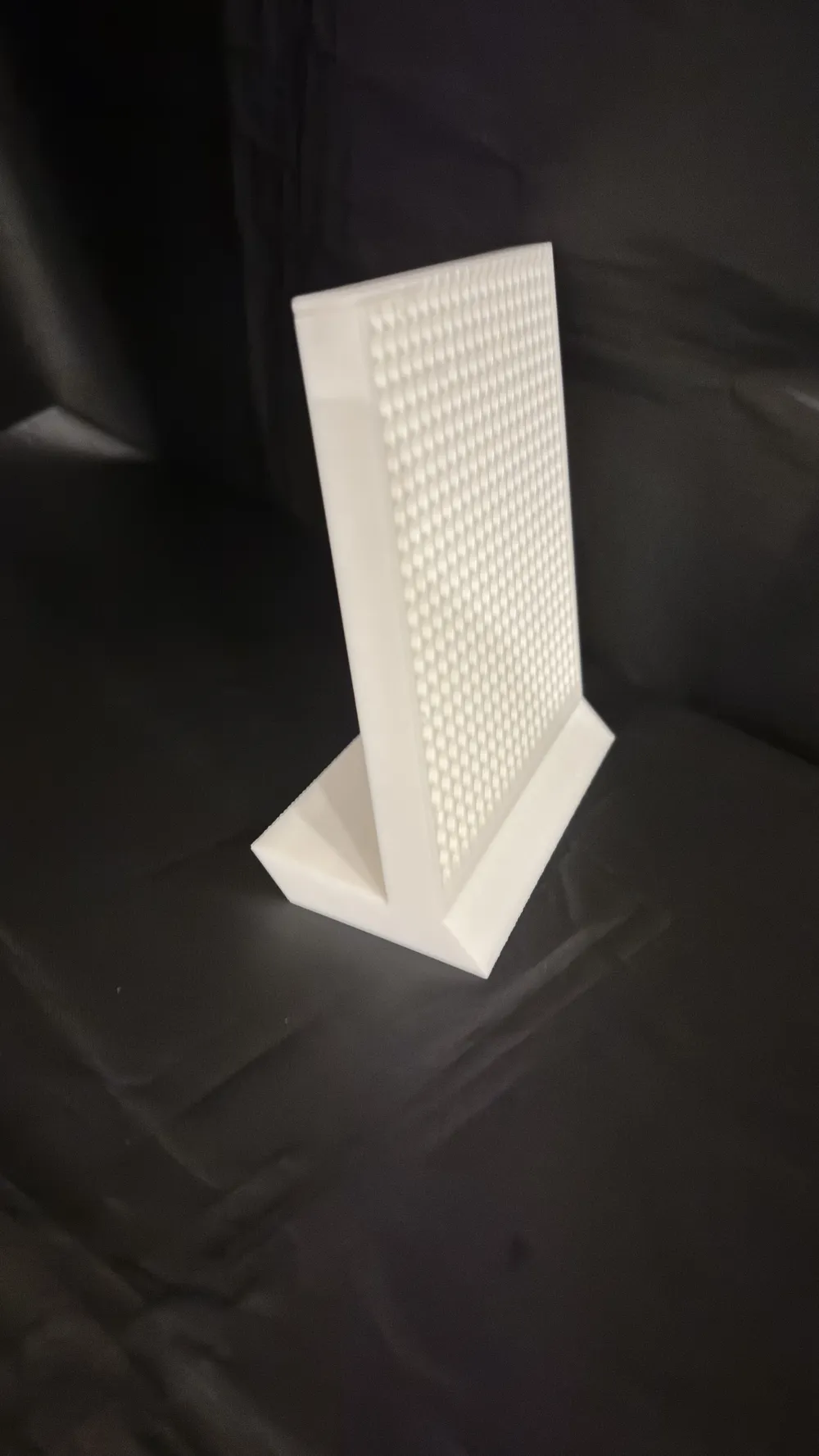

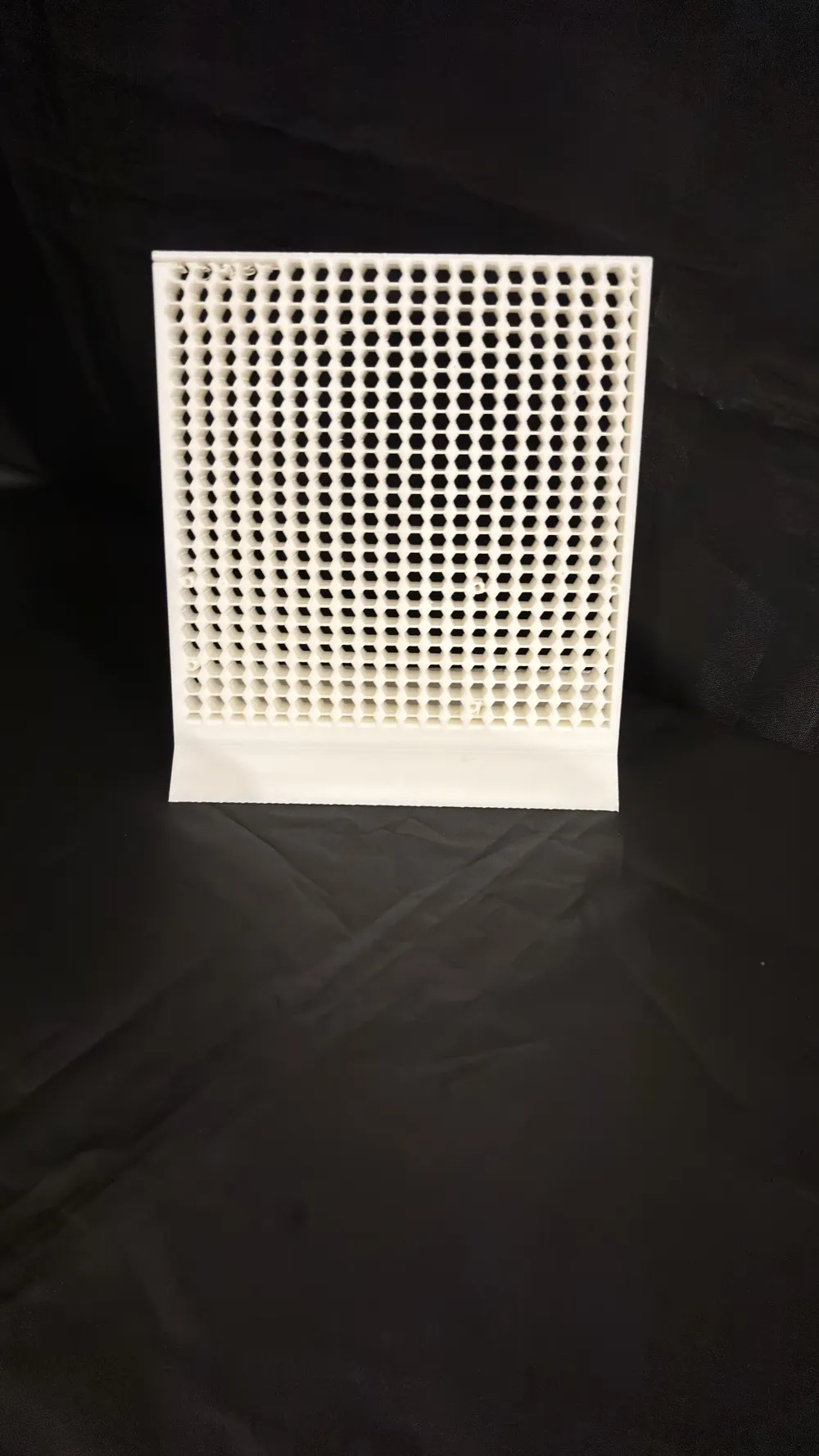

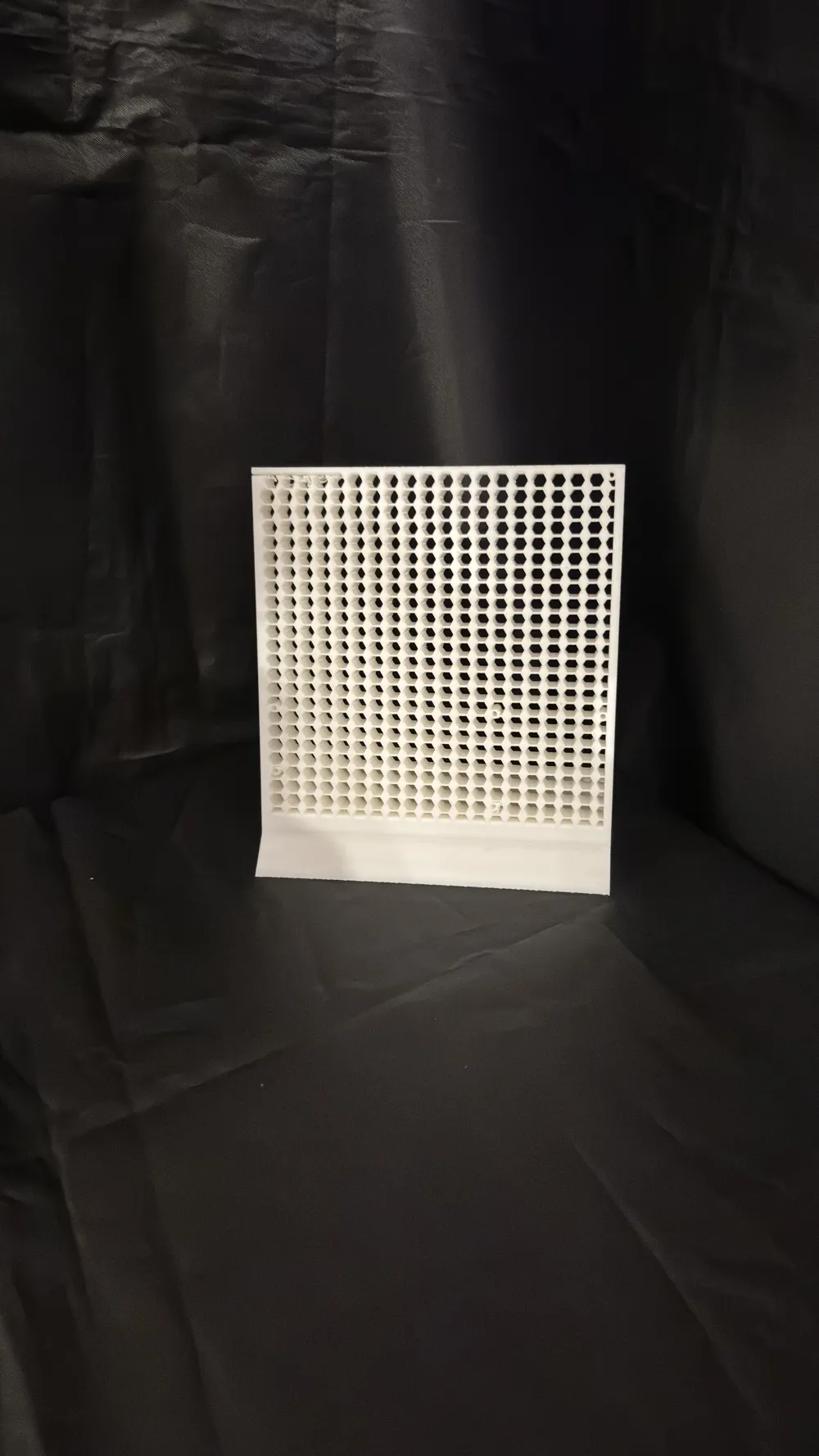

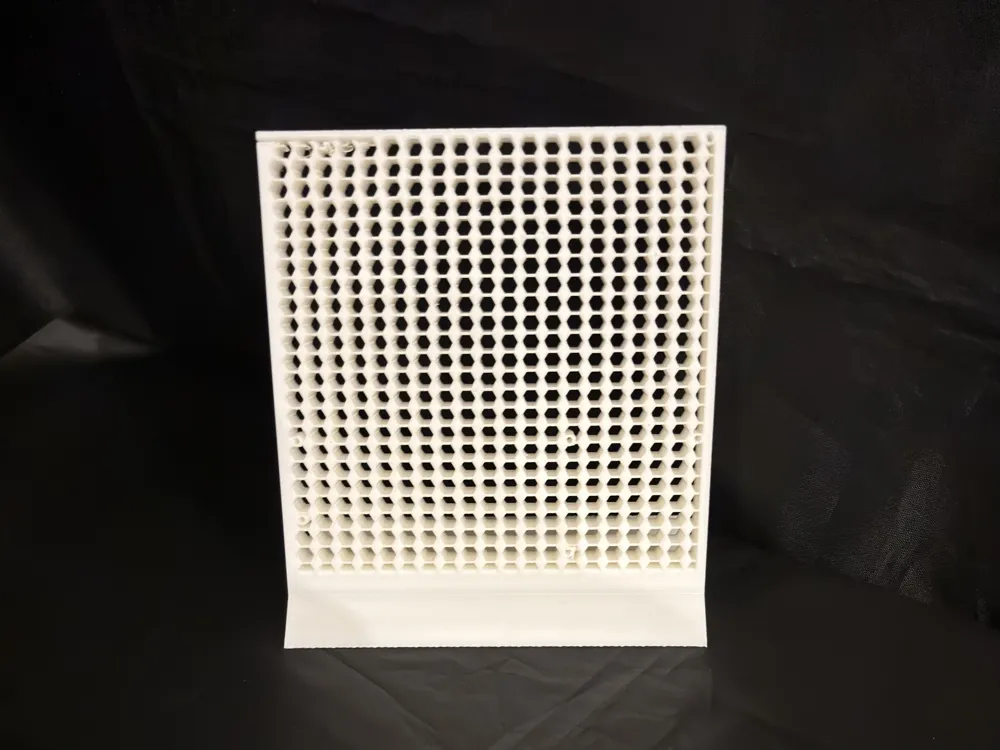

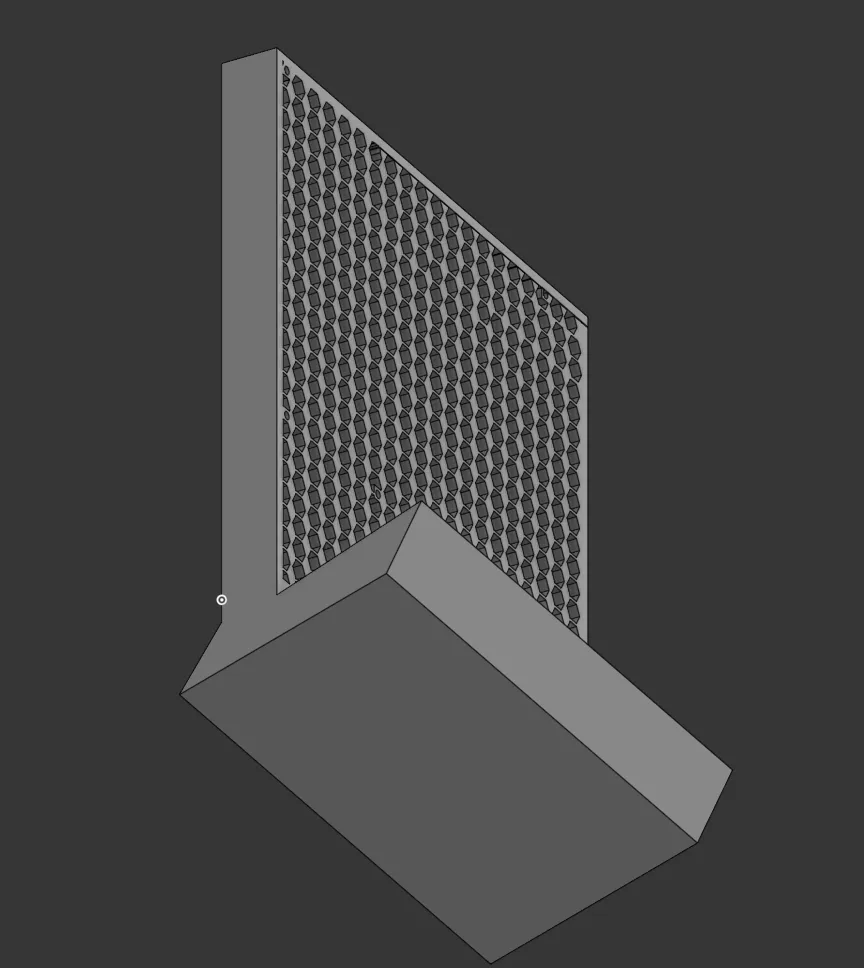

Honeycomb side ventilation panel
Integrated angled base/stand
(Additional motherboard layouts coming soon.)
🖨️ Print Recommendations
Material: PLA, PETG, ABS
PLA+ works for display/test systems
ABS recommended for warmer environments
Layer Height: 0.2 mm
Walls: 3–4
Infill: 15–20%
Support/ Print Orientation:
Suport for base: none
Shrouds + angled pieces: light or tree supports
Orientation: Base panel flat
Base printed upright
Accessory components face-down for clean exteriors
🛠️ Ideal For
Lightweight PC builds
Test bench setups
Showcase rigs
PC modding projects
Airflow-heavy workstation layouts
