MC4 Parallel connector bracket
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 40% infill
42 min
1 plate
Open in Bambu Studio
Boost
14
44
1
1
43
21
Released
Description

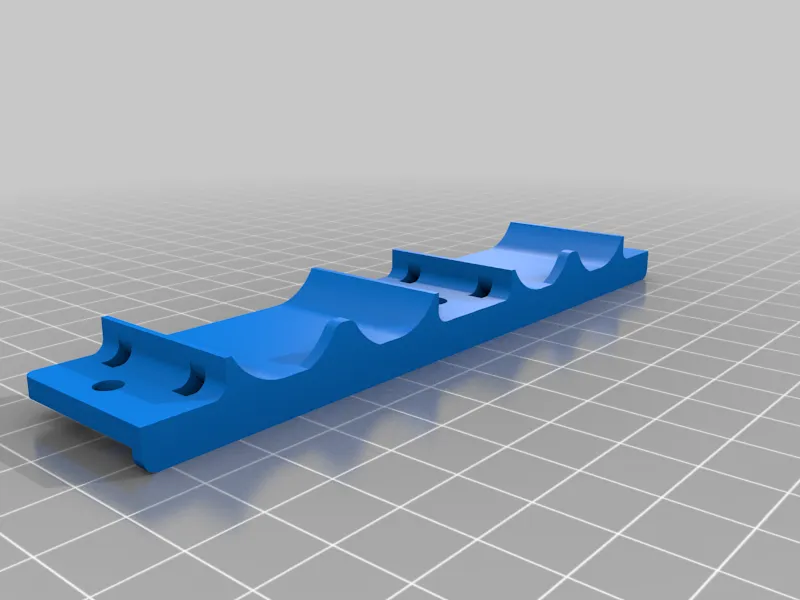

A double mounting bracket for parallel MC4 connectors used to join 2 solar panels together.

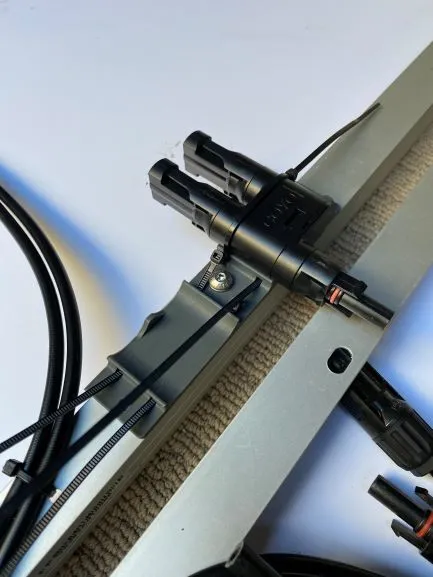

Attach the bracket to the rear of your panel frame using M5 fasteners and attach the MC4 connectors using 2.5mm wide cable ties. there is a lip on the bracket to align with the edge of the panel to help hold it in place. The mounting hole in the bracket was positioned to fit the oval holes in the rear of my panel frames, your results may vary.
Print Settings
Printer Brand:
Raise3D
Printer:
N2
Rafts:
No
Supports:
No
Resolution:
0.25
Infill:
35
Filament:3DFillies PLA/PETG Dark Grey
Notes:
Orient the model for printing so that the long axis of the connector is vertical
