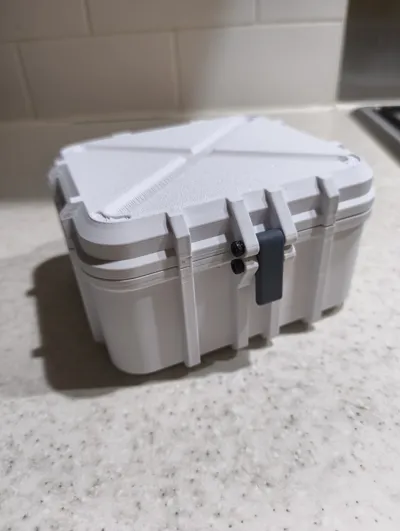

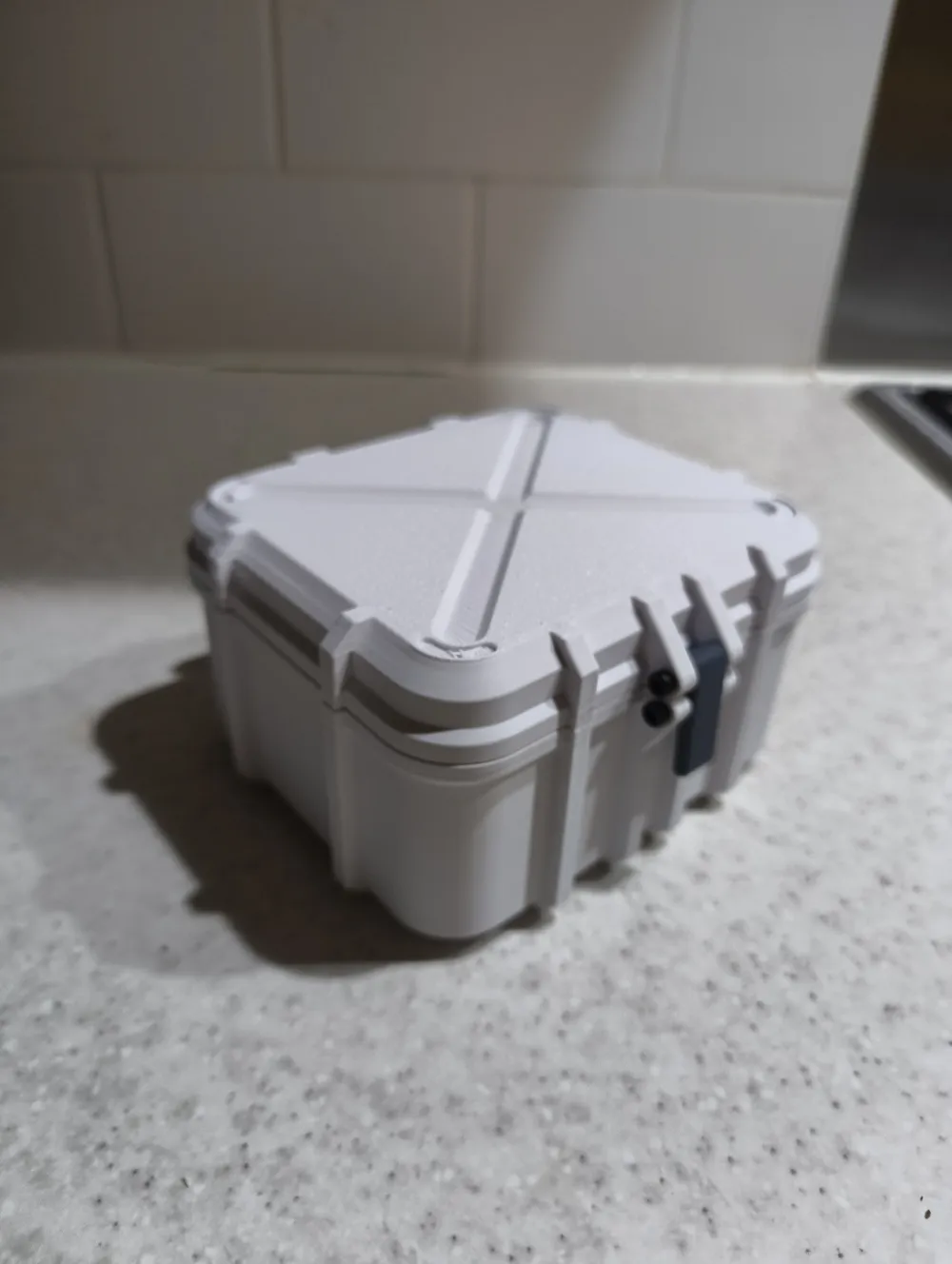

Rugged mini Hard Shell Case

After many prototypes i present to you

my Overengineered Rugged mini Hard shell case

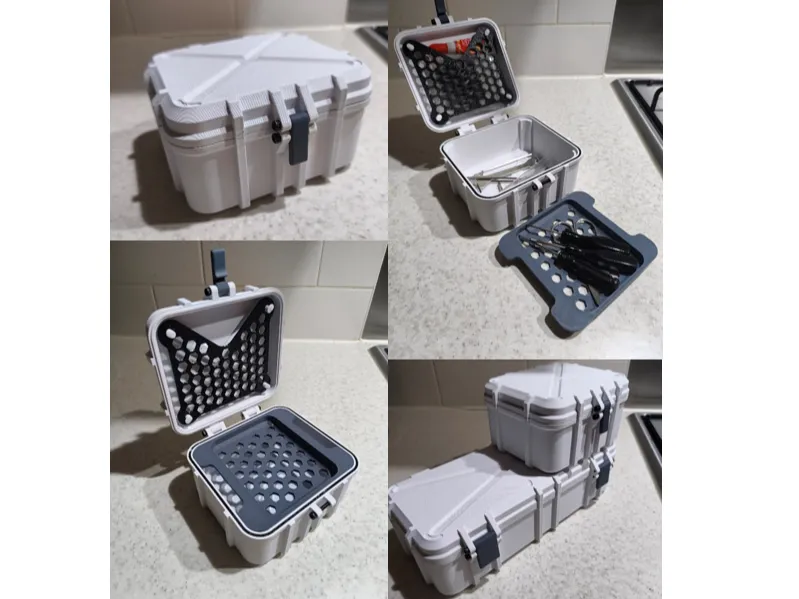

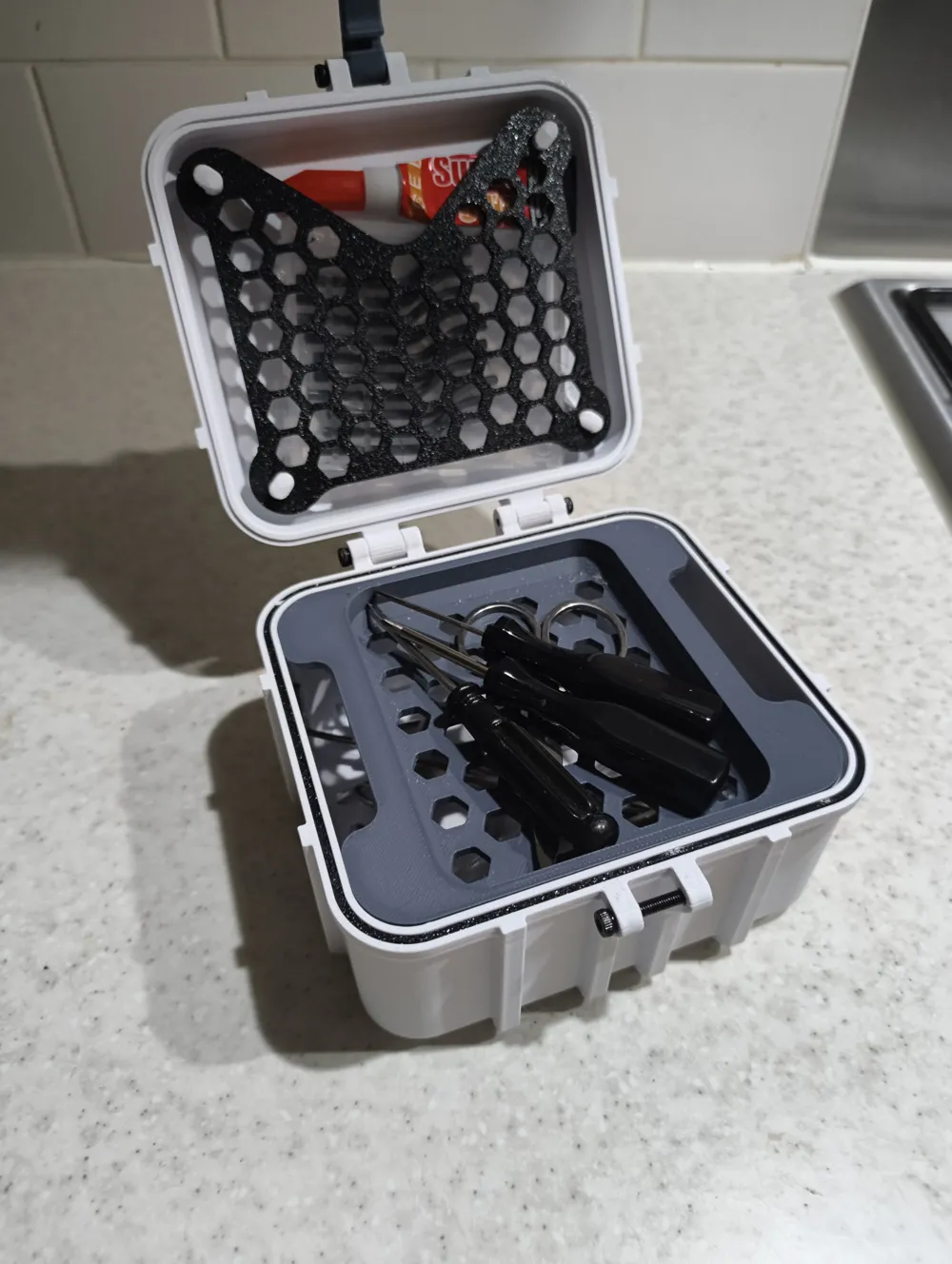

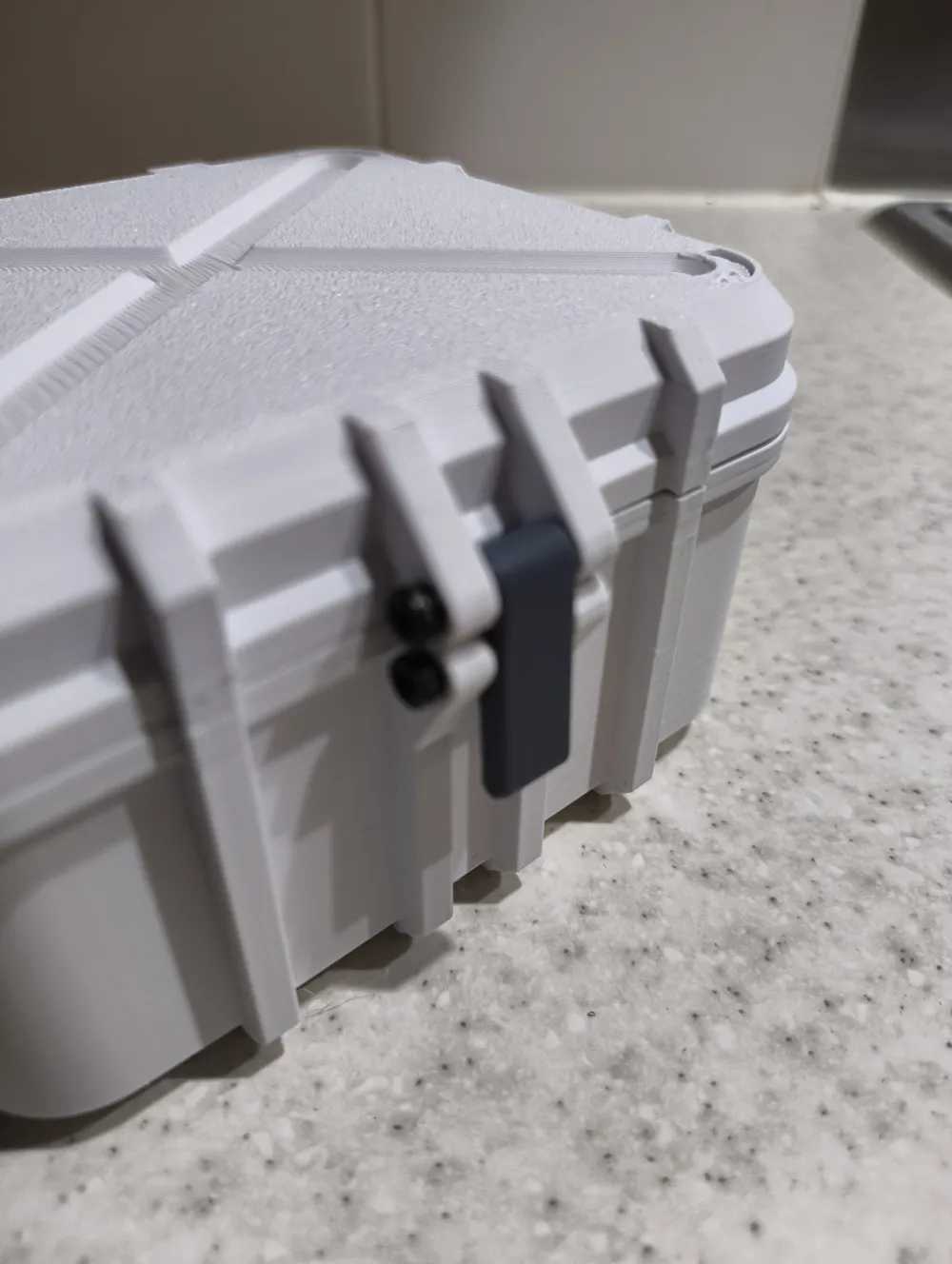

it features a waterproof gasket, anti slip feet, secure satisfying double clicking latches, stackabilty of boxes and a Storage Netting and shelf

It is very strong and uses minimal filament for its size and strength due to reinforcing features and careful design choices

i designed this case to Printed in PETG ideally for increased impact resistance and durability but any PLA or PLA+ (or other filaments) will work

Reduced wall loops and infill can be used if to reduce filament usage, however it will not be as strong

it has a internal volume of 112x100x63mm

for the fully printed version of this design, please see the link bellow

Fully Printed Rugged mini Hard Shell Case by NTH_Designs MakerWorld: Download Free 3D Models

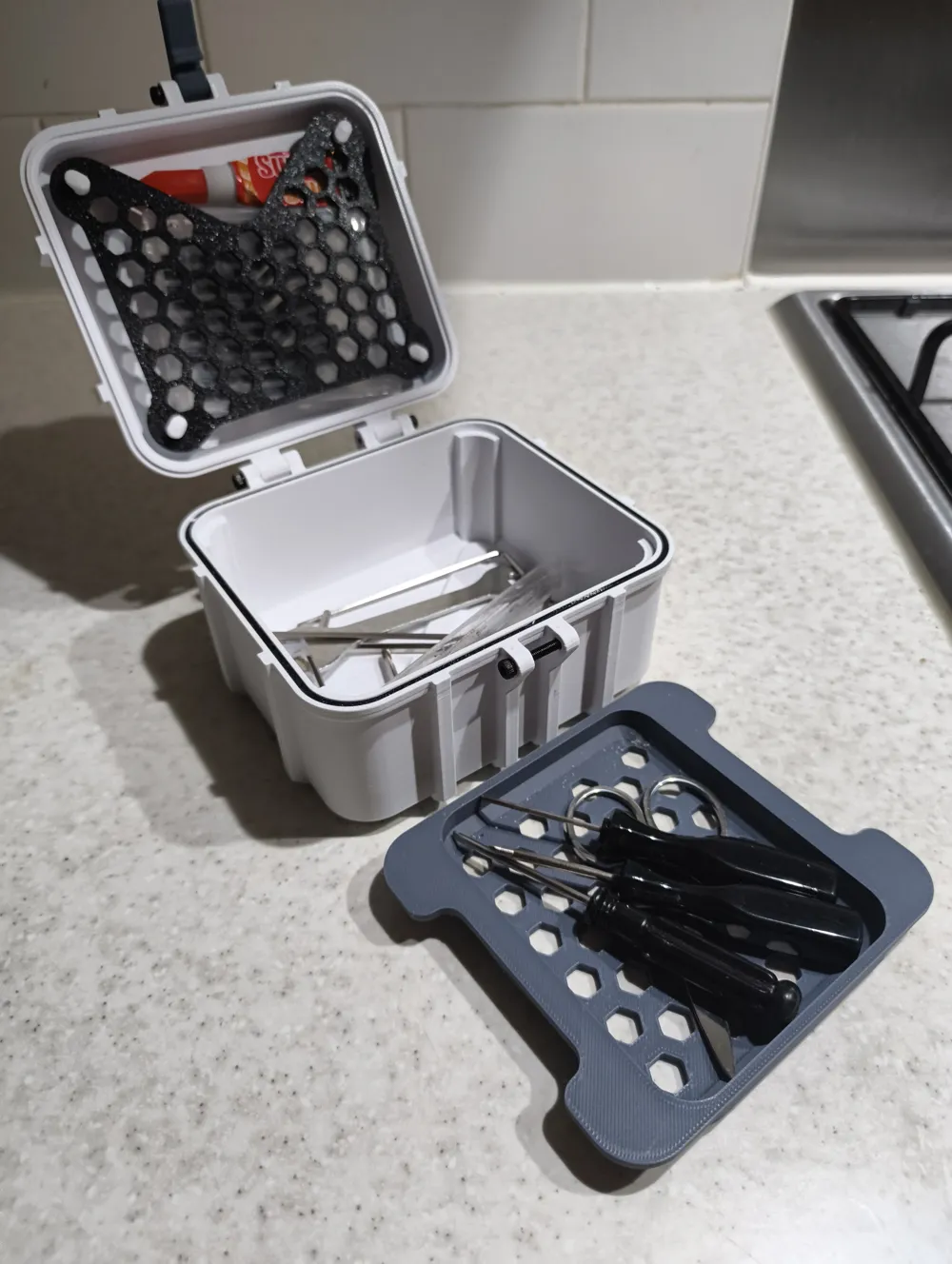

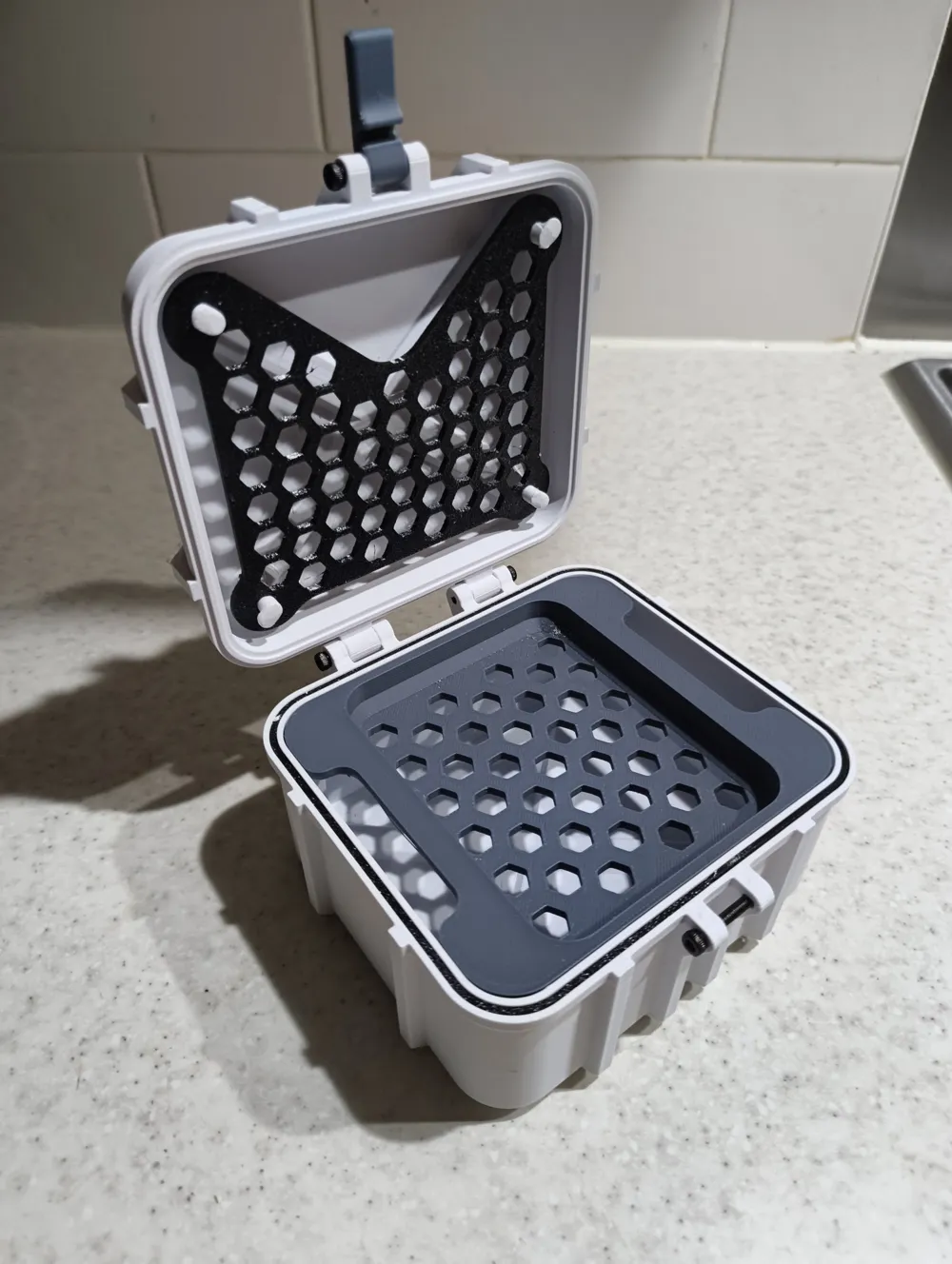

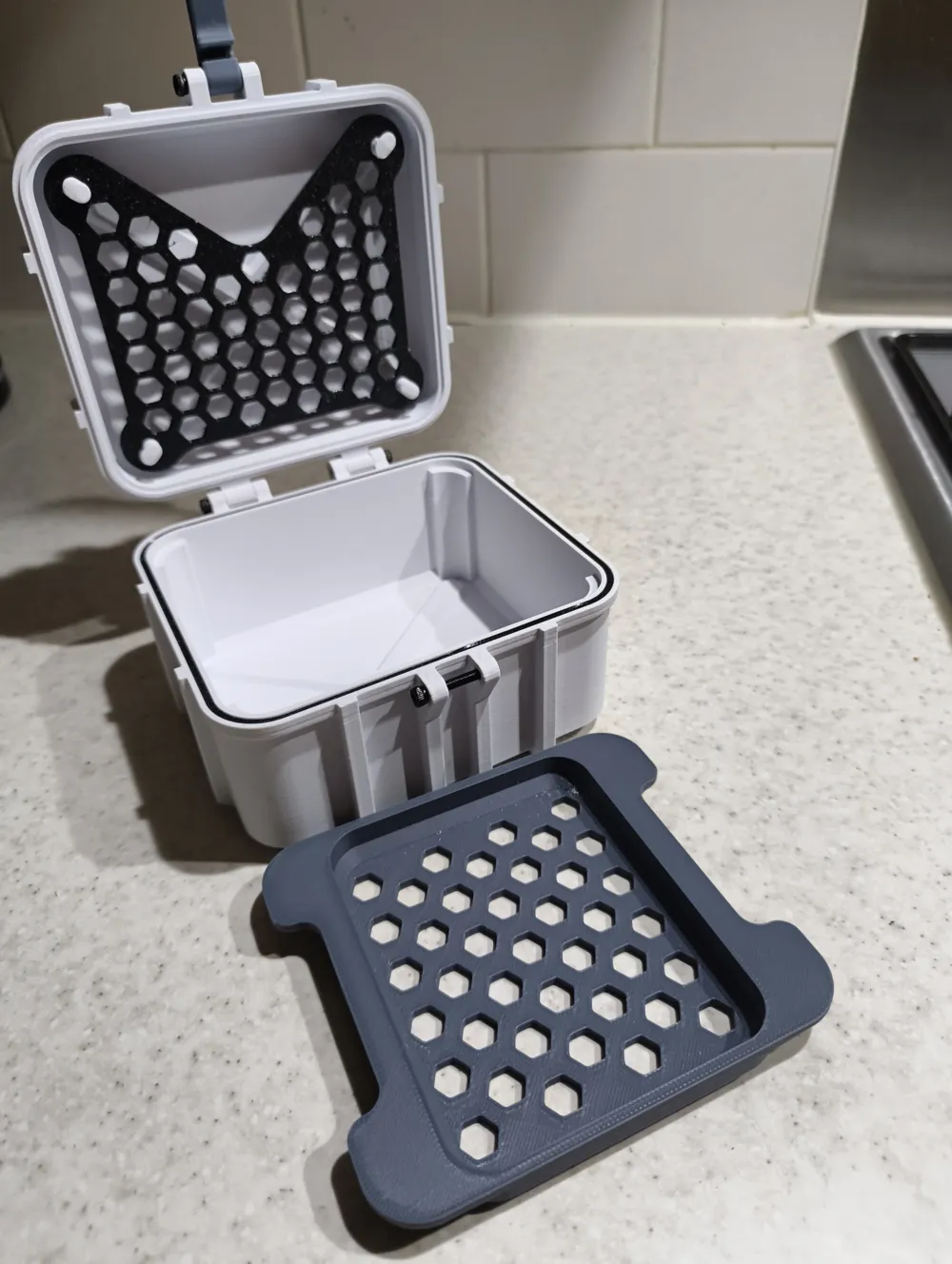

the storage netting is able to be peeled away and clicked back into place when additional accessibility to the lid storage is required

The Storage netting, gasket and anti-slip feet are all optional and the case still functions without the gasket however it will not be as water resistant

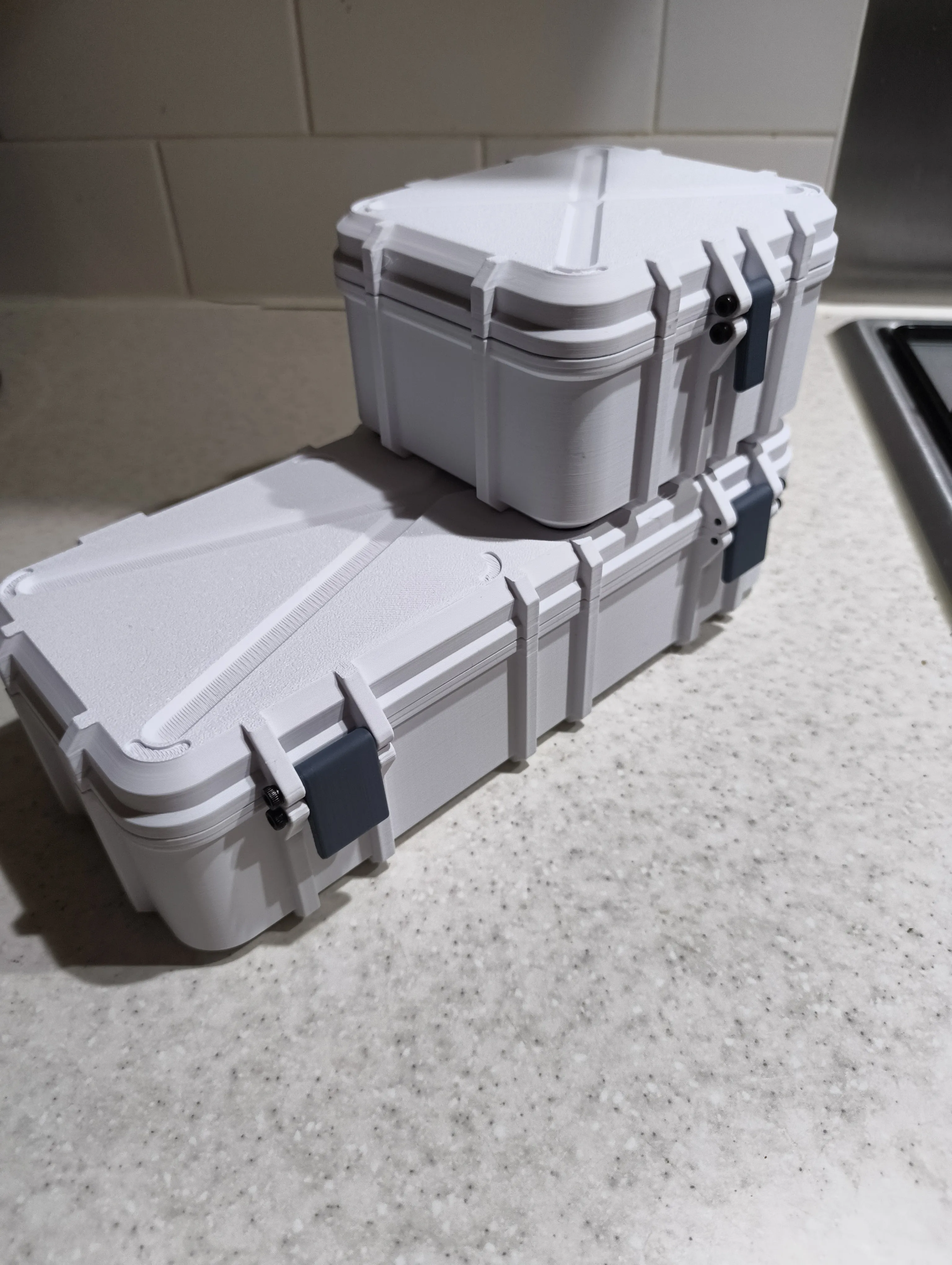

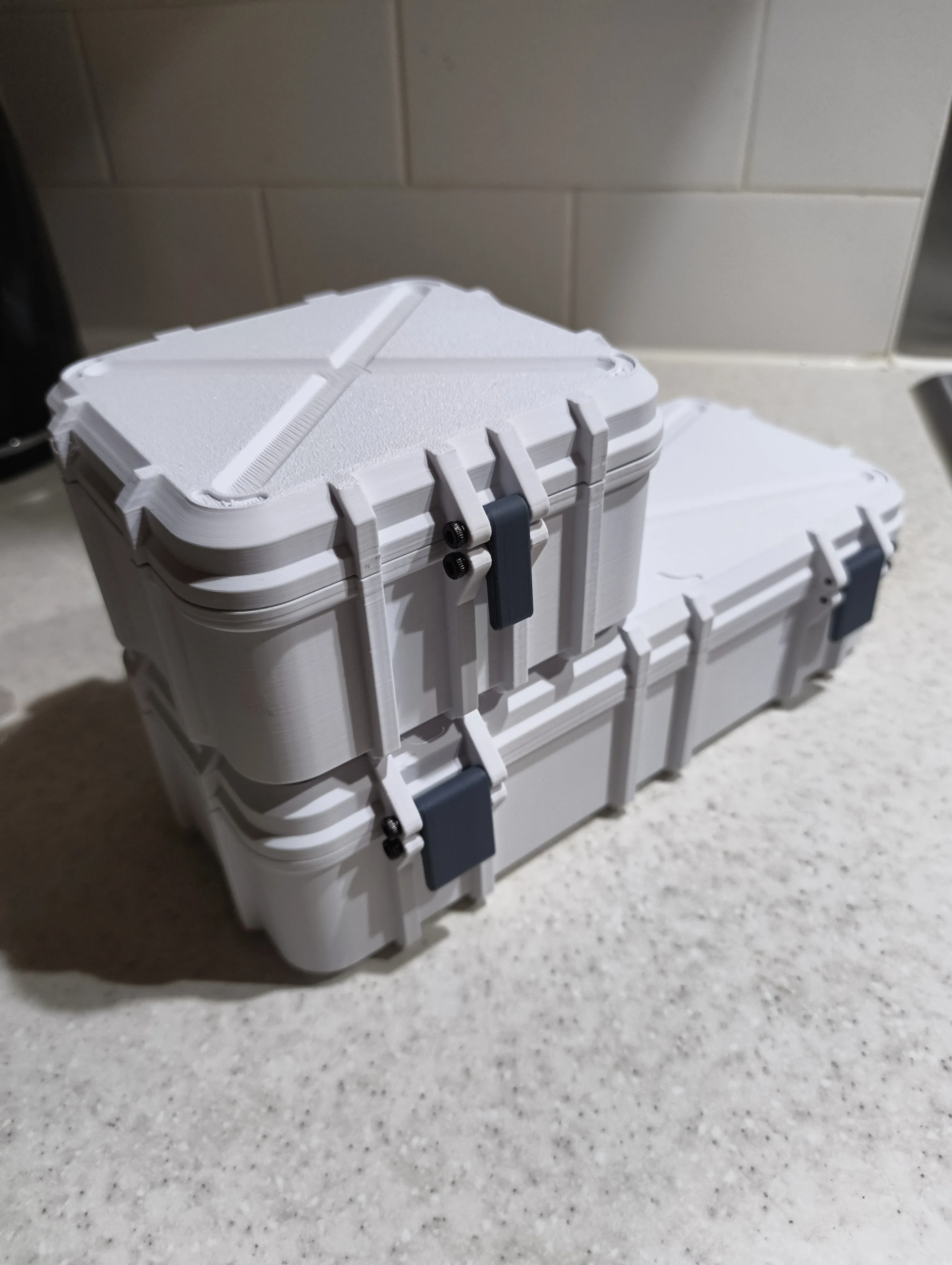

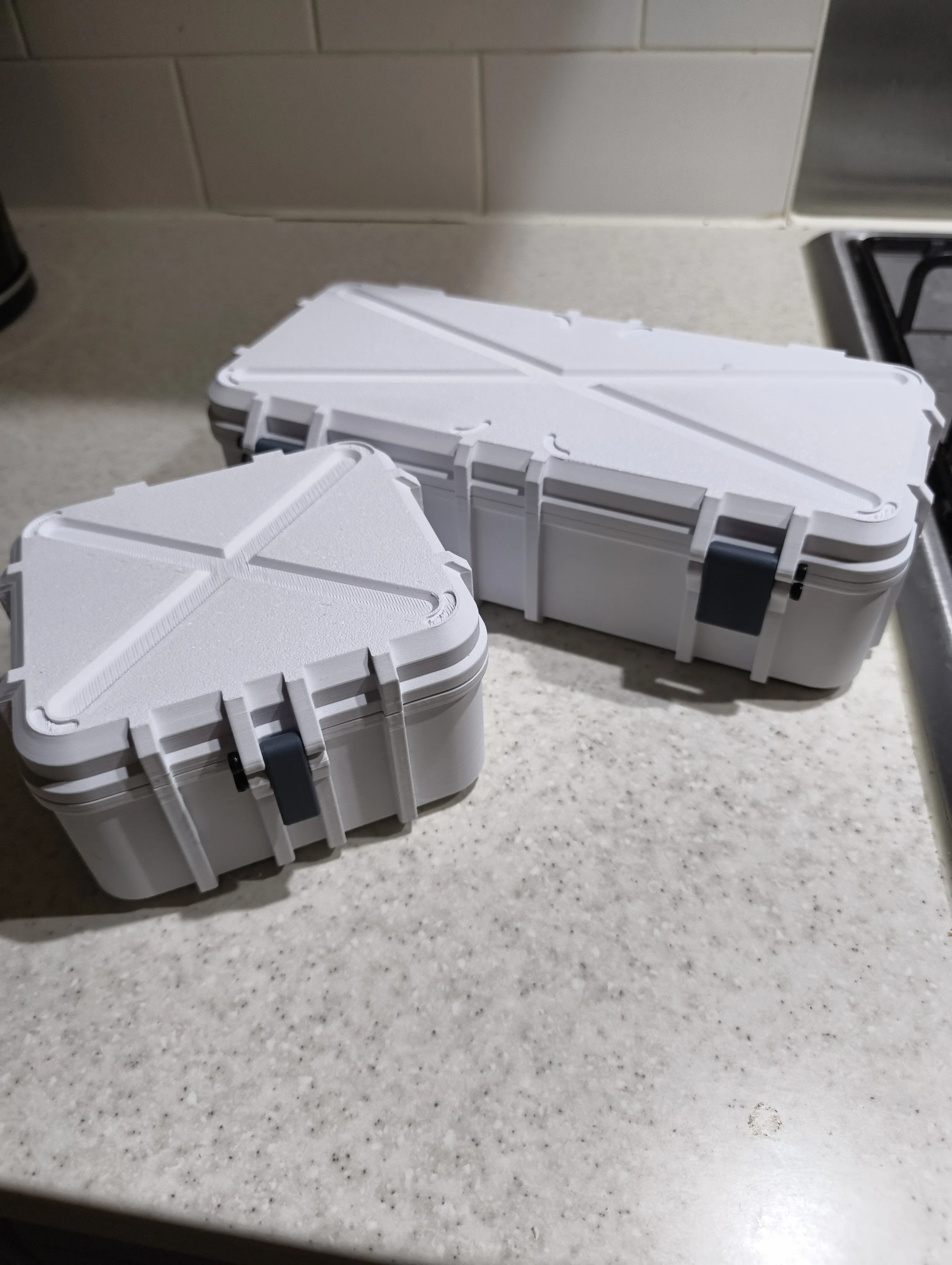

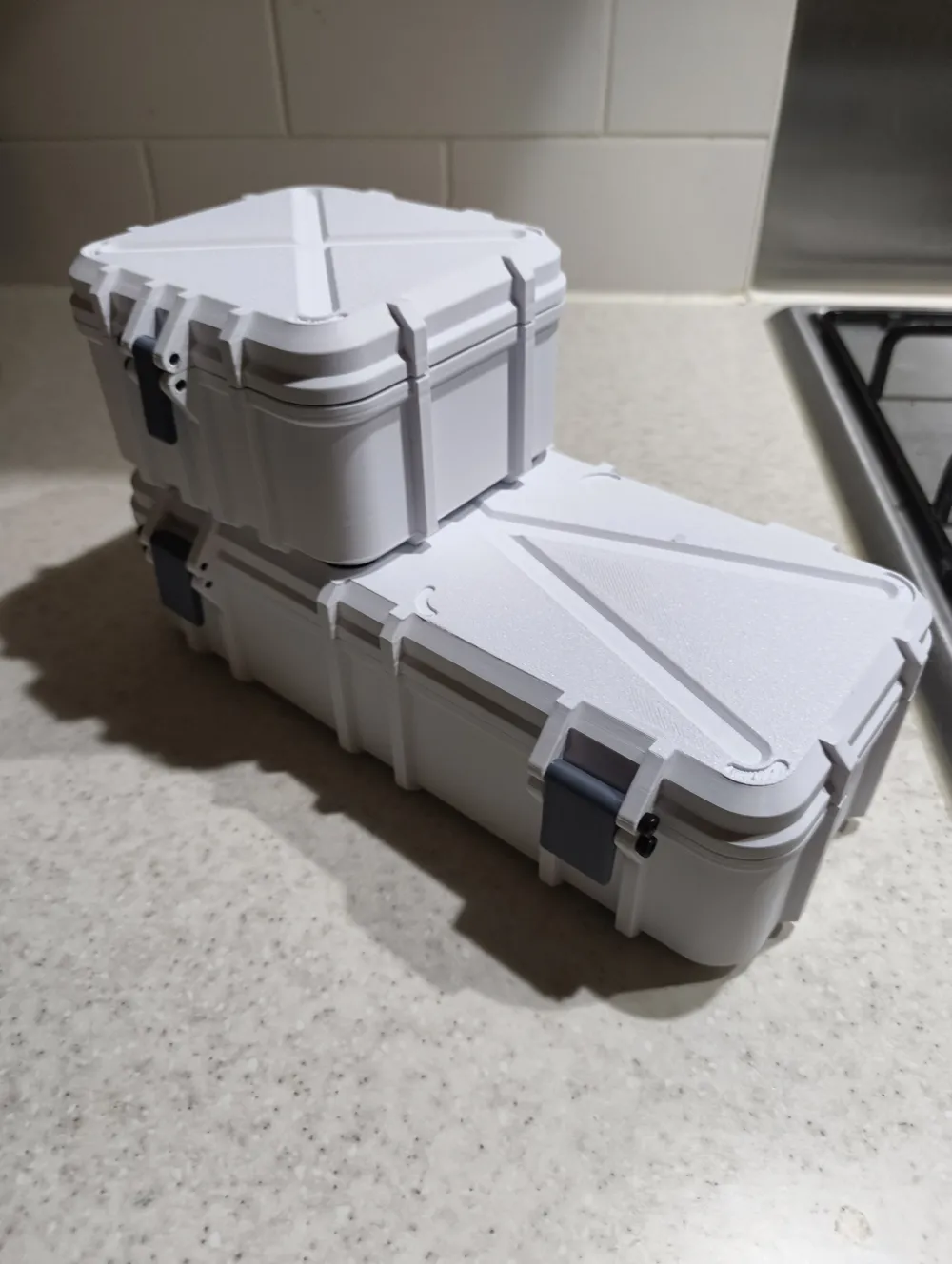

This case is compatible to be stacked with my other designed hard shell case  (please see end of article for images)

Rugged Hard Shell Case by Nathan_H_03 MakerWorld: Download Free 3D Models

Please check it out to enable me to continue to create these designs

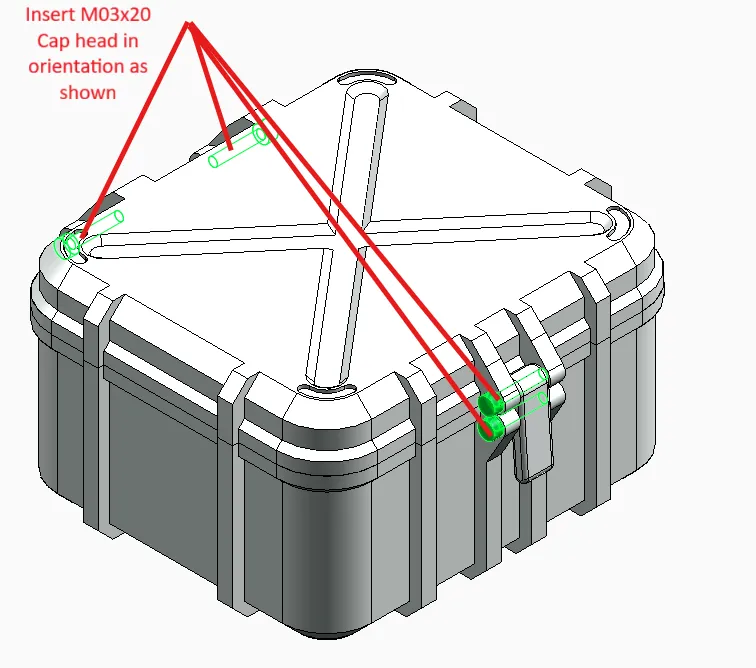

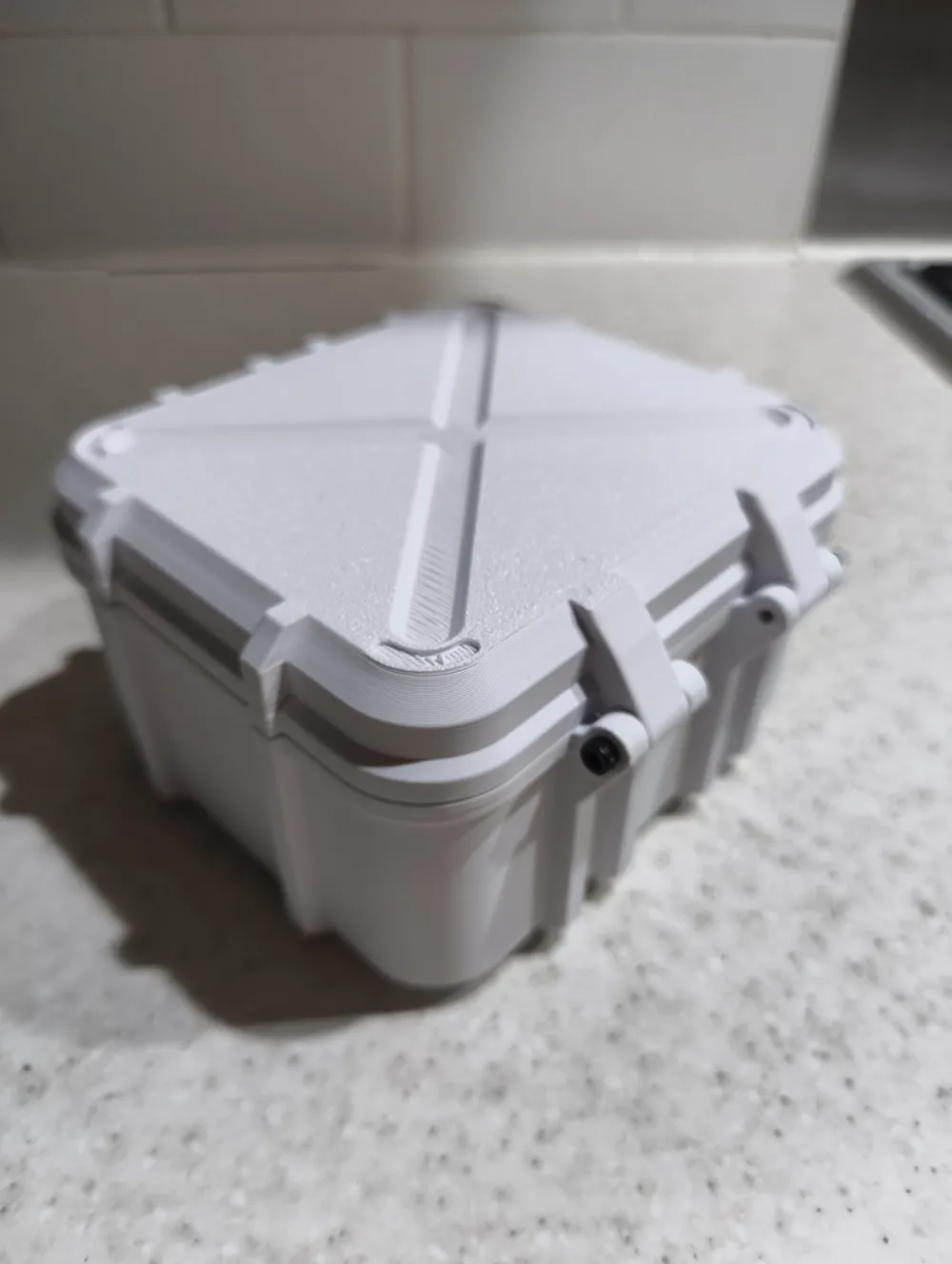

this print requires 4xM03x20mm long cap head screws in order to attach the lid and latches, however i can design a less robust version that is entirely printed and uses filament for the hinges upon request

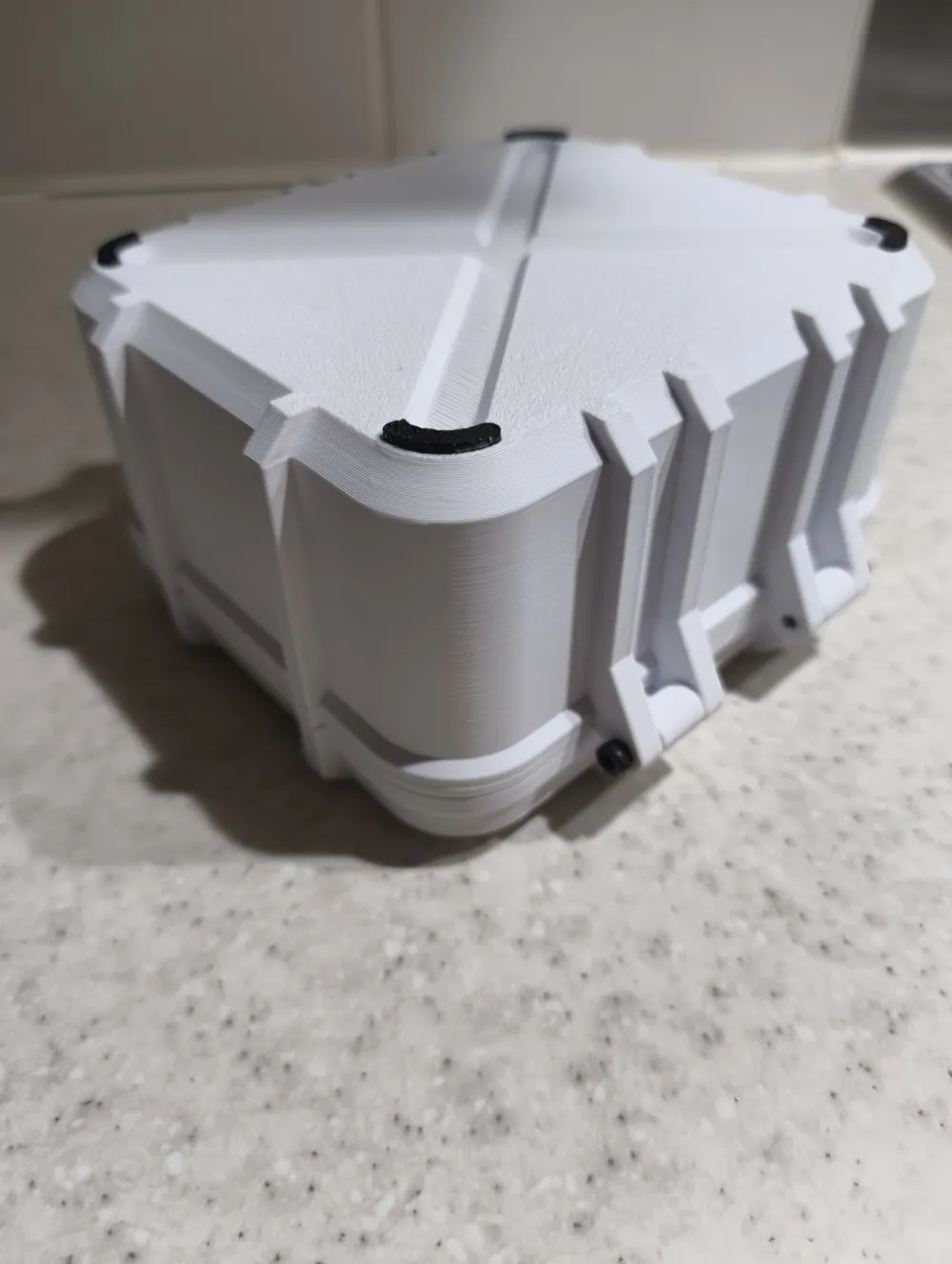

a couple of drops of superglue is required to attach the anti-slip feet onto the bottom of the case
