Summary

This is a very cheap camera wall mount.

Designed to be used with 28mm wooden dowel (from a curtain rod) as an extended arm for filming videos vertically.

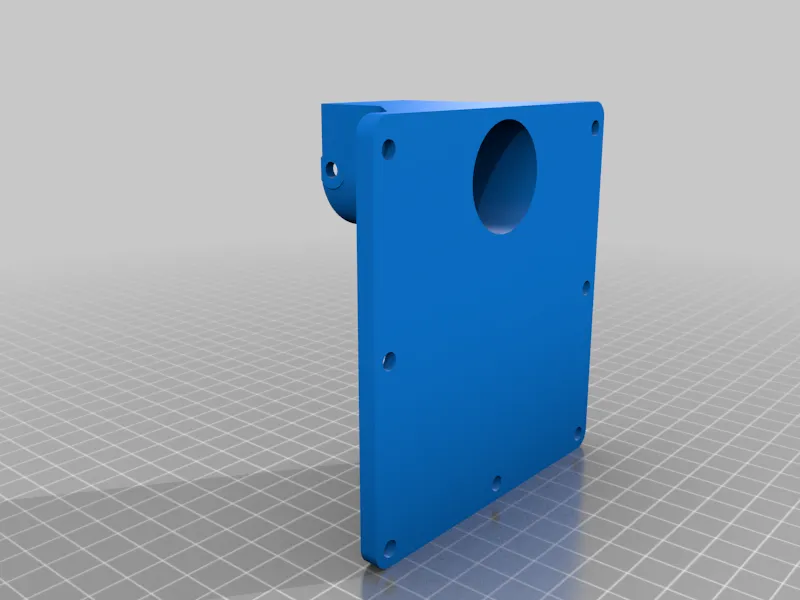

It consists of two parts: The "wall mount " and the "camera mount".

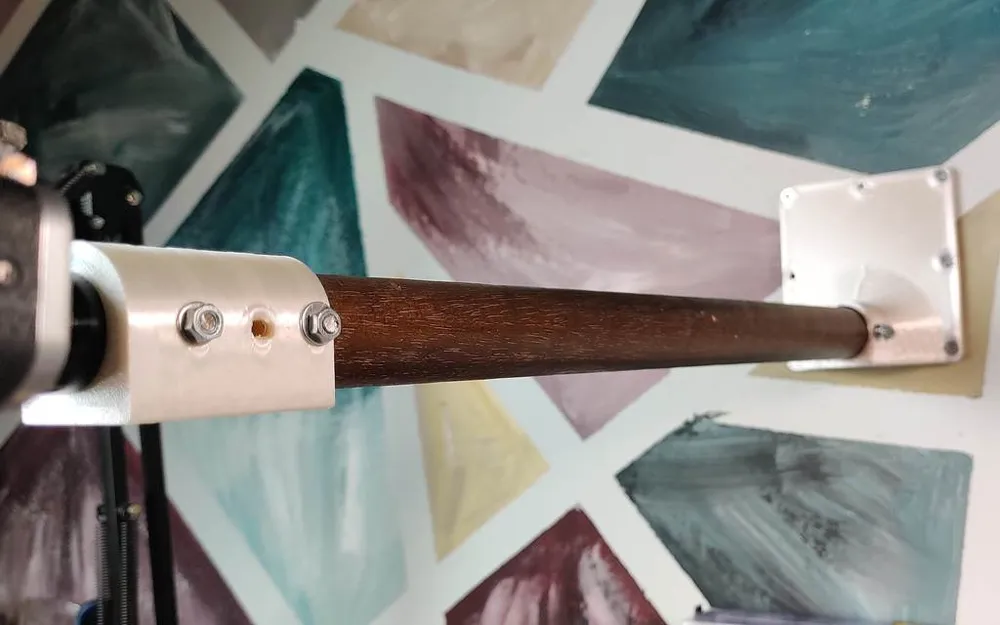

The wooden rod is inserted into both parts to extend the camera from the wall.

INSTRUCTIONS:

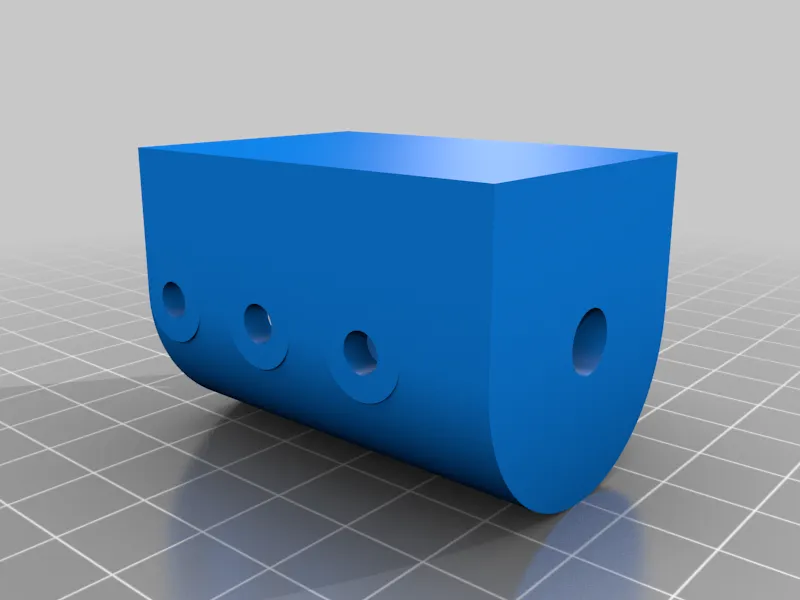

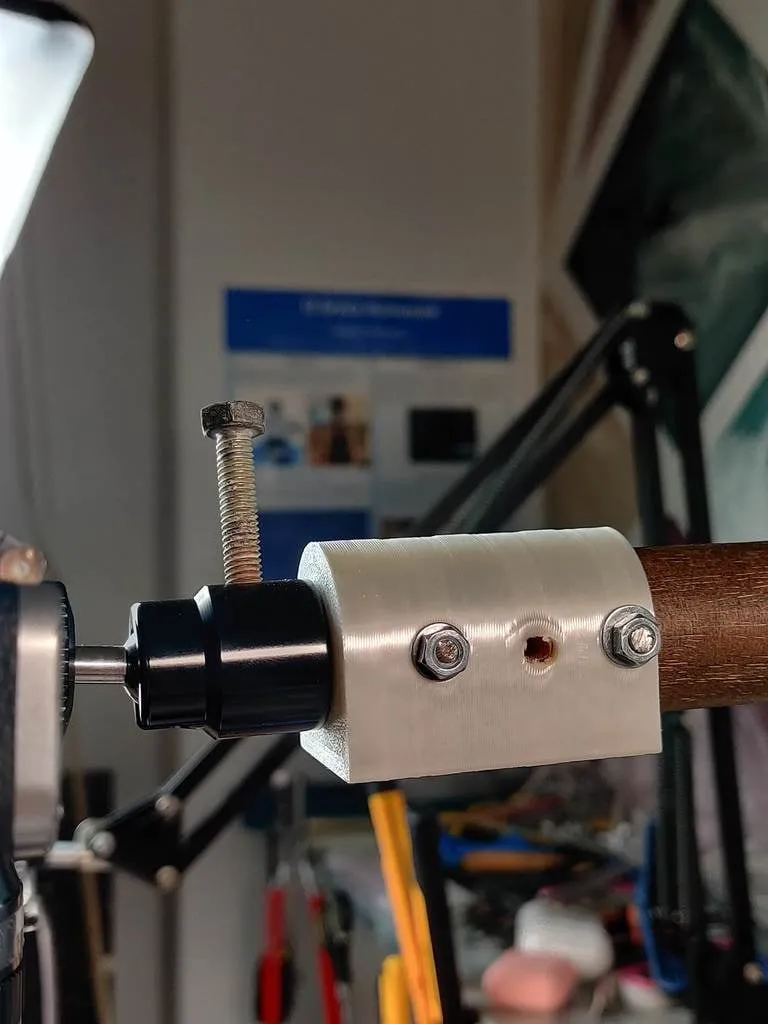

Insert a camera tripod screw in the camera mount part. (I used a universal ball mount).

Cut the dowel to the required length and insert it into the wall mount part and the camera mount part.

Use 4mm screws and nuts to hold the dowel in place both in the wall mount part and in the camera mount part.

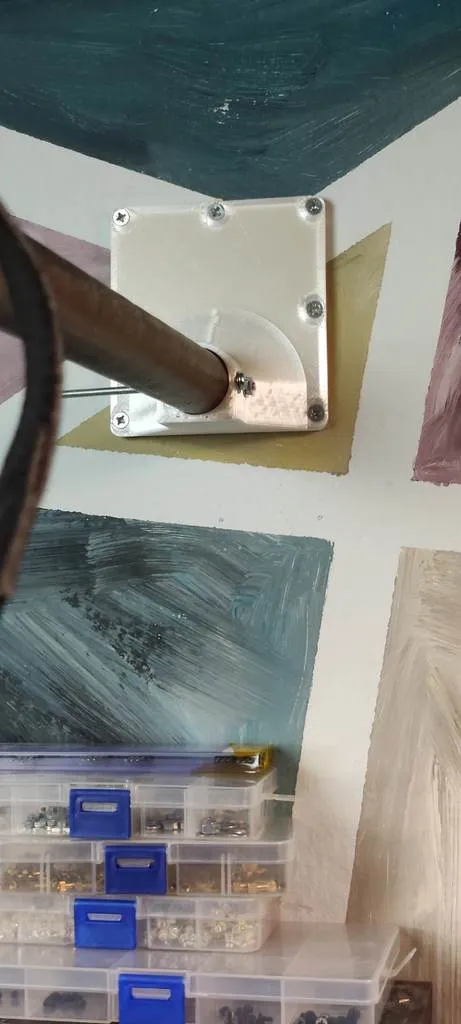

The wall mount part is screwed into the wall with 4mm chamfered screws.

DETAILS:

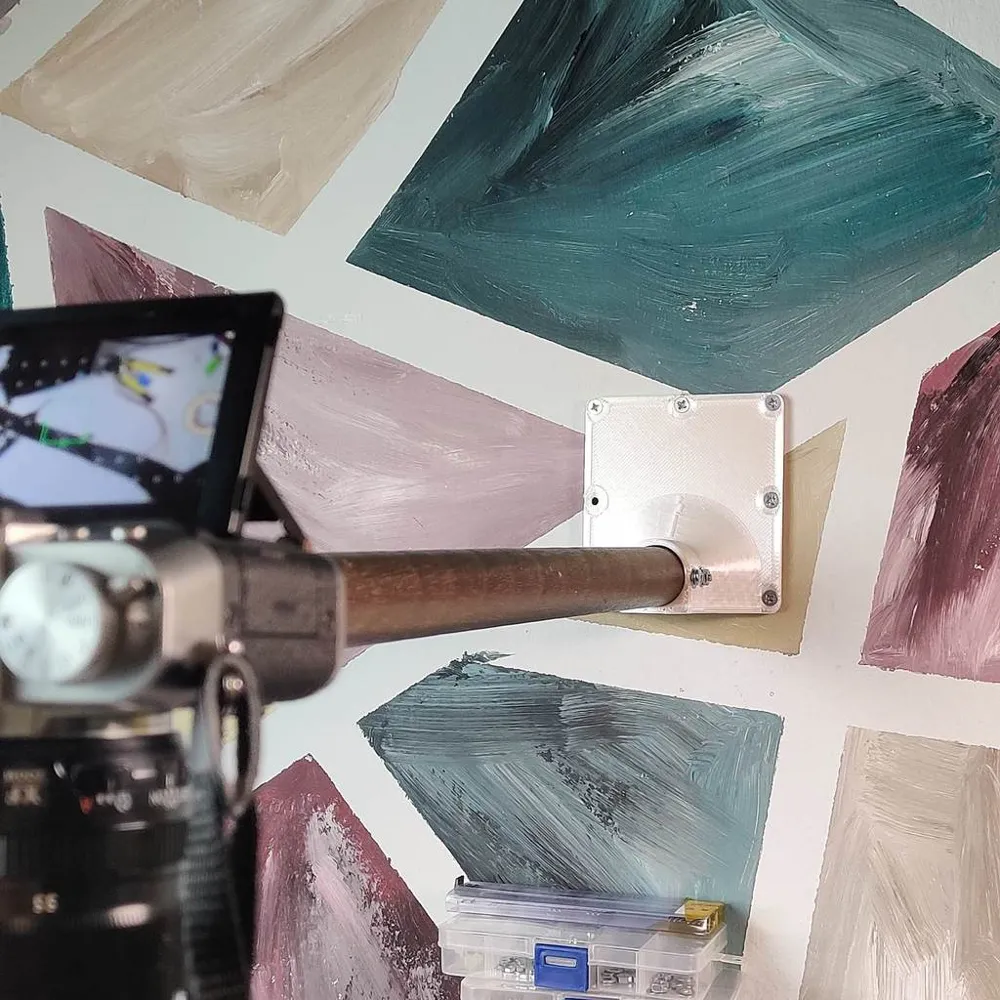

I printed the parts in the upright position with SILK material (PLA+PETG) and they hold a 1kg camera 500mm away from the wall.

I used 0.8mm nozzle with 30% infill to make the parts stronger.

Follow me on social media:

Instagram @worked_first_time
YouTube @workedfirstime

You can support my work in the following ways:

Print Settings

Printer:

Modified Alfawise U20

                                            Rafts:
No
                                                                                Supports:
No
                                                                                Resolution:
Nozzle: 0.8mm Layer height: 0.4mm
                                                                                Infill:
30%
                                                    Filament: DevilDesign Silk (works with PLA & PETG)                White silk
