Planetary reducer
Print Profile(1)
Description

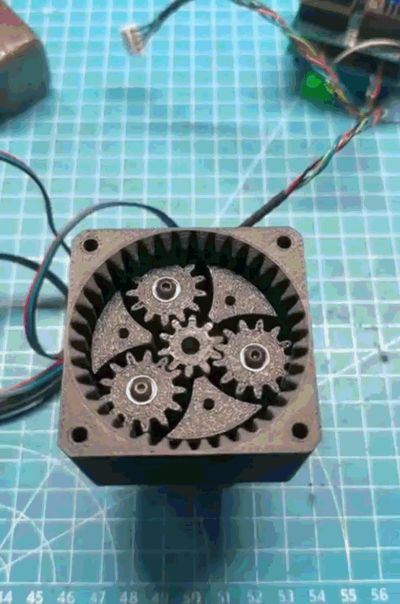

Compact and robust planetary reducer, designed for NEMA17 stepper motors (17HS4401) with excellent torque power and high mechanical precision. Ideal for robotics, automation, or custom mechanism projects.

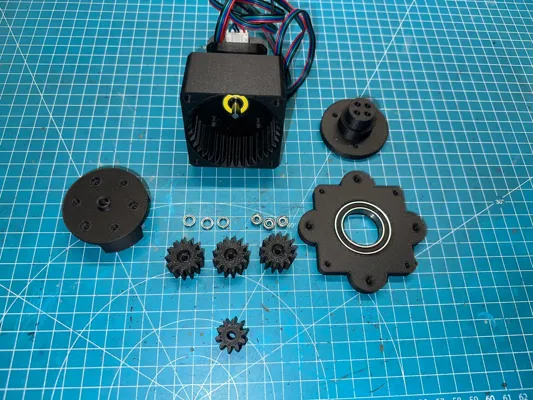

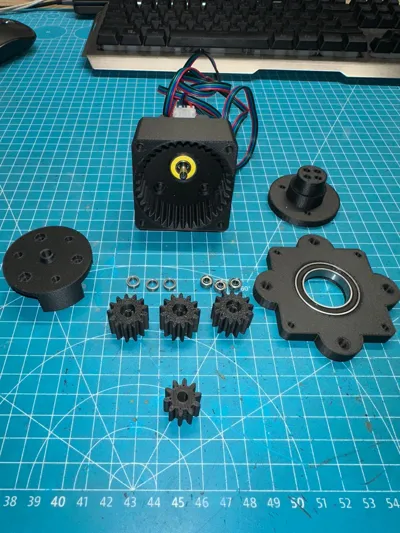

Uses quality components:
- 1 bearing Ø19 × 6 mm (Ø8 mm bore)
- 3 bearings Ø8 × 2.5 mm (Ø5 mm bore)
- 3 bearings Ø8 × 4 mm (Ø3 mm bore) for the gears
- 1 6805RS centering bearing
🔧 It is recommended to grease the gears after initial tests to ensure maximum efficiency and durability.
