Hexapod Spider Robot with Servo & Arduino
Print Profile(1)
Bill of Materials
- Arduino Mega x 1:
- XL4016 Voltage Regulator x 1:
- NRF24L01 PA + LNA x 2: (One for controller)
- NRF24L01 Power Adapter x 2: (One for controller)
- Li-Po Battery 3S 2200 mAh x 1:
- MG996R Servo x 18:
- KCD1 Rocker Switch x 1:
- Dual Battery Holder x 1: (for controller)
- 18650 Li-ion Battery x 2: (for controller)
- Toggle Switch x 3: (for controller)
- 10K Potentiometer x 2: (for controller)
- Joystick Module x 2: (for controller)
- Arduino Uno x 1: (for controller)
Description
Assembly and Test Video:

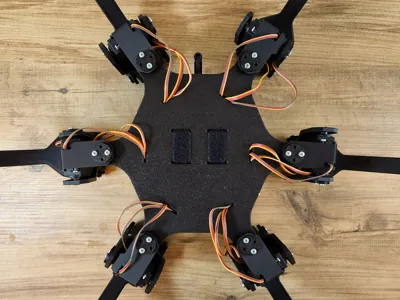

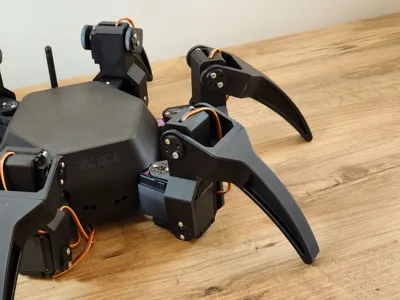

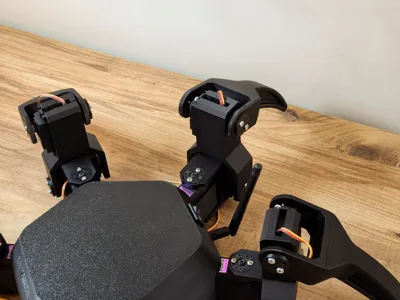

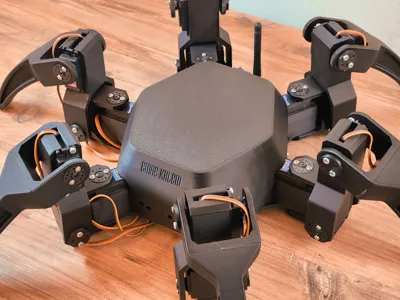

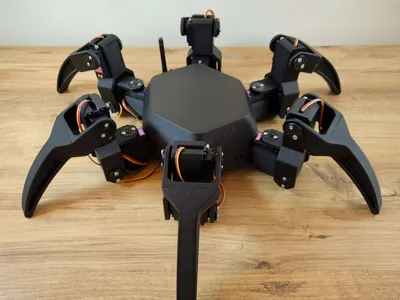

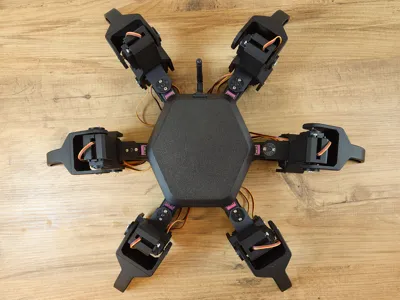

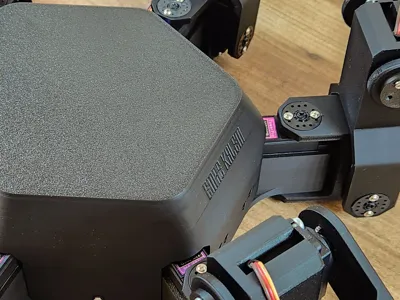

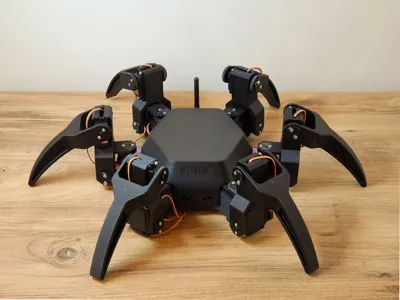

Arduino-Based 6-Legged Hexapod Spider Robot

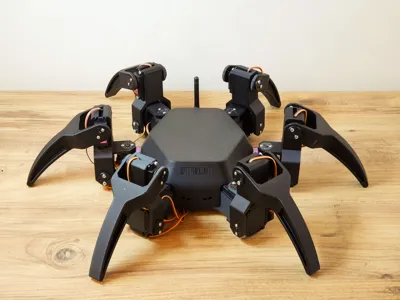

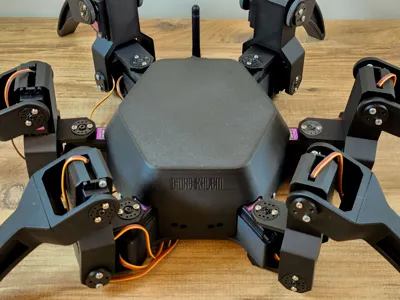

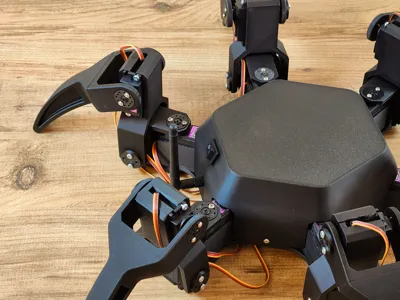

This project features a 6-legged (hexapod) walking robot controlled by an Arduino Mega. Each leg has 3 degrees of freedom (18 servo motors total), enabling smooth and balanced movement using a tripod gait algorithm. The robot is remotely controlled using an NRF24L01 wireless module. With dual joysticks and potentiometers on the controller, users can adjust the robot's direction, walking speed, and body height.
This project is still under development. Software development work is ongoing.
You can find all the necessary source code, Gerber files, and circuit schematics in the video description.
Required Parts for Hexapod Robot:
- Arduino Mega x 1
- XL4016 Voltage Regulator x 1
- NRF24L01 PA + LNA x 1
- NRF24L01 Power Adapter x 1
- Li-Po Battery 3S 2200 mAh x 1
- MG996R Servo (180°) x 18
- KCD1 Rocker Switch x 1
- 695 Bearing x 18
- Jumper Cables (Servo Cable Extender)
- M3x6mm Bolts x 90
- M3x10mm Bolts x 90
Required Parts for RC Controller:
- NRF24L01 PA + LNA x 1
- NRF24L01 Power Adapter x 1
- Arduino Uno x 1
- Dual Battery Holder for 18650 Battery x 1
- 18650 Li-ion Battery x 2
- Toggle Switch (5mm) x 3
- 10K Potentiometer x 2
- Joystick Module x 2
- Jumper Cables
- M3x6mm Bolts x 18
