Description

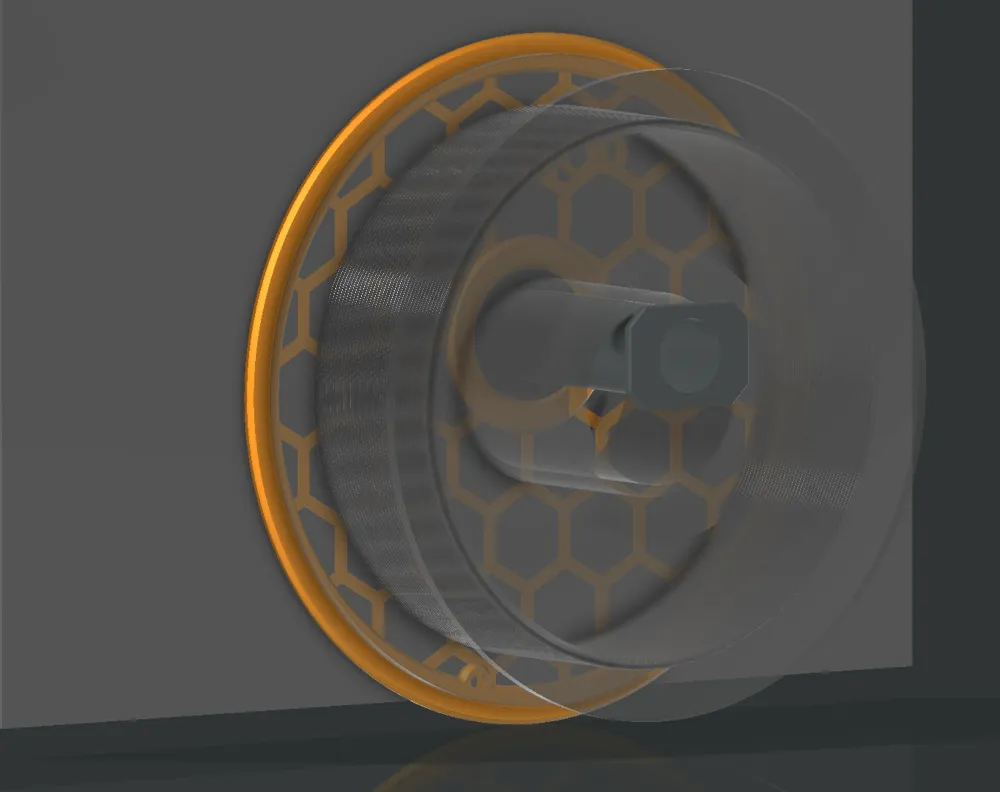

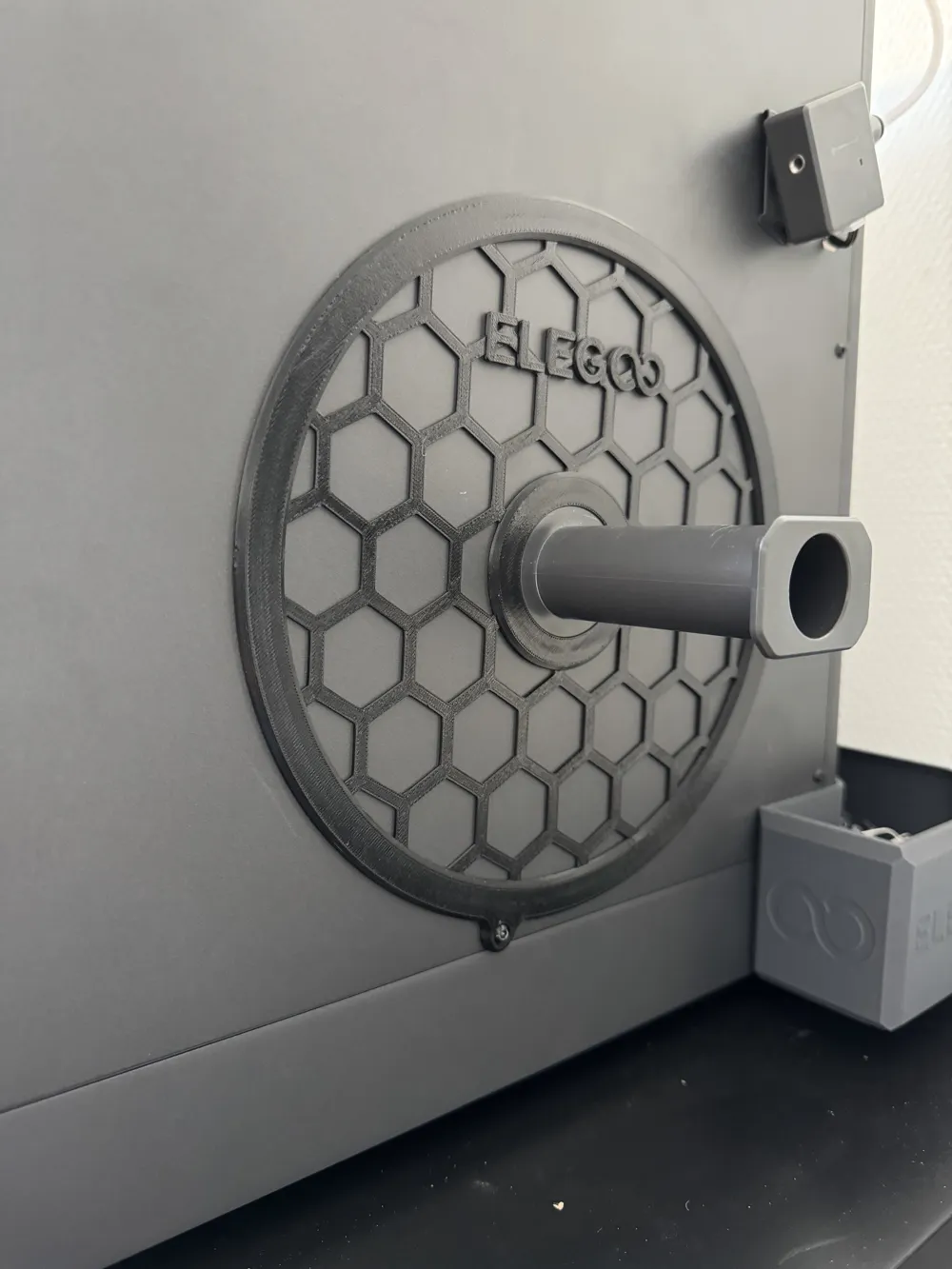

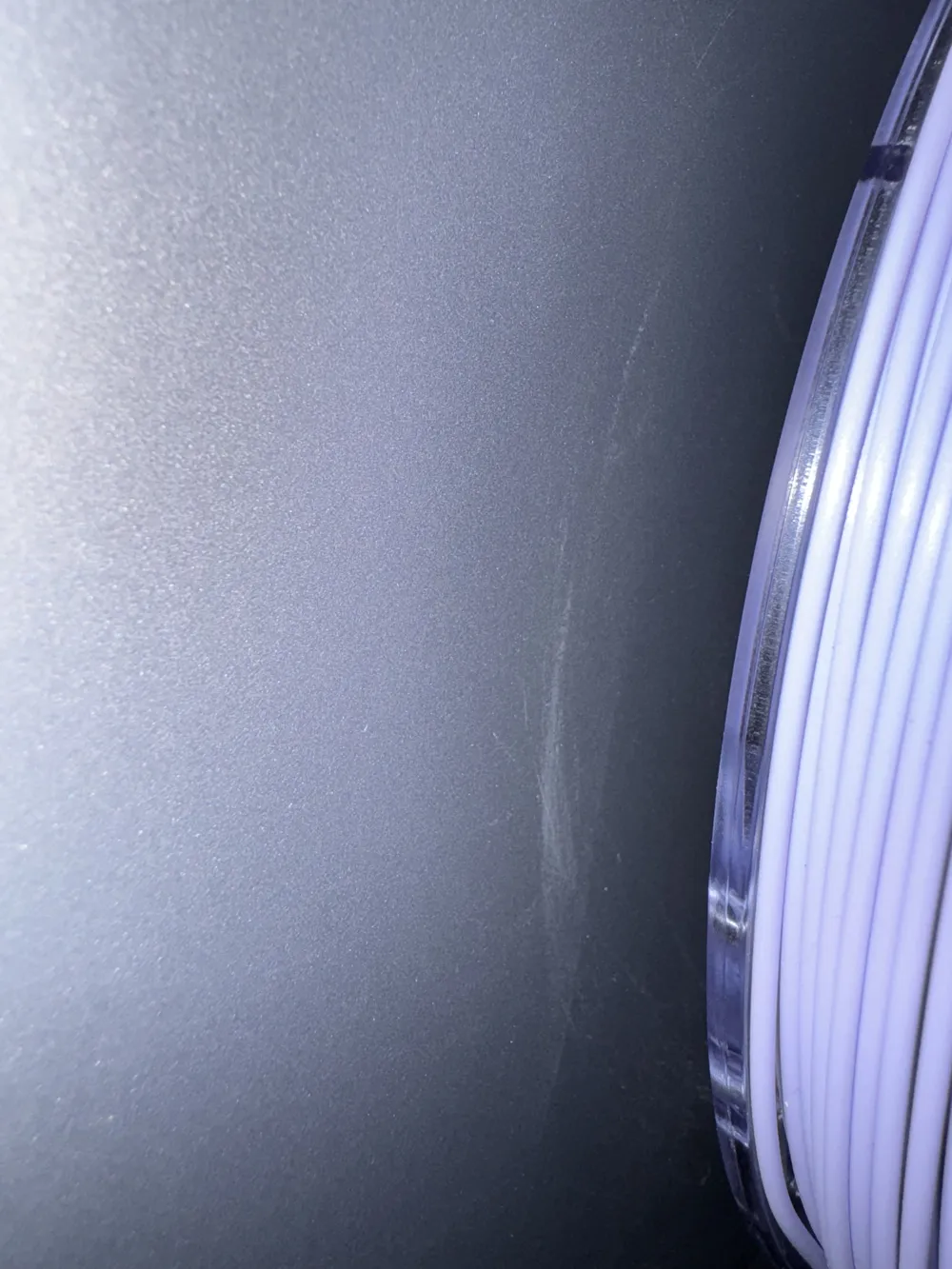

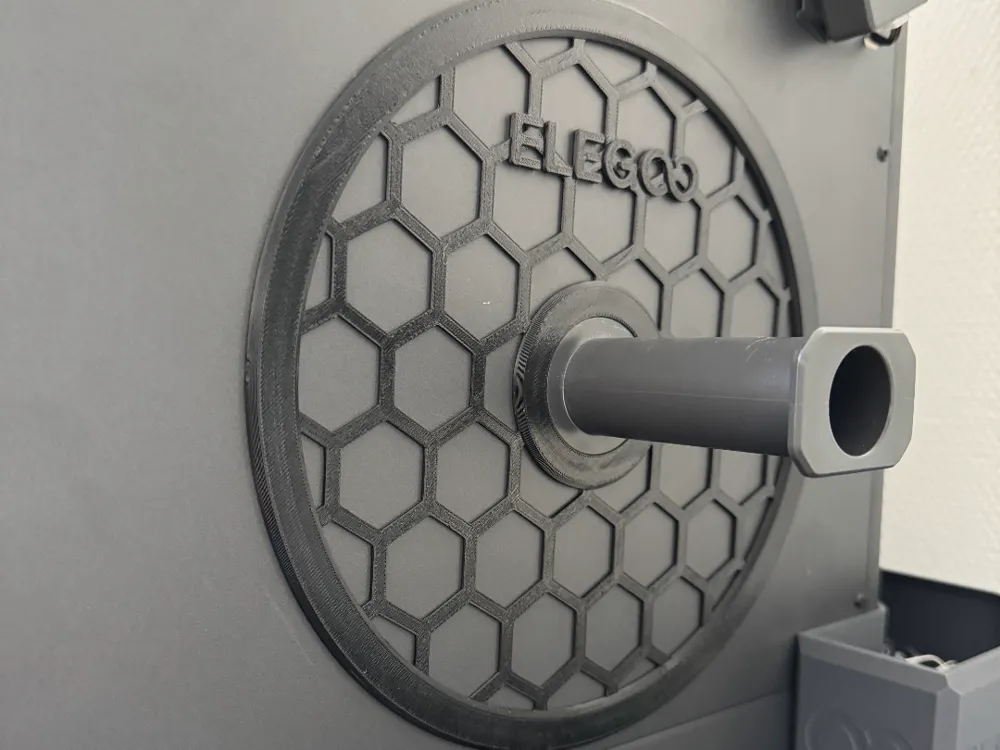

After about 100 hours of printing, I started to notice some marks on the side panel due to the spool dragging along it. Some plastic particles could be washed away, but the first scratches on the side panel are there. Hereby some side panel protector variants, depending on the alignment and position you like.

Comment & Rating (13)

@user_723857144

Prints really well, nice model looks great. Thanks!

@Cabitmu

What size magnets did you use?

@user_723857144

Replying to @Cabitmu :

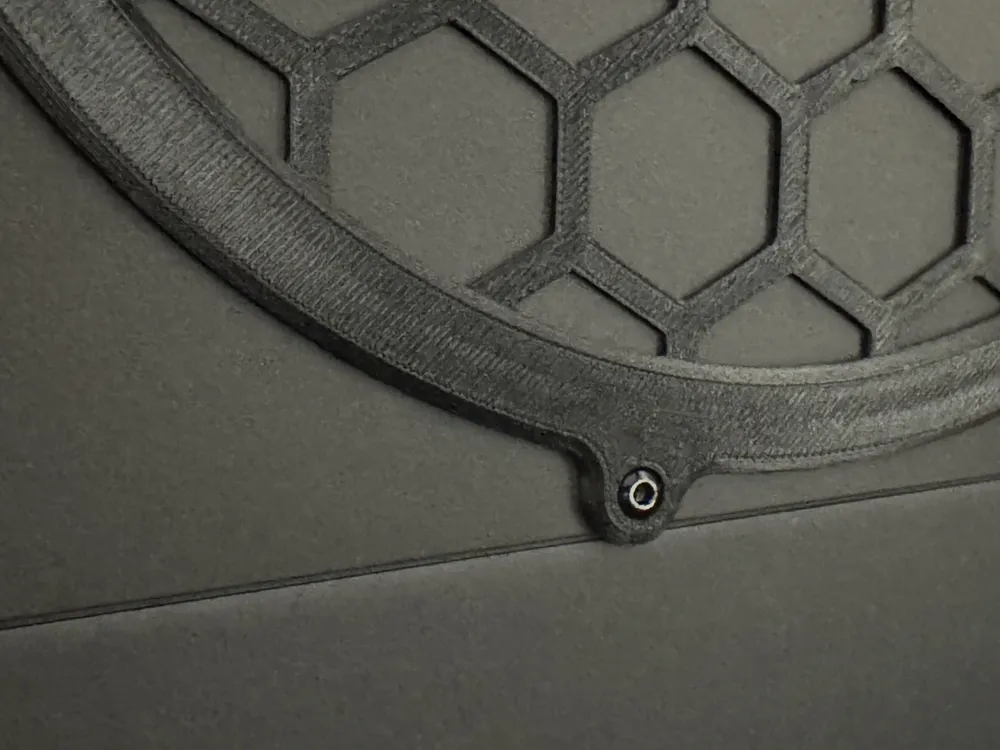

I didn't use any magnets. Only the screw near the bottom, the fitment around the spool holder is tight enough to hold it in place nicely.

@user_3844256845

works perfect Thanks !!

@Cabitmu

What size magnets did you use?

The designer has replied

@Crea8s

1,5-2mm thick - 8-10mm diameter will work.

@Cabitmu

Replying to @Crea8s :

Thank you!

@user_3844256845

is the hole stander size 43mm, reason I'm asking is i printed a roller bearing filament spool holder and he said the hole is 43 mm.

@E.xxx

Thank you good fitting, functional and visually appealing side wall protection
