Description
Winter Lithophane Table Lamp (LED E27, PLA)
🇬🇧 ENGLISH VERSION
Winter Lithophane Table Lamp

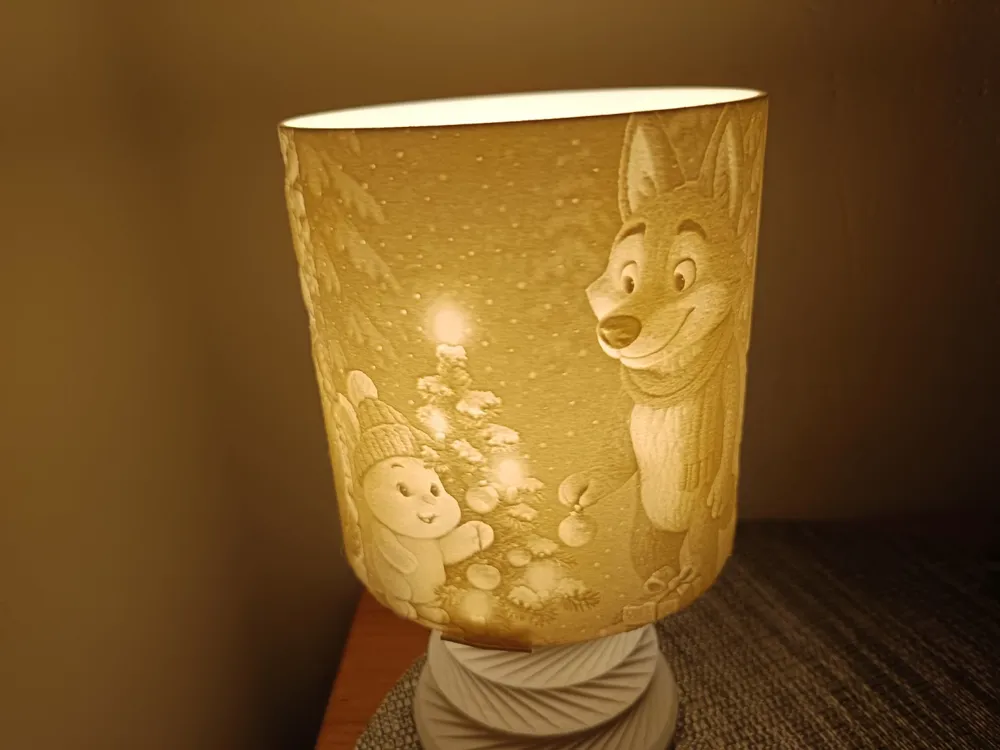

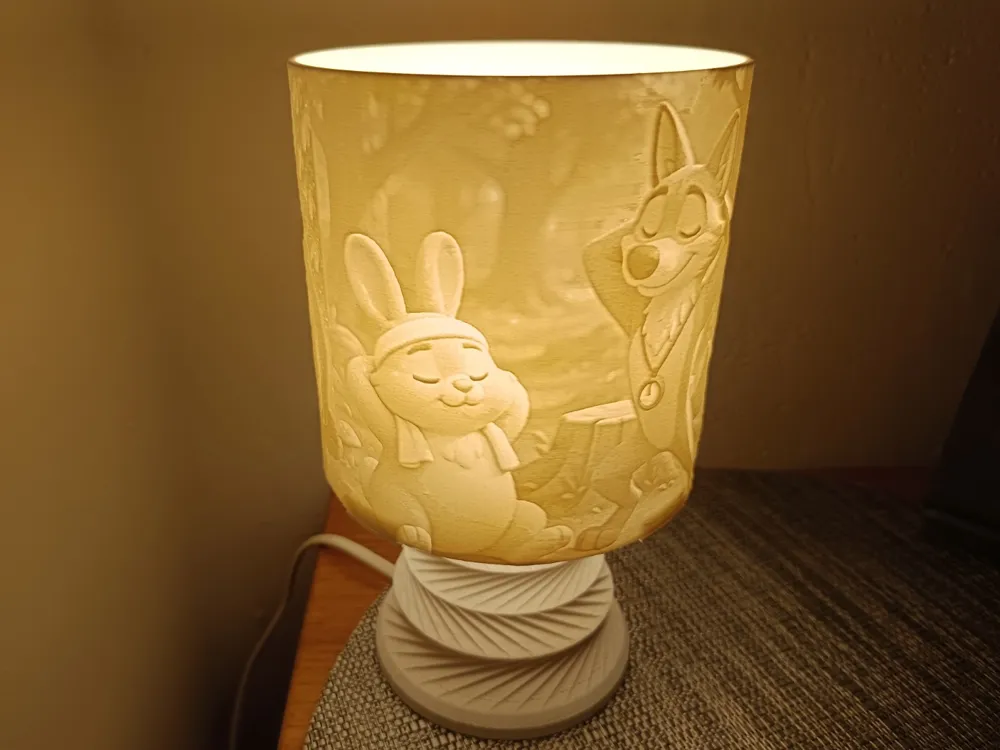

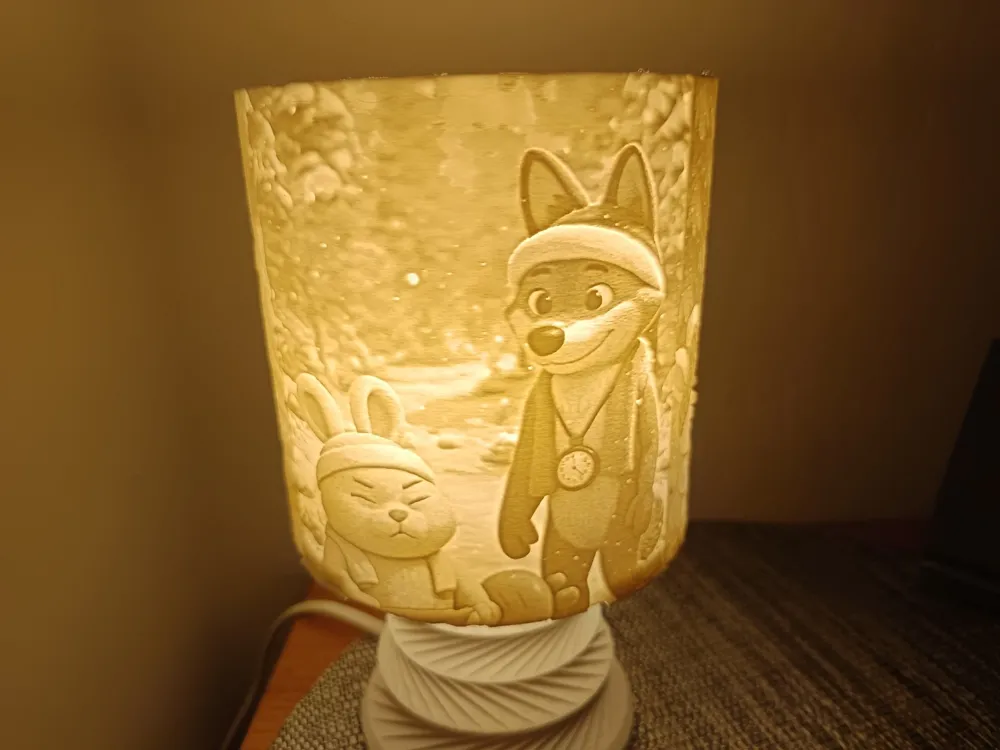

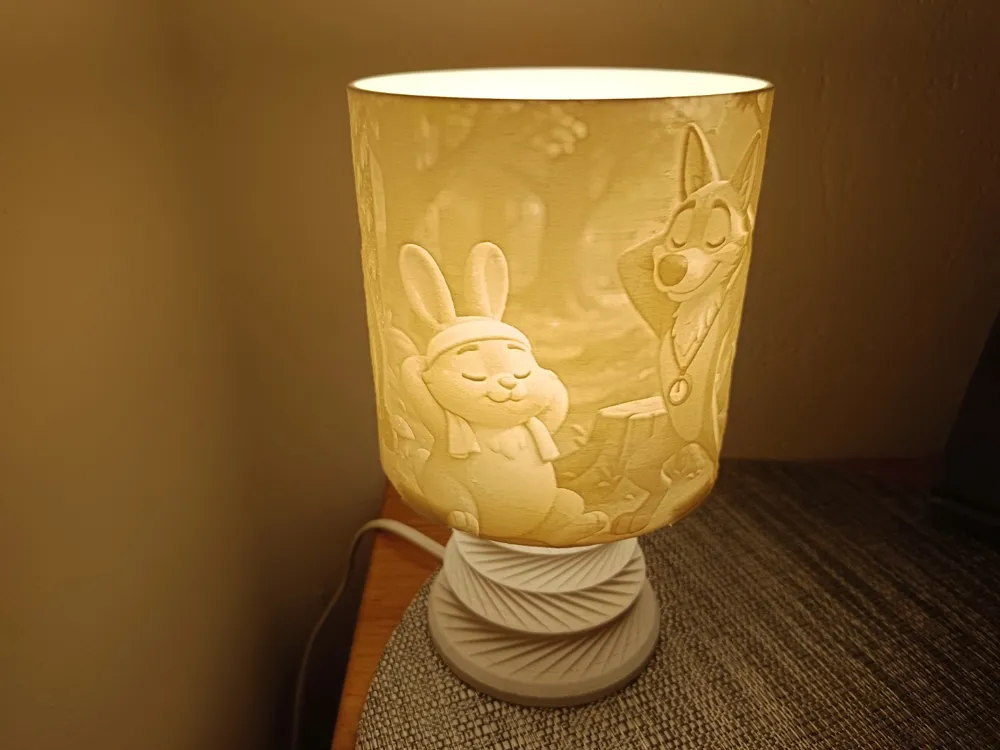

This is a decorative table lamp featuring interchangeable lithophane shades (deer, wolf, and squirrel motifs).
The lamp is designed for LED bulbs only (E27 socket, max 9 W).
Printed from PLA — using standard or high-quality white filament for best light diffusion.
- Base: 0.2 mm layer height, 20% infill
- Shade: 0.12–0.16 mm layer height, 100% infill (or 99 perimeters)
- Assembly: Glue the parts with super glue – screws are not needed
- Safety: LED only! PLA can deform under heat from non-LED bulbs.
What you’ll need:
E27 socket, power cord with switch, LED bulb (max 9 W), and super glue.
All parts are available at any local hobby market.
Note:
The lamp base is not my original design.
It was downloaded from the internet around 2019; the original author is unknown.
The lithophane shades (deer, wolf, squirrel) are my own original designs.
If the base author recognizes their work, I will gladly add credit or remove the file.
Licensed under CC BY-NC 4.0 (non-commercial use only).
🇨🇿 CZECH VERSION
Winter Lithophane Table Lamp
This is a decorative table lamp featuring interchangeable lithophane shades (deer, wolf, and squirrel motifs).
The lamp is designed for LED bulbs only (E27 socket, max 9 W).
Printed from PLA — ideally white, for best light diffusion.
- Base: 0.2 mm layer height, 20% infill
- Shade: 0.12–0.16 mm layer height, 100% infill (or 99 perimeters)
- Assembly: Glue the parts with super glue – screws are not needed
- Safety: LED only! PLA can deform under heat from other bulbs.
What you’ll need:
E27 socket, power cord with switch, LED bulb (max 9 W), and super glue.
All parts are available at any local hobby market.
Note:
The lamp base is not my original design – it was downloaded from the internet around 2019, original author unknown.
The lithophane shades (deer, wolf, squirrel) are my own design.
If the base author recognizes their work, I will gladly add credit or remove the file.
Licensed under CC BY-NC 4.0 (non-commercial use only)
