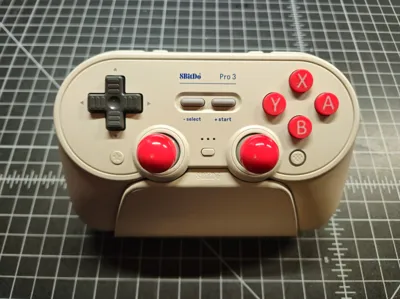

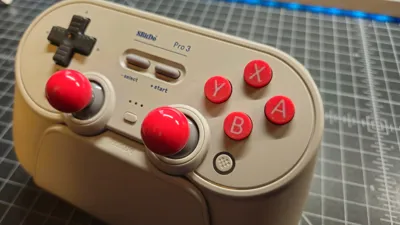

8BitDo Pro 3 Controller Buttons
IP Report
Print Profile(2)
0.08mm layer, 2 walls, 15% infill
Designer
1 h
1 plate
0.08mm layer, 2 walls, 15% infill
Designer
58 min
1 plate
Open in Bambu Studio
Boost
19
50
5
0
36
16
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
My first model, made in FreeCAD.

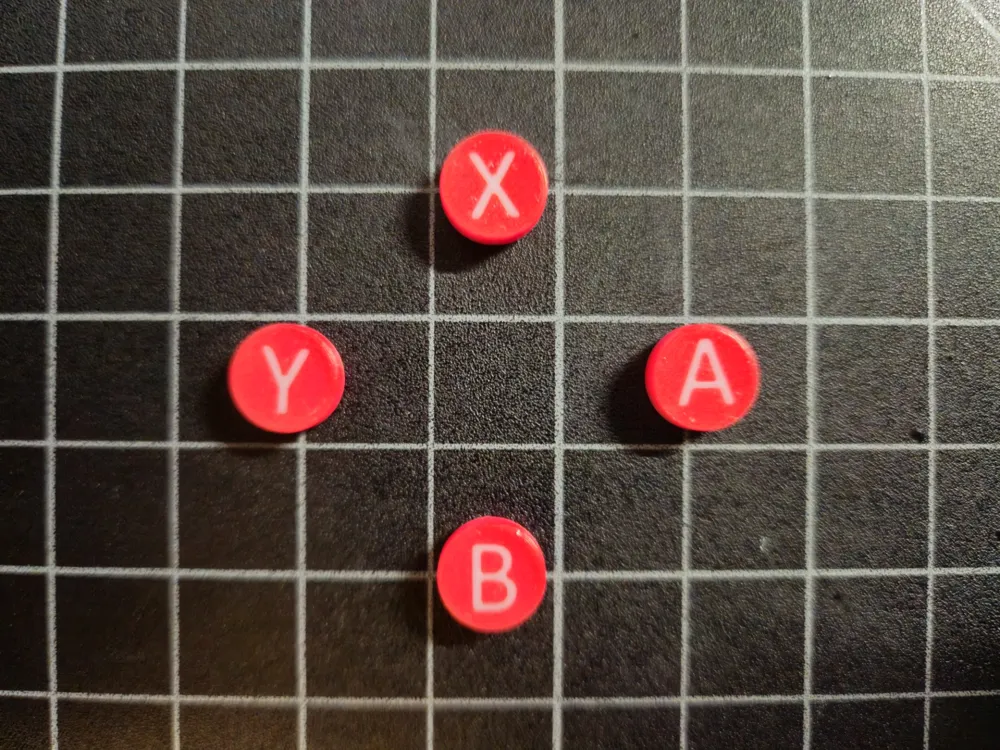

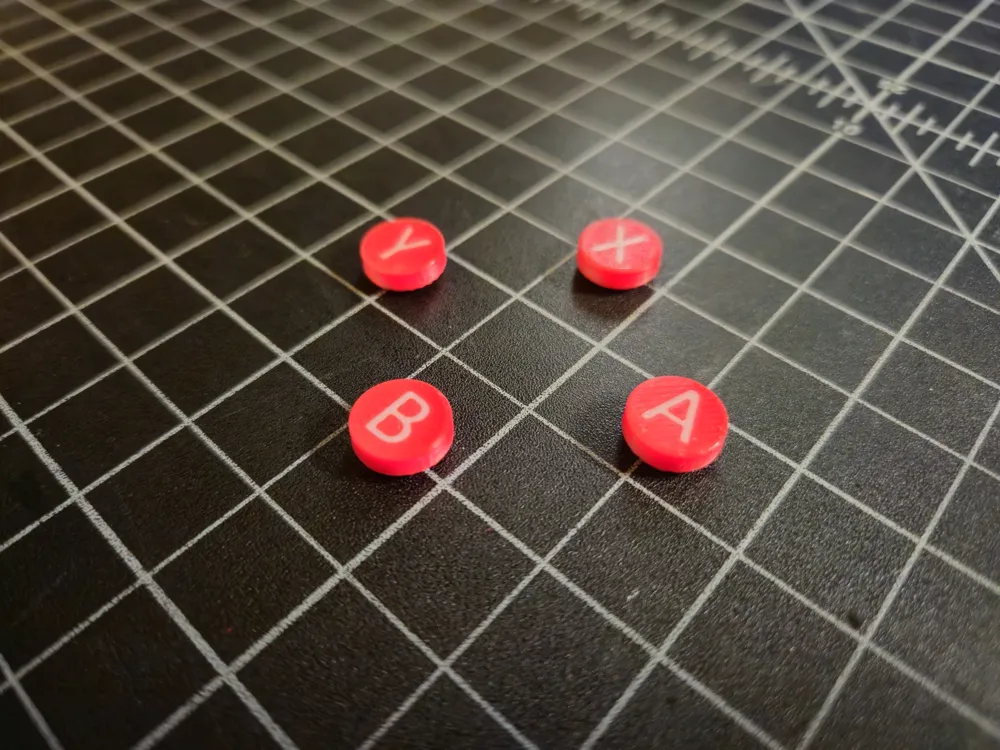

The letters are embedded 0.5mm into the top surface, setup as Modifiers in Bambu.3mf for easy customization.
I printed at .08mm High Quality and was happy with the result.

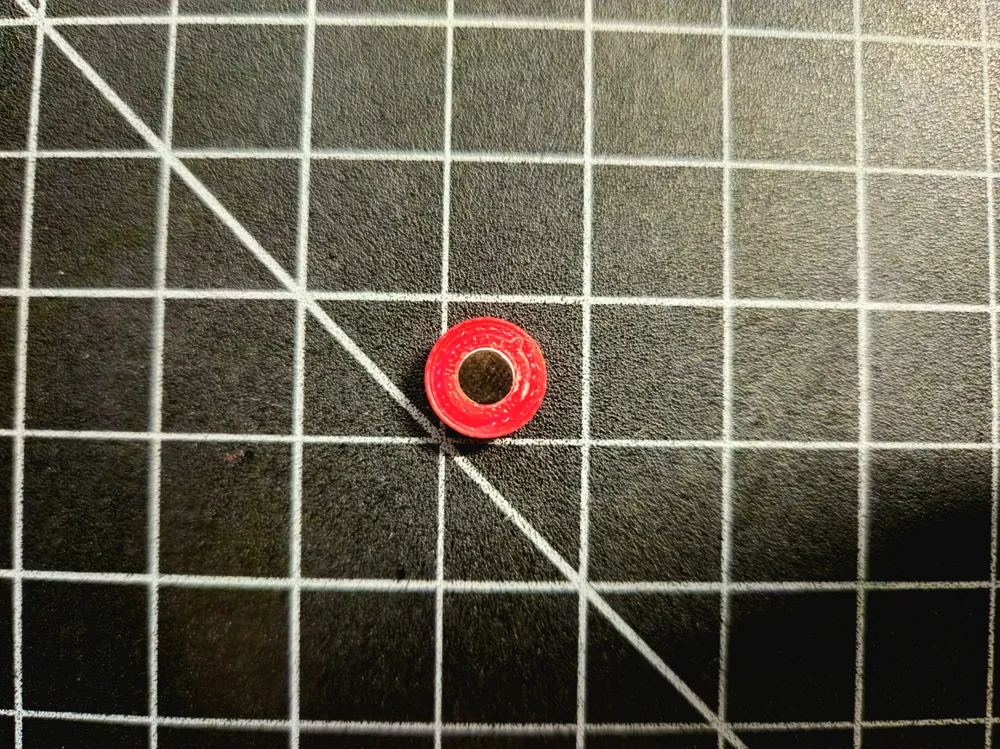

Use 3x1mm round magnets press-fit into the bottom face. The magnets stick to a metal plate on the face of the button itself, so polarity should not matter when attaching magnets.
The print is usable without supports but I printed with supports and used the Gray PETG as support interface to make cleanup easier, fit better.
