Homeracker - Small Hinge

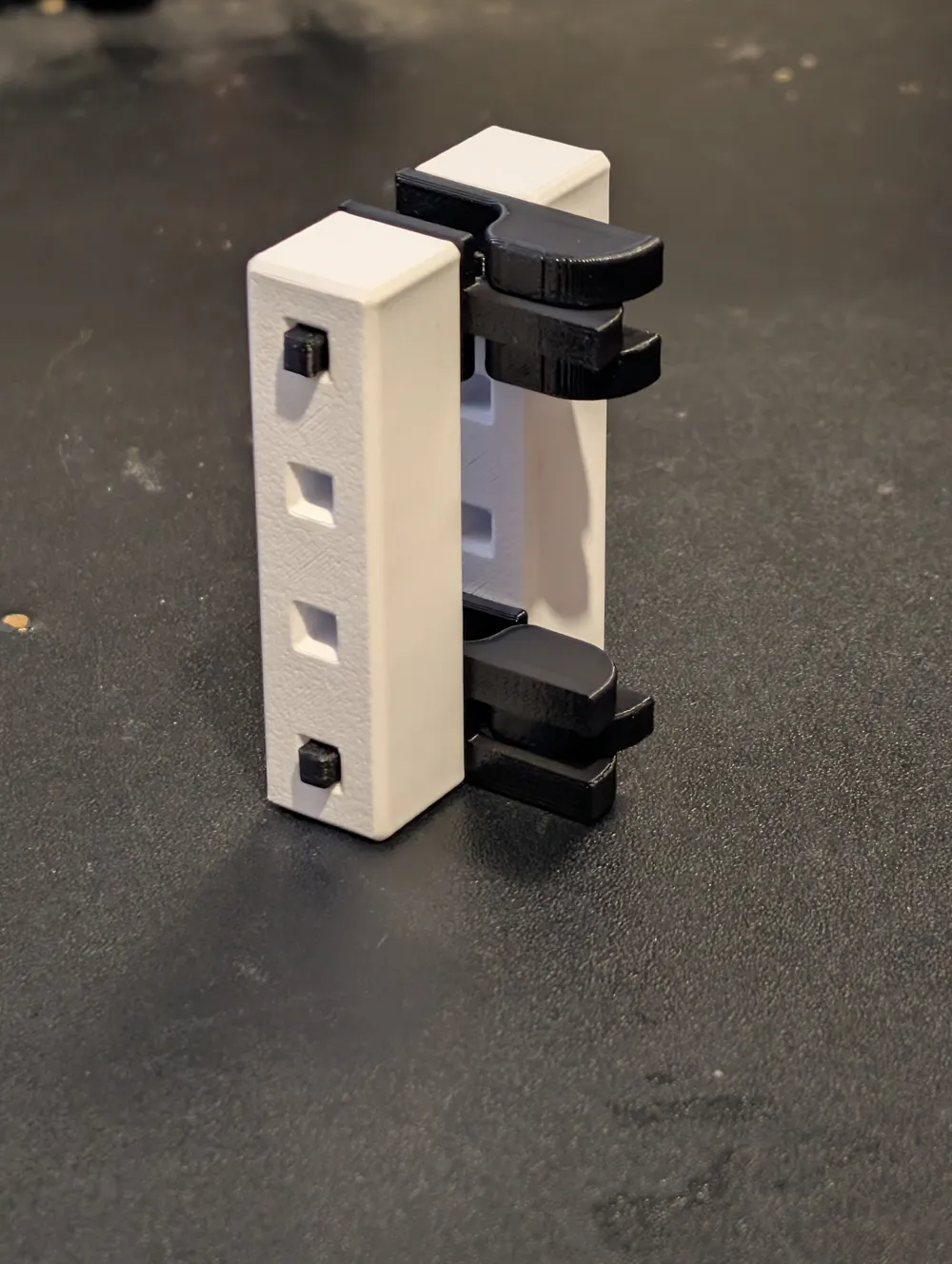

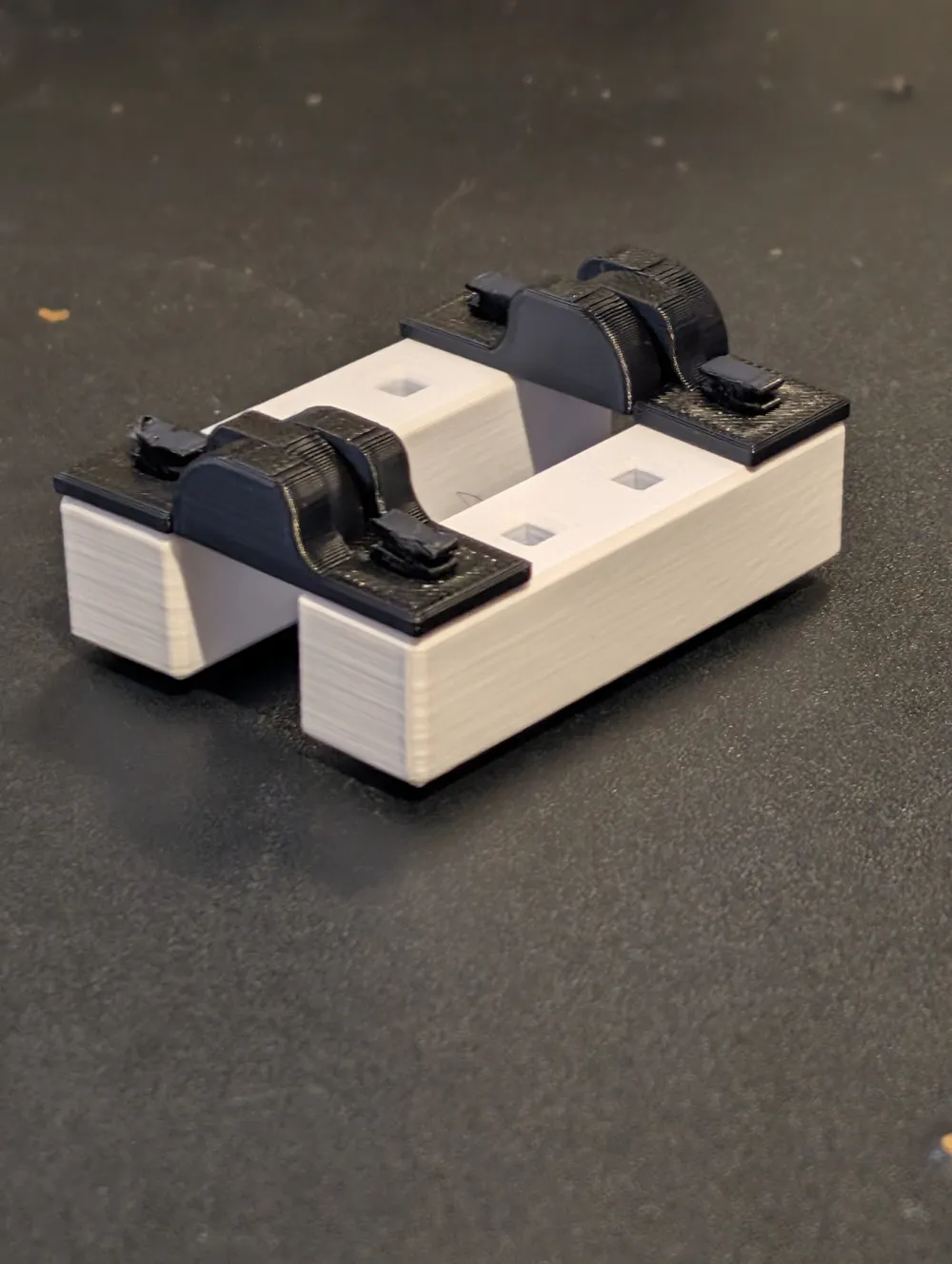

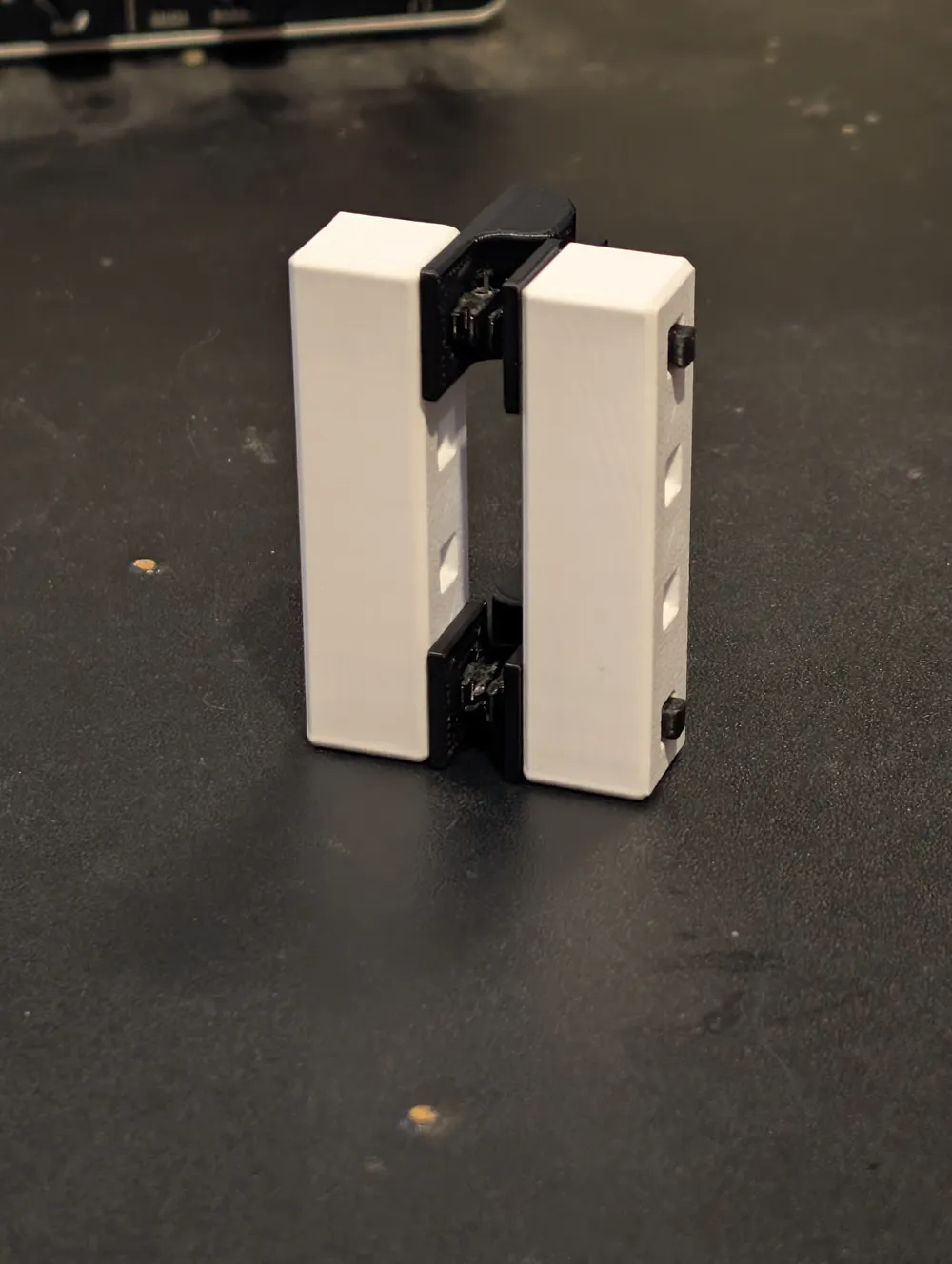

Fairly self explanatory, this is a hinge system for Homeracker (Thanks Keller, awesome system).

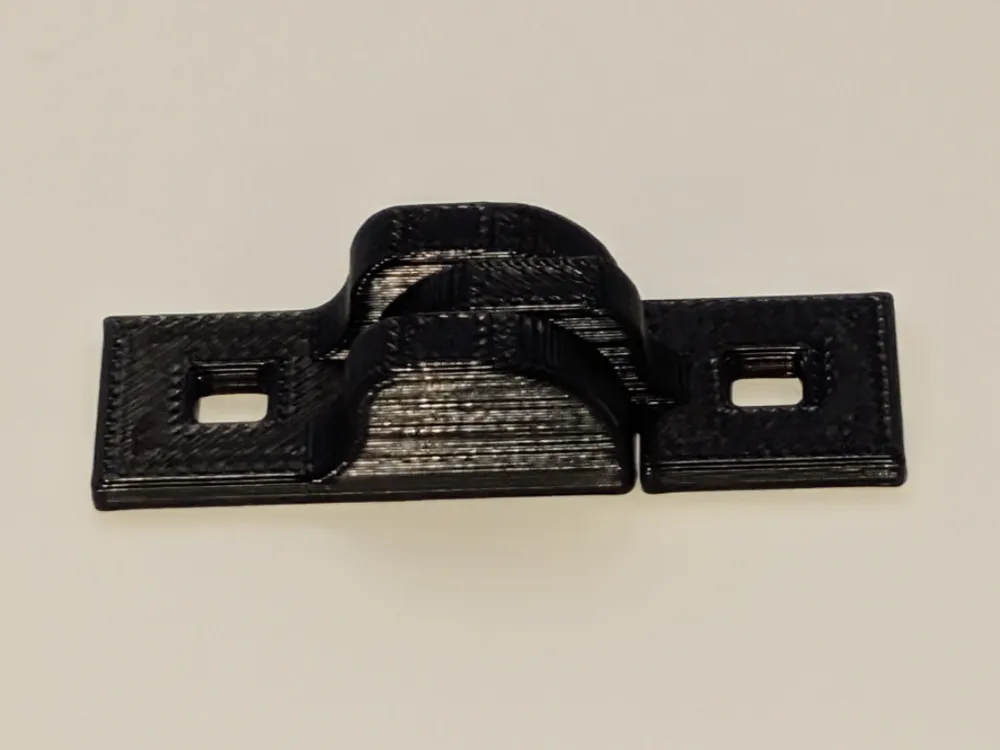

Base is 2mm to allow compatibility with existing locking pins. Having a small base on a moving part like this does create a weak point on the single hinge side if you attempt to bend the base the wrong way, hence the part where the hinge joins has been extended in such a way to reduce this as much as possible. It makes it much uglier, but increases the strength significantly. Print flat to the bed, The layer lines will make the hinge unsightly, but it's the only orientation where the hinge won't fuse and fail to move.

8 minutes to print (not including prep time) and 2.5g of filament using the standard print profile on my P1S. They're fast, cheap and they'll get the job done.

First model I'm posting, be savage in your feedback as I'm always looking to improve. Hope they help.
