Simple Tray Generator
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
Give me a boost if you find this useful!

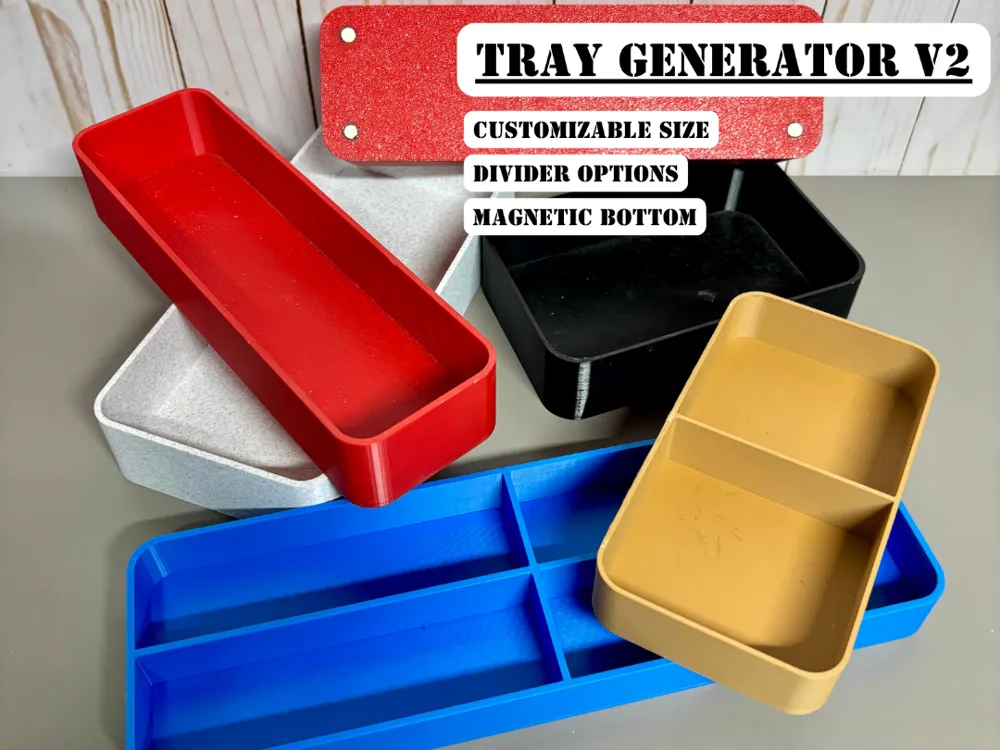

Update: Version 2
Trays with central dividers have been added

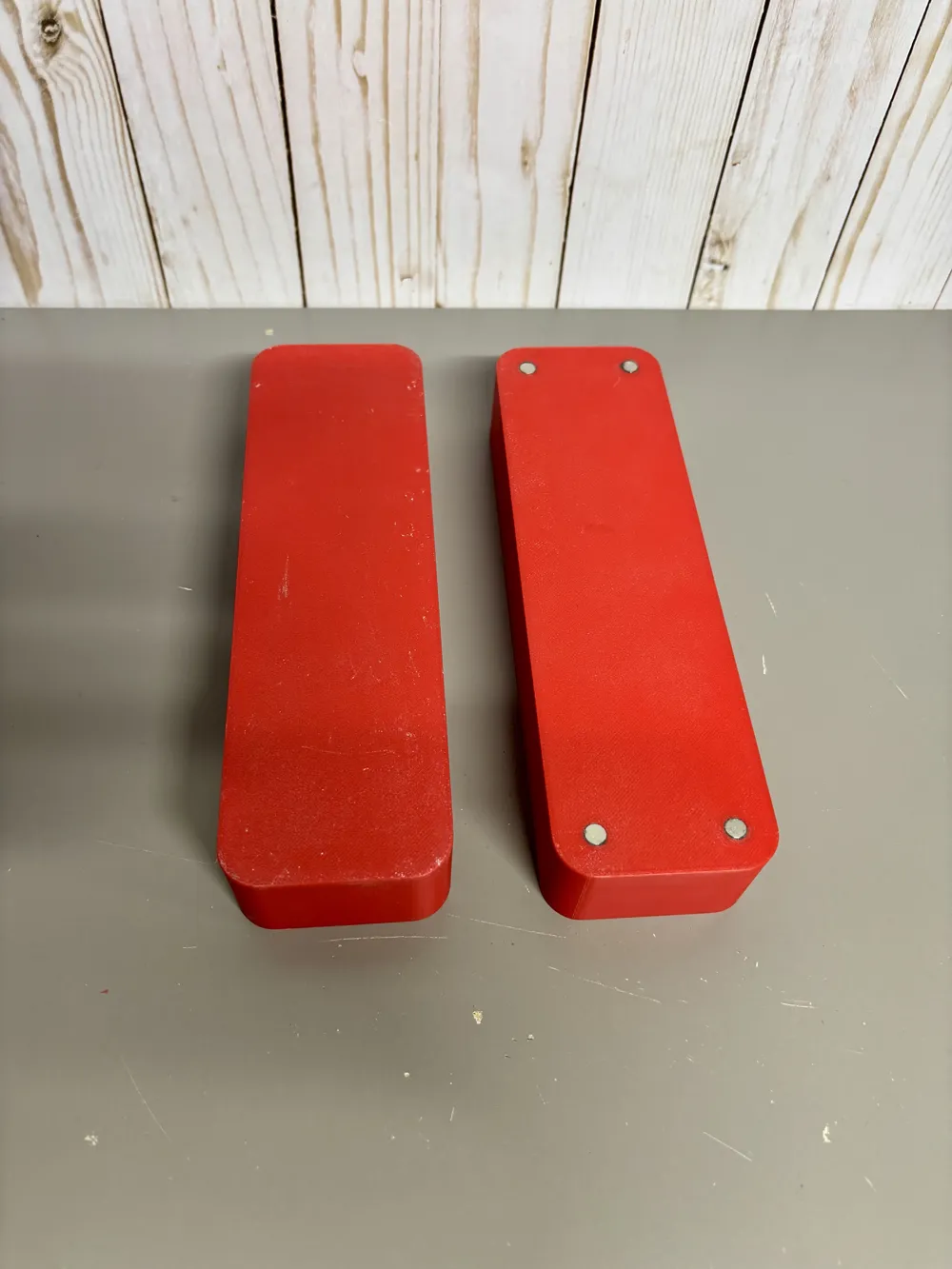

Pockets for magnets on the bottom of the trays are now available and customizable.

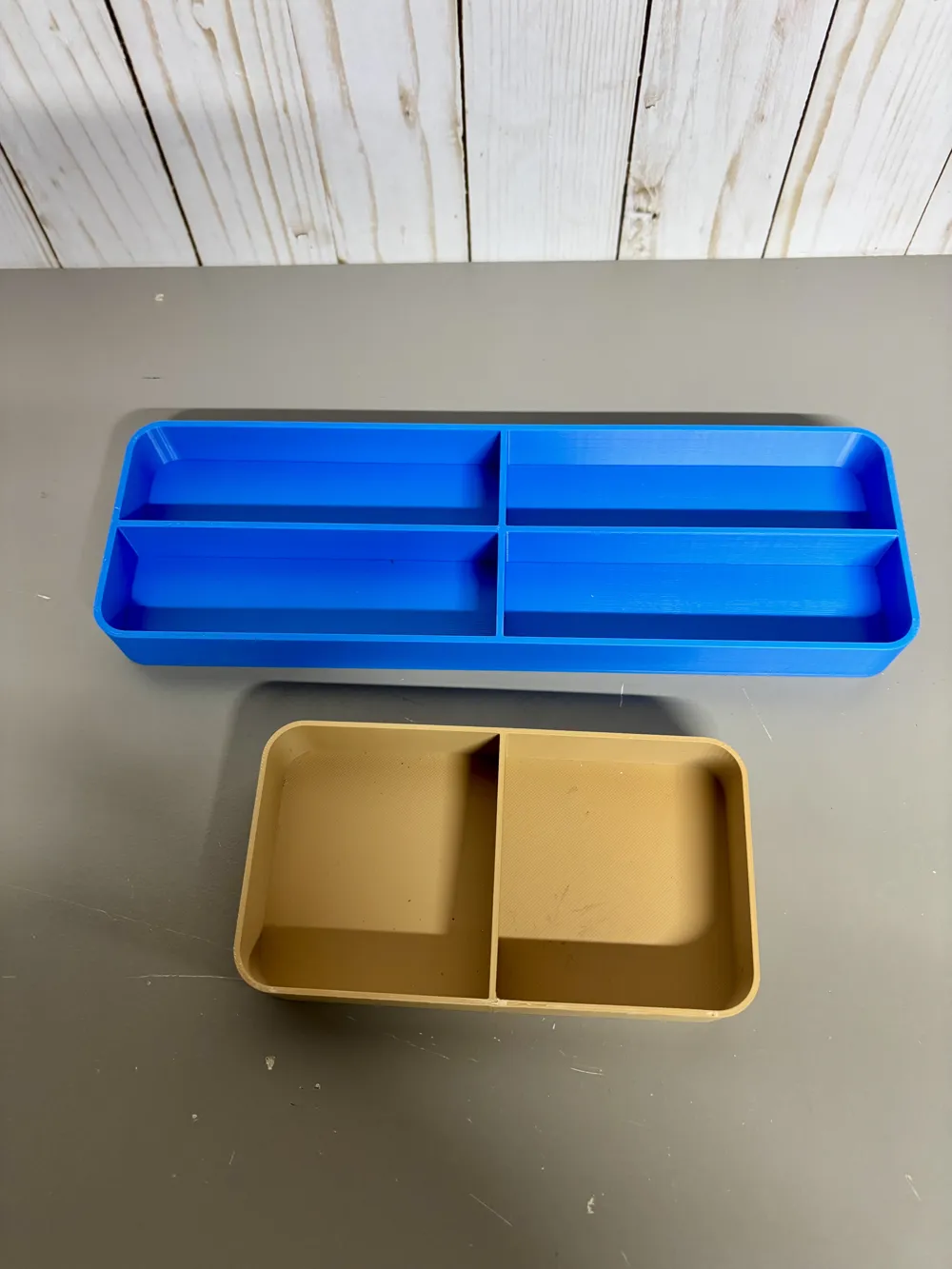

Divider options:
Tray - Central Divider length: Splits the length of the tray into two equal compartments.
Tray - Central Divider Width: Splits the width of the tray into two equal compartments.
Tray - Central Grid Dividers: Tray is split into four equal compartments.
Magnet note:
Magnets work best if glued in place
Oversize the magnet diameter by 0.011 in
Increase the depth of the magnet by 0.015 in for a flush bottom - no support required.

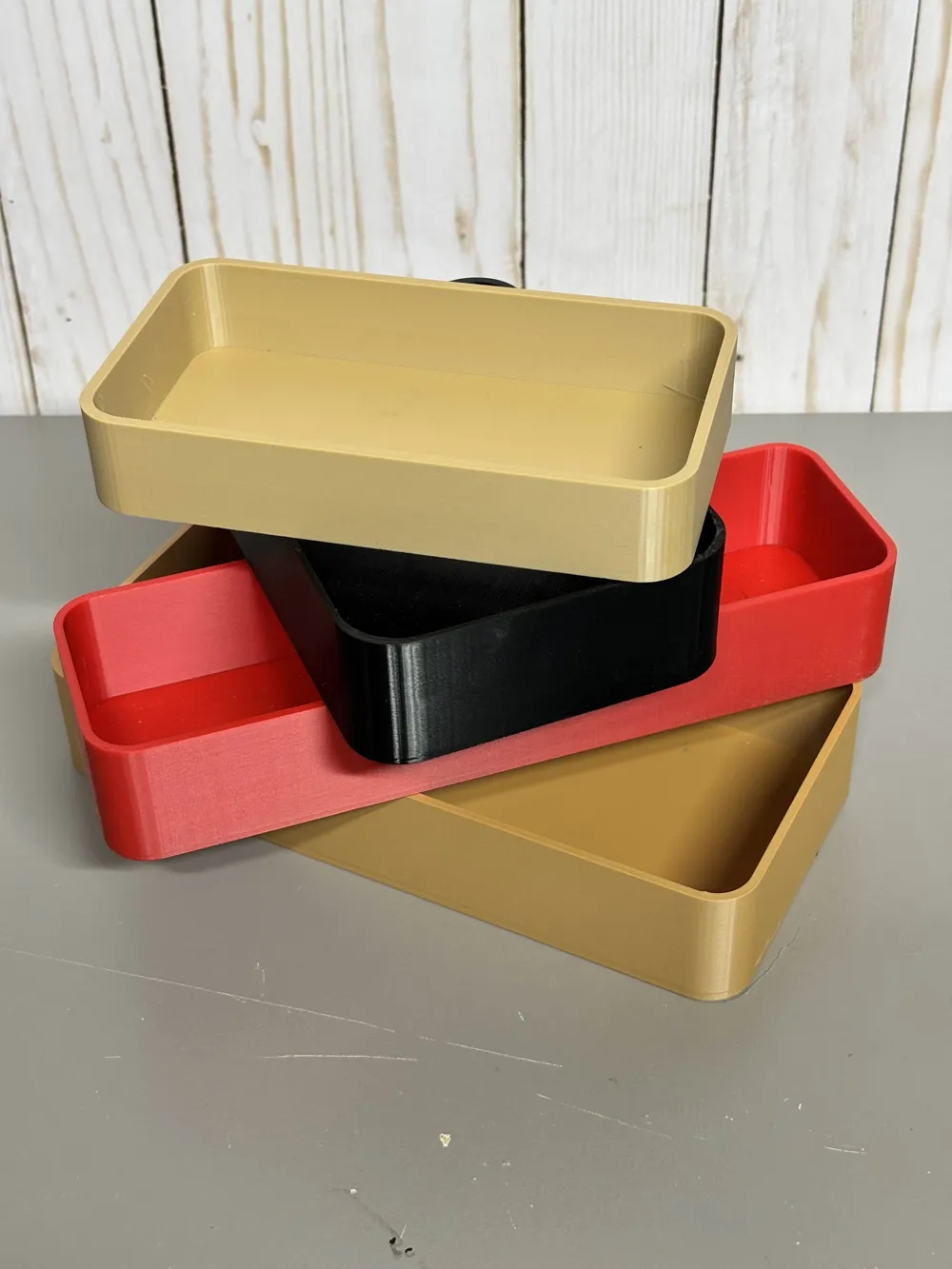

This is a simple tray generator. Use the 'customize' option to adjust the dimensions of the tray to suit your specific application.

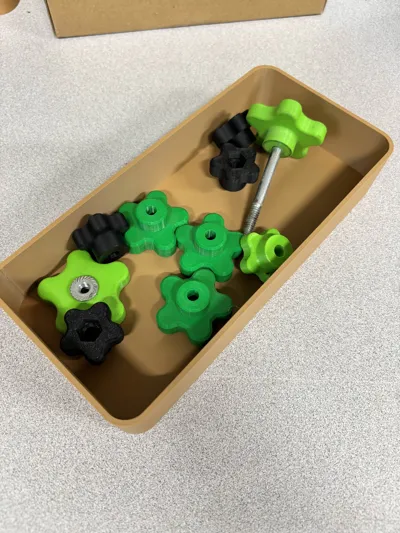

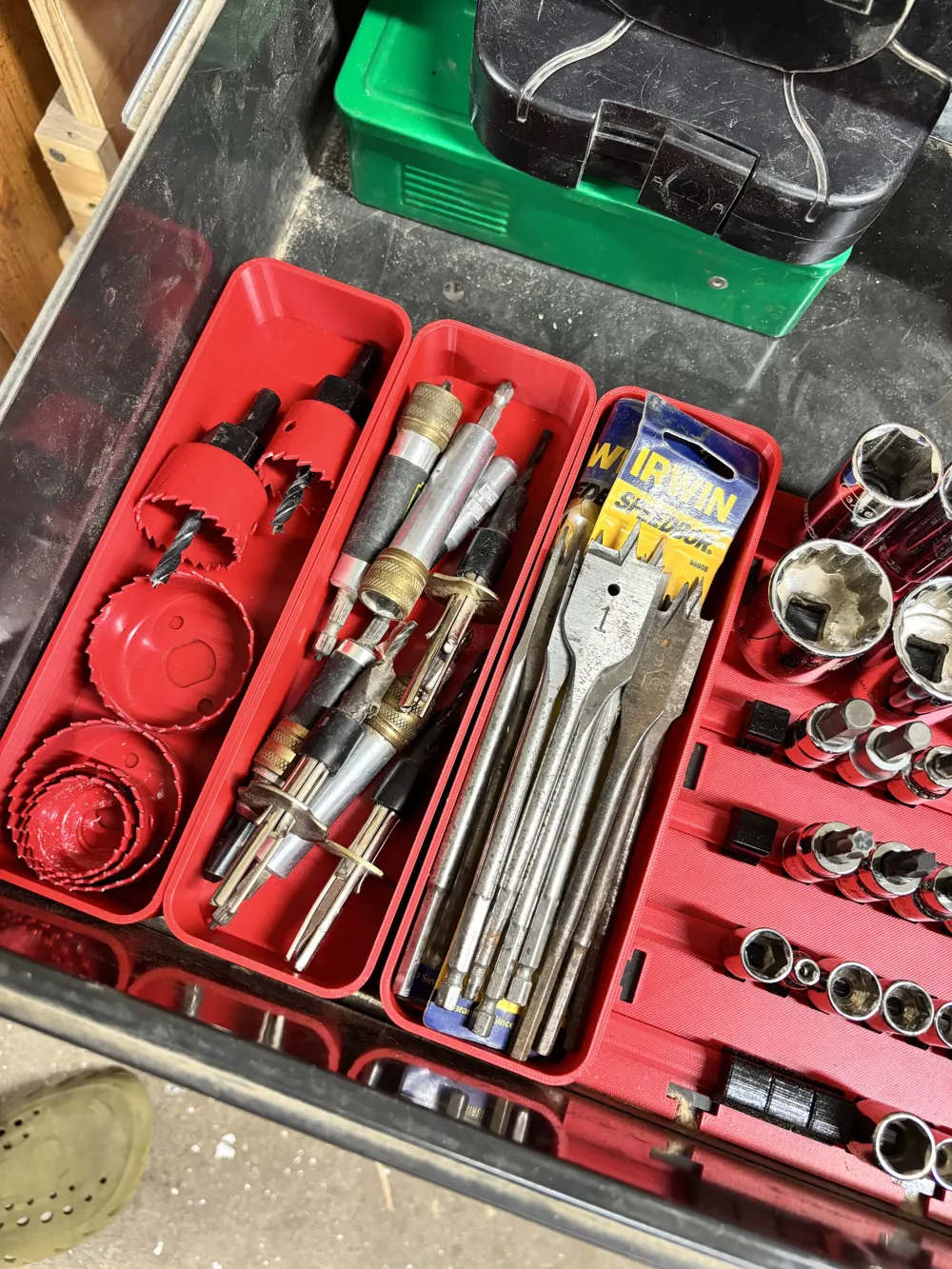

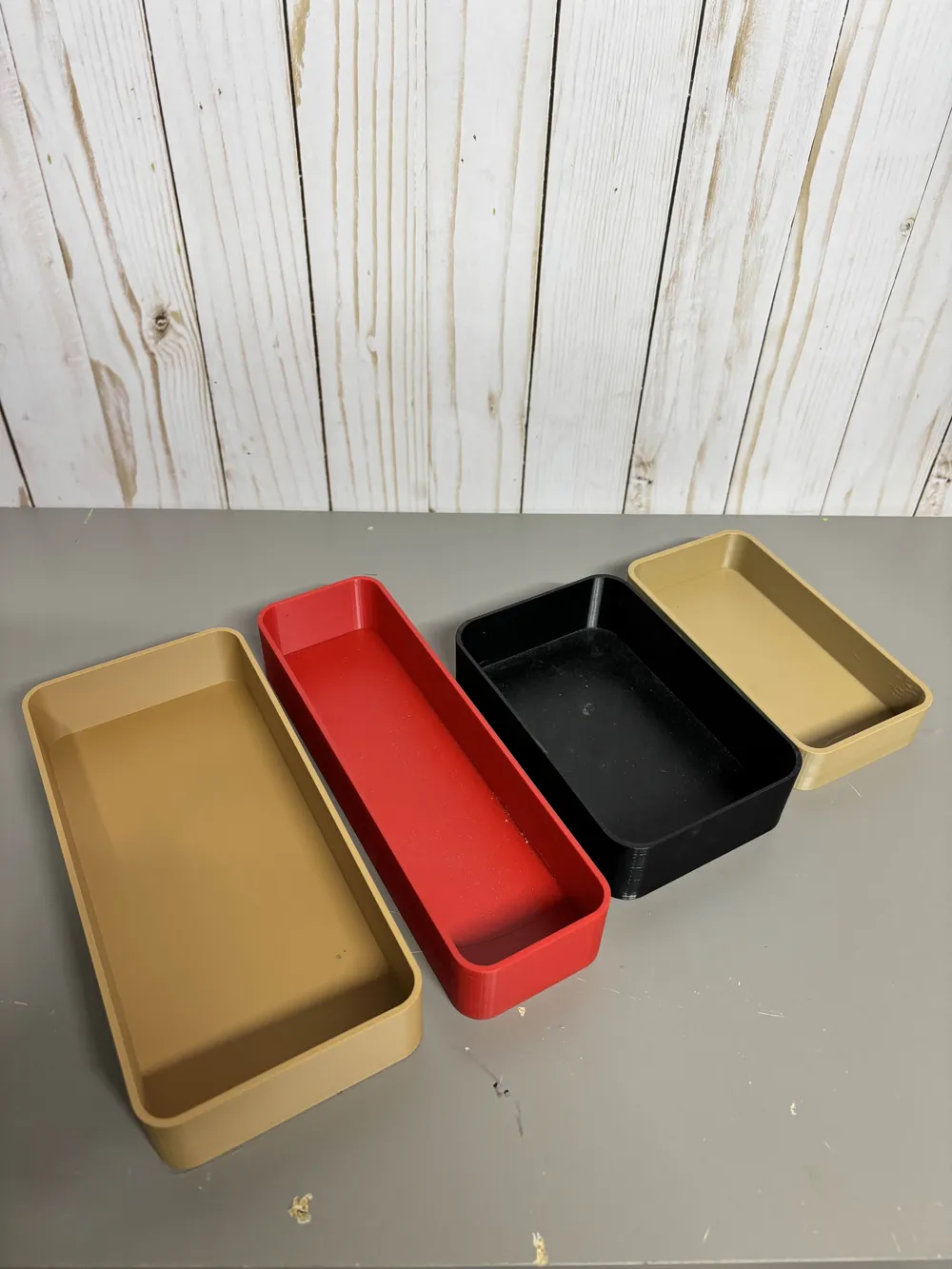

I use these trays to store anything and everything – 3D prints and other small parts, fasteners, drilling/driving bits, desk items, etc.
PETG and PLA both work great. The material choice depends on your application.
Layer height: 0.2mm
Infill: Gyroid 25%
Walls: 2
Note: Use 3 walls for a solid tray wall (no infill).

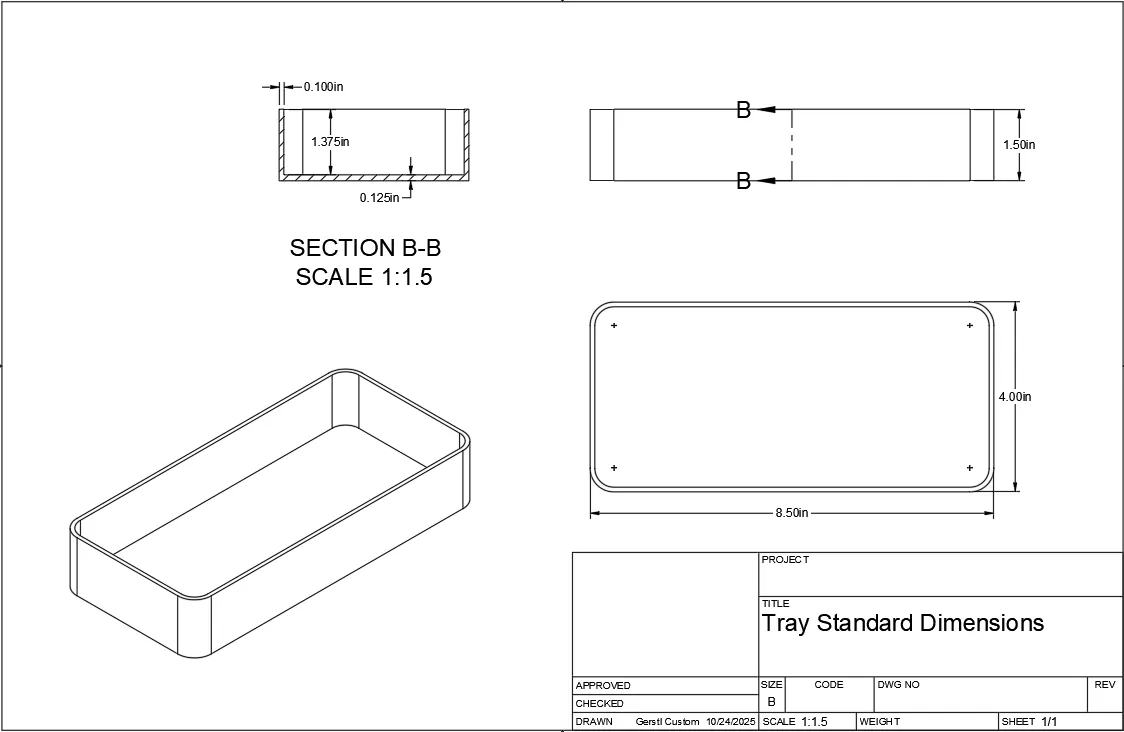

Standard Tray Dimensions (Outside):
Length (customizable): 8.50 in
Width (customizable): 4.00 in
Height (customizable): 1.50 in
Wall thickness (customizable): 0.10 in
Bottom thickness (customizable): 0.125 in

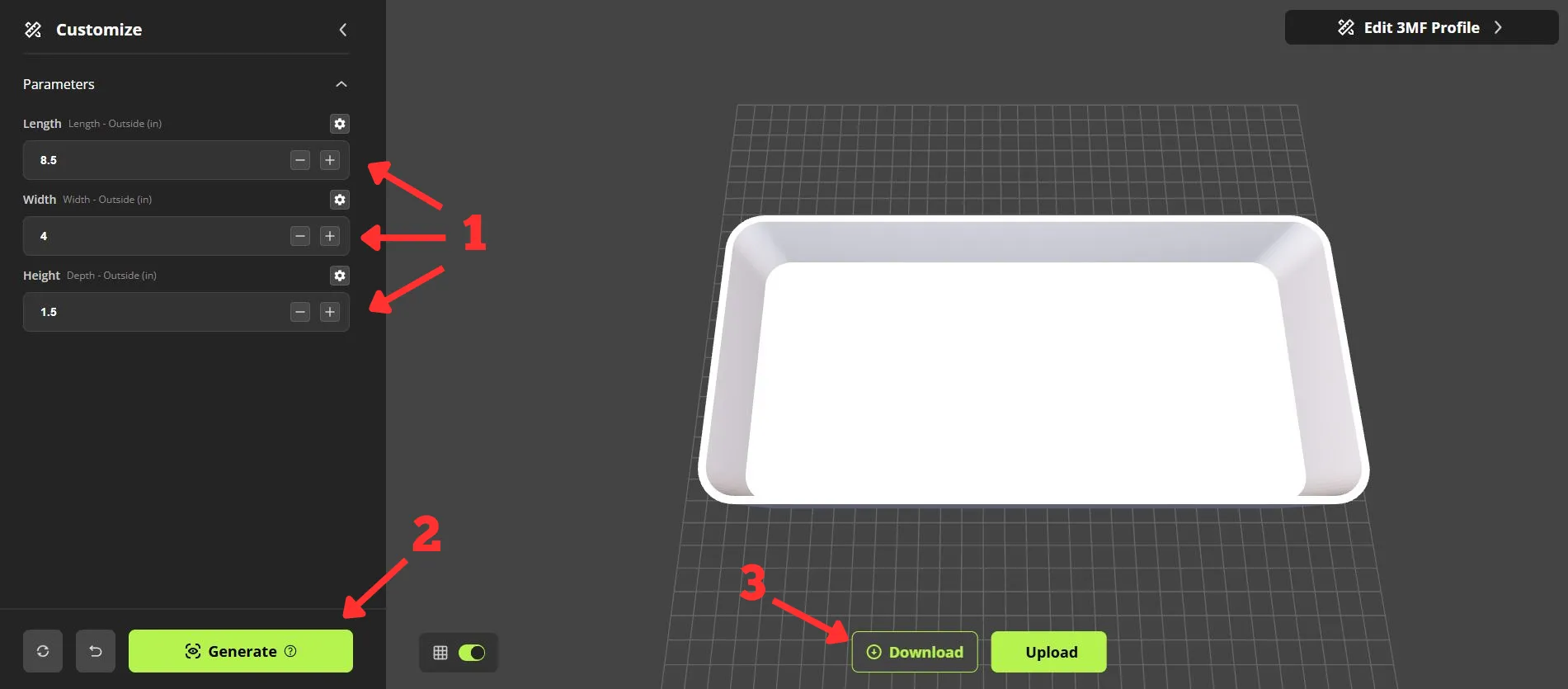

How to customize:
- Input desired dimensions - In INCHES
- Click generate
- Download the model once it has been generated
