Module Stroller Caddy System

Every time you leave the house with your little one, you need something different. Today maybe it's your phone and an energy drink, tomorrow it's enough snacks to feed a small army and three different soothers. You never have enough hands on the best day, let alone when you're pushing a stroller. That's why I've designed the Modular Stroller Caddy System.

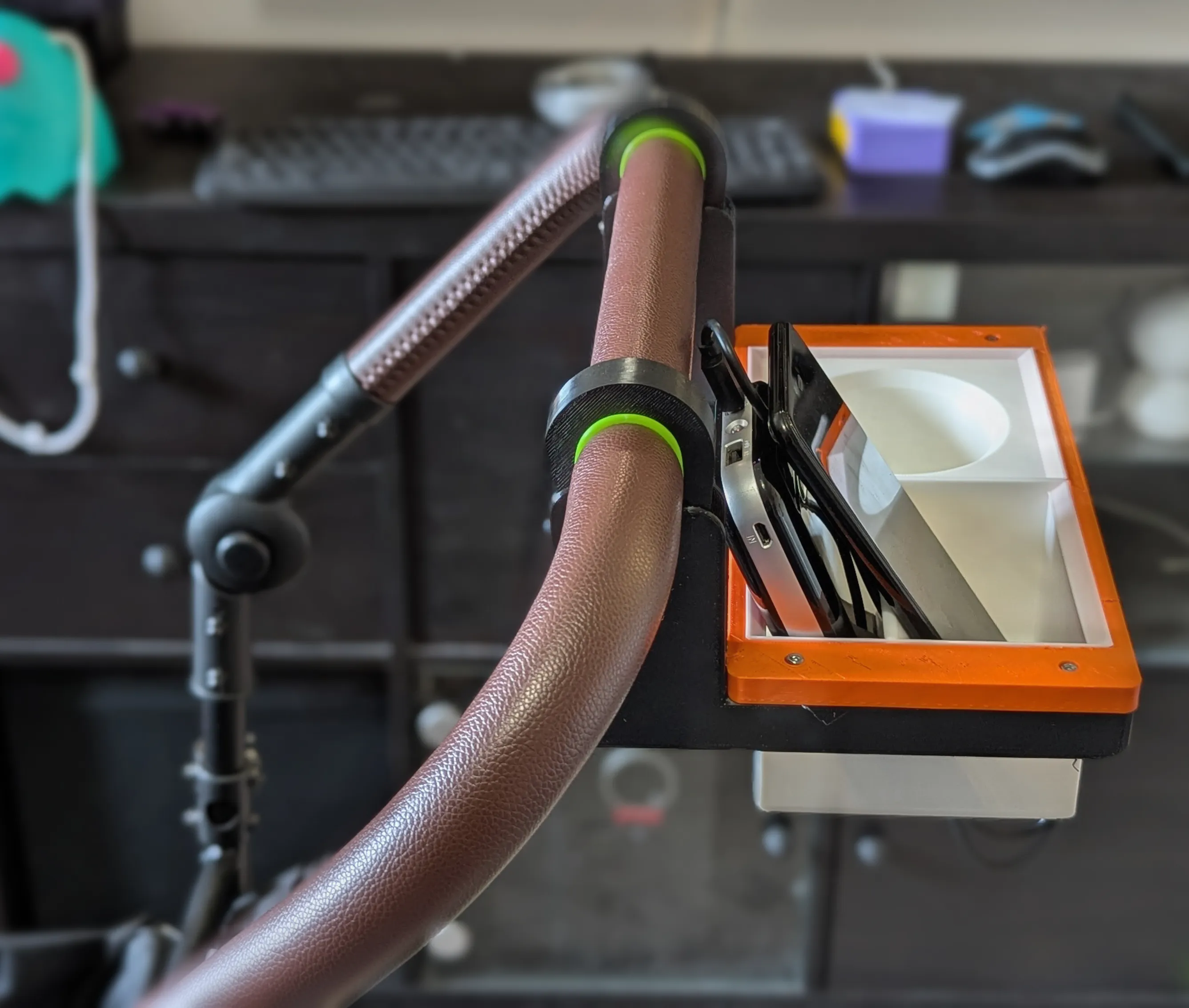

This modular stroller caddy system lets you create your own ideal storage setup for your pram or stroller. It clamps on to the strollers handle bar using 2 or more of the included bracket clamps. You then attach either the narrow or wide frames and drop in your caddy bin of choice.

You can even reverse the claps depending on where is most comfortable for you to have the bins.

This release includes 7 inserts:

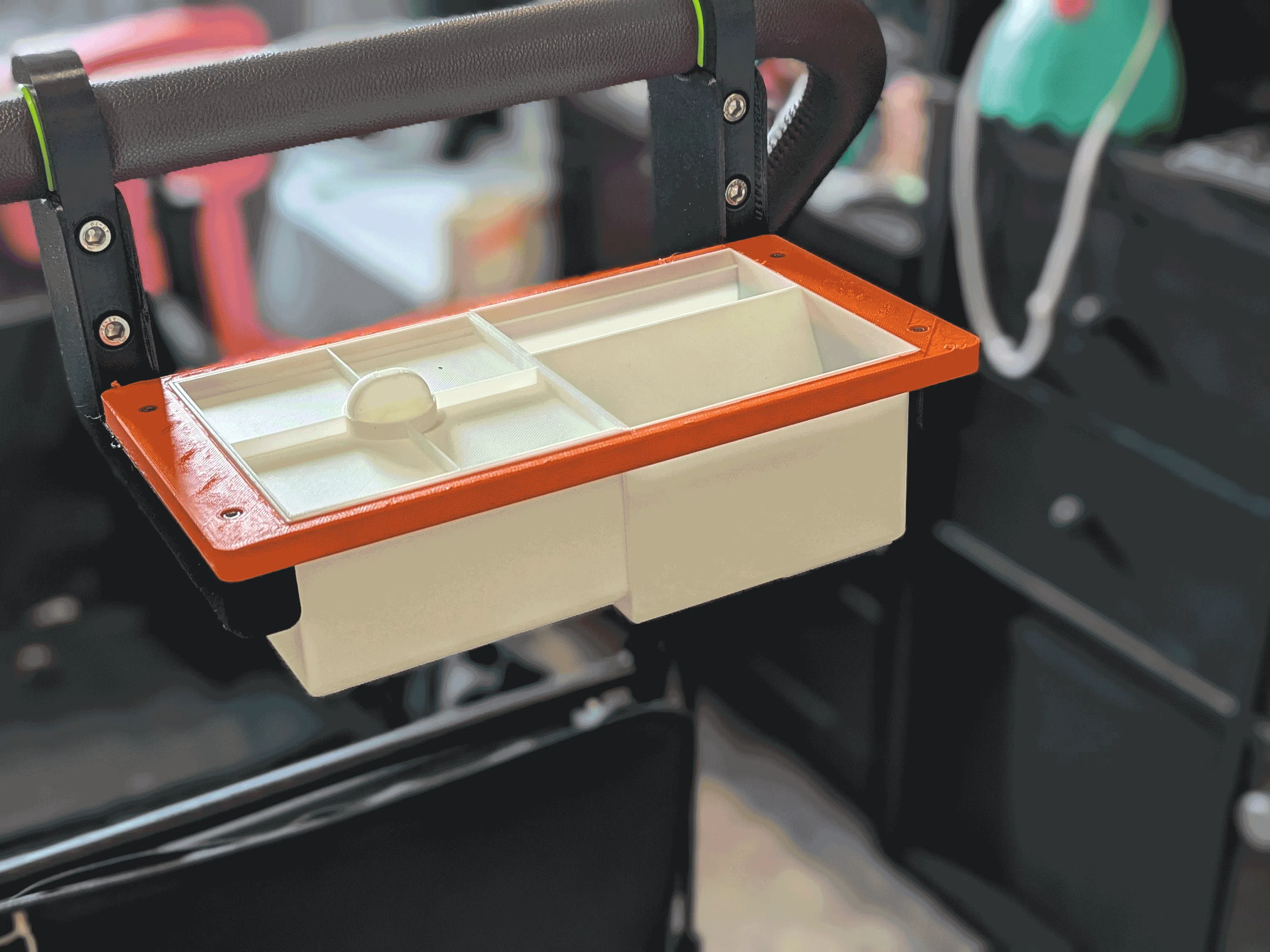

• Both narrow (50mm) and wide (100mm) bins in shallow (50mm) and deep (100mm) versions. Lids for both bin widths are also included

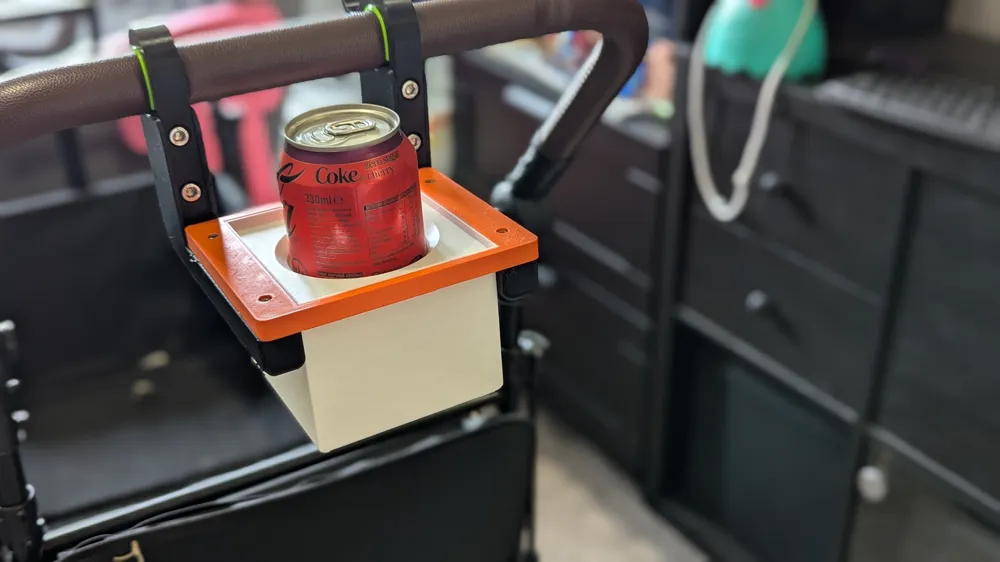

• Cup holders in two version—a small/medium version for slim and standard cans, and a large version for stanley cup sized bottles and drinks

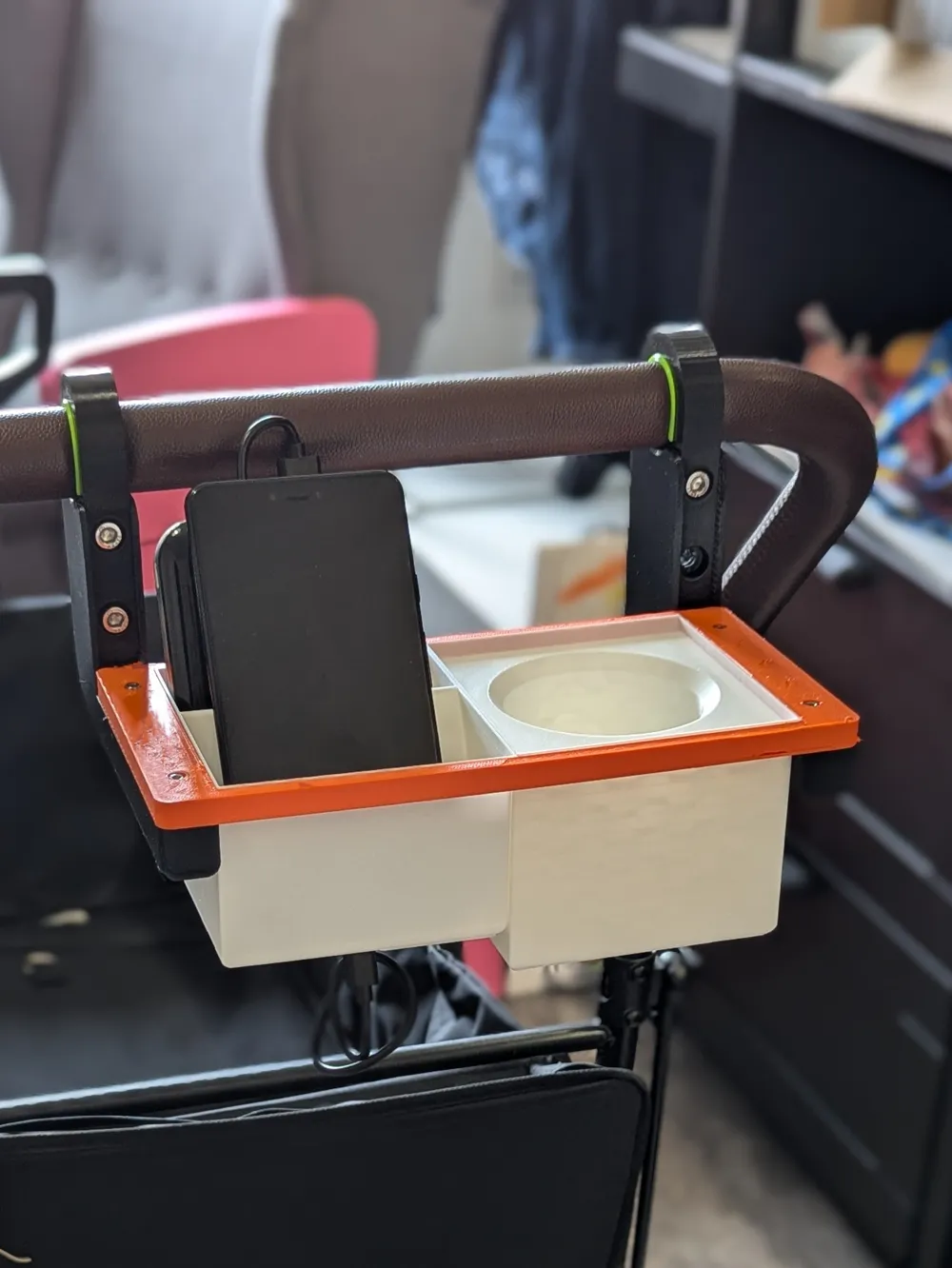

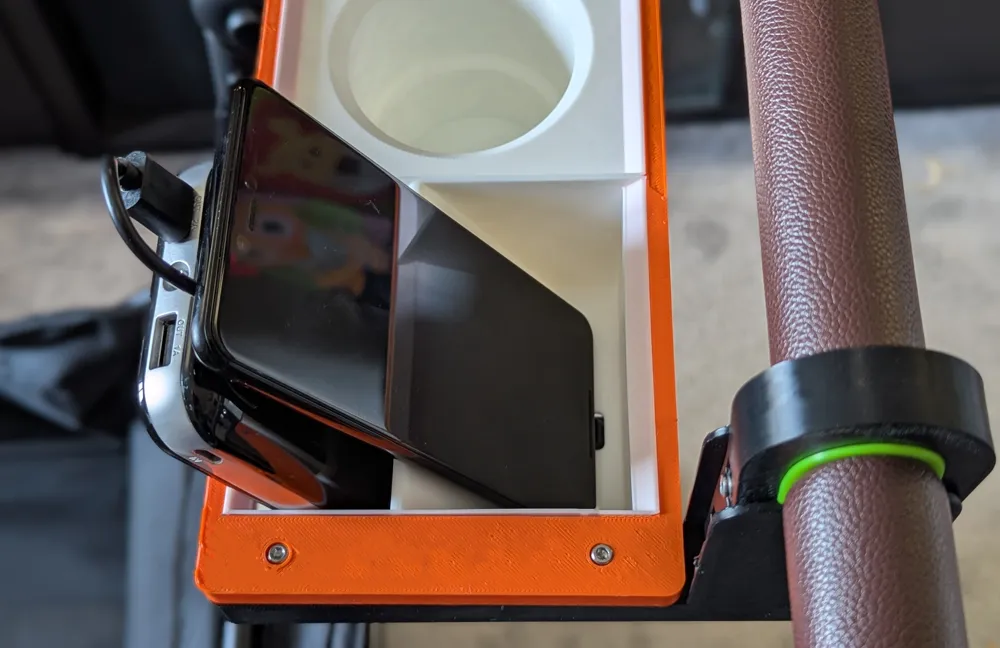

• A phone holder insert that includes a rear compartment for accessories and battery packs, plus cable routing so you can charge your phone on the go

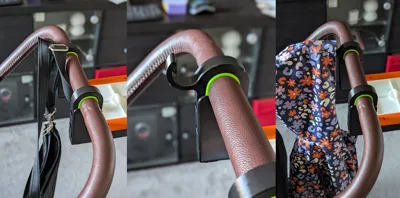

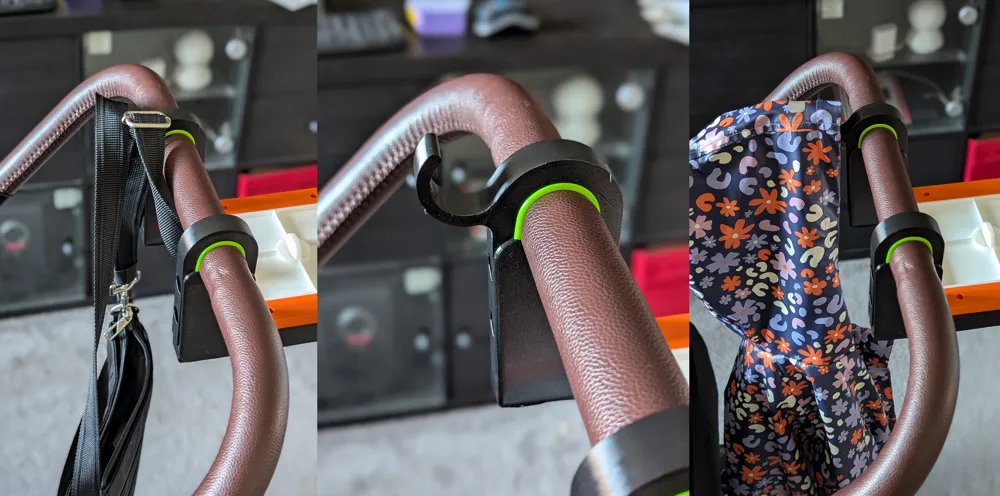

It also includes two different versions of the upper mechanism of the clamps/arms. The second version features a hook perfect for carrying small coats, handbags, or shopping bags.

Printing and assembly notes:

• Make sure the PETG is bone dry before printing or you make get pillowing on the flat surfaces of the clamps
• The clamps are designed to have the bolts facing away from the arm
• Make sure you have the right length bolts to avoid any protruding metal. The sizes and tolerances are carefully designed to make this print as safe as possible to have on a stroller
• Depending on the material your strollers handles are made of, you may find it difficult to get a solid clamp. You can simply tie some elastic bands around the handles before fitting the clamps, or use the included TPU grip improvers (which can be cut to length)

More inserts are to come and I'll happily take suggestions. I've also included the .step files of all the parts so you can make your own inserts too.

For this system, you'll need some hardware not offered by Makers Supply:

• 2x m6x40 bolts per clamp
• 2x m6 nuts per clamp
• 4x m3x25 bolts per frame
• 4x m3 nuts per frame

This is a Zero AI Project. Made by humans, for humans. No generative or large learning model based tools were used in the design or modelling of this project. All photographs are taken by myself and the only editing performed is cropping, composing, animation, and/or adjusting levels and balance for optimal accuracy to real life
