L-Boxx Mini organizer for Bosch Go2

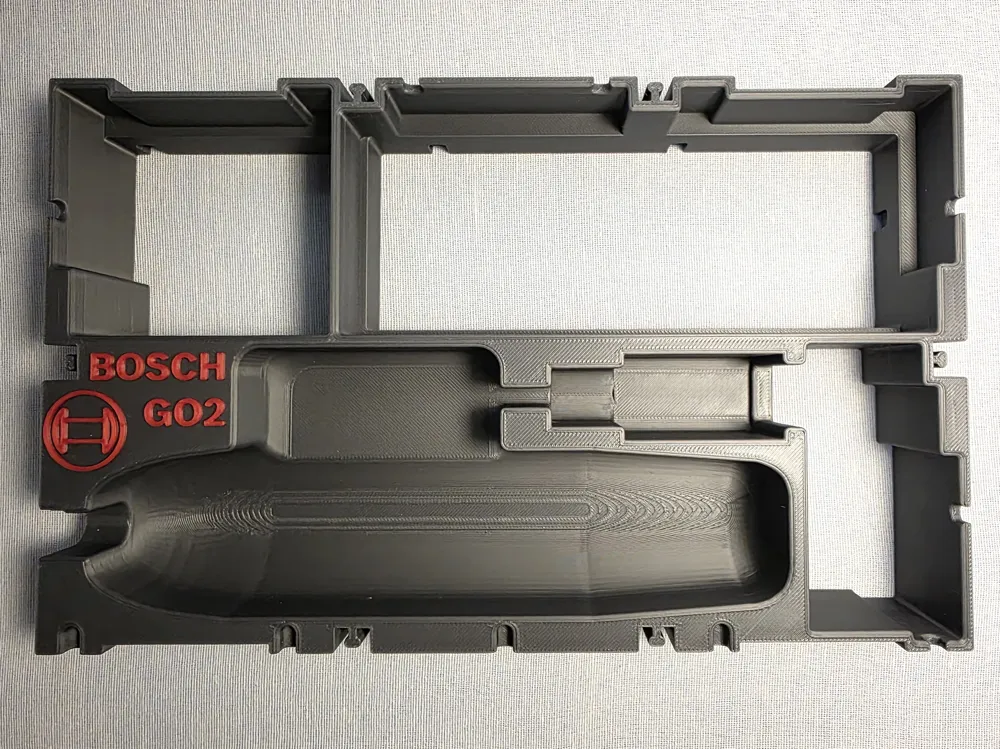

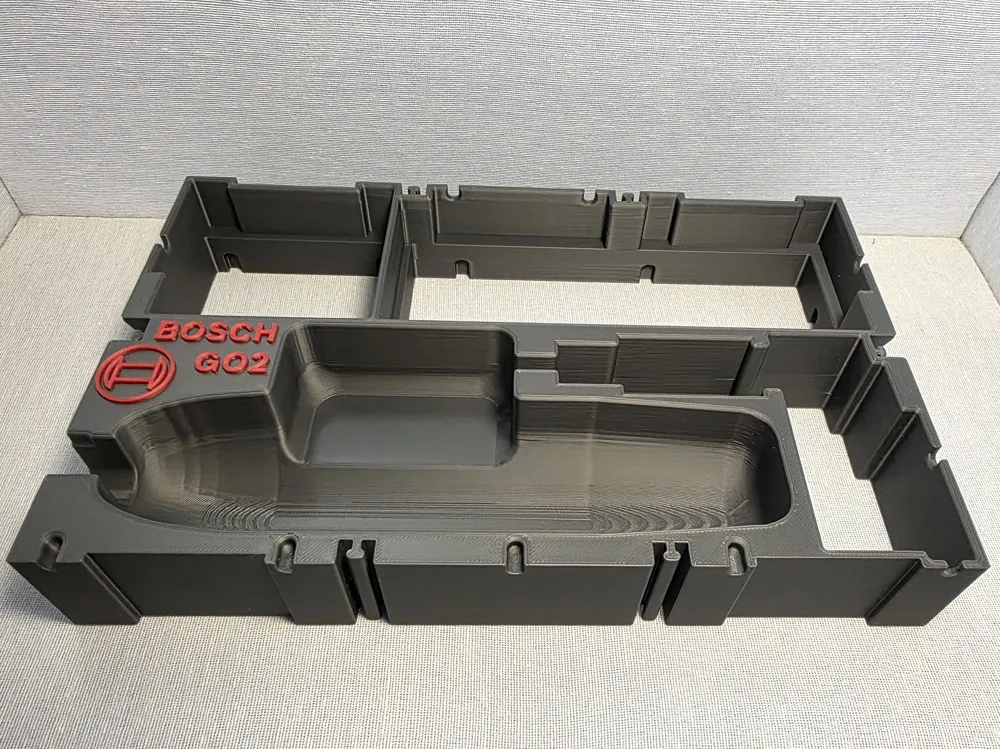

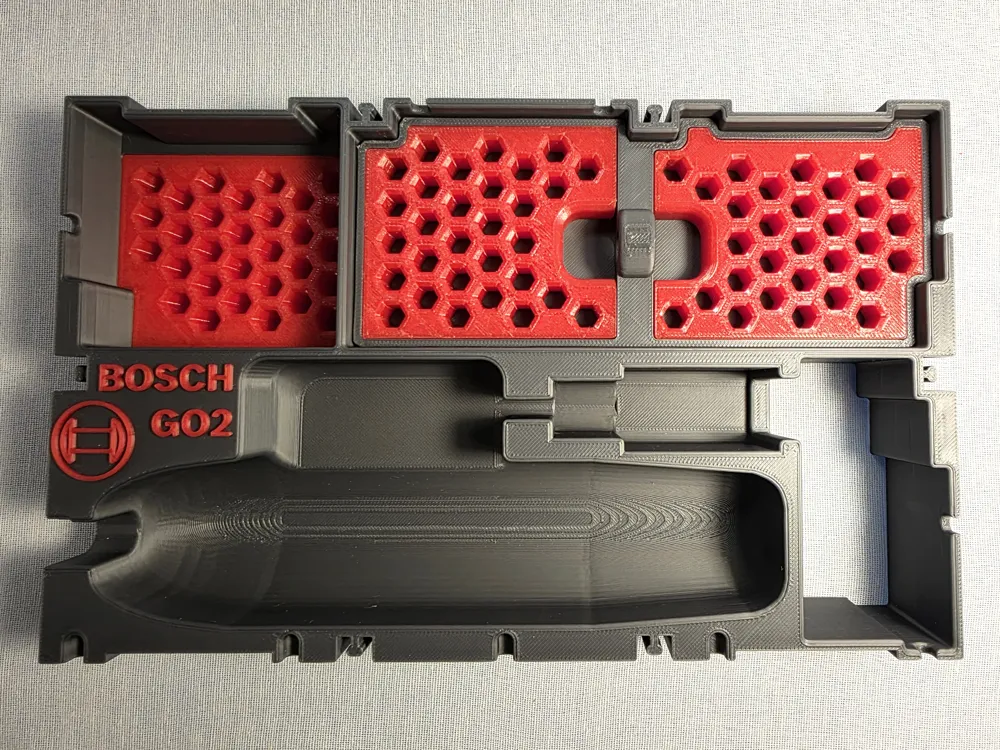

I designed an organizer for the BOSCH GO2 electric screwdriver.

The organizer is designed to fit in the original, standard L-BOXX mini.

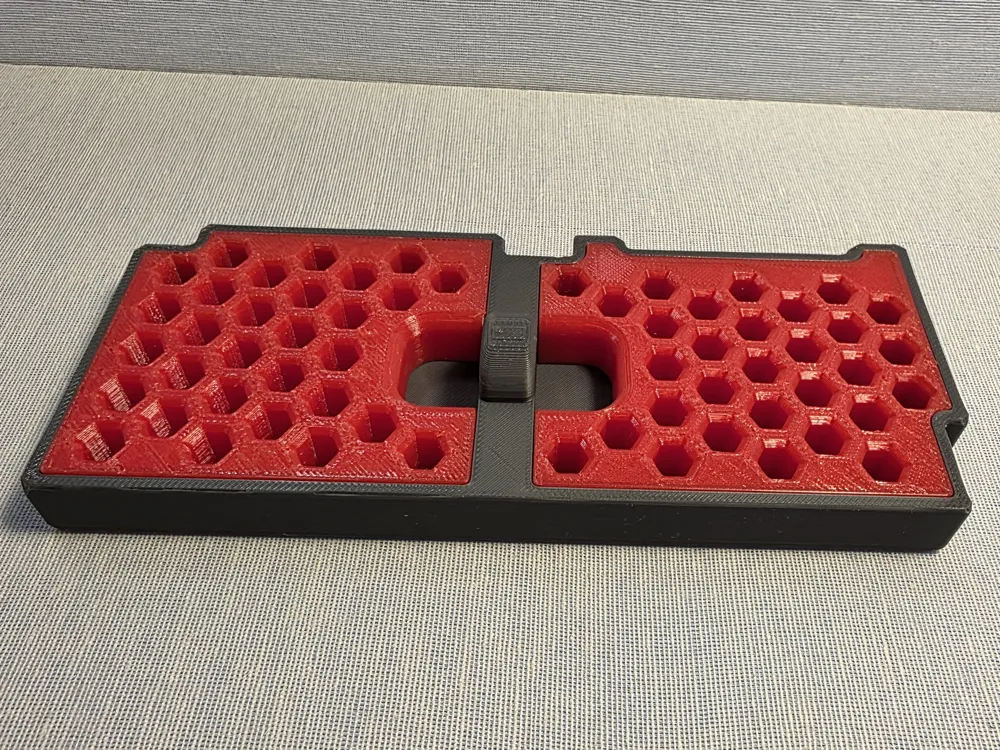

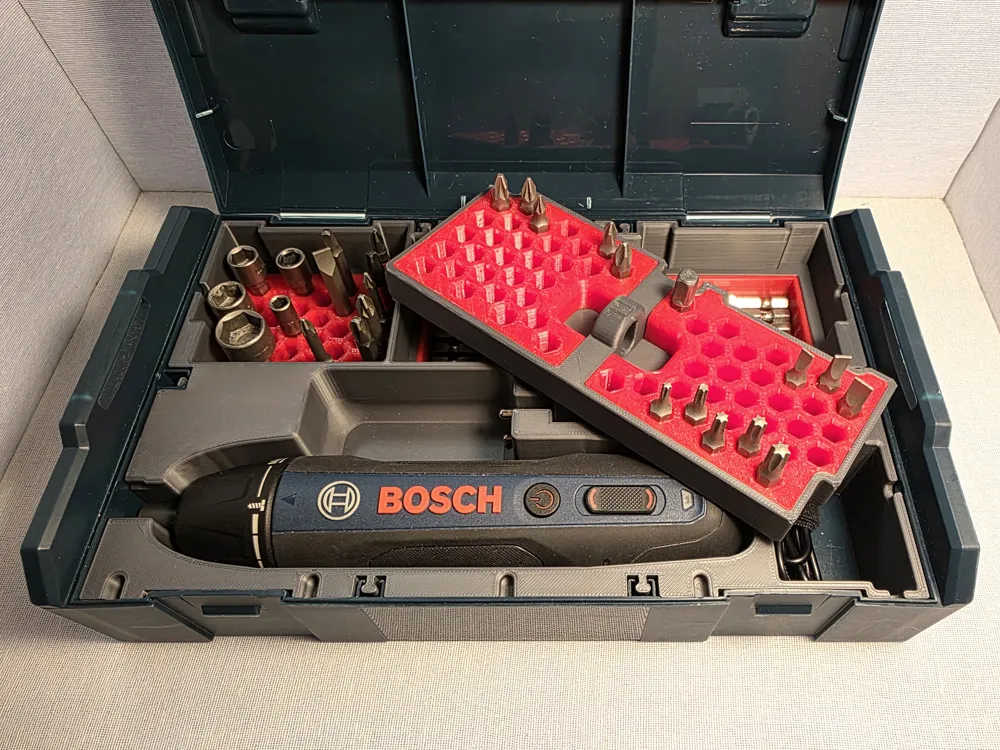

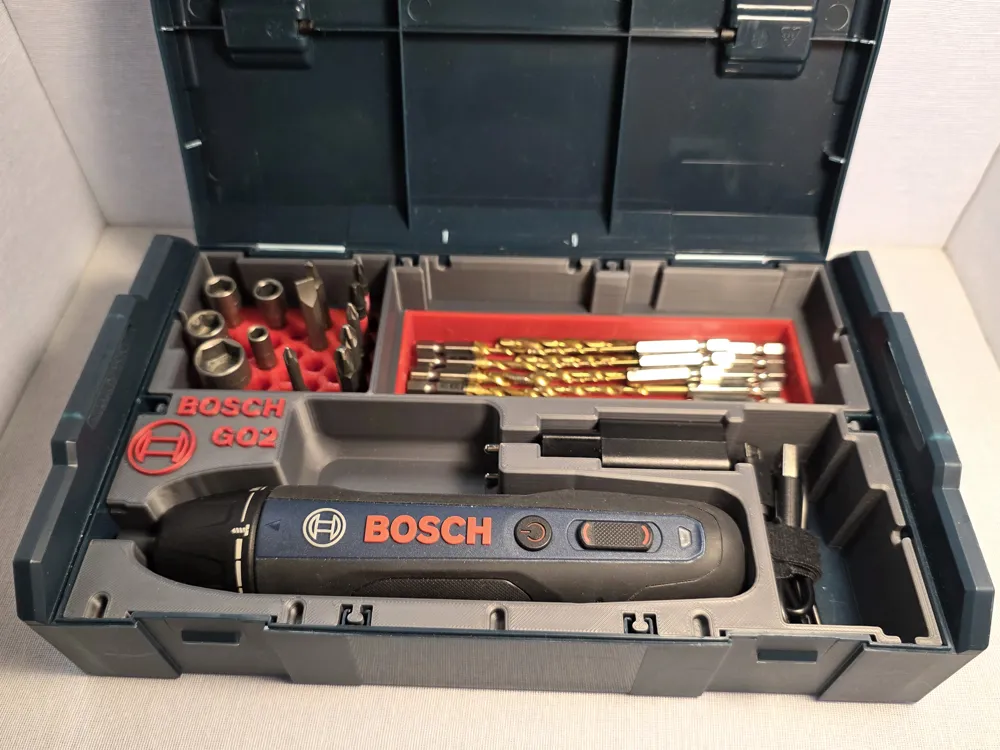

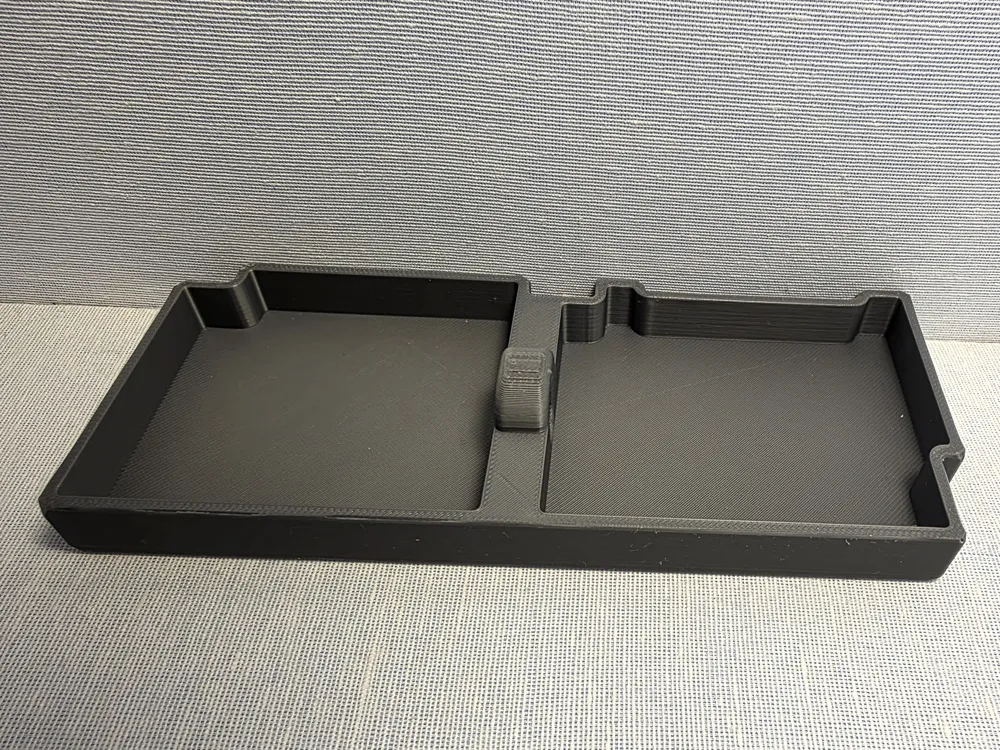

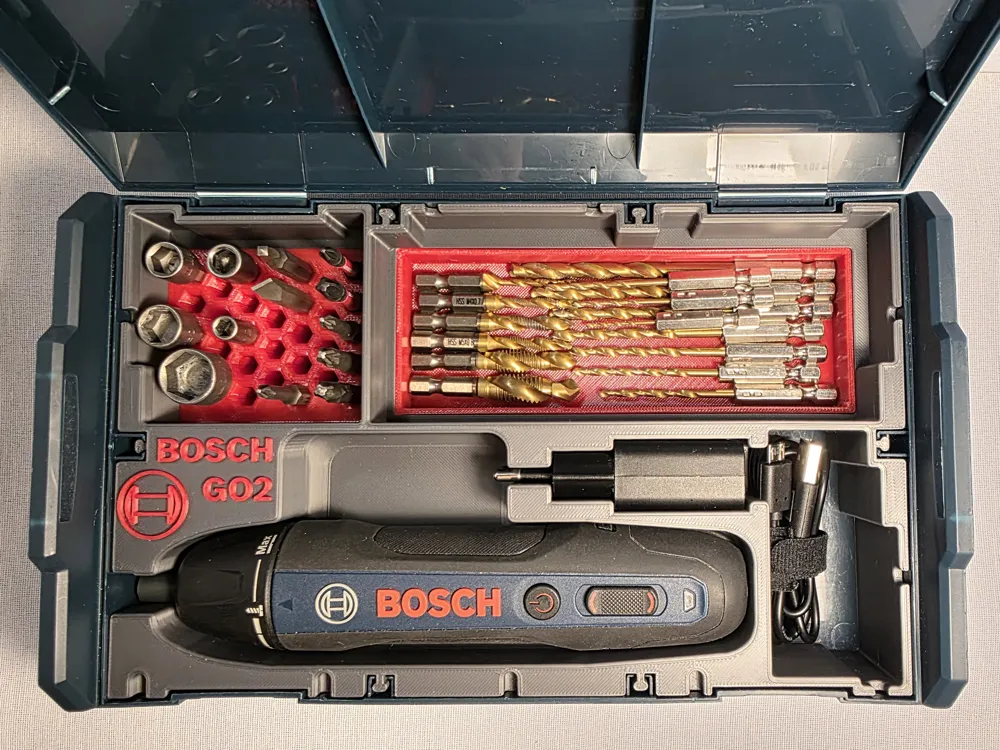

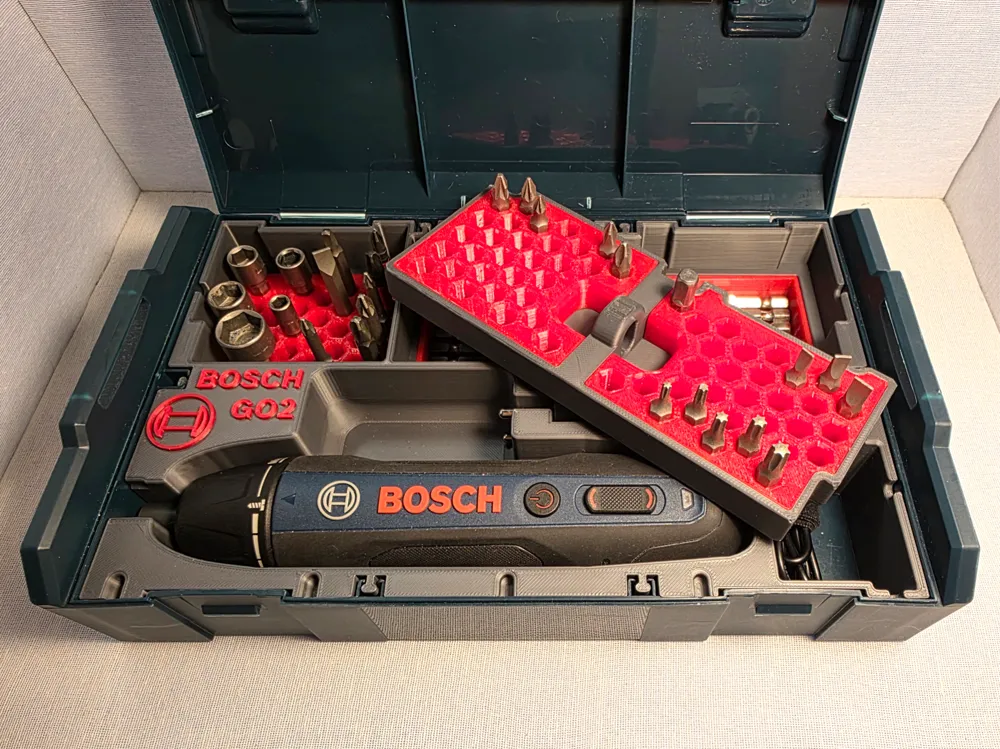

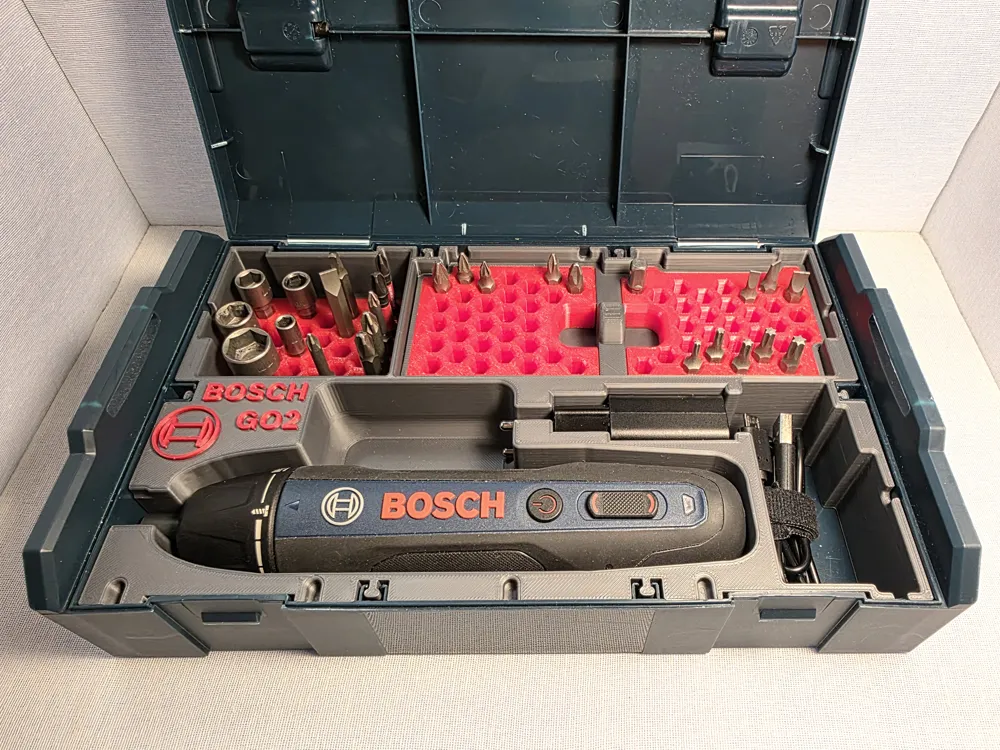

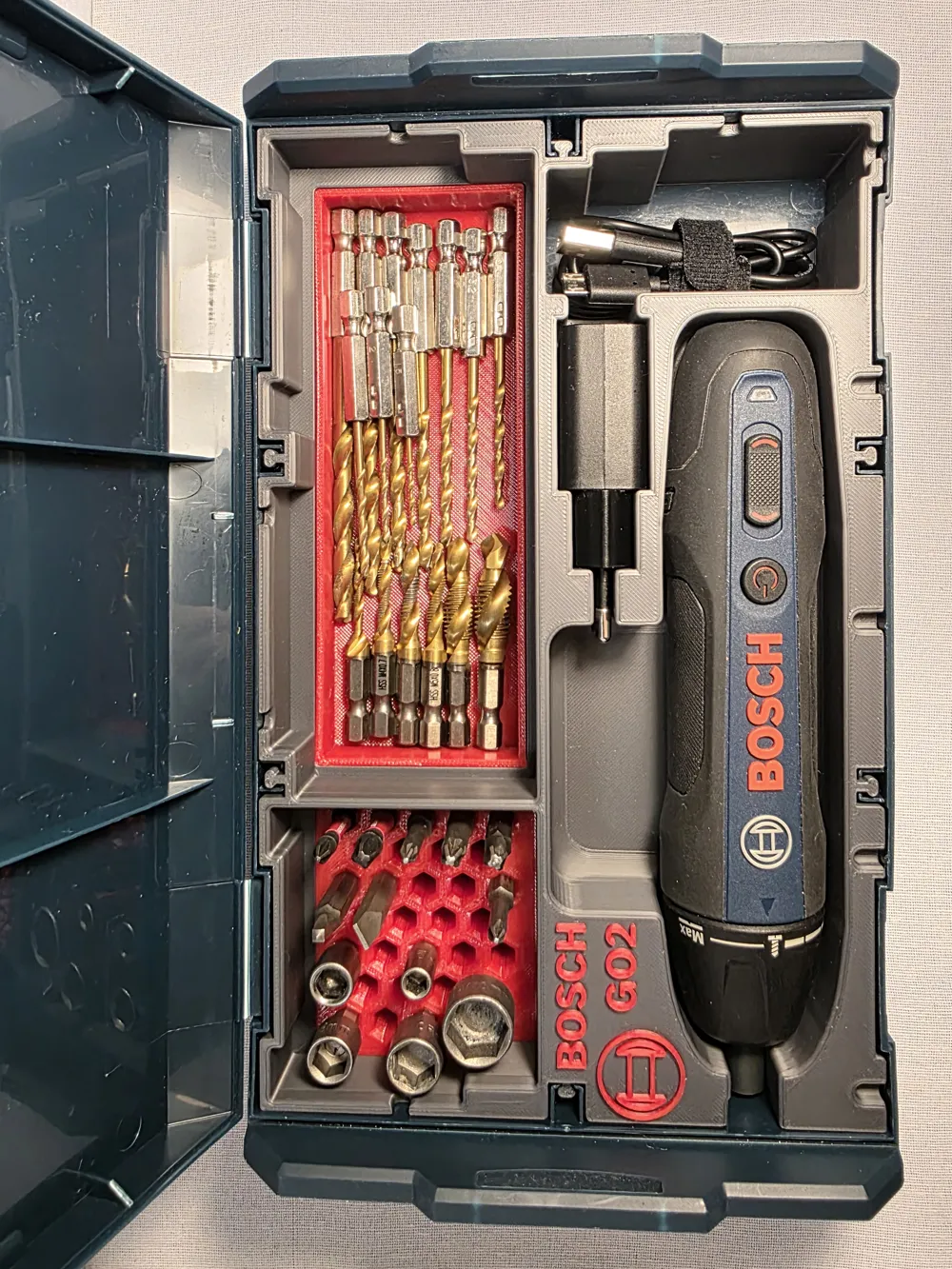

In the front, I have provided a place for the electric screwdriver, power supply and charging cable. In the back is a place for BITs up to 50 mm long, a place for drills or other things up to 145 mm long and above of this a tray with places for BITs with normal length.

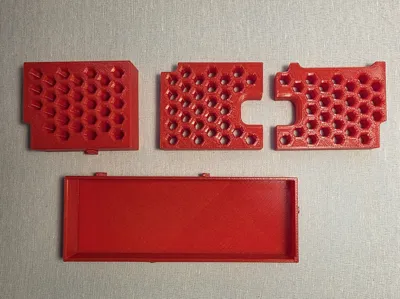

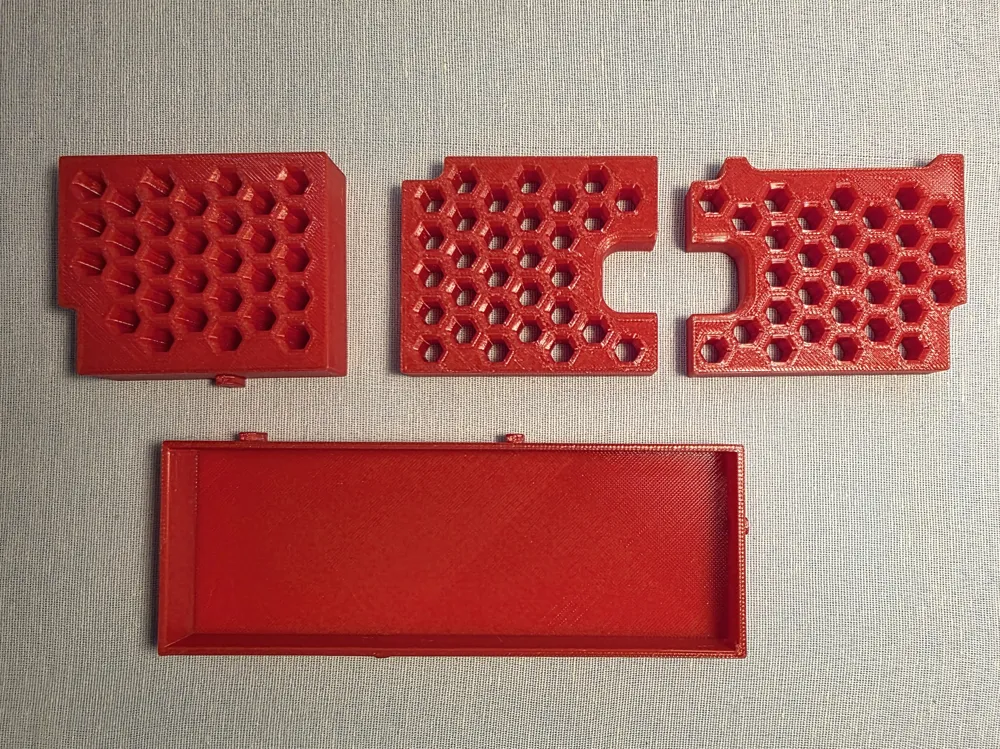

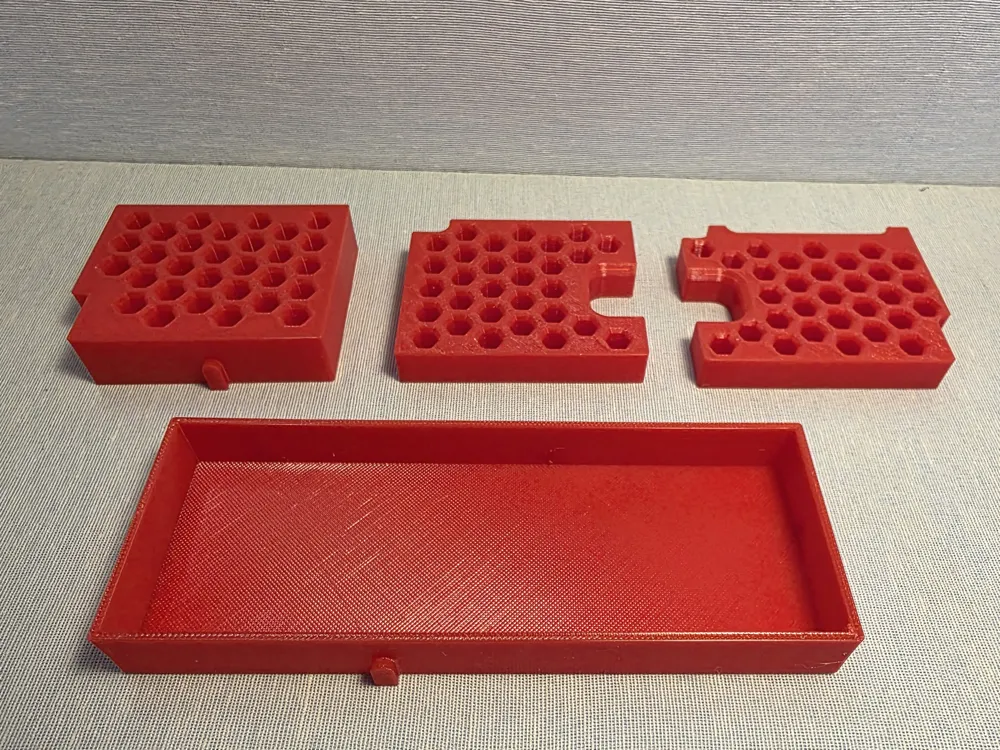

The drill tray and BIT organizers were designed to be printed in TPU. TPU, so that the tray can absorb the metal noises in the box, and the BIT organizers because TPU has the necessary elasticity to fix the BIT and prevent accidental slipping.

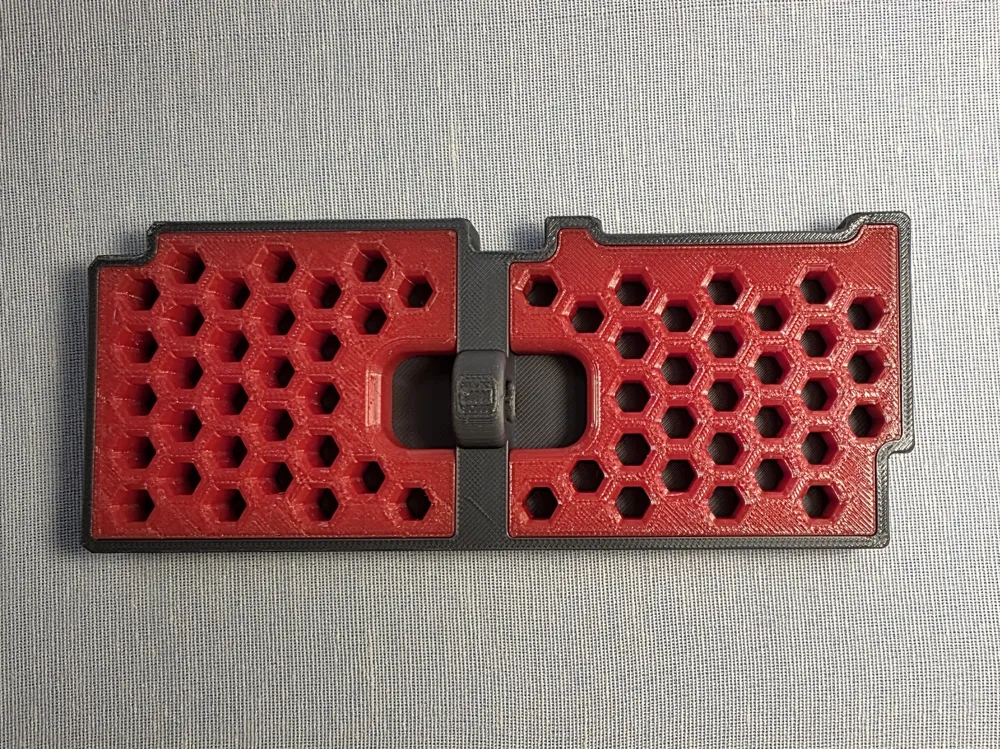

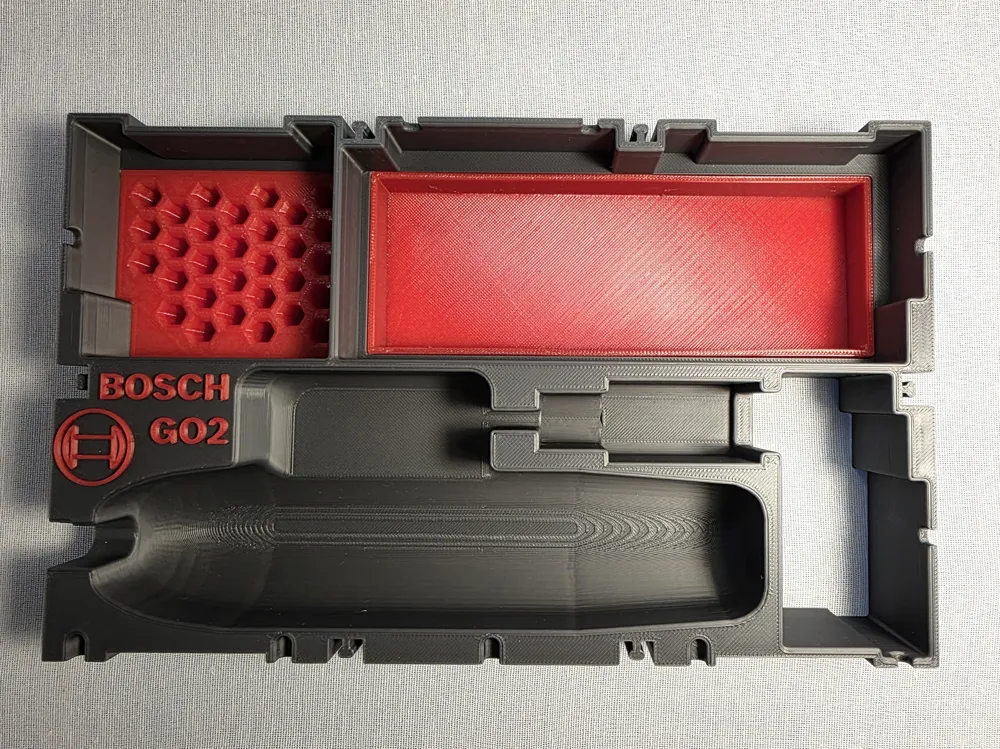

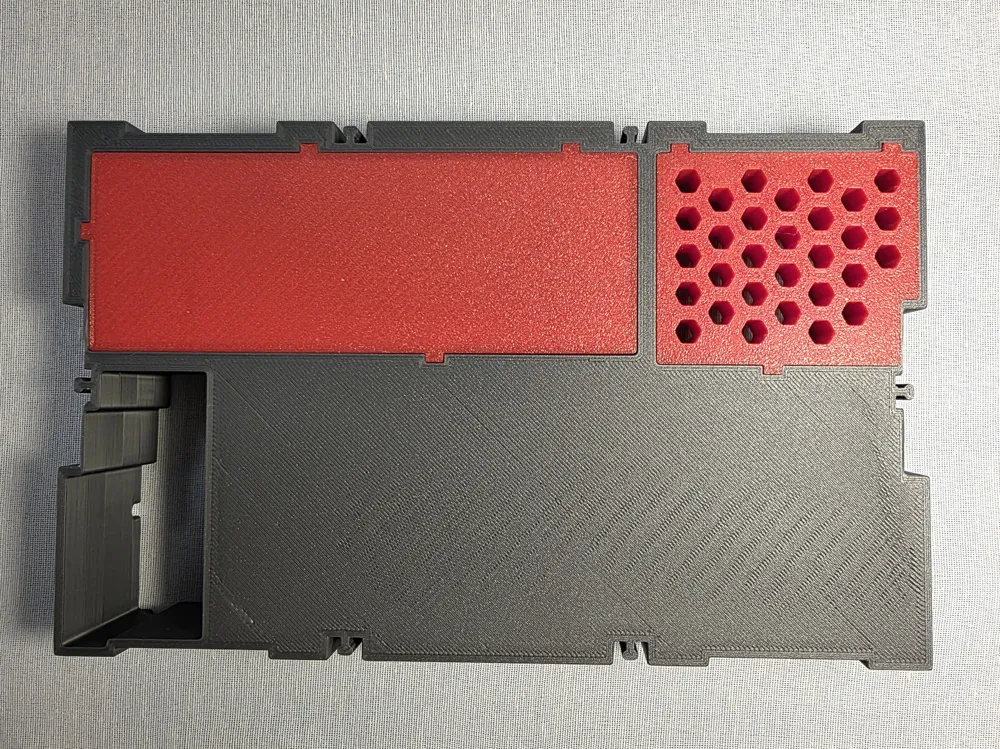

Before installing the organizer in the L-Boxx Mini, the tray and the BIT holder will be mounted from the bottom. They are provided with small guides to fix them.

The BIT slots are exactly 1/4 inch (6.35 mm) and I didn't leave a gap based on the elasticity of the TPU. If the TPU you're using is a bit stiffer, you can try Wall loops 2 instead of 3 and Top shell layers 3 instead of 5, this will make detaching the BITs a bit easier. I did several tests before uploading the model and this was the most satisfactory option for me.
