Dummy13 Goes to the Moon - Astronaut Remix AMS ver

Please keep all these small parts away from children and pets, some parts have pointy ends, and they could be a choking hazard too.  Make or use these models at your own risk.

If you find these for sale on Amazon , Etsy or anywhere else, they are not being sold with my permission. There are no "authorized" sellers of these models. They were made for the 3D printing community, not for Amazon or Etsy sellers to profit from.

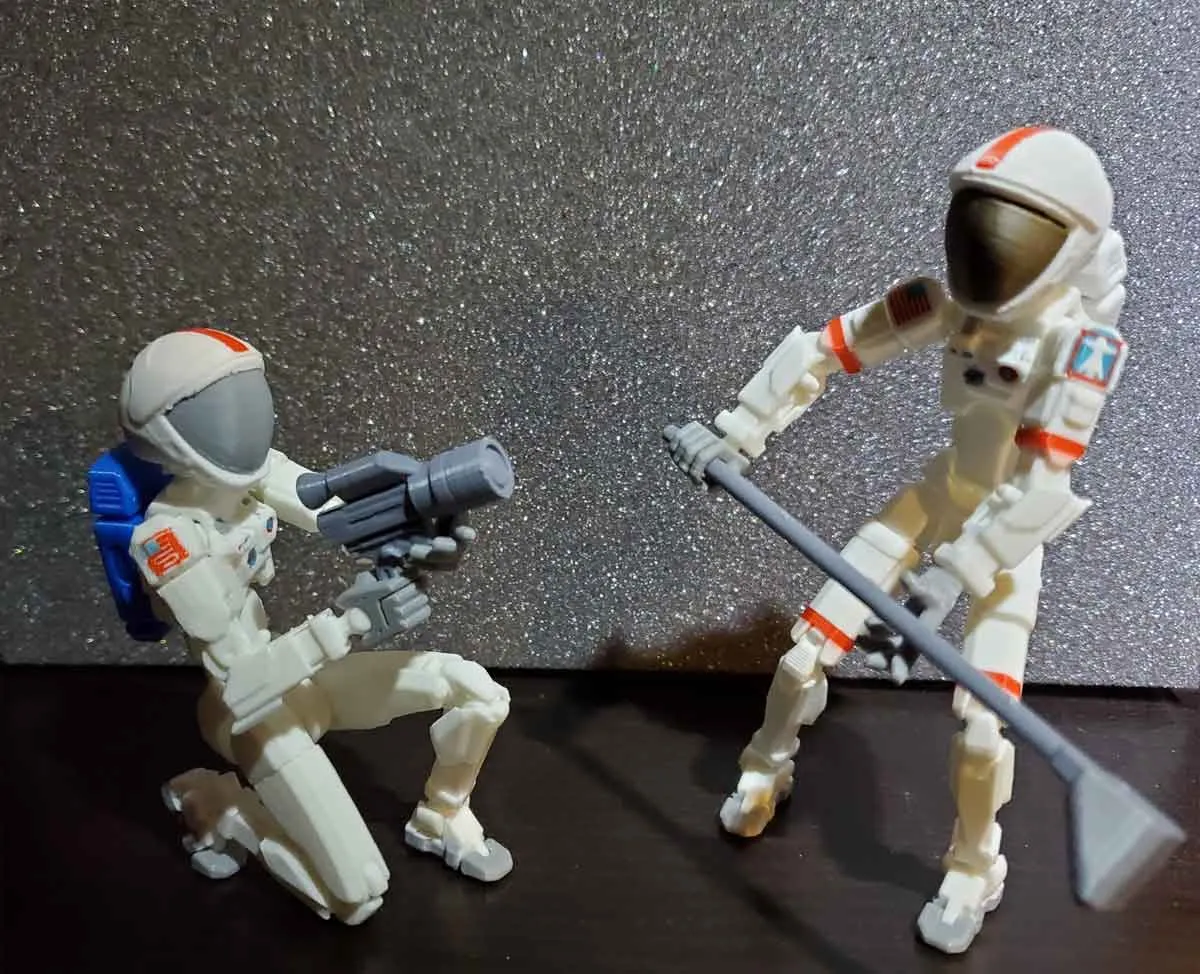

Dummy13 may not have the right stuff to go to the moon, but that's OK, it's a robot (I think). With this astronaut remix, Dummy13 will be ready to be strapped to a rocket for a trip to the moon and beyond. For some reason I included a backpack and a helmet, but don't over think it (I didn't). Maybe the pack is for extra batteries or something? In any case Dummy13 will look just like a real astronaut, while performing those dangerous one way missions to places humans dare not go.

If you want to remix this, I've included a STEP file to make things easier. If you remix it elsewhere, please post a comment here with a link, so I can check it out.

And big thanks to Soozafone for the awesome Dummy13 model, which this is remixed from! If this remix is not for you, the Dummy 13 model, and it's other remixes are definitely worth a look (and a like).  Please grab the “Individual frame parts” from the Dummy 13 model to use with these remixed parts.

The files are organized into folders to keep the parts associated with each piece together.

Printing and other stuff:

1. The parts here are designed with an AMS/MMU in mind. I have included the 3mf profiles for a Bambu X1C, which are pre-colorized and set up to print with similar settings to what I used. I printed 6 of these at a time though, to save on purged material.
2. Due to slicer restrictions, there are two .3MF files.  This is because I set up some models to print without a prime tower, and some with a prime tower.  This was done to speed up printing and save material.  You will need both 3mf profiles, they are:
   X1C_Astro_V53_AMS_Most_Parts_w_Prime.3mf
   X1C_Astro_V42_AMS_no_Prime.3mf

3. If you find there is color bleed on the parts without a purge tower, raise the flushing volume multiplier.
4. I left the layer height as 0.2mm on all parts in the .3mf files.  The helmet uses a variable layer height, which requires printing on it's own plate due to slicer restrictions when using prime towers.
5. The supports are painted where they are needed (on the helmets).
6. There are two versions of the helmet, one is designed for multicolor, and the other can be glued together.  They are both included, so just remove the parts you don't want to print.  If printing one model, I recommend the split helmet model, to save on print time and material.
7. This model will require all of the frame parts, and most of the armor parts from the original Dummy13 model. If you use the .3mf files, I have included the required armor parts for convenience, but please get the frame parts from the original Dummy 13 model.
8. It's best to print the frames on these Dummy 13 models in PETG, otherwise they can turn into ragdolls when using PLA (thanks to MK4_Expert (at Printables) for that tip!).  The armor can be printed in PLA without a problem.
9. For the included 3mf profile, I had the colors set up as follows:

Slot 1. PLA - White

Slot 2. PLA - Blue

Slot 3. PLA - Gray

Slot 4. PLA - Red

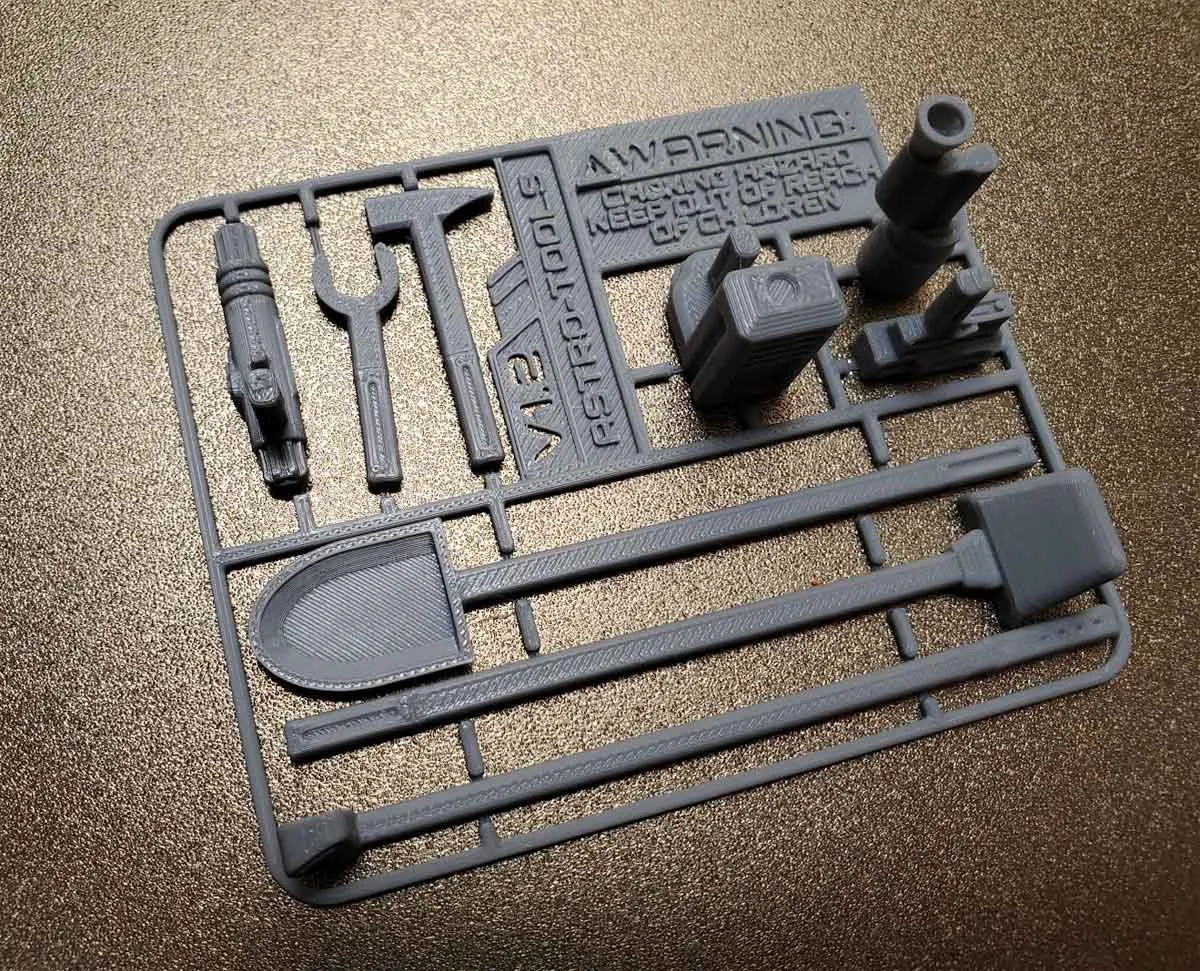

There is now an Astronaut Tools Kit available, with some tools, which you can find here.

Update 2/26/2024: There is a minor update to the backpacks, which now have a longer peg.  The profiles have been updated with this changes as well.

If you want to add a cool “Photon Cannon” for your Astronaut, check out ntdesign's DUMMY 13 Lamp (250% scale).

Mici has made a Moon Rover for Dummy 13, which I'm currently building to give my astronauts a cool ride across the lunar surface.  You can check it out here (and make sure to give it a like since it's entered in the Space Explorations Contest).

https://makerworld.com/en/models/770027#profileId-705787

Other Stuff:

If you like this design and want to check out some of my other Dummy 13 stuff, here is a list of my Dummy 13 Weapons and Adventure Packs:

Weapons Pack V2.1 - MP5SD, MP5K's, Handguns, Holsters and Katanas

Alpine Adventure Pack v1.0 - Skis, Ice Axe and Backpack for Winter Adventure Sports

Astronaut Tools Kit v1.1 - Space drill, pick, geologic collection scooper, camera and other Astronaut stuff

Astronaut Armor - Includes a helmet, backpack and other armor parts to turn Dummy 13 into an astronaut (in multicolor too)

BBQ Tools Kit - You read that right, even Dummy 13 likes to grill up some burgers now and then

Dino Safari Pack - Everything a Dino Safari Park Ranger needs, including a cool hat!

Roadside Assistance Kit - Traffic cones, a bottle jack and other tools

Big thanks to Lucky 13 Toys (Soozafone) for sharing the awesome Dummy 13 (v1.0) model with the world. The Dummy 13 model (which this was designed for) is shared under the following license:

Note - if you see these for sale on Amazon , Etsy or anywhere else, they are not being sold with my permission. There are no "authorized" sellers of these models. They were made for the 3D printing community, not for Amazon or Etsy sellers to profit from.

If you find these models useful, please post a like or a comment with some pics of your prints. You can find the other things I'm working on at my blog here. You can also follow me here, on BlueSky or on Printables, to get news on any new stuff I post.

If you would like to support my work, you can “Boost Me", or  even Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuffmystoopidstuff
