Headphone Stand - Industrial by Josh-3D

Josh-3D

Tools>Gadgets

Print Profile(4)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.2mm layer, 3 walls, 10% infill

Designer

11.3 h

8 plates

5.0(79)

0.2mm layer, 3 walls, 10% infill

13.3 h

10 plates

5.0(10)

0.2mm layer, 3 walls, 100% infill

17.1 h

8 plates

0.2mm layer, 2 walls, 10% infill

11.3 h

8 plates

Boost

1083

1516

159

1.7 k

2.6 k

Released

Description

A headphone stand with industrial styling!

I have my previously designed stand, but it's not always suited for larger headphones. I also wanted something a little more industrial styled, and thus managed to come up with this.

Model is featured in Bambu PLA Matte Charcoal and Bambu Iridium Gold Metallic. A good alternative with similar look to Bambu's metallic is Hatchbox's Metallic line. There might be others, but that's the one I'm aware of.

[Spotlight]

Check out this PS5 Headset focused remix by Johan Jamaer - JJ Deluxe Designs!

[Tools & Assembly]

Assembly is pretty easy. You'll need the following hardware and tools.

M4x10 - 2

M4x16 - 4
M4x20 - 4
M4x25 - 4
M4x40 - 4
M4 Nuts - 16

Hex Driver

Drill bit for clearing holes

For the screws, I am using M4 Socket head cap screws. If you don't have M4 screws on hand, I would recommend purchasing an assortment kit, like this one from amazon.

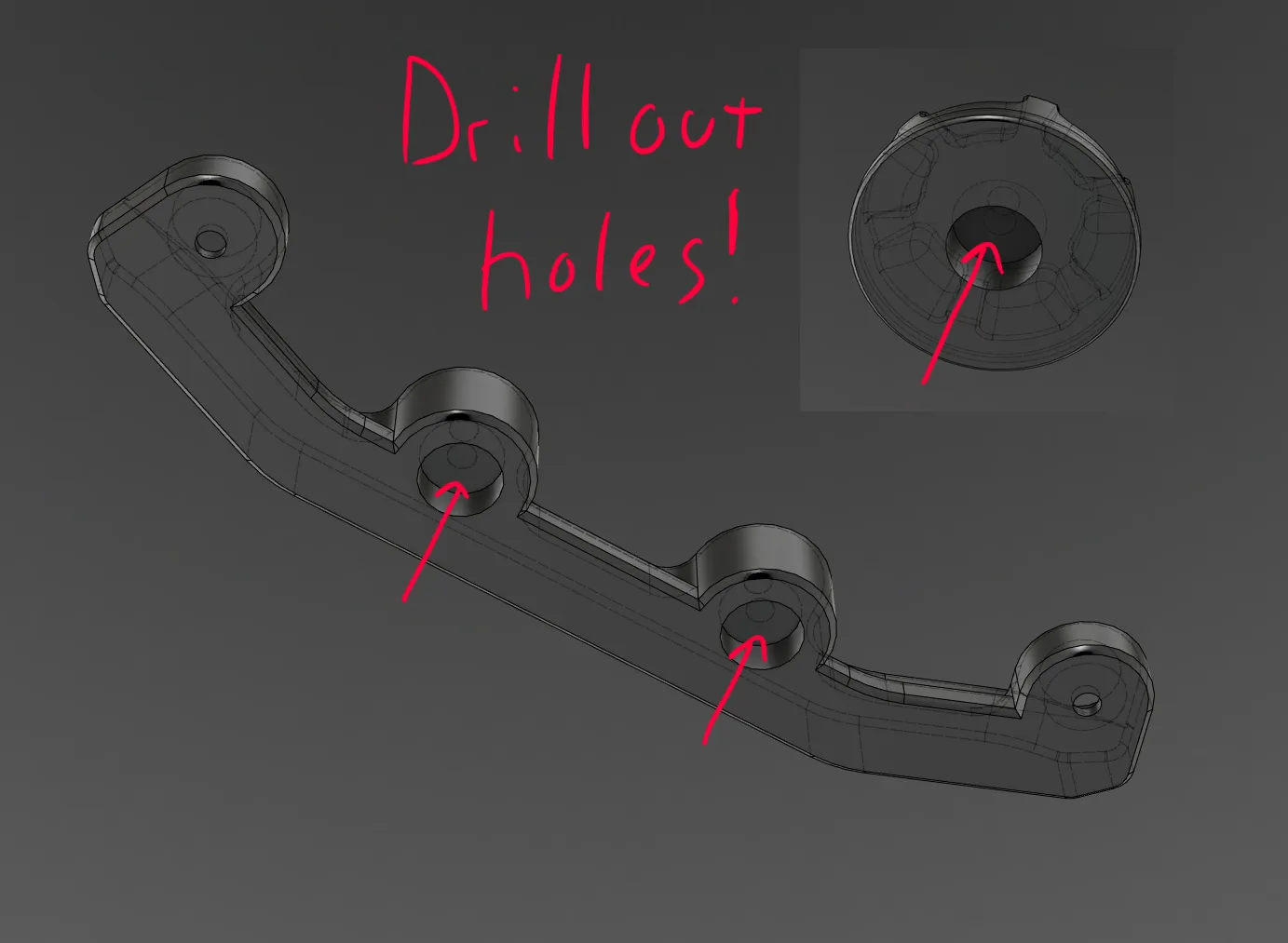

Start by clearing out the holes as illustrated. A flat surface was left on these holes so additional support wouldn't be needed during printing. Only the leg and foot pads will need this.

For assembly, you'll be using the 3d printed spacers along with the M4 screws. The side with the nut is wedged slightly, so as you tighten it, it should grip onto the model instead of spinning.

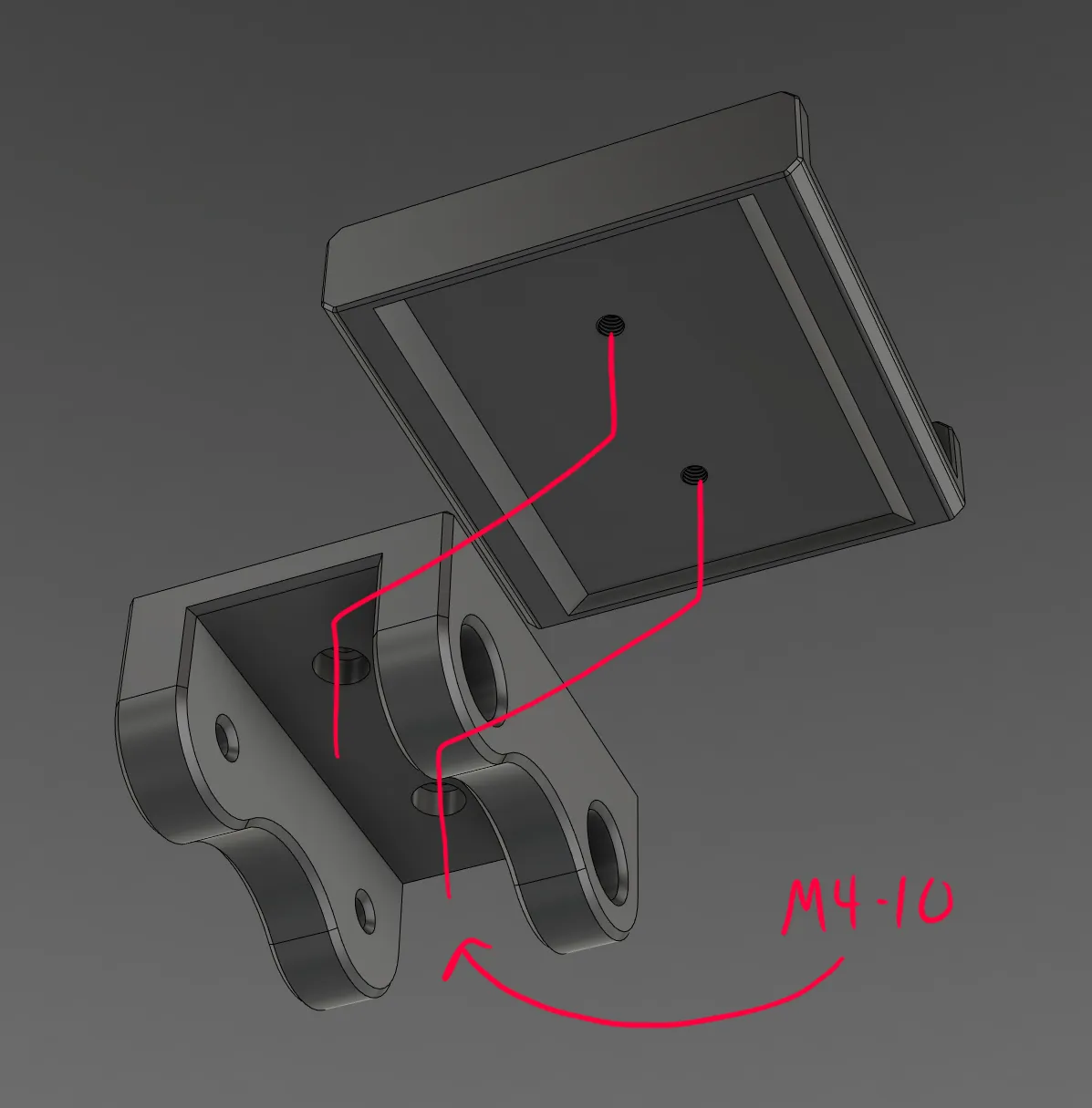

For the headphone rest, first screw the top to the bracket.

Then use the following image to help guide the rest of the build, and which screws go where. First assemble the main arm, and then work your way outwards, attaching the base, legs, feet, and headphone rest.

-------

If you like my work, consider showing your love by Buying me a coffee. Additionally, if you're looking to sell prints of my design, please check out my Patreon page for more information.
