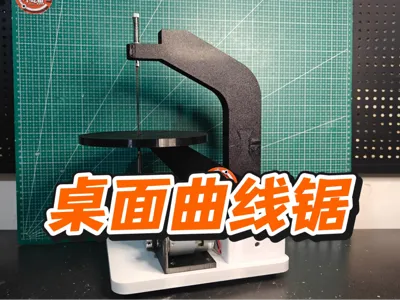

Desktop scroll saw
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
18.4 h
4 plates
Open in Bambu Studio
Boost
29
74
0
1
27
5
Released
Description
Content has been automatically translated.
Boost Me (for free)
Modeling is not easy. If you like it, please like, collect, and support me. This will be my motivation to model~
The short video platform has been updated... The introduction and installation steps are very detailed

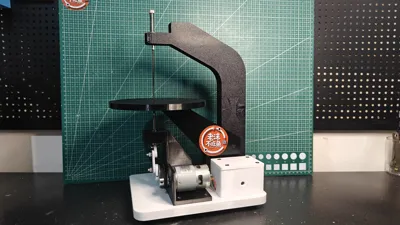

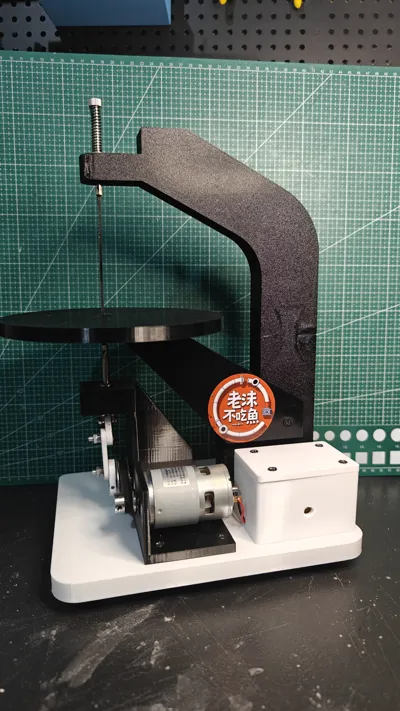

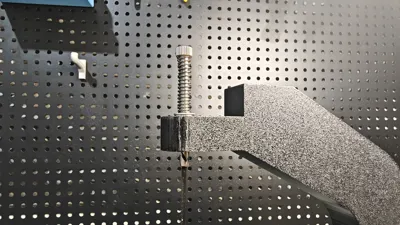

This desktop scroll saw is designed based on a handmade scroll saw
Kind reminder:
1. The scroll saw can be a bit challenging to use. Beginners, please go to the short video platform and search for the UP's name to watch the video tutorial.
2. It shakes a bit during use, so you need to press down on the operating surface. If you require high precision, please do not download and print it; it is for entertainment purposes only.
Hardware accessories list:

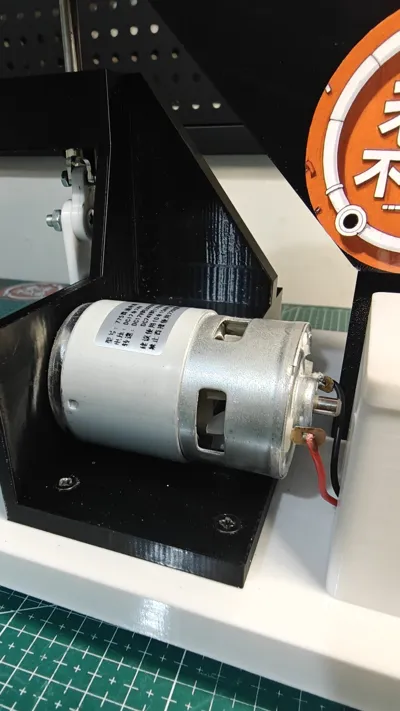

775 motor:24v 12000 rpm (must be this configuration or higher; scroll saws require high torque)
Synchronous pulley:2GT1:3belt 182
Bearing:5mm*10mm*4mm*quantity 3
Linear motion bearing:6mm*12mm*19mm*quantity 2
Optical axis:5mm*8cm
Optical axis (for saw blade fixation, cutting reference to the PVC handmade video):6mm*6cm、6mm*7cm
Spring:wire diameter 0.8*55mm
Shaft retaining ring:5mm*10mm*6mm*quantity 2、6mm*11mm*5mm*quantity 1
6-turn-6 universal joint:Connects the reciprocating structure and the saw blade fixed optical axis
Saw blade:length 130mm
DC socket:5.5*2.5
Switch:common 2-pin boat switch
Screws:M3*16, M4*10, M4*16, M5*20 several
