Flex Stack Worktop Pack
Print Profile(1)
Bill of Materials
Description

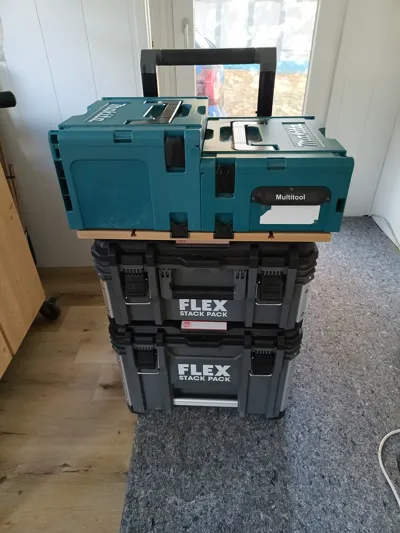

For the Flex Stack Pack system, I was missing a plate to work on. Quickly clamp something down when cutting or have space to assemble something small

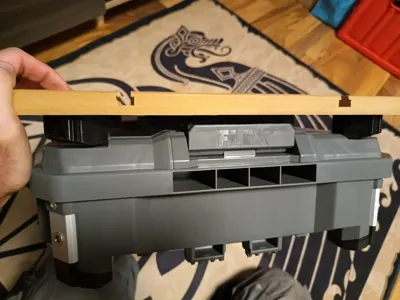

But I didn't want to spend about 80 euros for the original plate, and then it might not even suit my work, so I designed the feet and latches

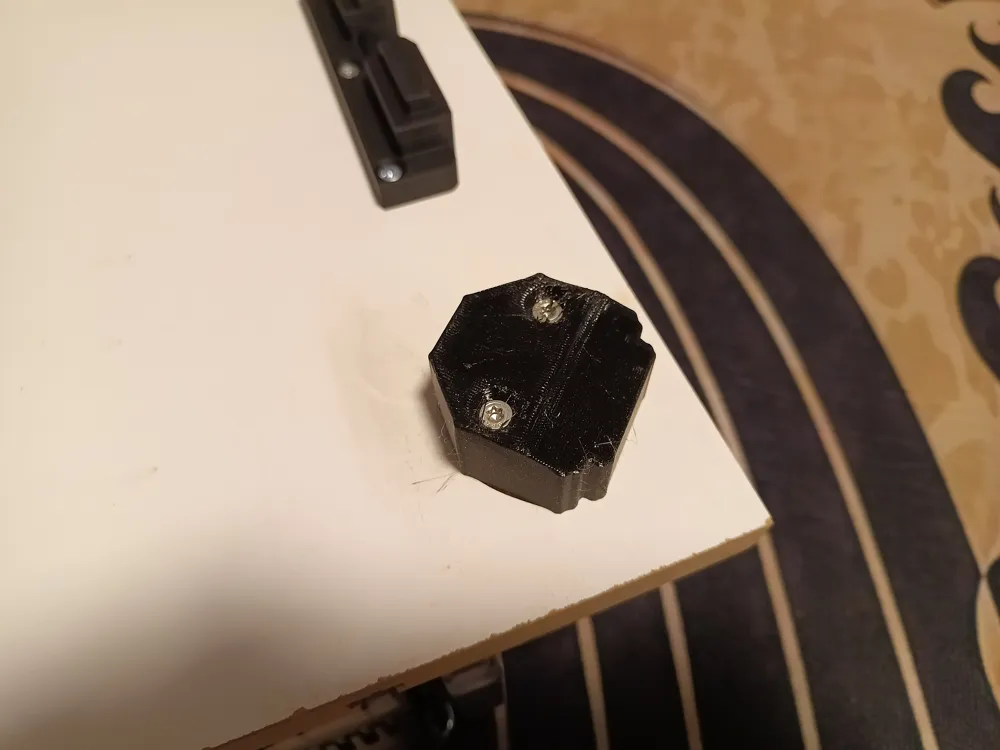

I made the feet with TPU95HF

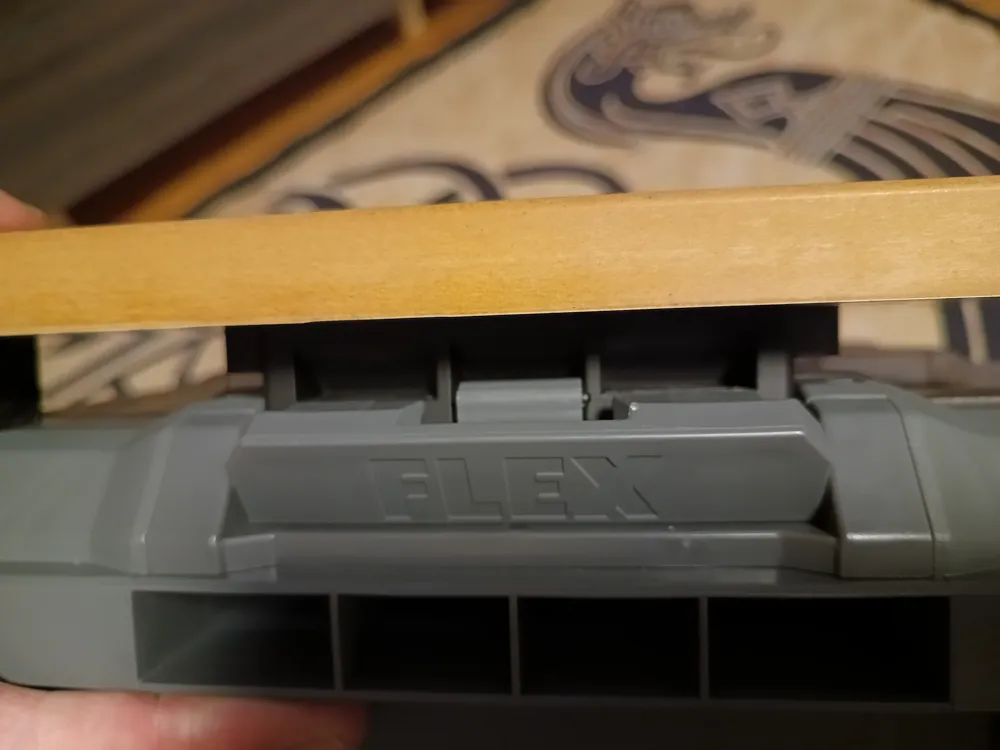

Latches with PLA
You have to decide the screw length yourself, depending on the material thickness

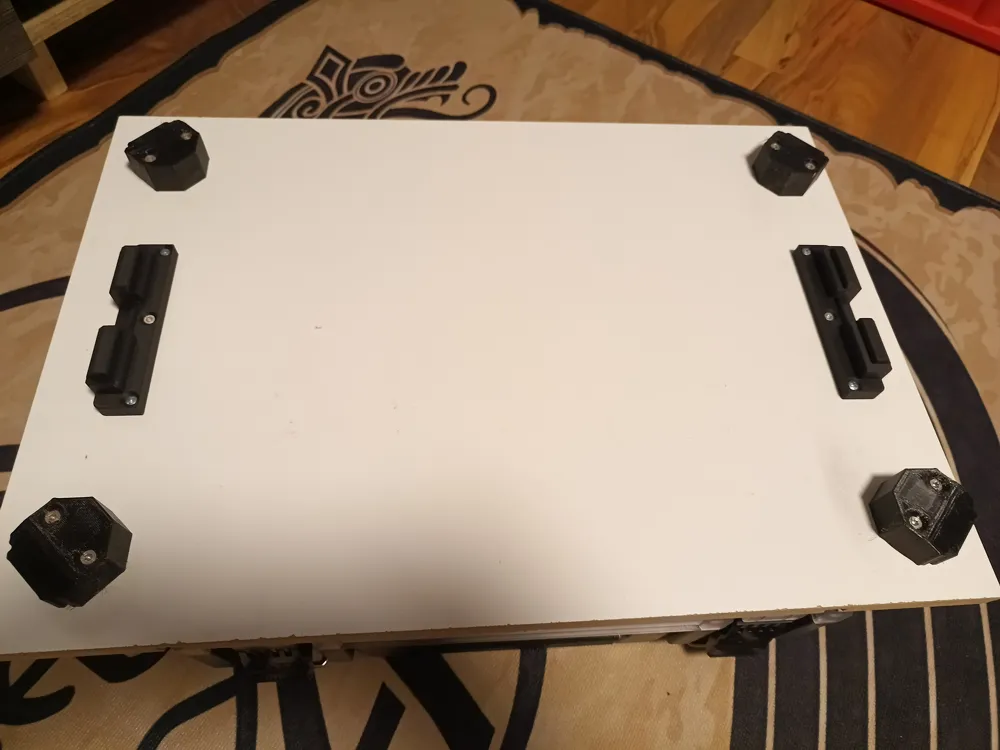

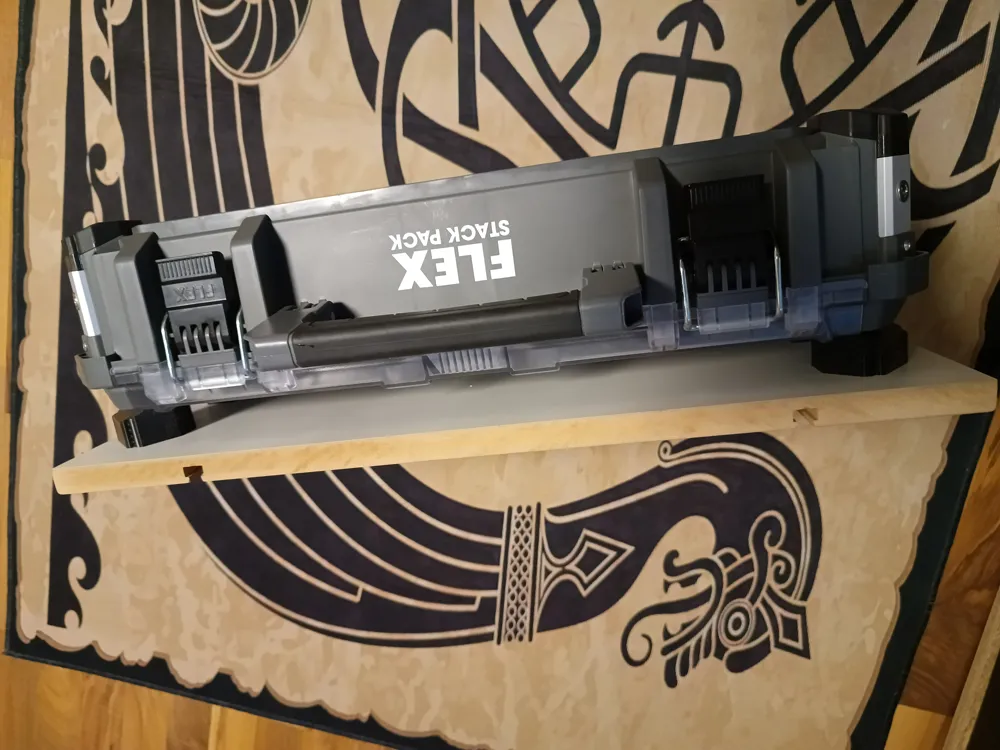

I positioned the elements on the box, put a few drops of super glue on the contact points, and placed the plate on top
Wait a bit and press firmly, then remove and screw it tight

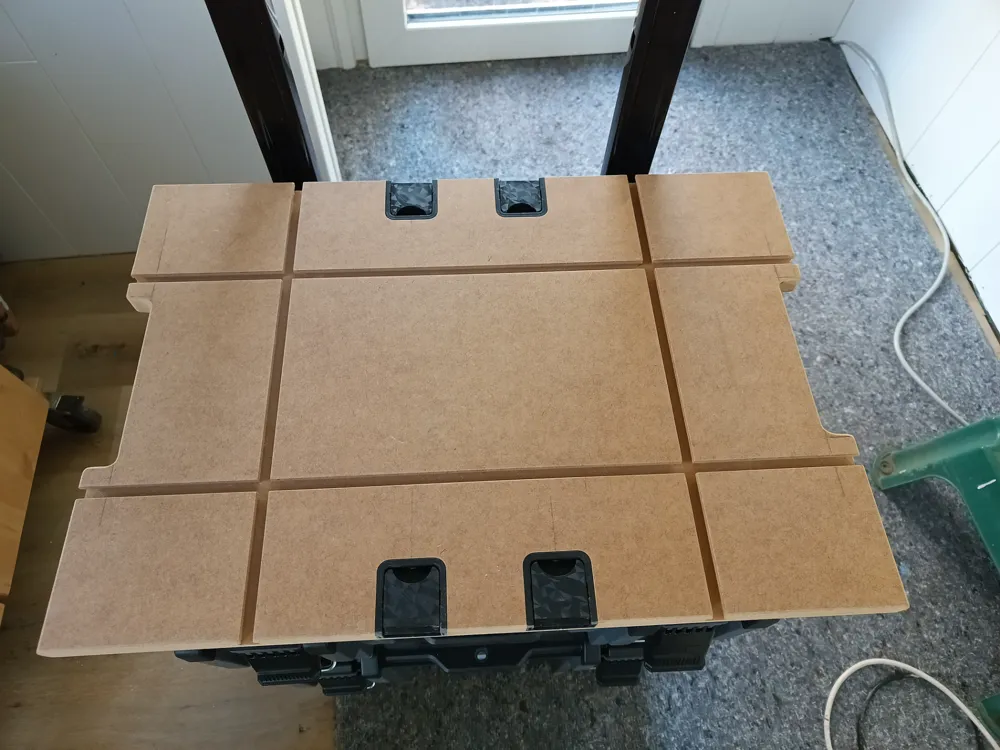

Afterwards, I also milled grooves to make it easier to access the latch
You can find the clips for the Makita Makpac cases on my profile
I always appreciate feedback or a like :)
