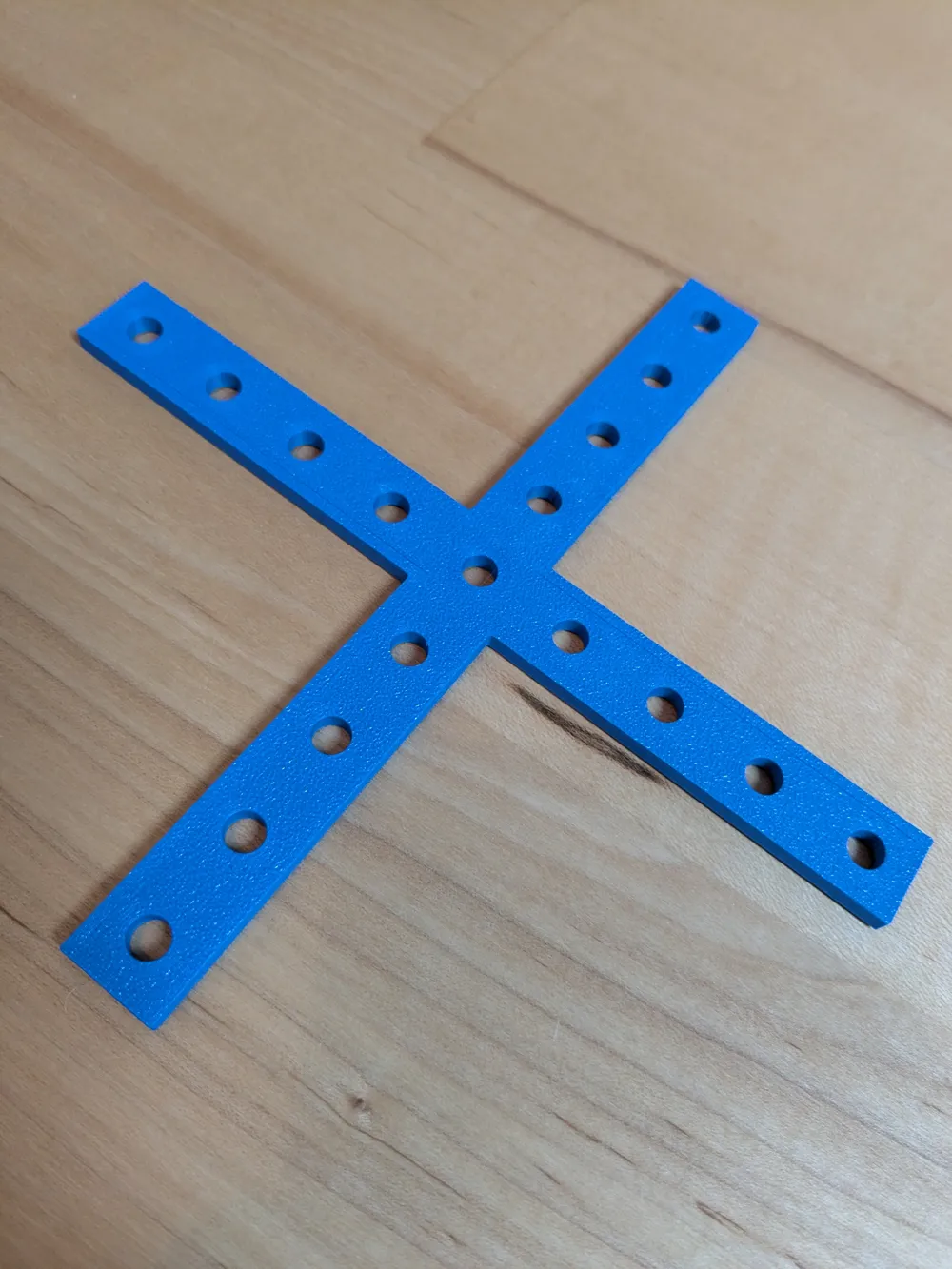

Parametric Support Bracket

Here are some brackets which can be used to reinforce furniture.

It works particularly well in cases where there are other screws in the woodwork which need to be avoided. They seem quite strong with 4 walls and 25% infill, 5mm deep.

I'd recommend printing this in a colour close to the natural wood colour or to fit the background.

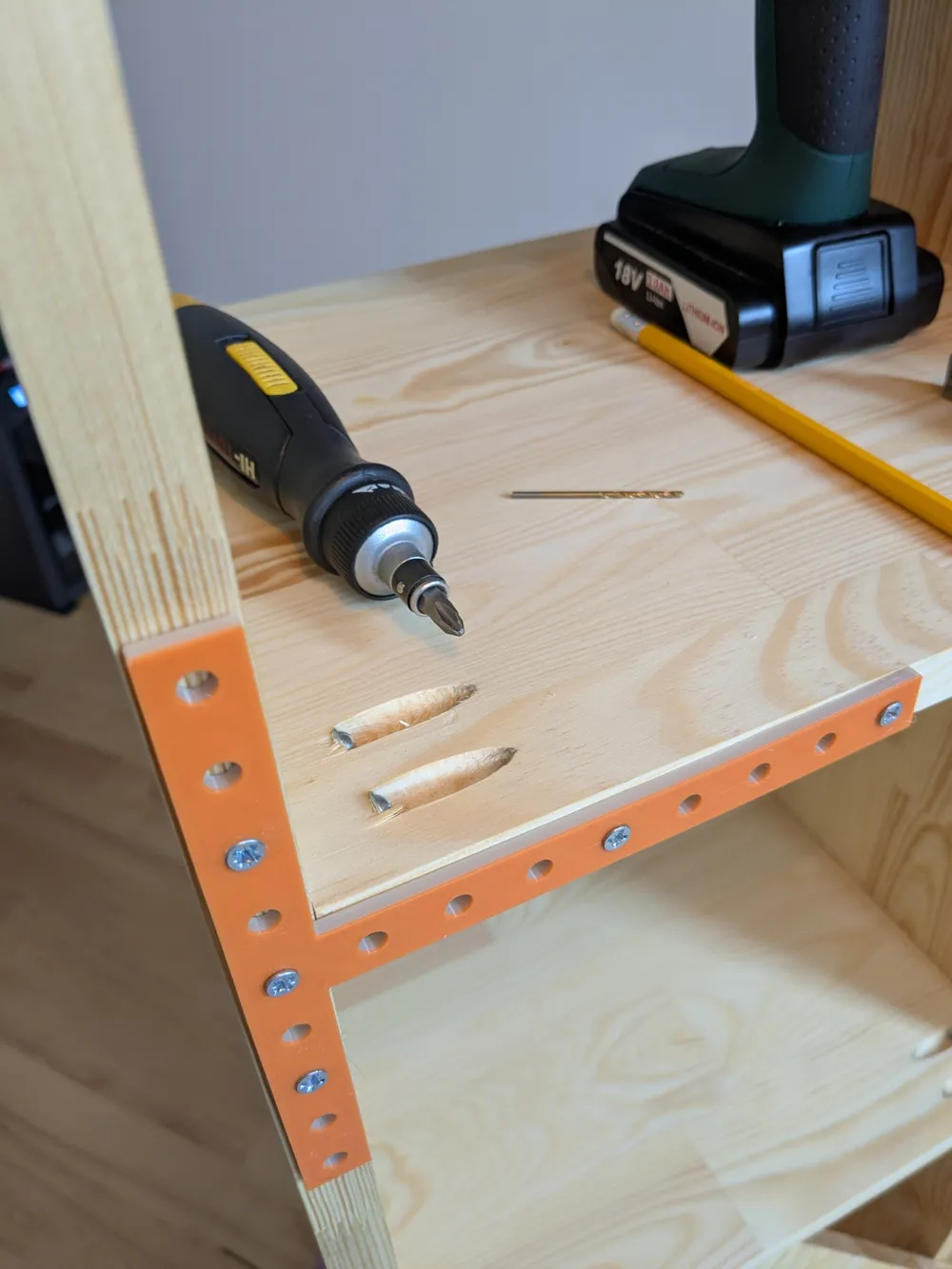

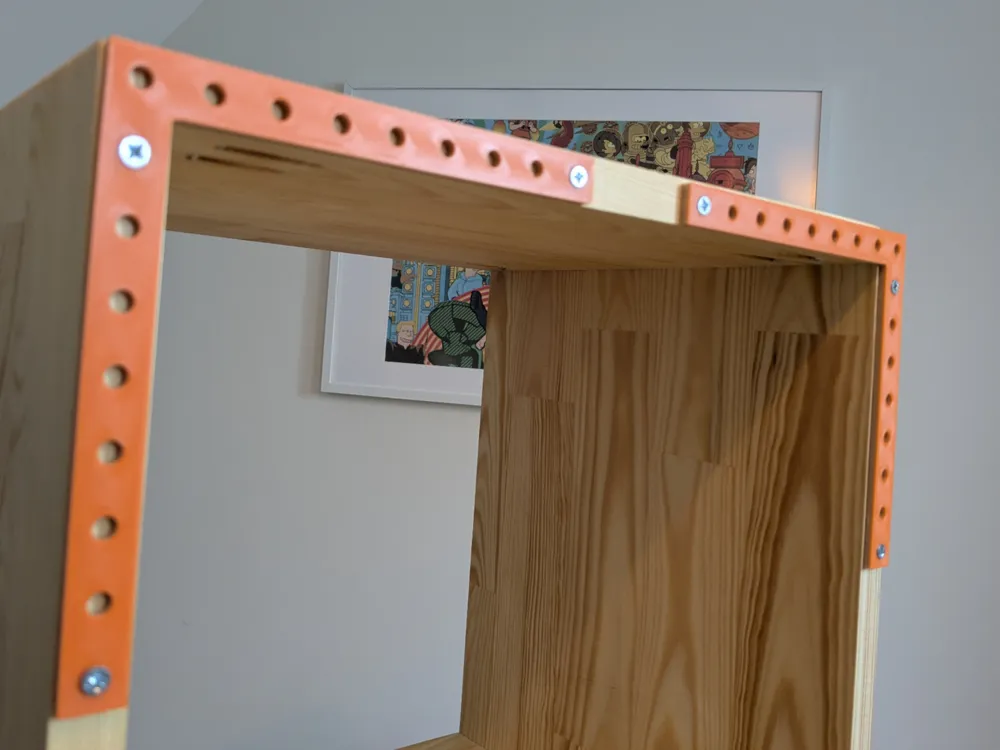

In the photos the parameters are the default parameters in the model, attached to 18mm thick pine.

This was my first model which worked first time, but if I revisit this model it may be to properly handle countersunk screws, allow for bigger gaps between screw holes, and print the bracket quite a bit thinner than the wood, rather than just 3mm thinner.
