Skadis Computer

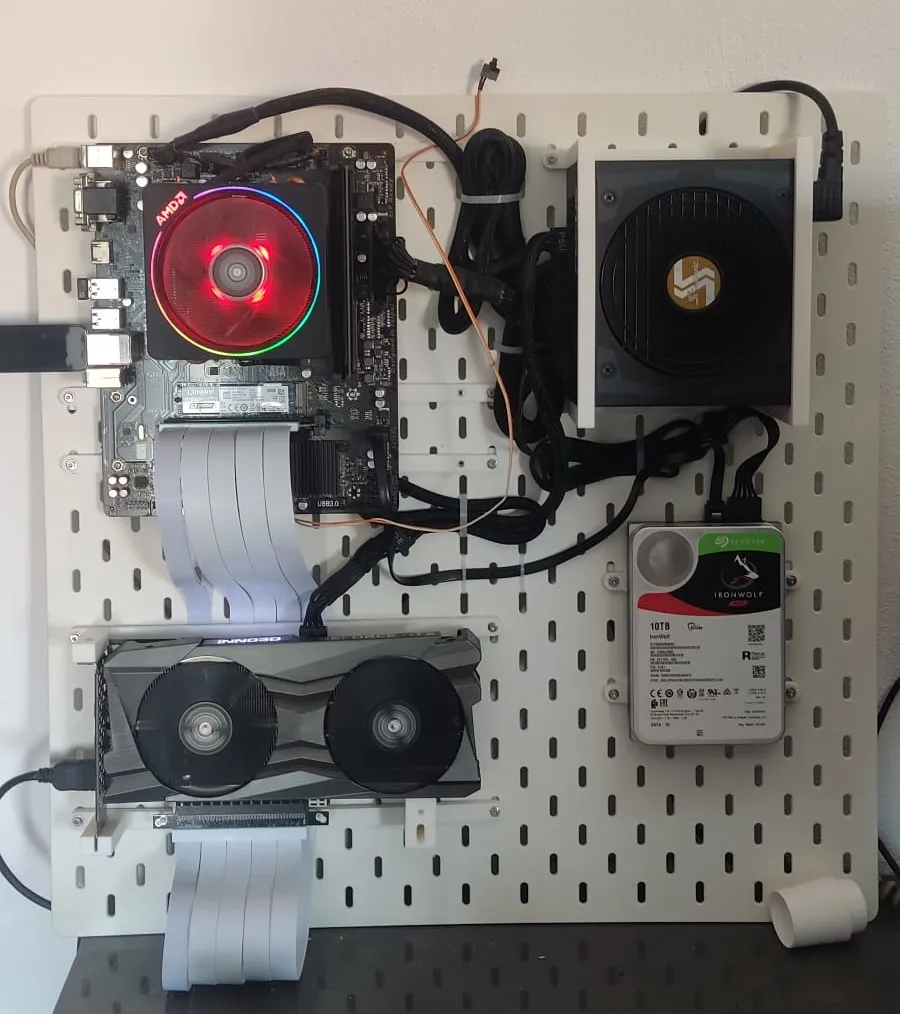

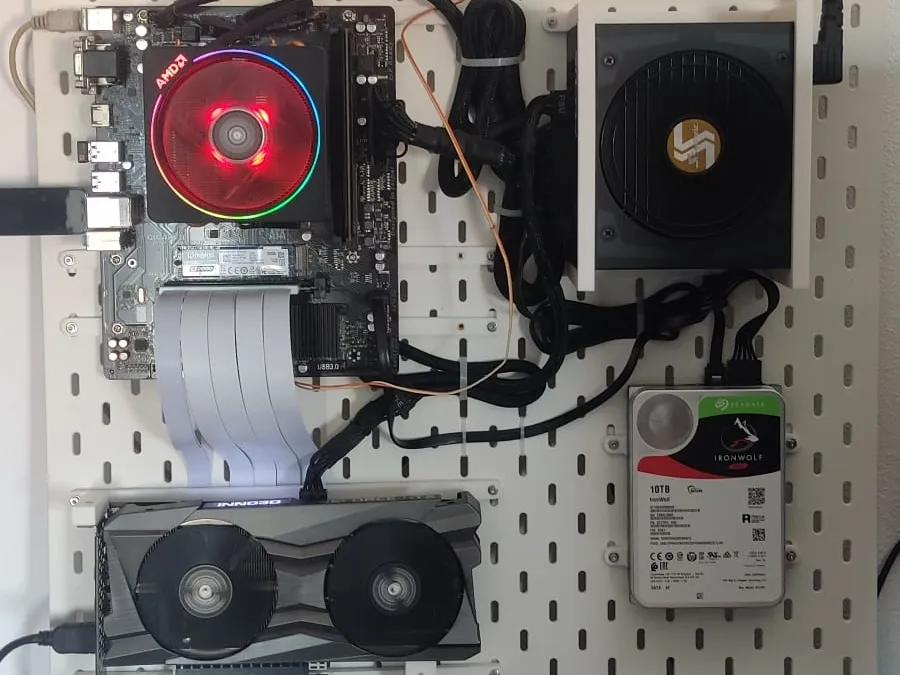

I had my computer on a very old computer case that was always tight and small for what i needed. I always wanted a wall mounted computer and had seen some Skadis adaptations so i set myself to draw some supports to fix the components to a Skadis.
Im very happy with the result and if someone else wants to print and have something like this have a go at it

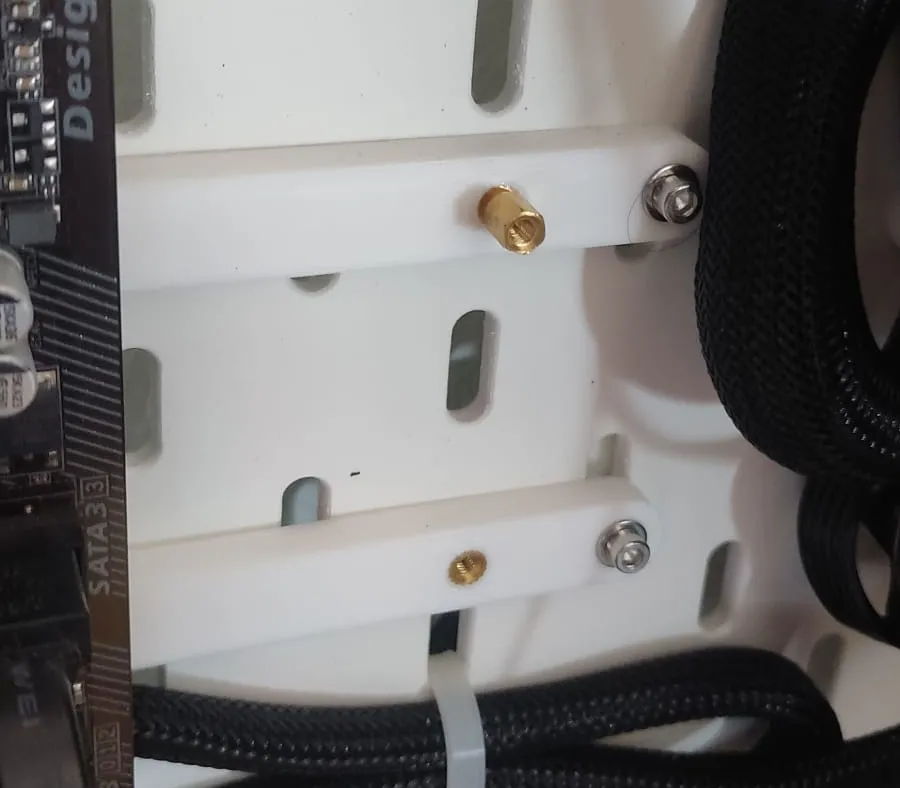

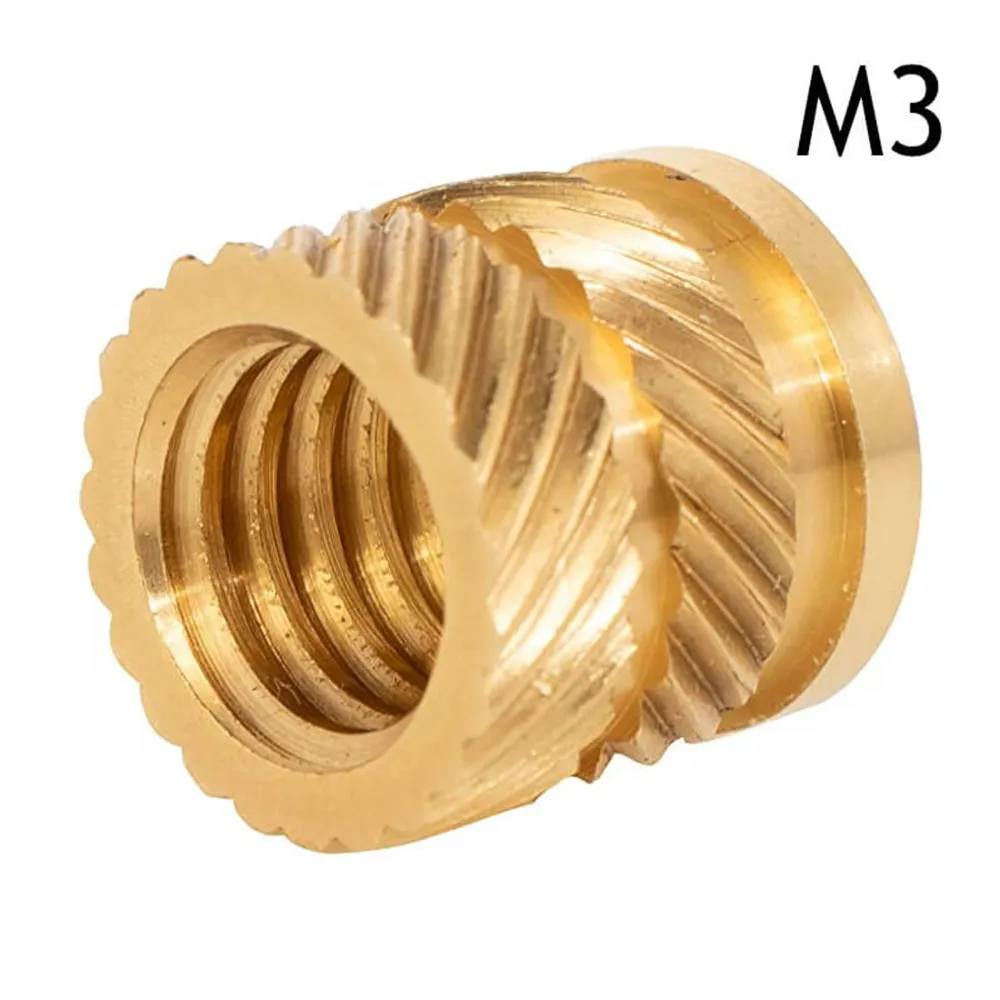

The small bits that hold the supports behind the Skadis use an heat insert for an M3 screw, 5mm outer diameter and 5mm in height.

The long supports for the motherboard will take the same heat inserts and then a motherboard brass standoff on them to get the motherboard at a safe height.

The GPU long support will take one heat insert also.
The other two smaller supports on the GPU plate take heat inserts that can be longer up to 10mm (for extra strenght).

The PSU support takes heat inserts up to 10mm.
