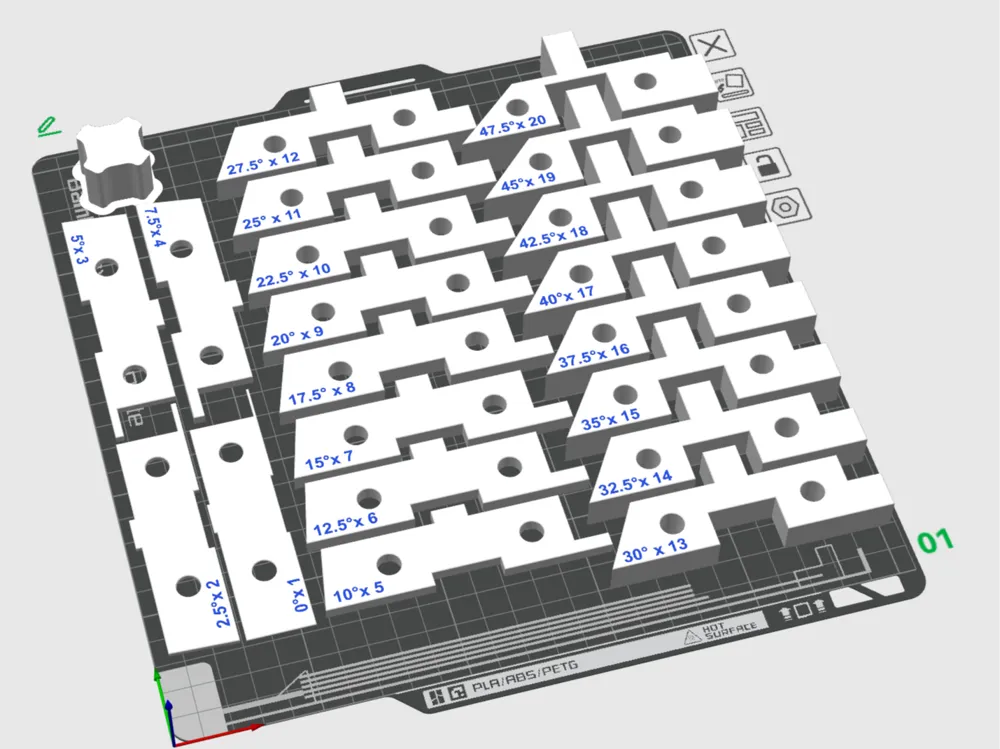

Parametric, printable setup blocks for workshop calibration. Each block’s height equals its width, covering 1–20 mm in 1 mm steps. The set also includes angle gauges every 2.5° from 0° to 47.5°. Designed for two-color printing to make the embossed labels highly readable.

Use these blocks to quickly set tool height—e.g., table-saw blade height or router bit depth.

Features

• Square dimensioning: height = width (1–20 mm).
• Angle set: 0°, 2.5°, 5° … up to 47.5°.
• Two-color ready: raised legends for clear, colored markings.
• Parametric chamfer and text depth: customize in CAD.
• Two 8 mm locating holes: fast positioning on pins/dowels/fixtures.
• Flat, support-free geometry: optimized for straightforward FDM printing.

Material

• Recommended: PETG.

Notes

• Source is fully parametric—adjust block sizes, fonts, and hole diameters to suit your workflow.
• Not affiliated with any tool brand; provided for workshop setup and measurement tasks.
