Description

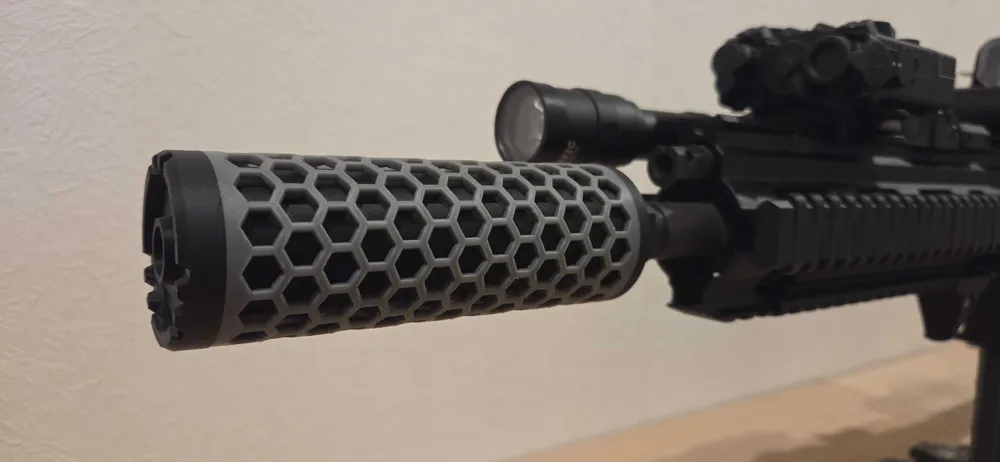

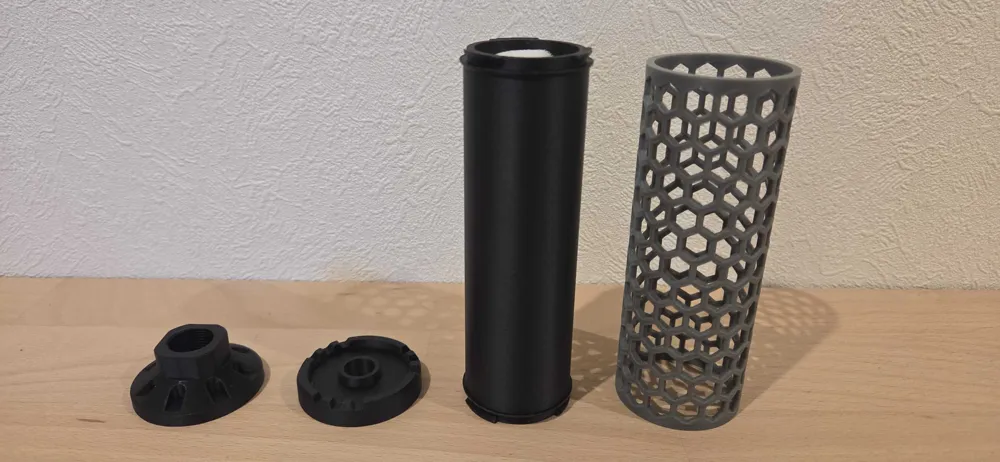

This modular airsoft suppressor consists of four interlocking components that are connected by a left turn. During assembly, you can easily orient yourself by the seam lines. If you've done it correctly, the seams of the base and top will be on the same side and can be rotated downwards towards the weapon for a clean look
In the future, I plan to design other variations of the components that can then be freely combined. Just check out my profile
As material, I recommend Bambu PLA Matte, with which I achieved very good results. The outer shell in my case is printed with “NONAME” PLA.

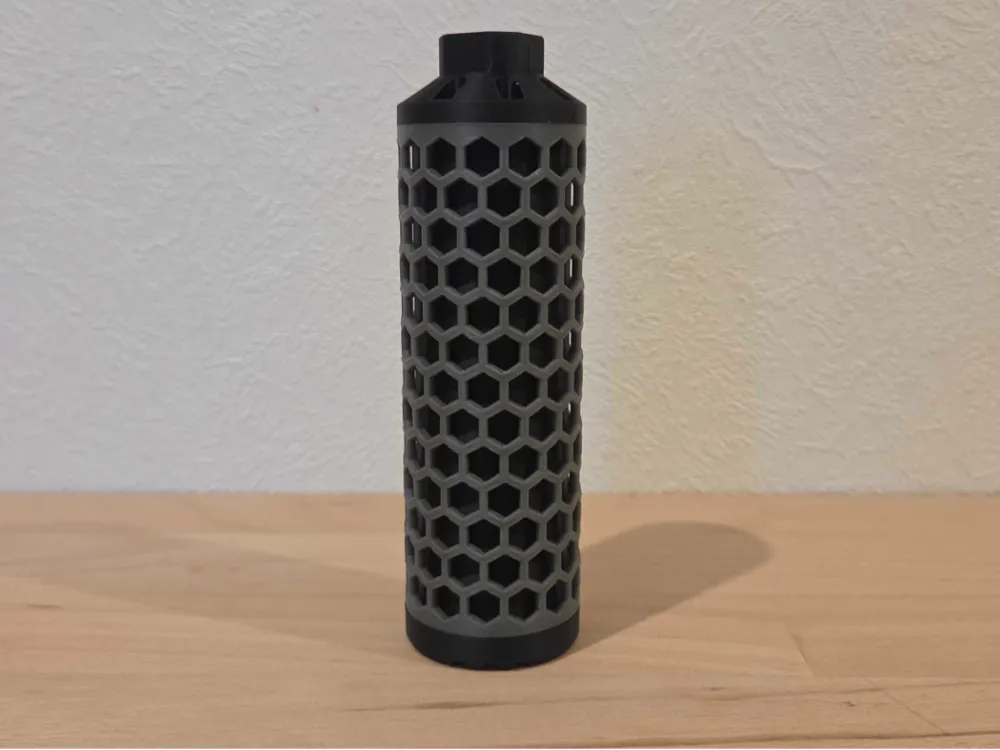

Dimensions
- Overall length: 132 mm (approx. 5.20 in)
- Outer diameter: 40 mm (approx. 1.57 in)
- Inner diameter (Inner Tube): 28 mm (approx. 1.10 in)
Assembly instructions

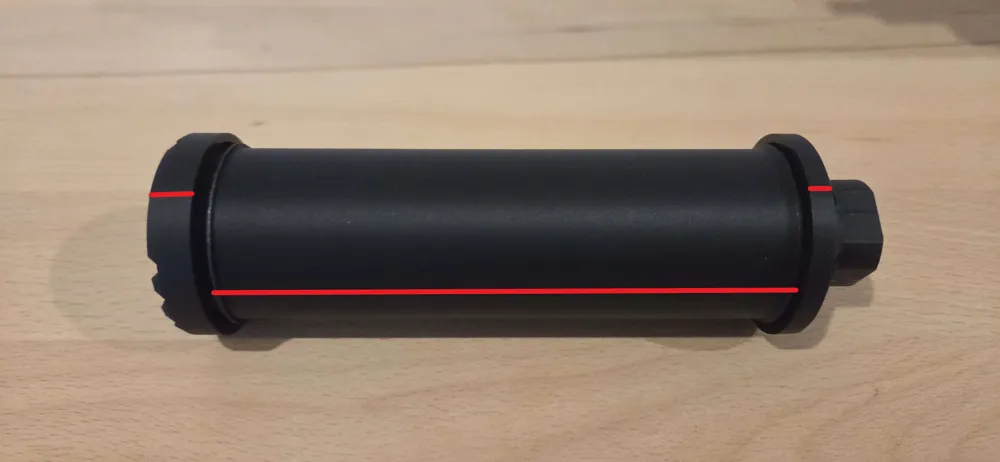

- The position of the seams is shown in the last photo.
- Initially, assembly may be a bit stiff depending on the filament used.
- A later revision of the mechanism is planned to further optimize handling.
Should you need different dimensions, feel free to write me a comment and I will see if I can adjust the design accordingly
If you like the design, I would be very happy about likes and ratings
Thanks
