Description
My plate size is 1500x750mm

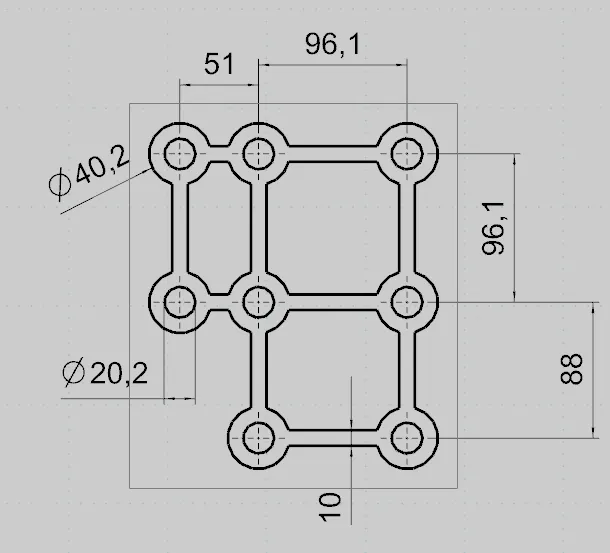

Drawing of plate. On the P1S I needed to add the 0,1mm to get a distance of 96mm in the printed part. On they first tries with exactly 96mm in the 3d model the distance was slightly to small.
For the pin with the screw you will need a M6 nut and a M6x25 screw

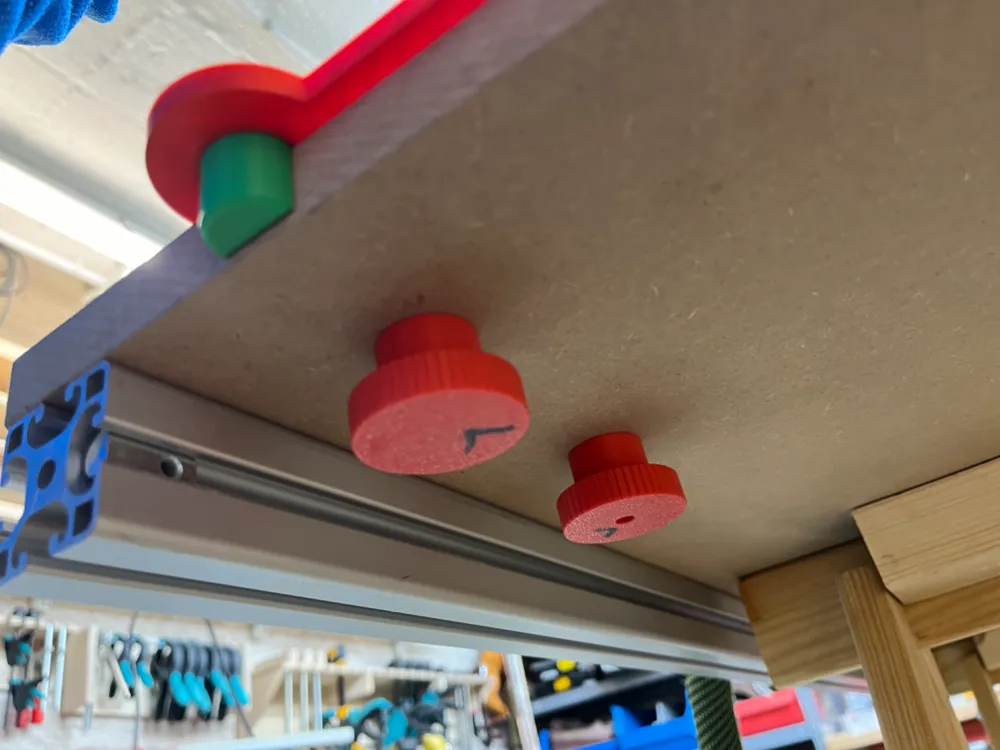

I've used my standard knob to fixate the jig.
https://makerworld.com/en/models/187307#profileId-232481
